914-3200-136GUARD SET CV WIDE ANGLE

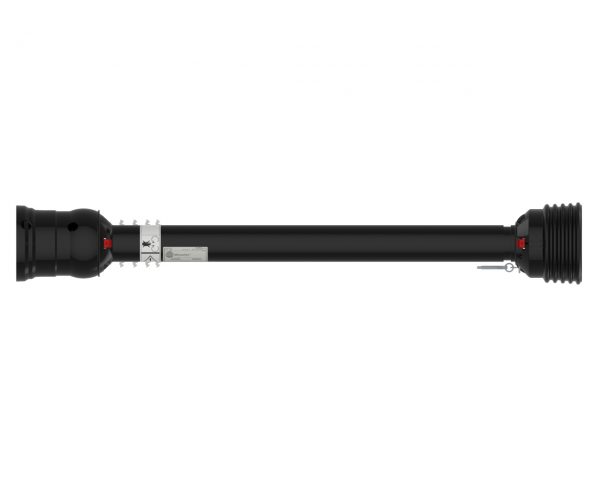

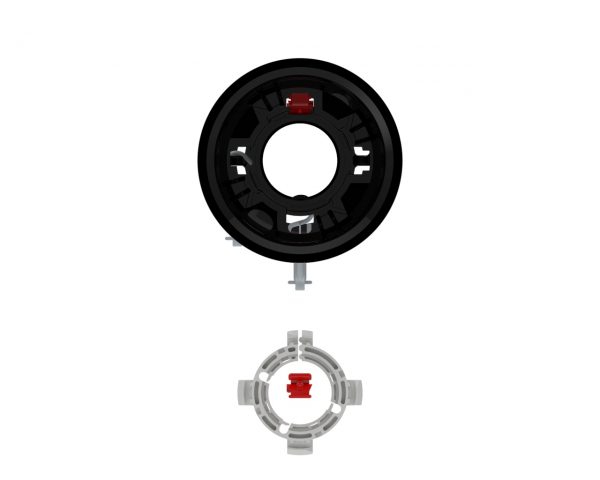

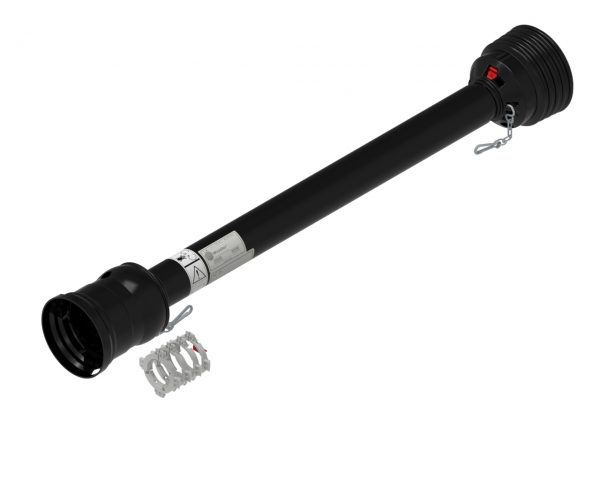

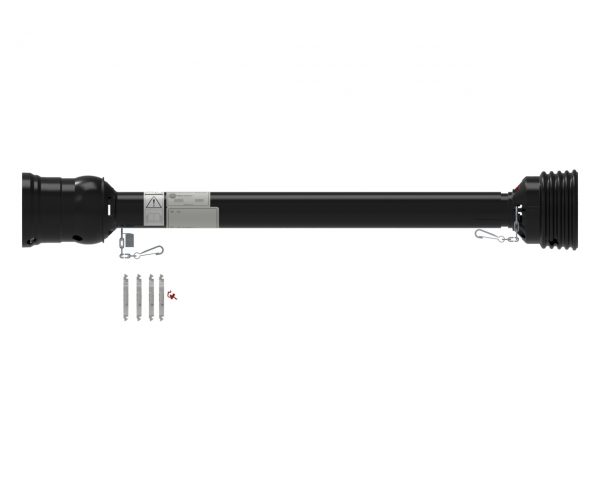

Easy Lock Guard Set CV Wide Angle
Multiple series easy lock guard set CV wide angle
Weasler guard sets are composed of two guard halves that encase a PTO drive shaft from tractor to implement. The Weasler black guarding is durable against harsh conditions, ultraviolet light, and ozone. All of the Weasler guard systems include the patented Easy Lock system which allows for easy guard removal and replacement if servicing is required. The CV Wide Angle guard allows for high operating angle of the CV Wide Angle joint.All Weasler guards are designed according to ANSI/ASABE AD5673 and meet strength and wear requirements of ANSI/ASABE AD 5674. Guards can be certified to CE requirements as an option.
Easy Lock system allows for quick and easy assembly without tools; A simple tool such as a key, coin or screwdrive can be used to remove the guard.
Easy Lock clip includes a zerk for ease of lubrication.
Easier lubrication of the PTO drive shaft through grease access holes so the guard does not need to be removed for lubrication.
Black guard color is durable against ultraviolet light and ozone.
Easy Lock Guard System: Provides full coverage at maximum angles.
Full 360° friction weld on guard bell.
Black coloring that is durable against ultraviolet light and ozone.
Cold weather impact rated to -35°C.
Meets and exceeds all applicable safety standards.
Quick and easy process for removal and installation.
|Length||53.54 inches||1360 mm|
|Outside Diameter||7.28 inches||185 mm|
|Shipping Dimensions||53.543" L × 7.28" H × 7.28" W||136cm L × 18cm H × 18cm W|
|Shipping Volume||2837.69 in3||46502 cm3|
|Shipping Weight||5.85 pounds||3 kilograms|
|Weight||5.85 pounds||3 kilograms|
|Service Instructions - Lubricating PTO Drive Shaft.pdf||Maintenance Document||English|
|Service Instructions - Easy Lock Guards.pdf||Service Document||English|
|WE0101011_0817_USL_EasyLockGuard.pdf||Performance Benefits Document||English|
