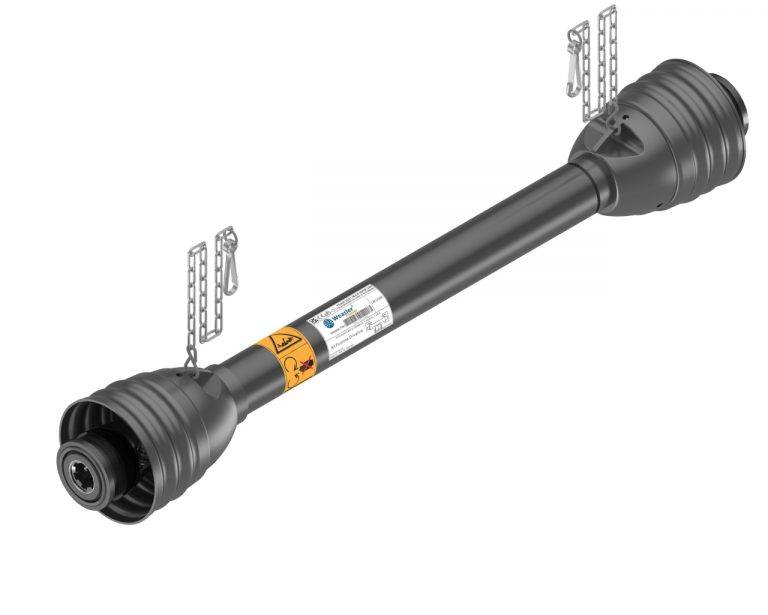

Why Choose the Standard PTO Drive shaft?
Our Standard drive shaft is a straightforward product, perfect for uncomplicated tasks. Designed to meet the demands of the cost-conscious, no-hassles-wanted client, our Standard drive shaft is perfect for the equipment owner that values quality and wants an essential drive shaft to work as hard as they do.
Example applications for a Standard drive shaft: rotary cutters, tillers, and fertilizer spreaders.

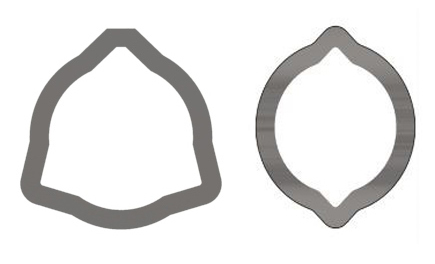

Profile telescoping available in trilobe (NA only) or lemon tubing (EU Only).
Standard Product Information-North America
| Standard DS Part # | Size | Closed mm | Tractor Yoke Size | Tractor Yoke Type | Implement Yoke Size | Implement Yoke Type | Torque Limiter |
|---|---|---|---|---|---|---|---|
| 14006127ST | AB1 | 690 | 1 3/8-6 | Slide Collar | 1 3/8-6 | Slide Collar | None |
| 14006340ST | AB3 | 1019 | 1 3/8-6 | Slide Collar | 1 3/8-6 | Slide Collar | None |
| 14006430ST | AB4 | 759 | 1 3/8-6 | Slide Collar | 1 3/8 round | 1/2 pin hole | None |
| 14006432ST | AB4 | 813 | 1 3/8-6 | Slide Collar | 1 3/8 round | 1/2 pin hole | None |
| 14006437ST | AB4 | 909 | 1 3/8-6 | Slide Collar | 1 3/8 round | 1/2 pin hole | None |
| 14006442ST | AB4 | 1059 | 1 3/8-6 | Slide Collar | 1 3/8 round | 1/2 pin hole | None |
| 14006448ST | AB4 | 1224 | 1 3/8-6 | Slide Collar | 1 3/8-6 | Slide Collar | None |
| 14006453ST | AB4 | 1359 | 1 3/8-6 | Slide Collar | 1 1/4 round | 1/4 pin hole | None |
| 14106436ST | AB4 | 916 | 1 3/8-6 | Slide Collar | 1 3/8-6 | Clamp | Friction |
| 14006542ST | AB5 | 1067 | 1 3/8-6 | Slide Collar | 1 3/8 round | 1/2 pin hole | None |
| 14006546ST | AB5 | 1179 | 1 3/8-6 | Slide Collar | 1 3/8-6 | Slide Collar | None |
| 14006657ST | AB6 | 1439 | 1 3/8-6 | Slide Collar | 1 3/8-6 | Slide Collar | None |
| 14106656ST | AB6 | 1420 | 1 3/4-20 | Clamp | 1 3/4-20 | Clamp | Friction |
| 14106664ST | AB6 | 1623 | 1 3/4-20 | Clamp | 1 3/4-20 | Clamp | Friction |
