807-7920
CLAMP YOKEAW36 Series Clamp Yoke

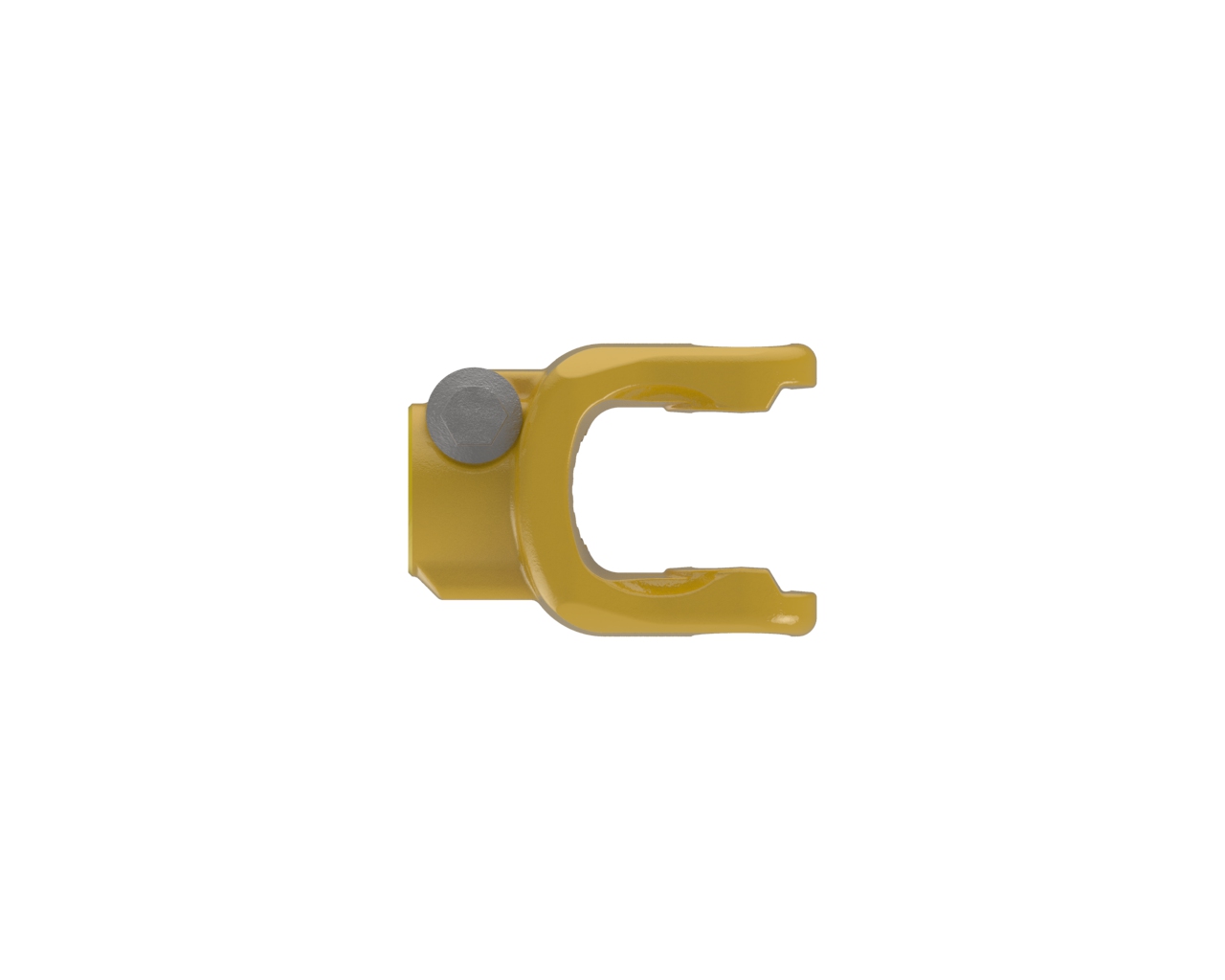

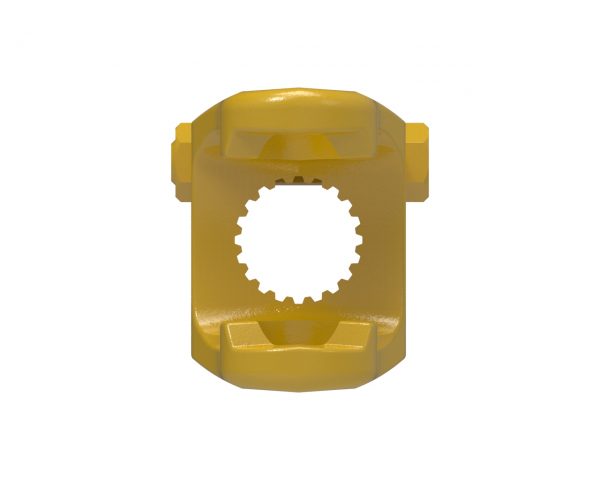

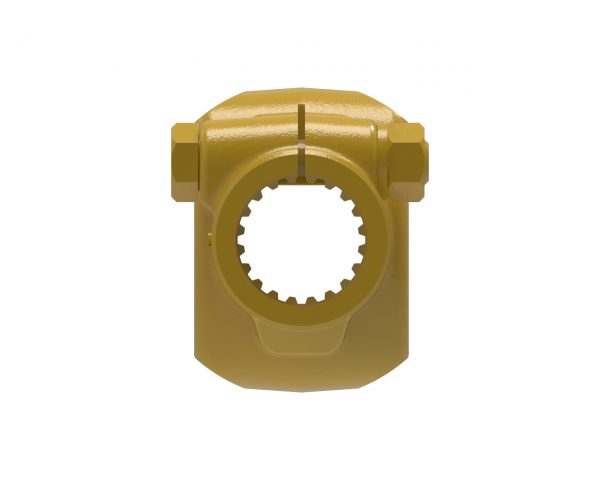

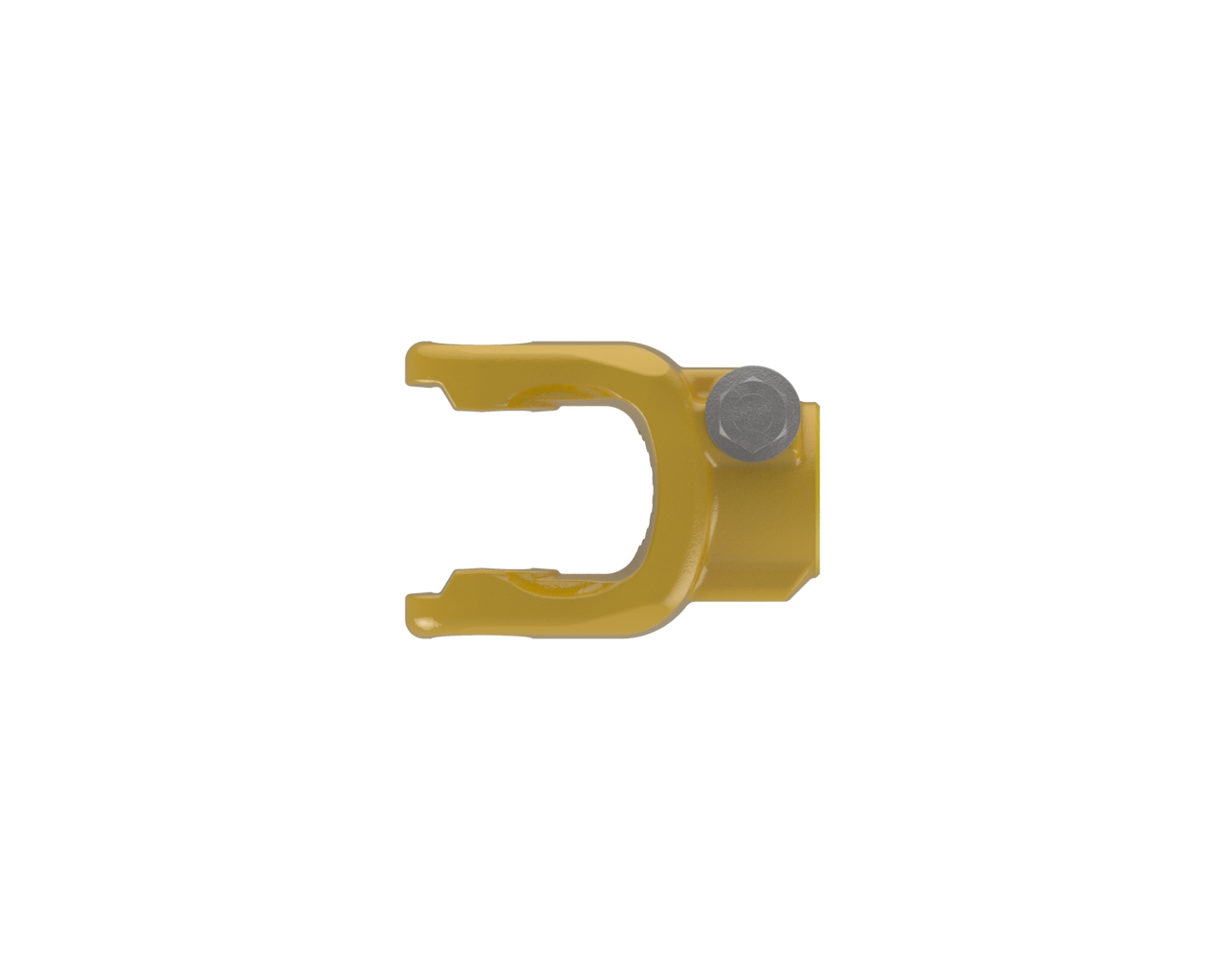

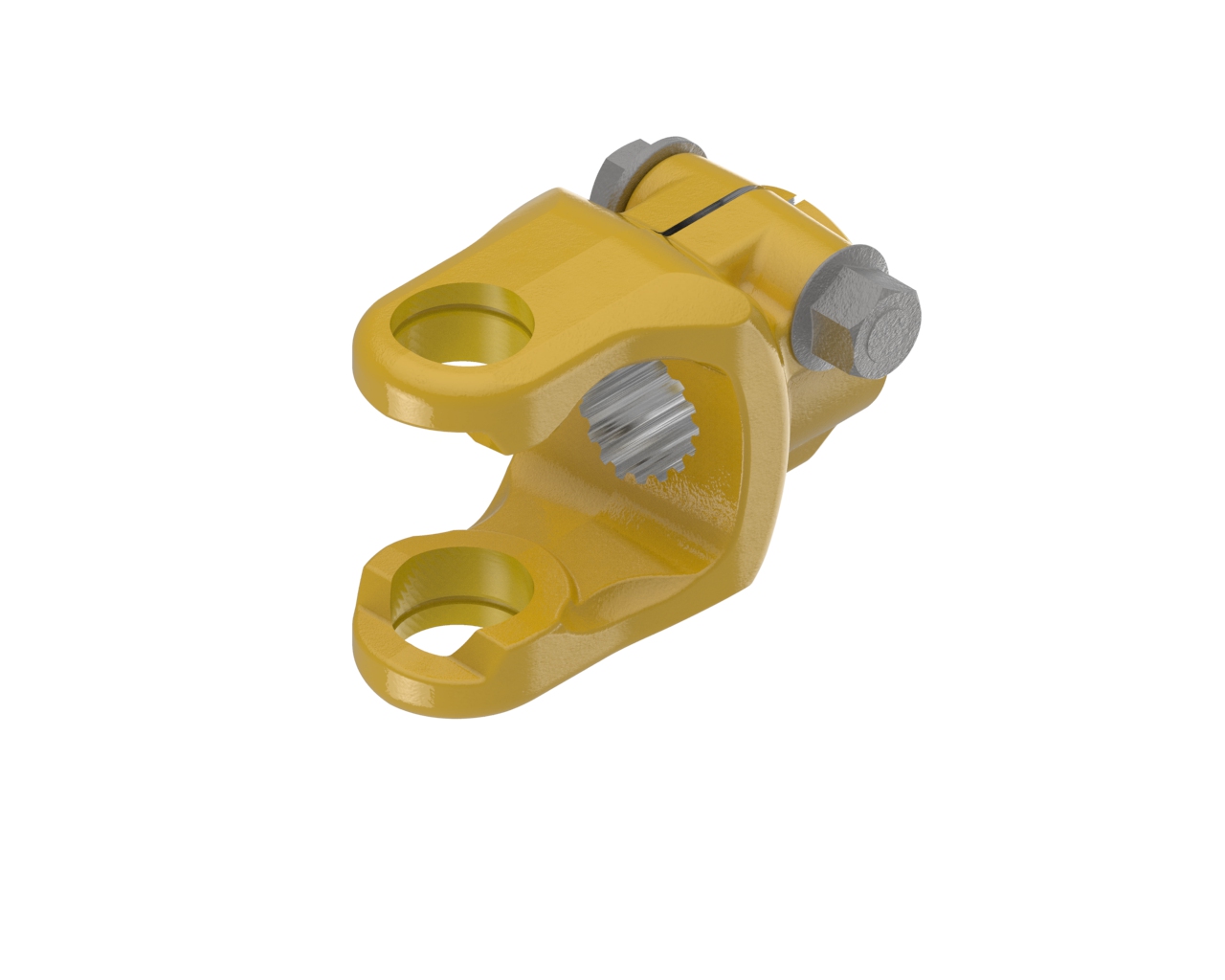

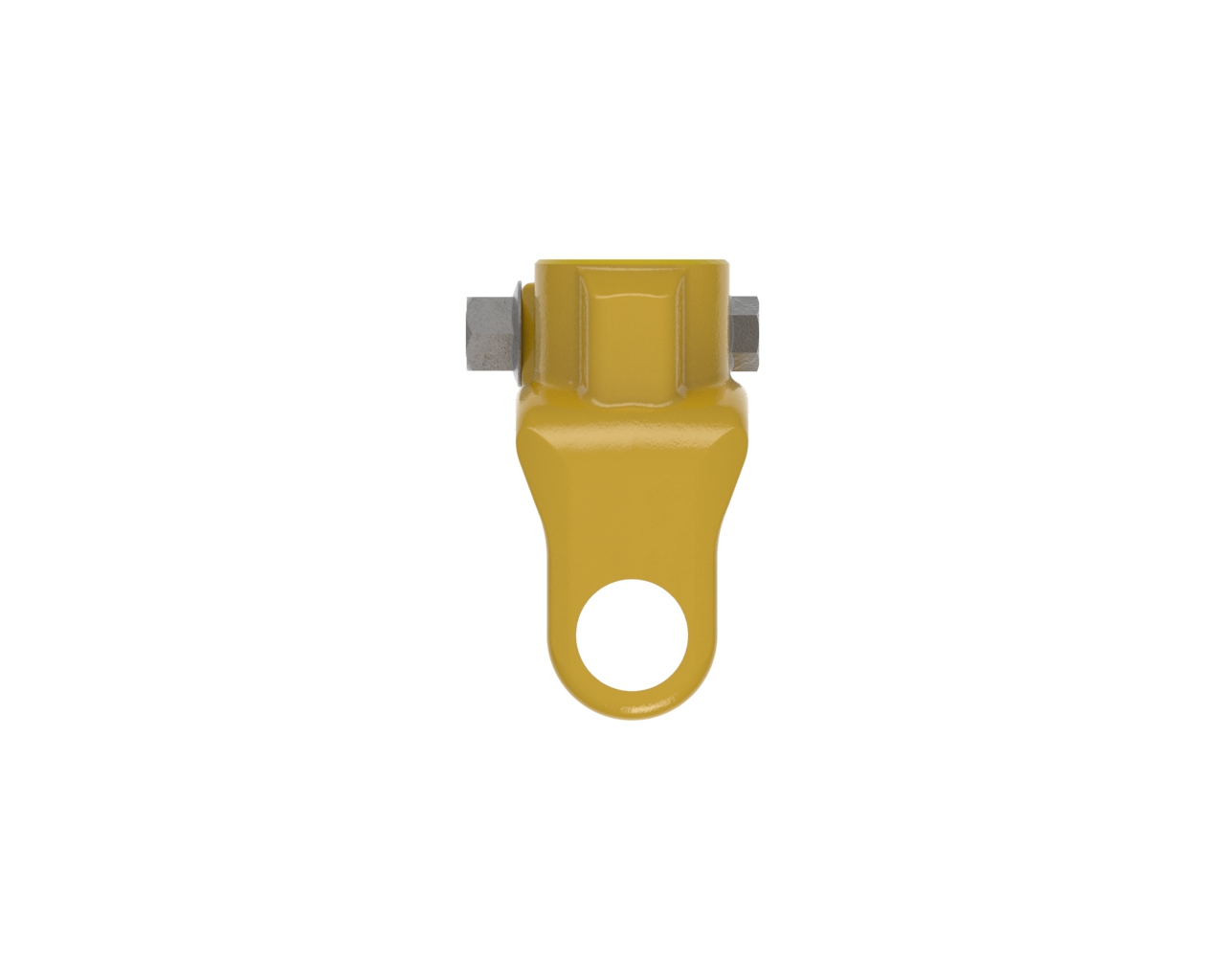

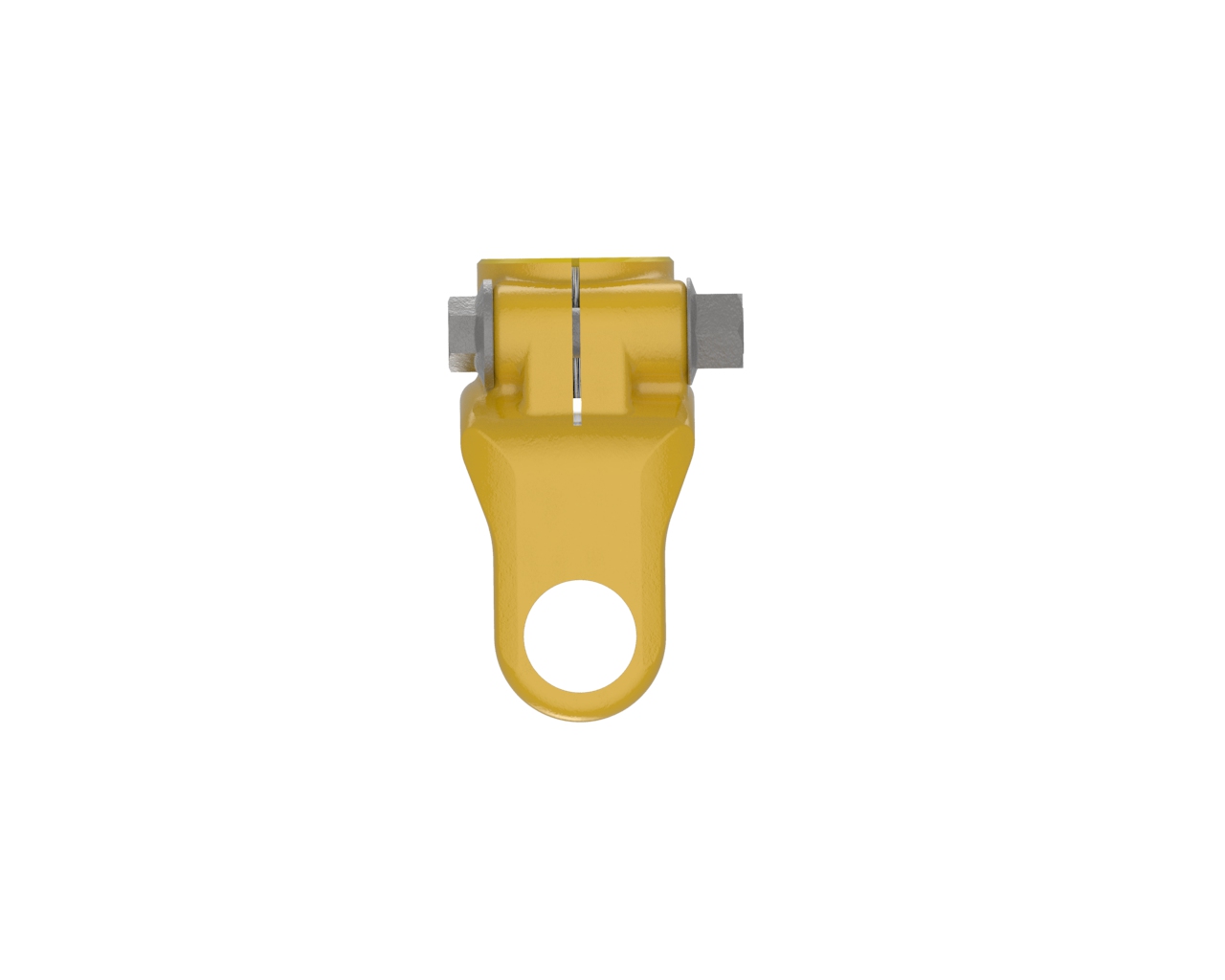

AW36 series yoke with 1 3/4-20 spline bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.75 inches | 44 mm |
Bore 1 | 1 3/4-20 SPLINE | |
Connection 1 | CLAMP | |
Height | 4.72 inches | 120 mm |
HP@1000RPM | 144 HP | 107 kilowatts |
HP@540RPM | 94 HP | 70 kilowatts |
Length | 4.76 inches | 121 mm |
Shipping Dimensions | 5.85" L × 4.72" H × 2.95" W | 15cm L × 12cm H × 7cm W |
Shipping Volume | 81.46 in3 | 1335 cm3 |
Shipping Weight | 5.30 pounds | 2 kilograms |
Weight | 5.30 pounds | 2 kilograms |
Width | 2.95 inches | 75 mm |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
