807-7928

AW36 Series Clamp Yoke

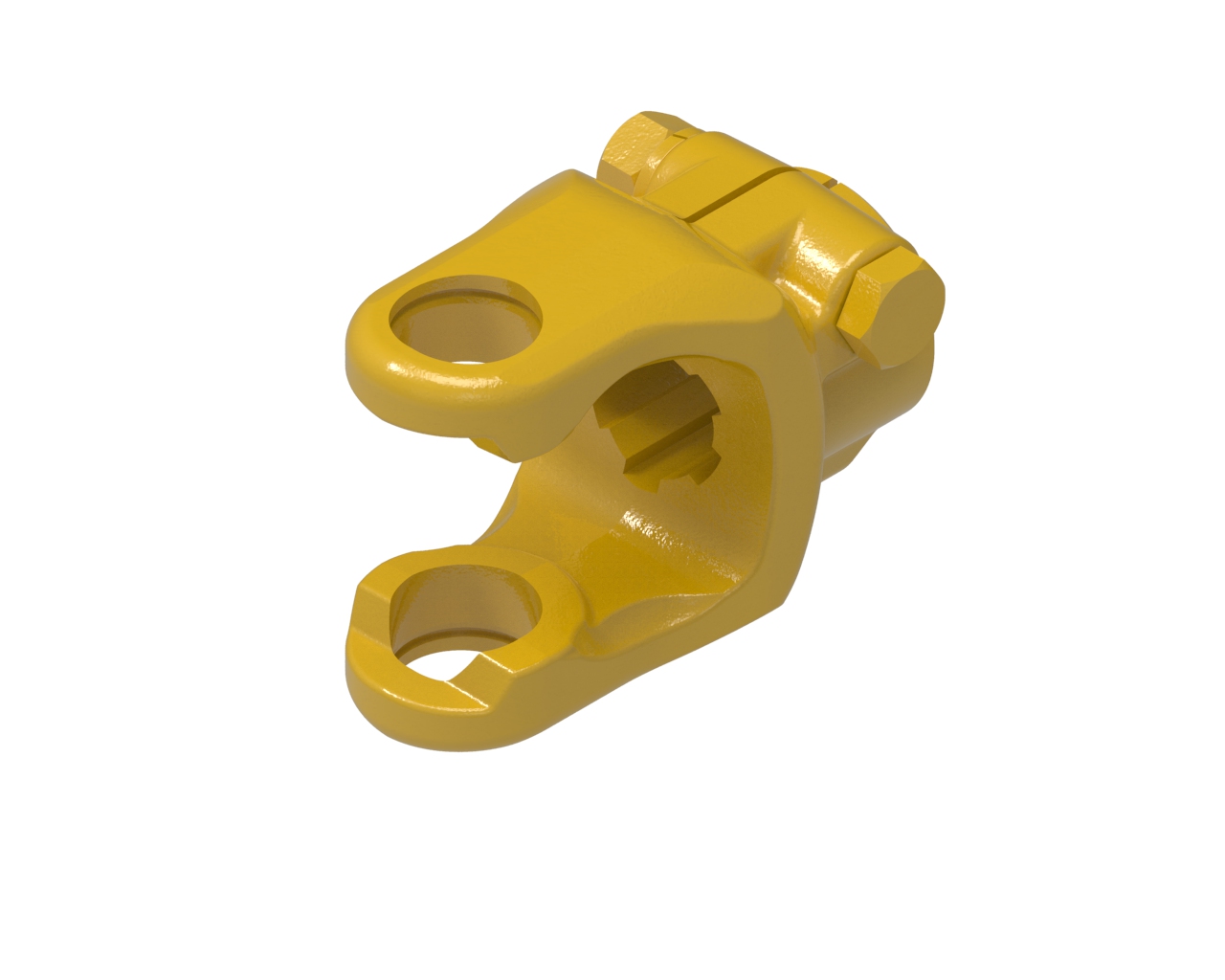

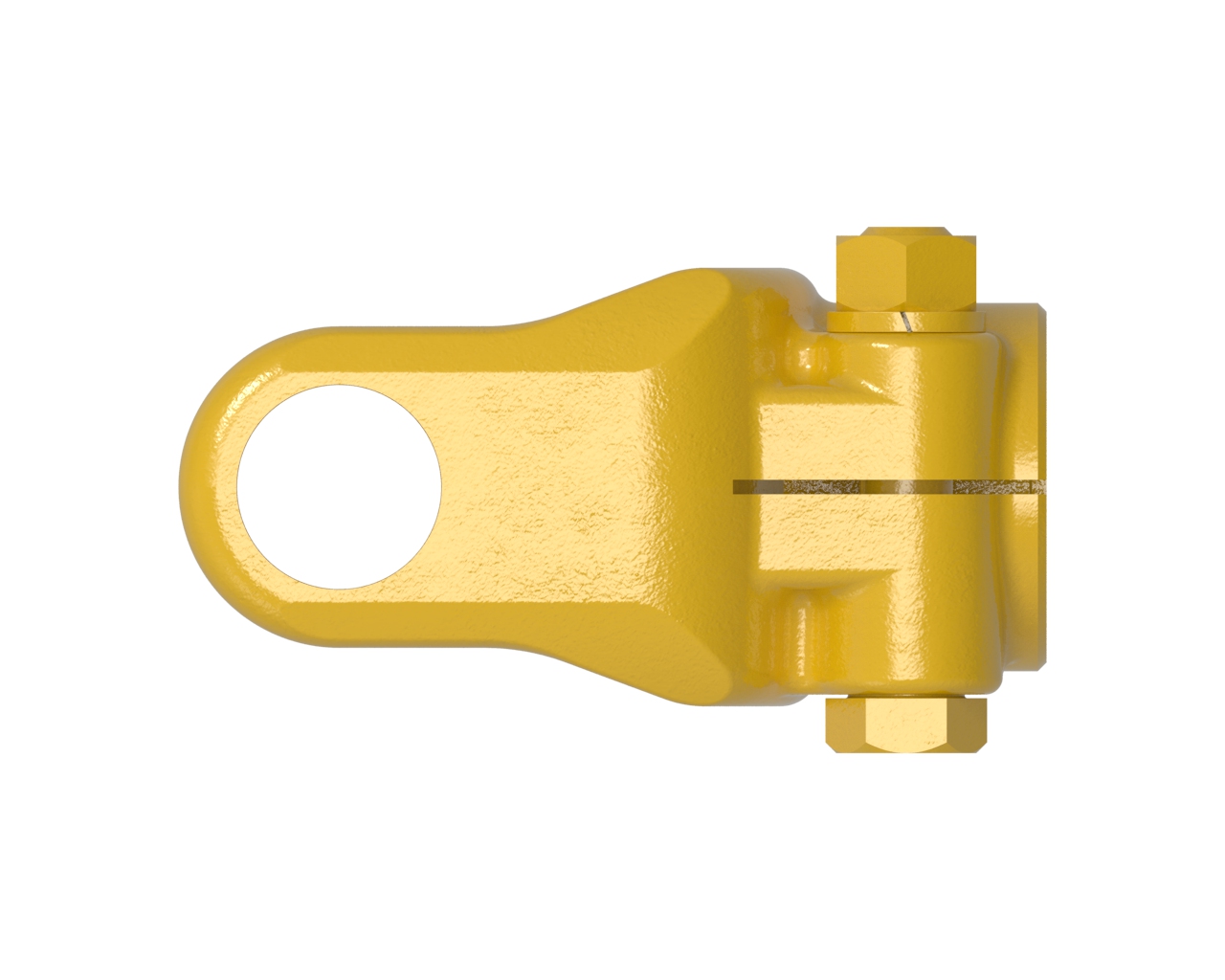

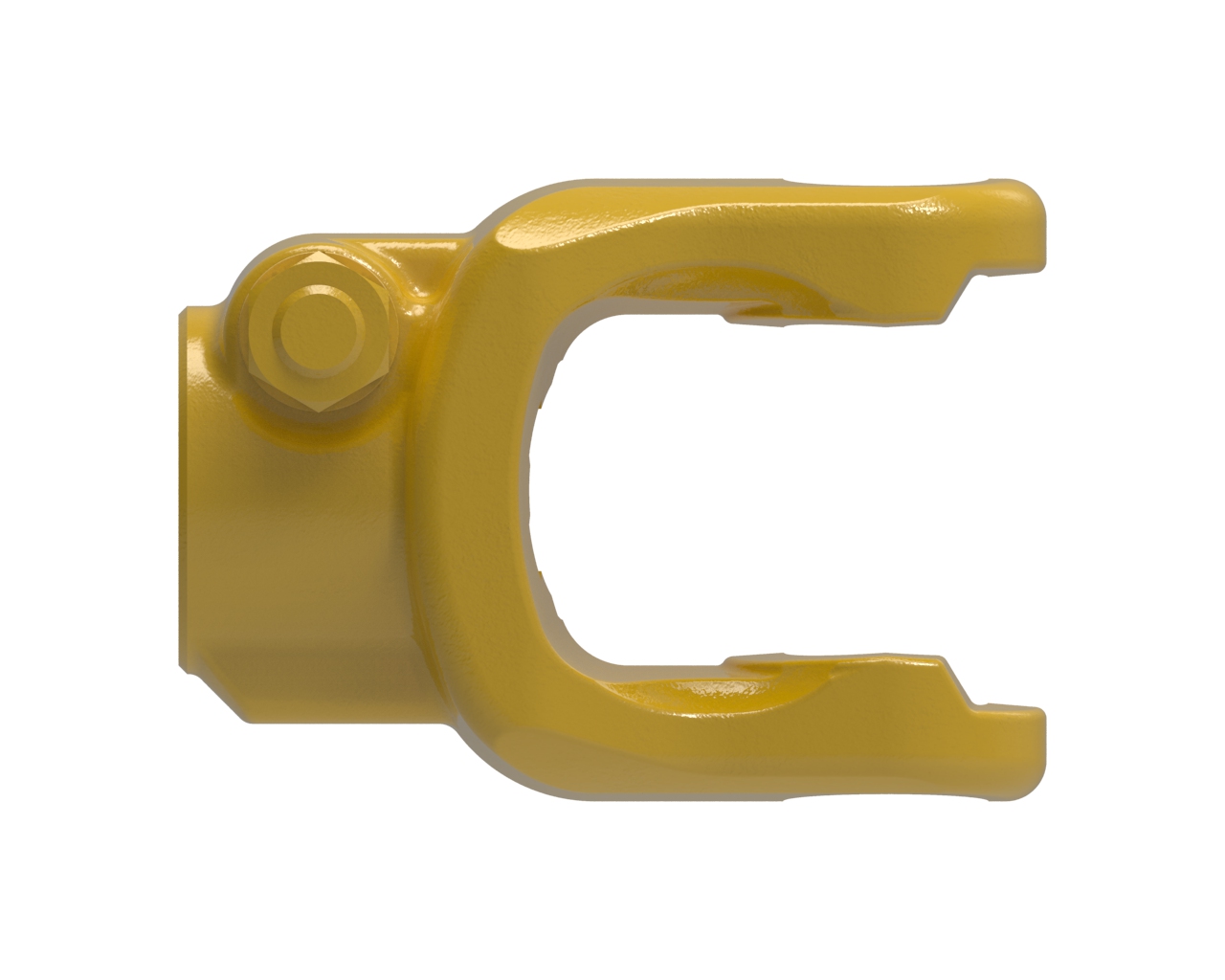

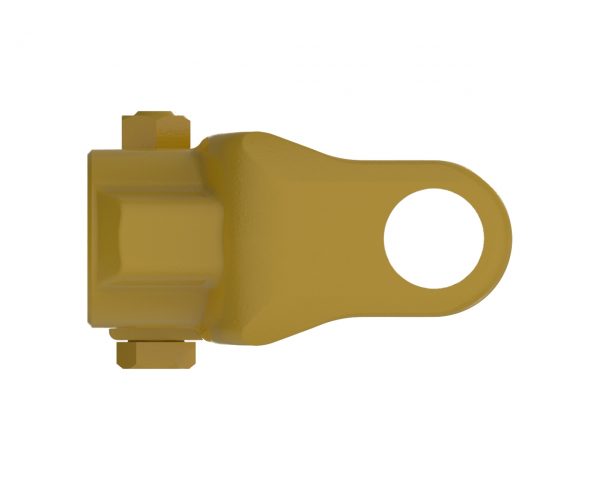

AW36 series yoke with 1 3/4-6 spline bore and clamp connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.81 inches46 mm
Bore 1 1 3/4-6 SPLINE
Connection 1 CLAMP
Height4.72 inches120 mm
HP@1000RPM144 HP107 kilowatts
HP@540RPM94 HP70 kilowatts
Length4.76 inches121 mm
Shipping Dimensions5.84" L  ×  4.72" H  ×  2.95" W15cm L  ×  12cm H  ×  7cm W
Shipping Volume81.32 in31333 cm3
Shipping Weight6.65 pounds3 kilograms
Weight6.65 pounds3 kilograms
Width2.95 inches75 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
