201-7906

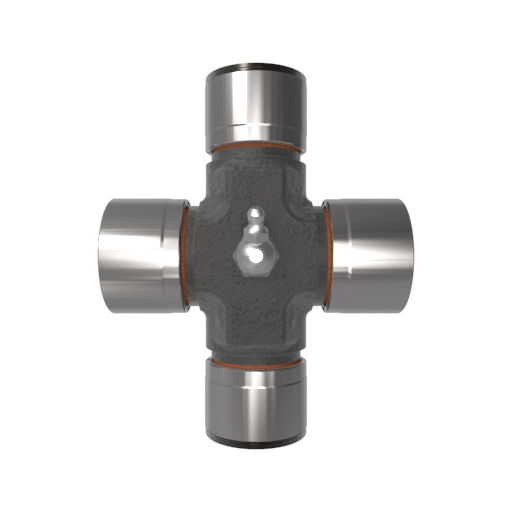

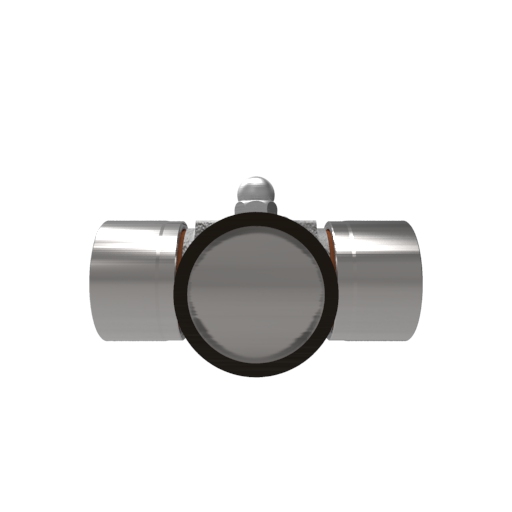

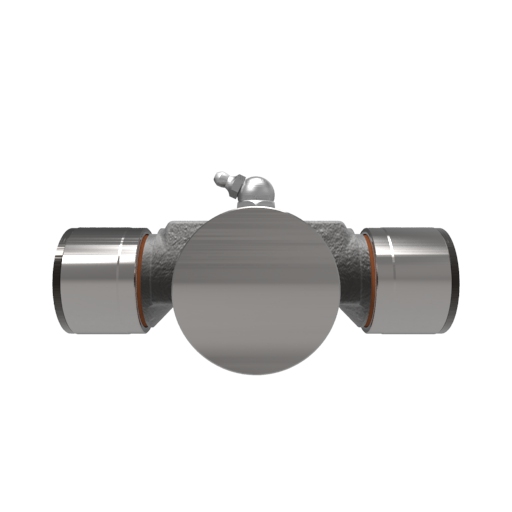

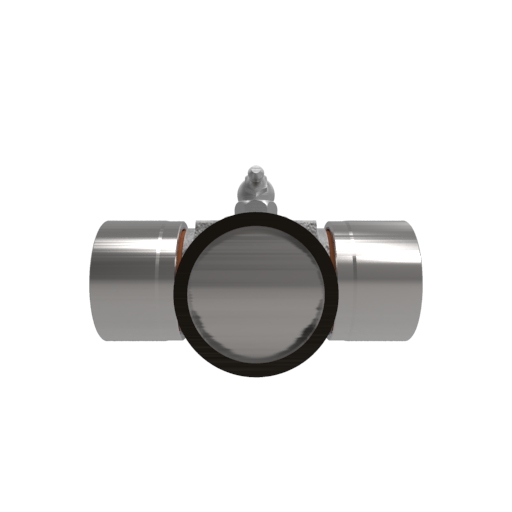

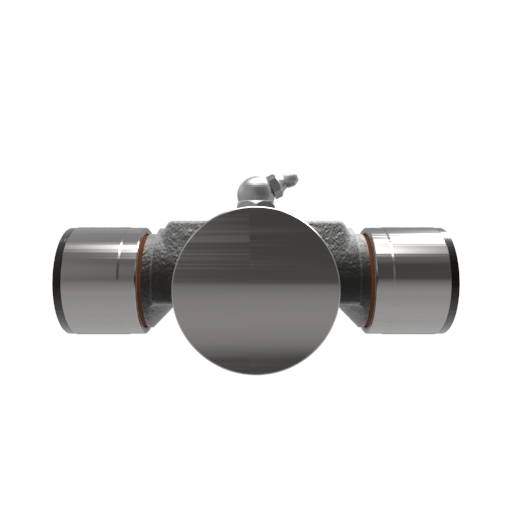

AW36-80 Series Cross And Bearing Kit

AW36-80 series cross and bearing kit, e extended lube, center grease fitting

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

E-kits provide increased capacity and extended lubrication intervals with a lube cycle of 50 – 250 hours. This is achieved by providing an improved seal and roller bearings design, which results in a longer life cycle. E-Kits are interchangeable with other cross and bearing kits in Weasler series as well as standard cross and bearing sets in the market. This means that a Weasler PTO drive shaft with E-kits can still be upgraded to M-kits.

PERFORMANCE BENEFITS
• Extended lubrication cycle of 50 to 250 hours.
• Interchangeable with standard cross and bearing kits available in the market.
• Easier grease access through the guard, no need to remove guard.
• Higher torque capacity and longer life reduces downtime – avoid costly cross and bearing kit replacements.

DESIGN FEATURES
• Larger roller bearings for added durability in demanding applications.
• High temperature, triple lipped seal keeps grease in and contaminants out.
• A bright orange seal with grease fitting makes it fast and easy to find an E-Kit.
• E-Kits are interchangeable with all standard cross and bearing kits and available for all series. Plus – standard kits can easily be upgraded to E-Kits.
• Manufactured with high quality steel for increased strength.

Specifications

Spec. Imperial Metric
Bearing Diameter1.41 inches36 mm
Bearing Span3.50 inches89 mm
Bearing Diameter1.26 inches32 mm
Bearing Span4.16 inches106 mm
Height1.41 inches36 mm
HP@1000RPM158 HP118 kilowatts
HP@540RPM103 HP77 kilowatts
Kit Type E
Length3.50 inches89 mm
Lubrication Interval 50.00
Shipping Dimensions3.504" L  ×  1.417" H  ×  4.169" W9cm L  ×  4cm H  ×  11cm W
Shipping Volume20.70 in3339 cm3
Shipping Weight2.70 pounds1 kilograms
Snap Ring Location External
Weight2.70 pounds1 kilograms
Width4.16 inches106 mm

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
WE0101007_0118_USL_EKit.pdf Performance Benefits Document English
