803-7670

AW35 Series Flange Yoke

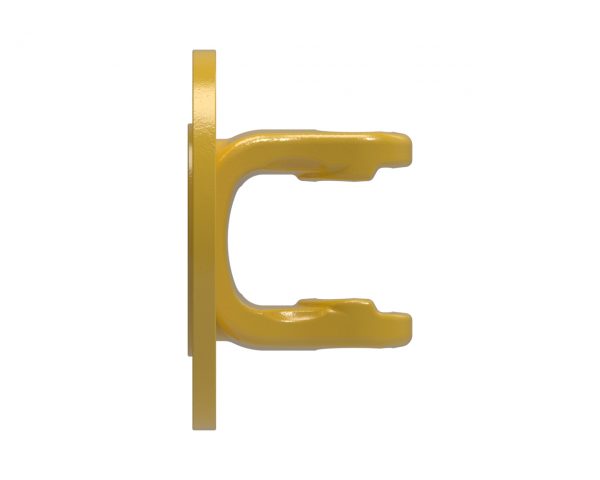

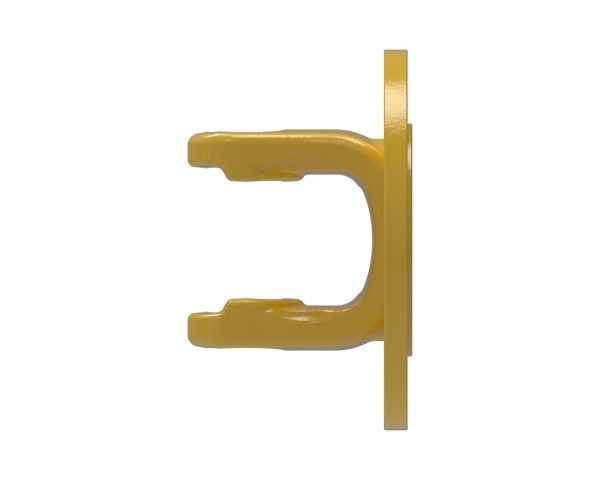

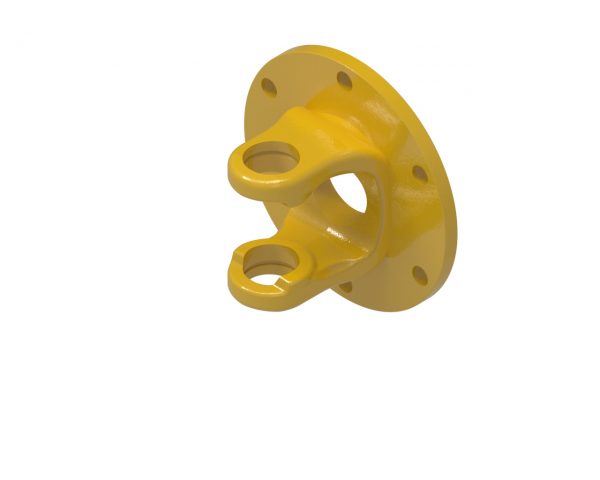

AW35 series yoke with 6 x 12 mm bolt circle bore and flange connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The flange yoke allows for a bolted connection to a mating flange to eliminate fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 15.43 inches138 mm
Bore 1 6 X 12 MM BOLT CIRCLE
Connection 1 FLANGE
HP@1000RPM102 HP76 kilowatts
HP@540RPM66 HP49 kilowatts
Length2.76 inches70 mm
Outside Diameter6.30 inches160 mm
Shipping Dimensions3.72" L  ×  6.3" H  ×  6.3" W9cm L  ×  16cm H  ×  16cm W
Shipping Volume147.65 in32420 cm3
Shipping Weight5.68 pounds3 kilograms
Weight5.68 pounds3 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
