807-7028

AW26 Series Clamp Yoke

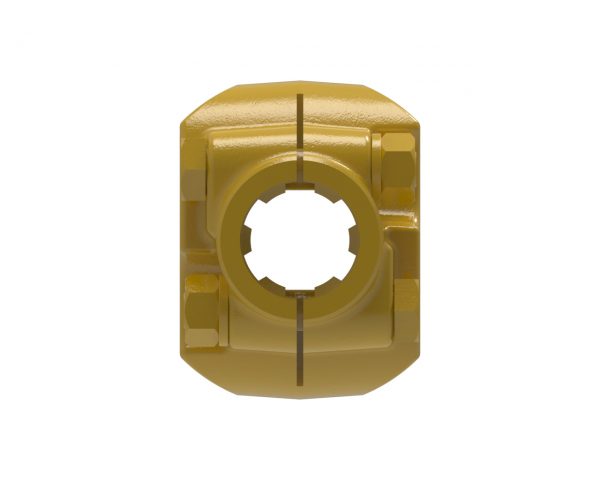

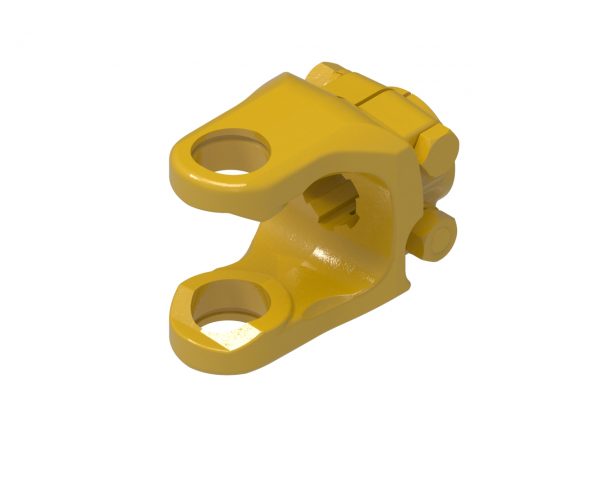

AW26 series yoke with 1 3/4-6 spline bore and clamp connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.81 inches46 mm
Bore 1 1 3/4-6 SPLINE
Connection 1 CLAMP
Height5.04 inches128 mm
HP@1000RPM230 HP172 kilowatts
HP@540RPM149 HP111 kilowatts
Length5.16 inches131 mm
Shipping Dimensions6.4" L  ×  5.04" H  ×  3.62" W16cm L  ×  13cm H  ×  9cm W
Shipping Volume116.77 in31914 cm3
Shipping Weight8.97 pounds4 kilograms
Weight8.97 pounds4 kilograms
Width3.62 inches92 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
