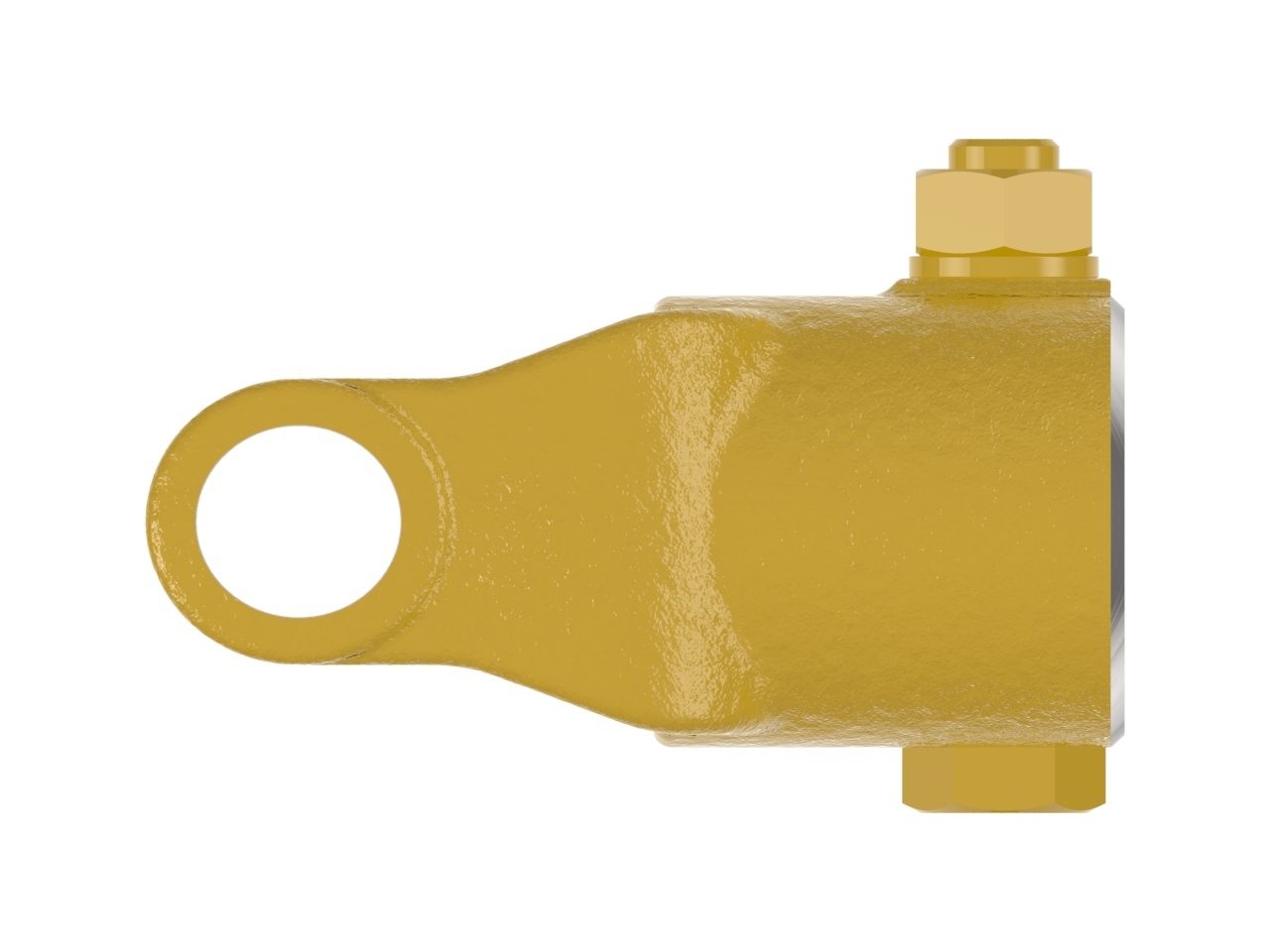

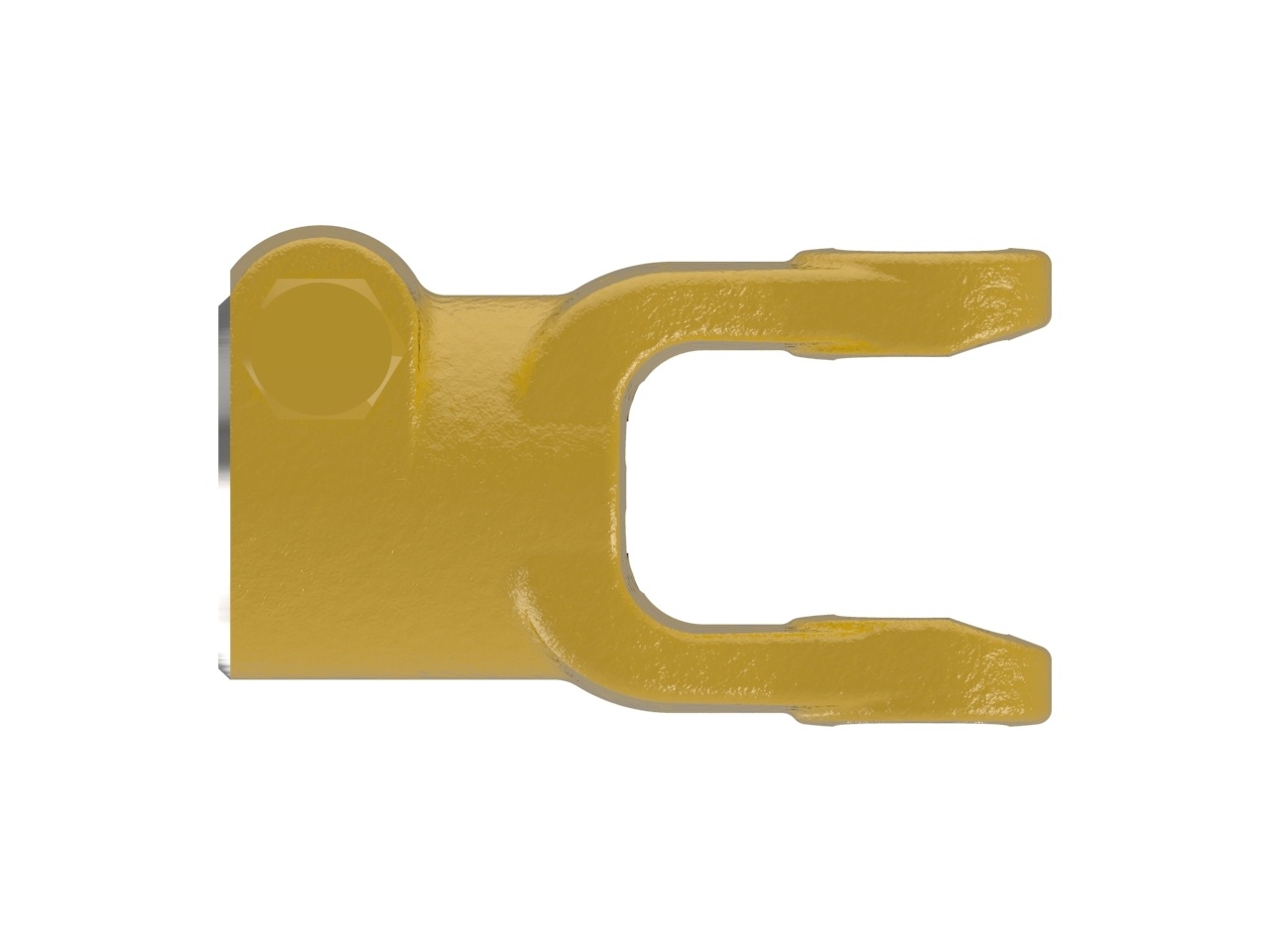

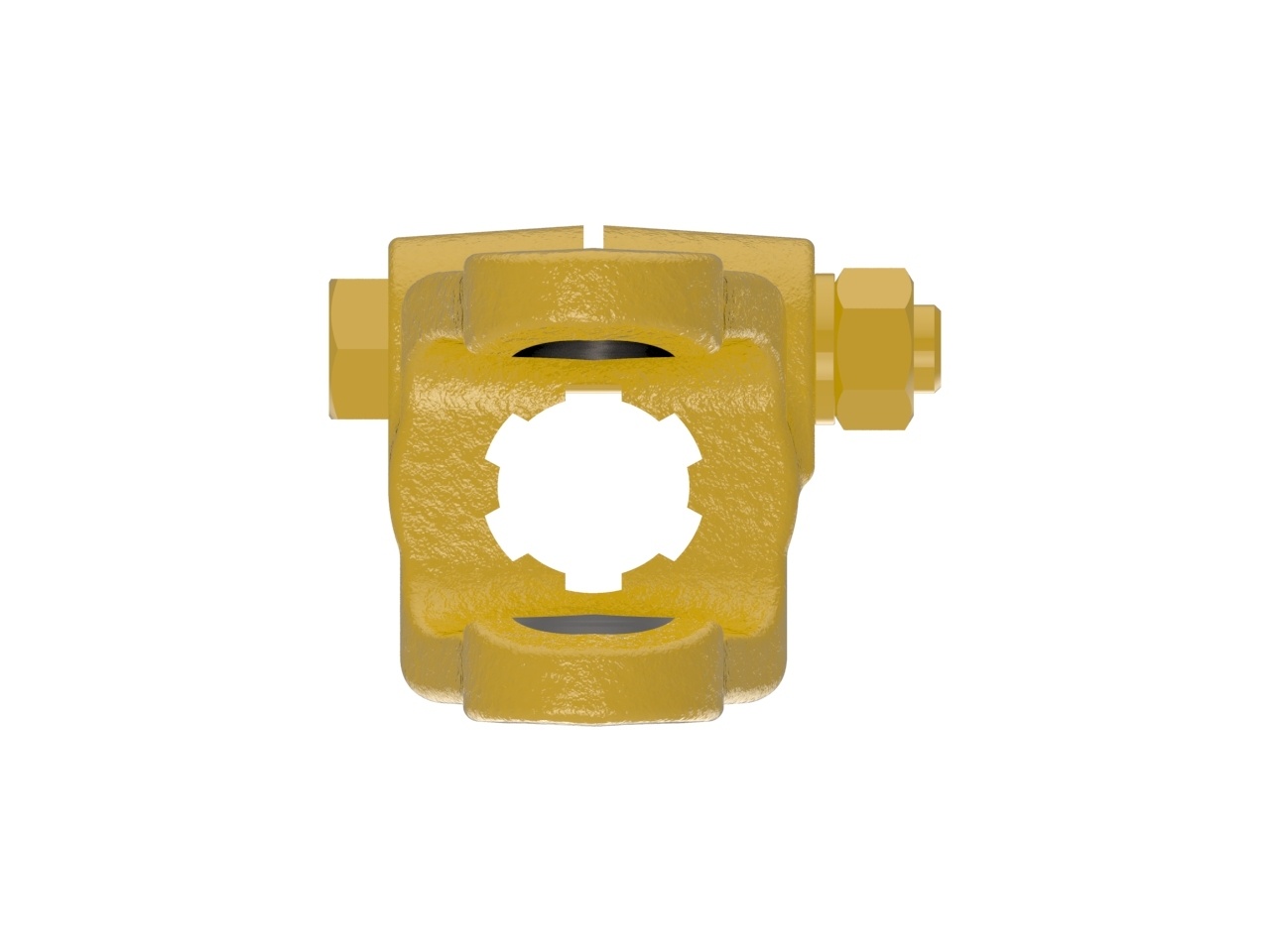

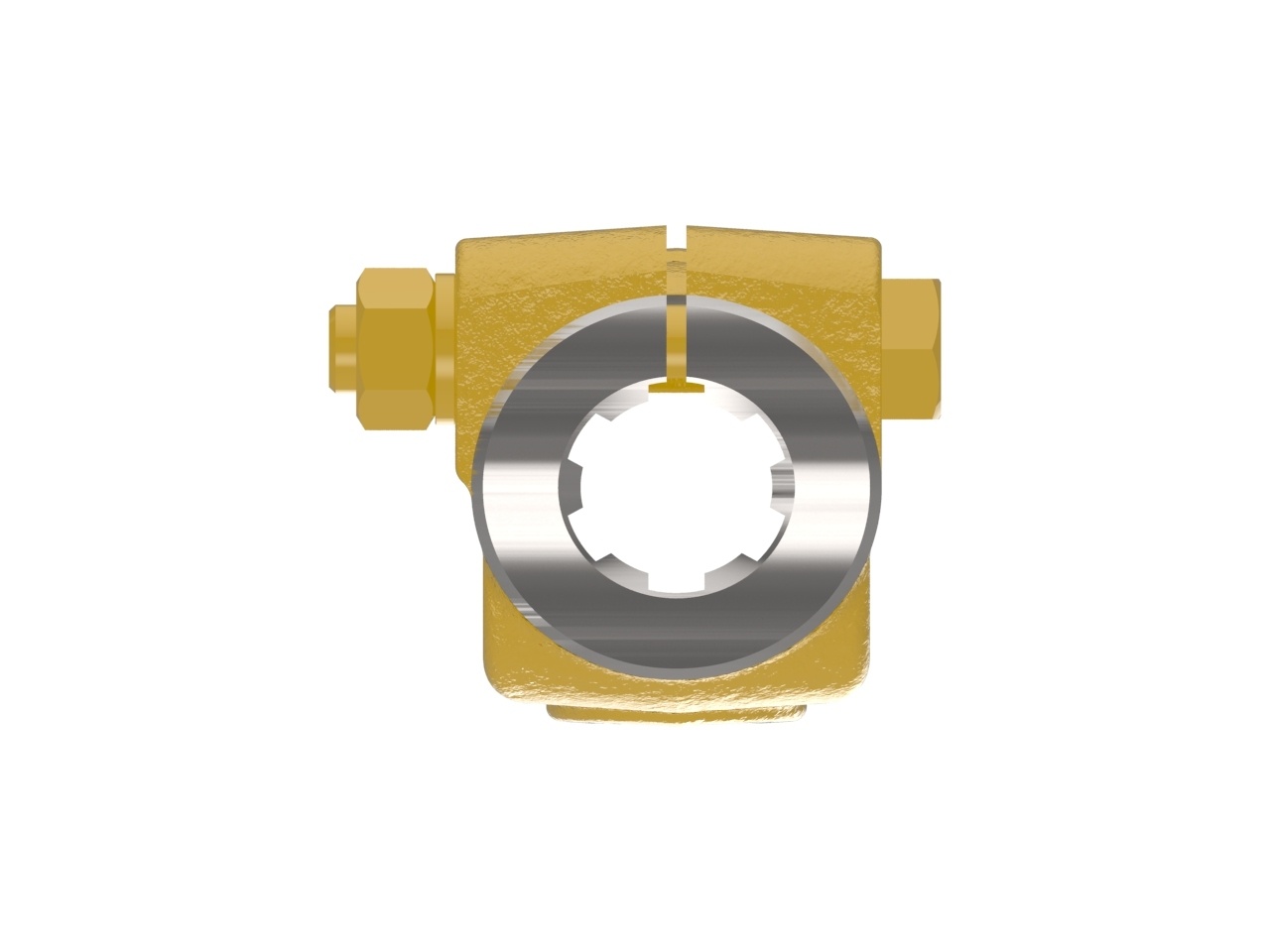

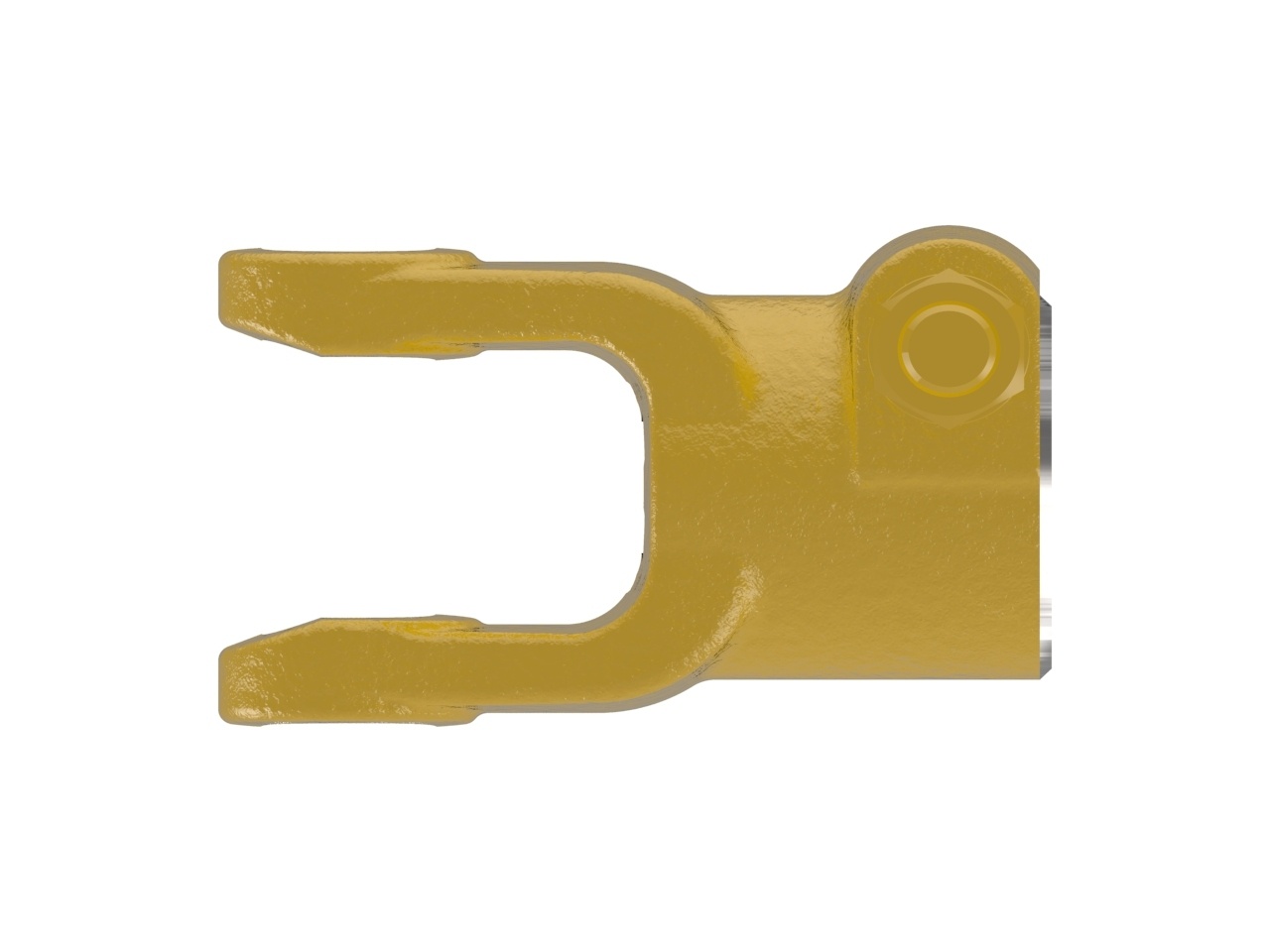

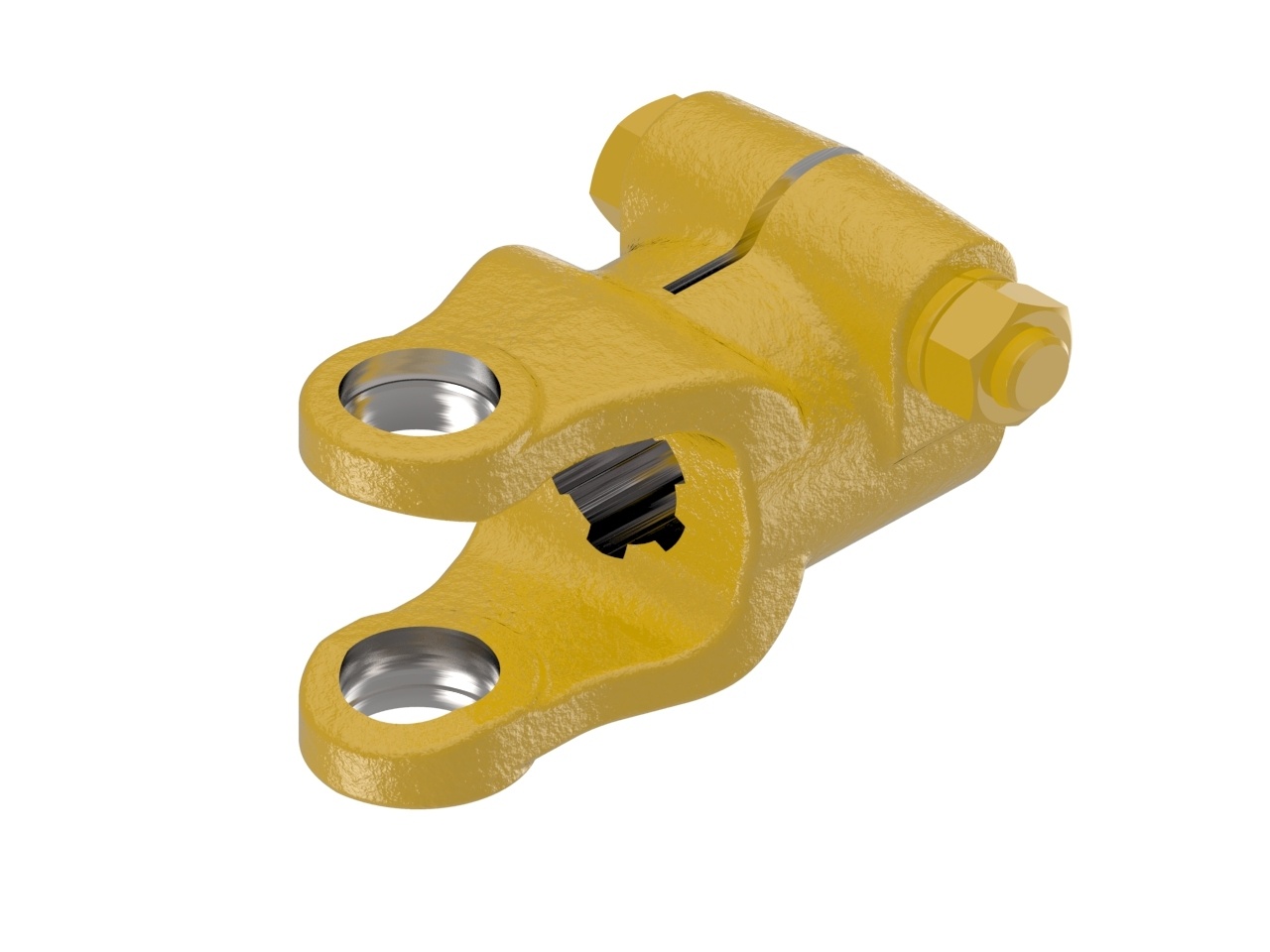

AW10 Series Clamp Yoke

AW10 series yoke with 1 1/8-6 spline bore and clamp connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.



Spec. Imperial Metric
Bore 11.12 inches28 mm
Bore 1 1 1/8-6 SPLINE
Connection 1 CLAMP
Height2.80 inches71 mm
HP@1000RPM29 HP22 kilowatts
HP@540RPM19 HP14 kilowatts
Length3.54 inches90 mm
Shipping Dimensions4.17" L  ×  2.8" H  ×  2.3228346456693" W11cm L  ×  7cm H  ×  6cm W
Shipping Volume27.12 in3444 cm3
Shipping Weight2.22 pounds1 kilograms
Weight2.22 pounds1 kilograms
Width2.32 inches59 mm


Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
