800-6922

AB9 Series Setscrew Yoke

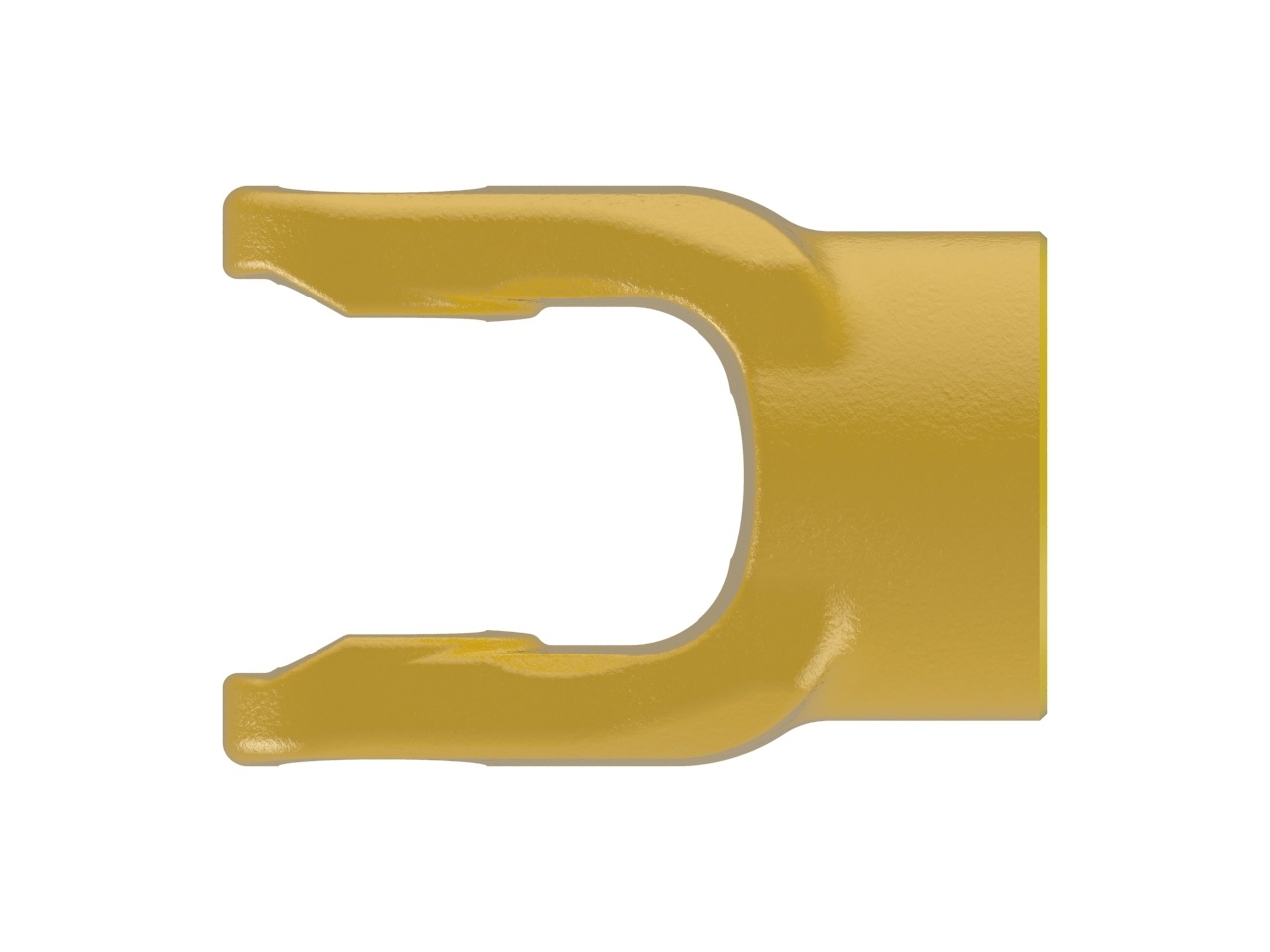

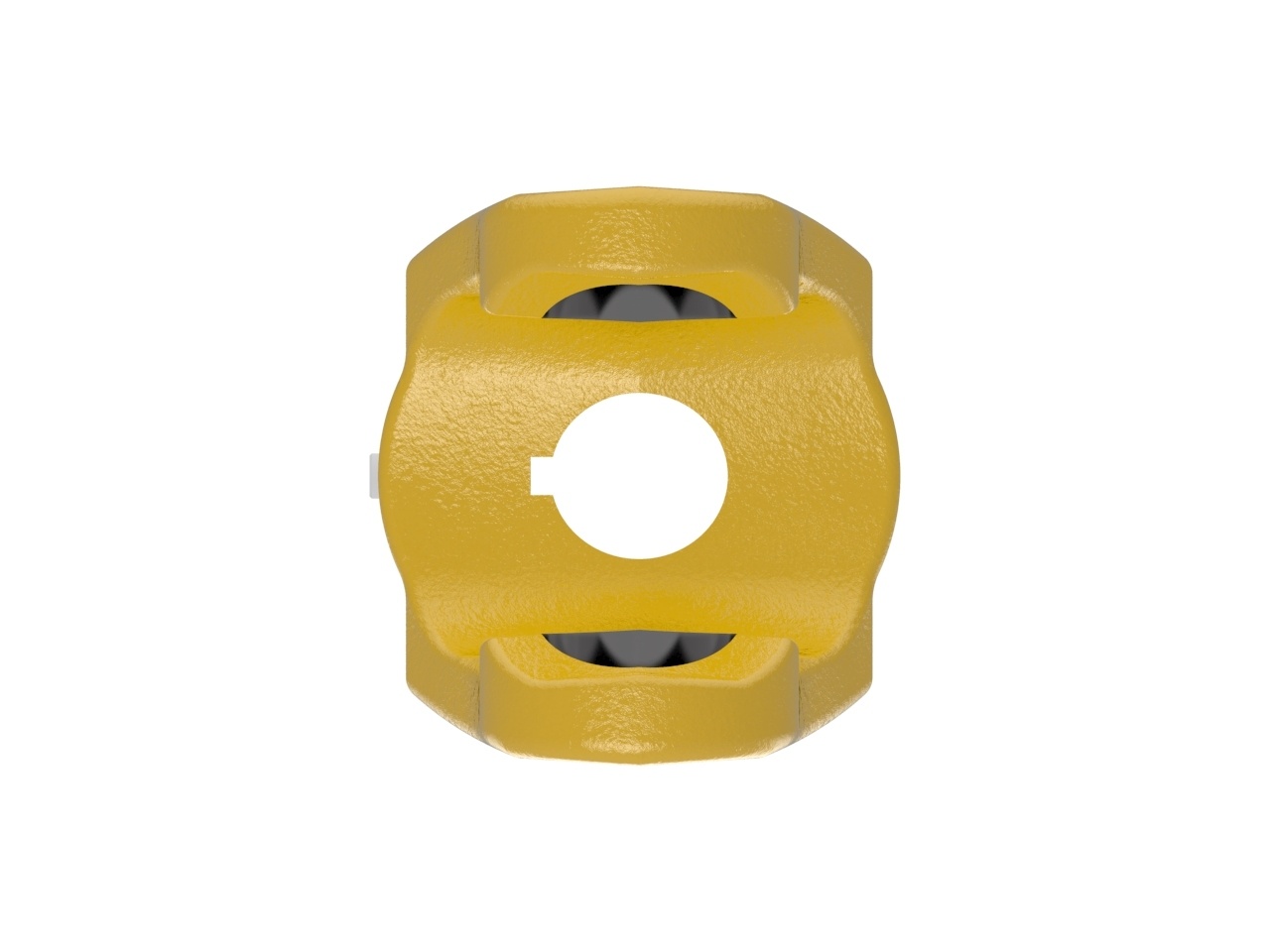

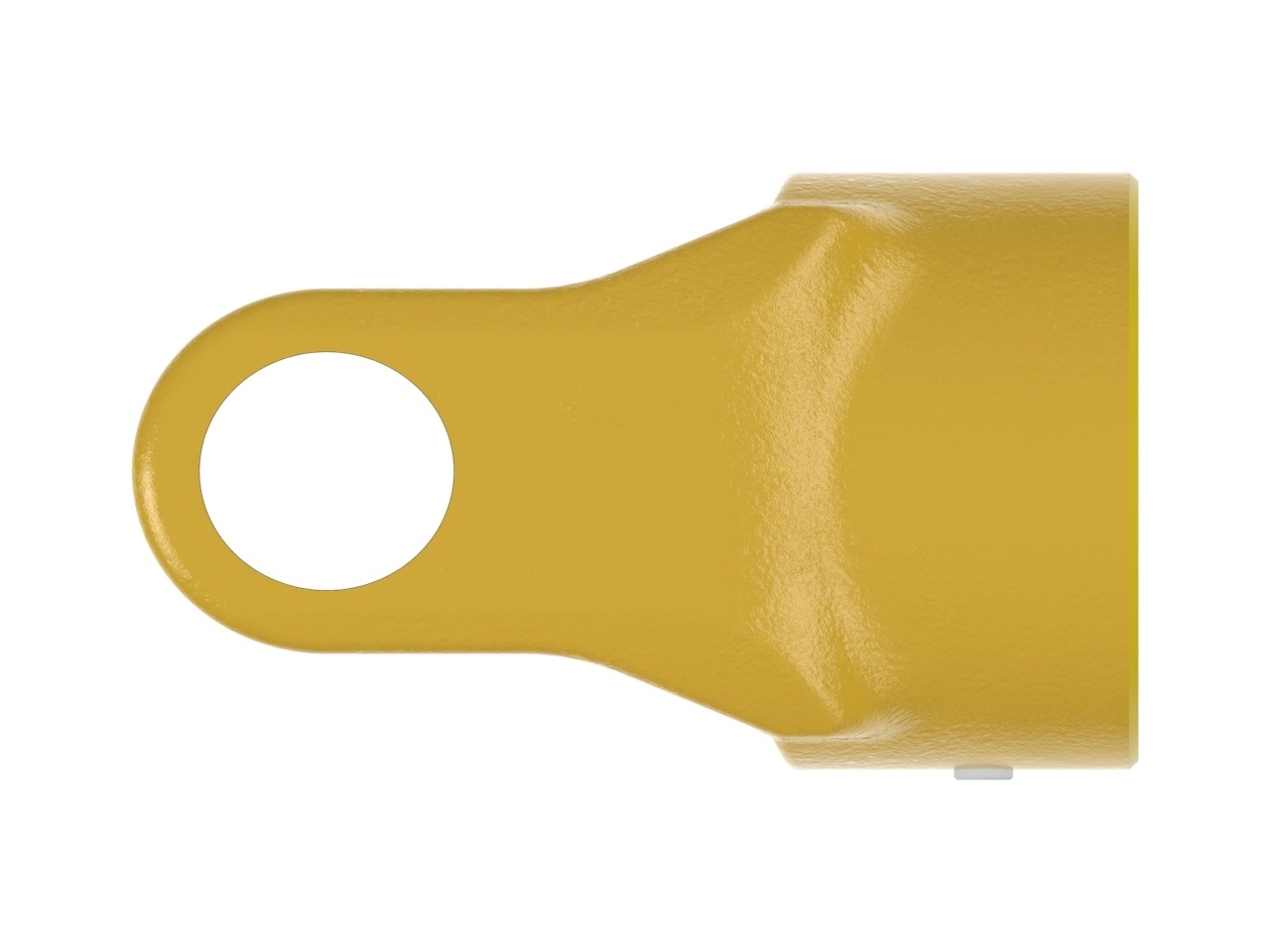

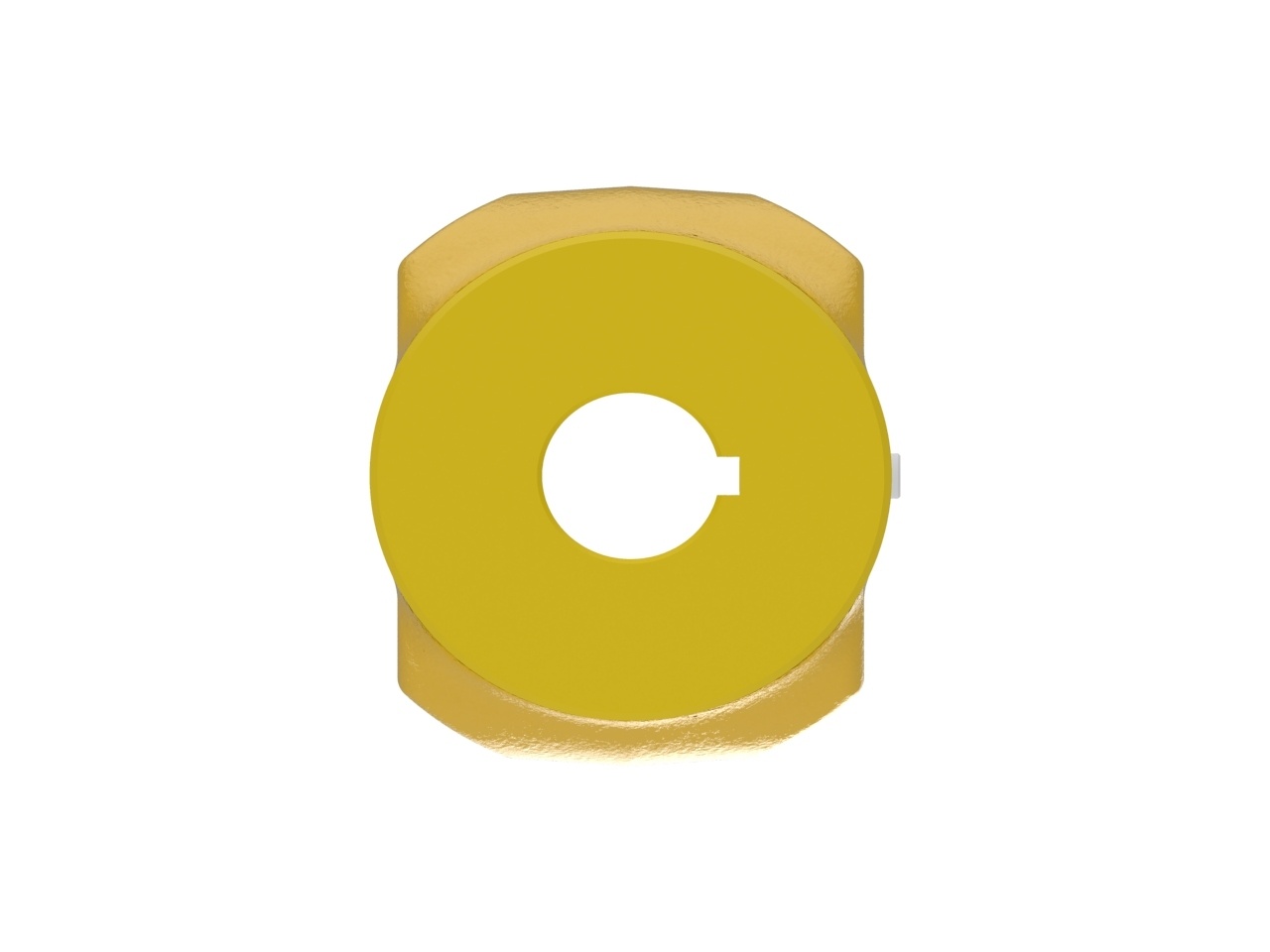

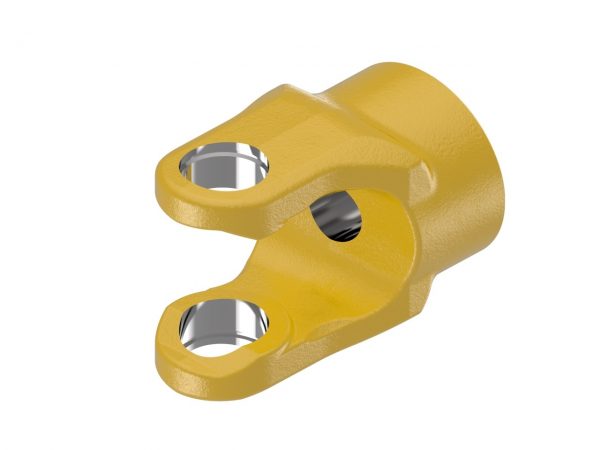

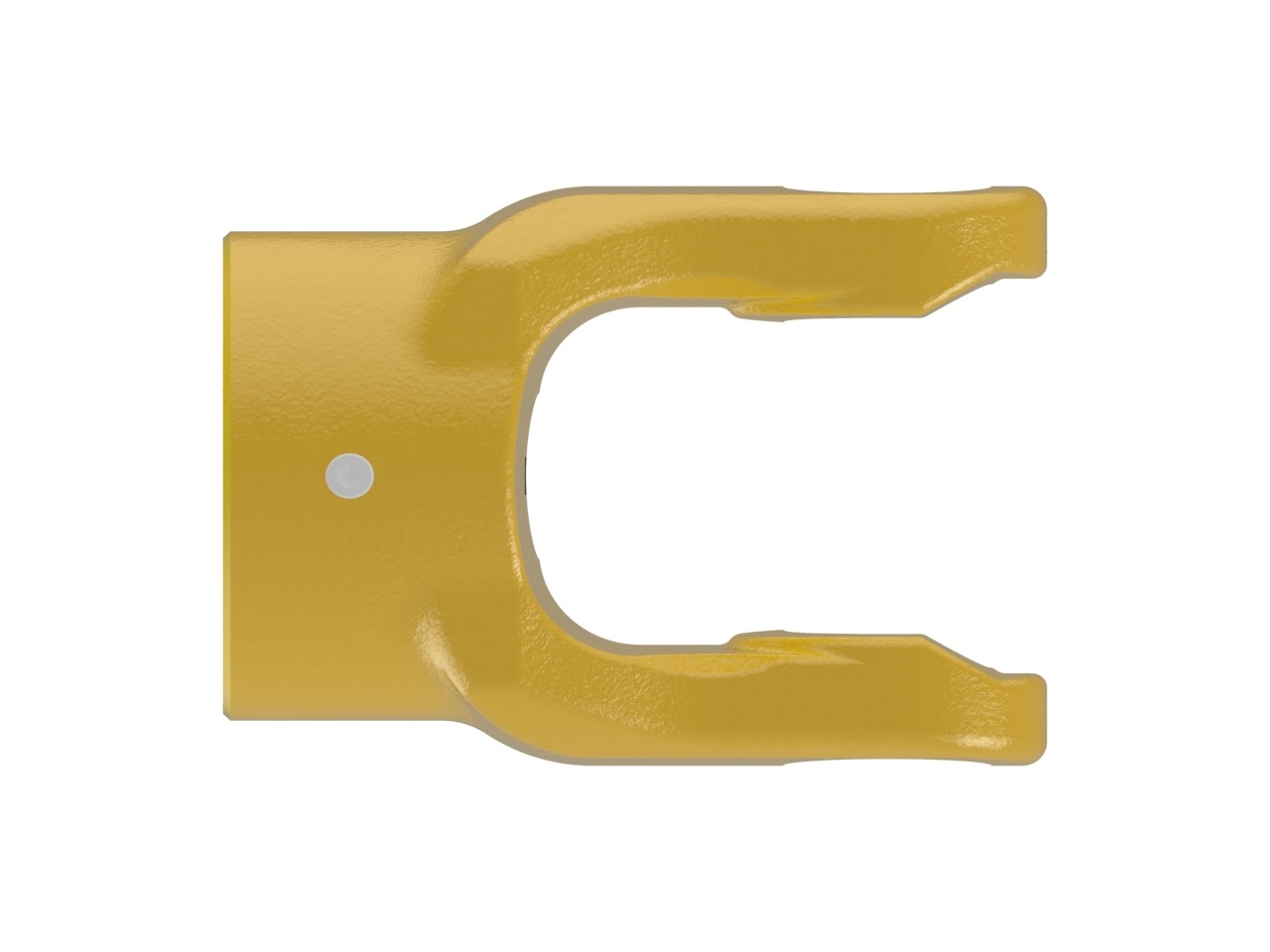

AB9 series yoke with round with keyway bore and setscrew connection. Note: Image color may not represent actual part.

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 ROUND WITH KEYWAY
Connection 1 SETSCREW
Height5.04 inches128 mm
HP@1000RPM232 HP173 kilowatts
HP@540RPM151 HP113 kilowatts
Keyway 10.31 inches8 mm
Length5.15 inches131 mm
Setscrew 3/8-16
Shipping Dimensions6.4" L  ×  5.04" H  ×  3.62" W16cm L  ×  13cm H  ×  9cm W
Shipping Volume116.77 in31914 cm3
Shipping Weight3.30 pounds1 kilograms
Weight3.30 pounds1 kilograms
Width3.62 inches92 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
