806-6824
IMPLEMENT YOKEAB8,AW24 Series Setscrew Yoke

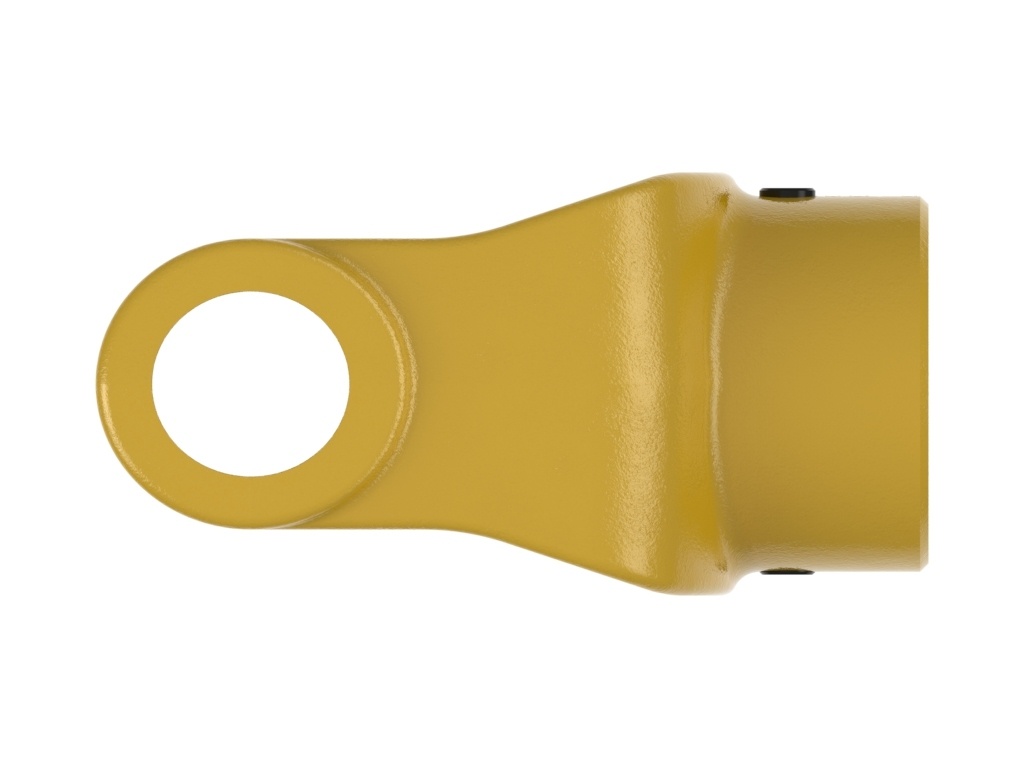

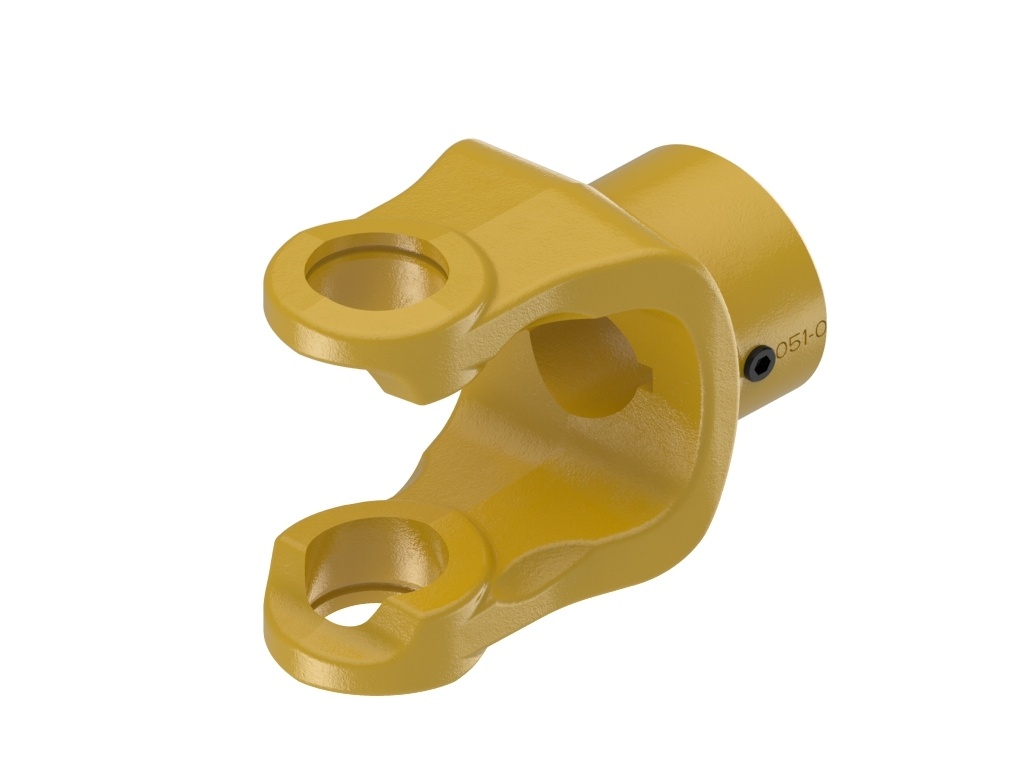

AB8,AW24 series yoke with round with 2 keyways bore and setscrew connection. Note: Image color may not represent actual part.
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.50 inches | 38 mm |
Bore 1 | ROUND WITH 2 KEYWAYS | |
Connection 1 | SETSCREW | |
Height | 5.12 inches | 130 mm |
HP@1000RPM | 185 HP | 138 kilowatts |
HP@540RPM | 120 HP | 89 kilowatts |
Keyway 1 | 0.38 inches | 10 mm |
Keyway 2 | 0.25 inches | 6 mm |
Length | 4.72 inches | 120 mm |
Setscrew | 3/8-16 | |
Shipping Dimensions | 5.803" L × 5.12" H × 3.14960629921" W | 15cm L × 13cm H × 8cm W |
Shipping Volume | 93.58 in3 | 1534 cm3 |
Shipping Weight | 5.89 pounds | 3 kilograms |
Weight | 5.89 pounds | 3 kilograms |
Width | 3.14 inches | 80 mm |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
