805-8618

AB6,AW22 Series Setscrew Yoke

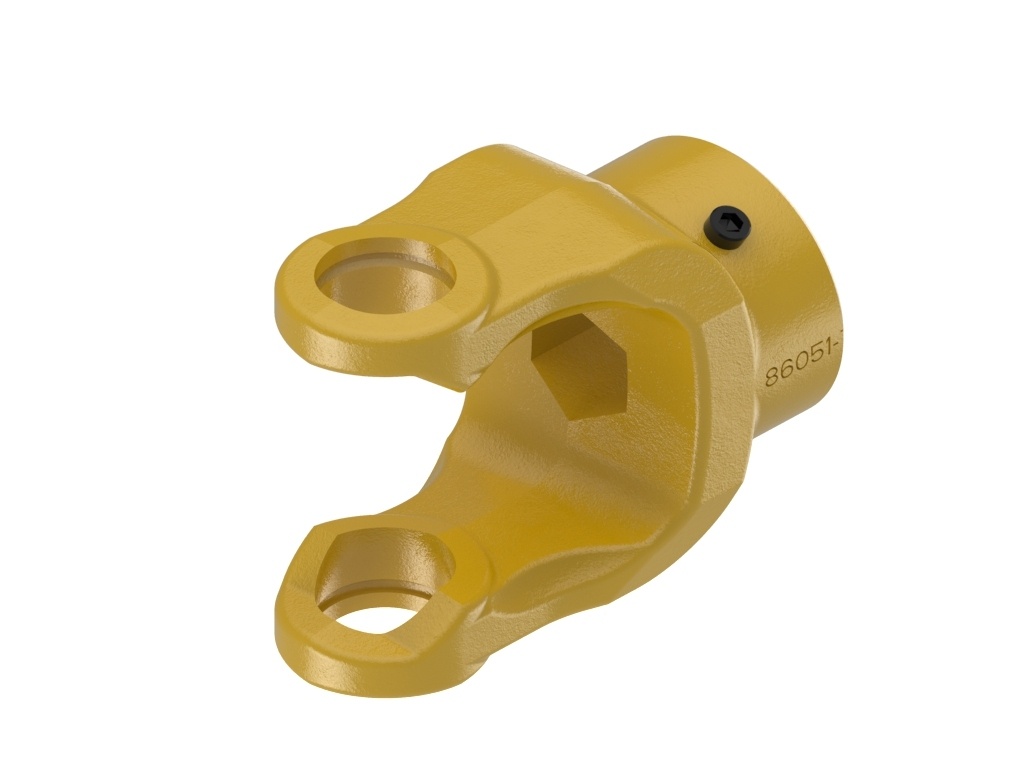

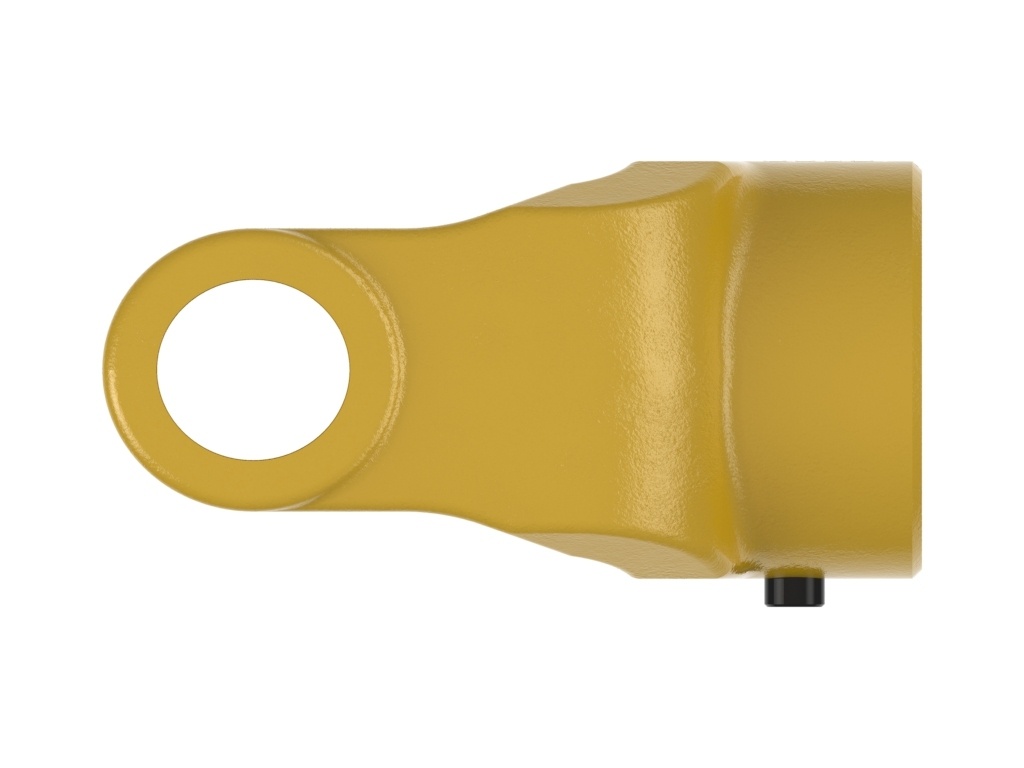

AB6,AW22 series yoke with 28 mm hex bore and setscrew connection. Note: Image color may not represent actual part.

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.14 inches29 mm
Bore 1 28 MM HEX
Connection 1 SETSCREW
Height4.49 inches114 mm
HP@1000RPM122 HP91 kilowatts
HP@540RPM79 HP59 kilowatts
Length4.13 inches105 mm
Setscrew 3/8-16
Shipping Dimensions5.06" L  ×  4.49" H  ×  2.76" W13cm L  ×  11cm H  ×  7cm W
Shipping Volume62.71 in31028 cm3
Shipping Weight5.30 pounds2 kilograms
Weight5.30 pounds2 kilograms
Width2.76 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
