530-8606-07

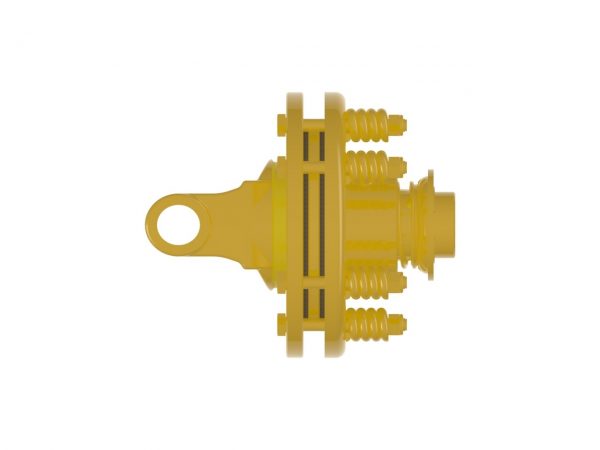

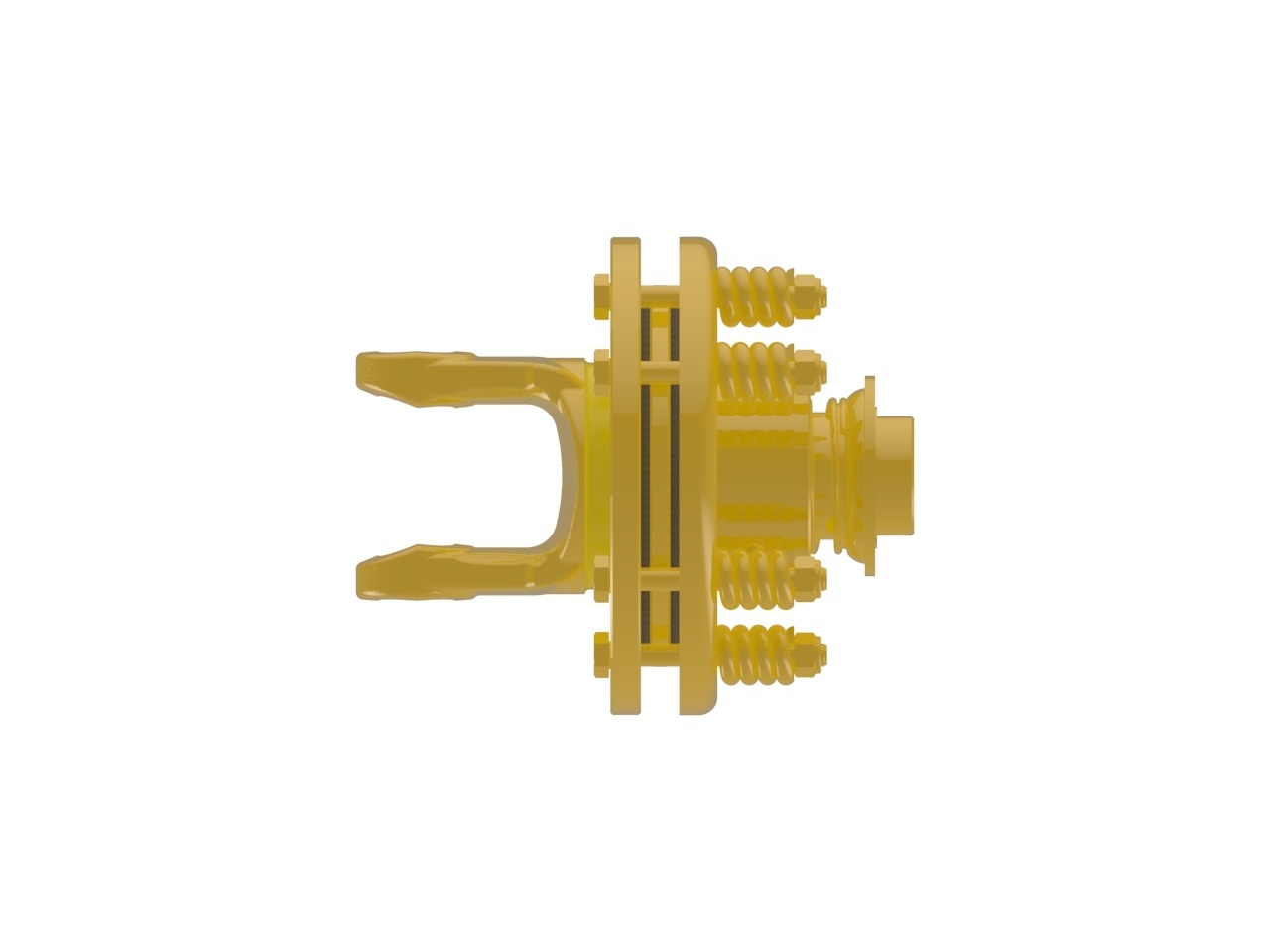

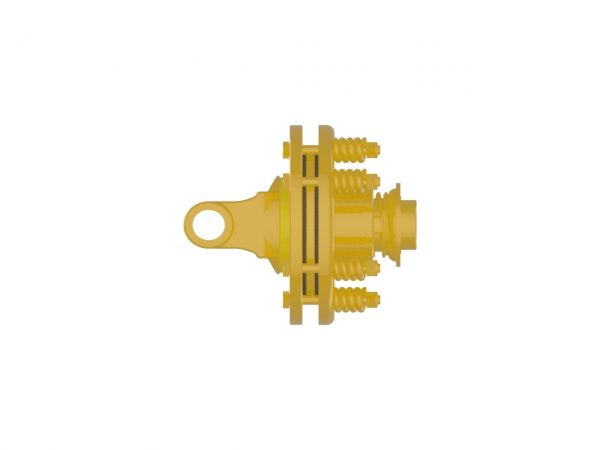

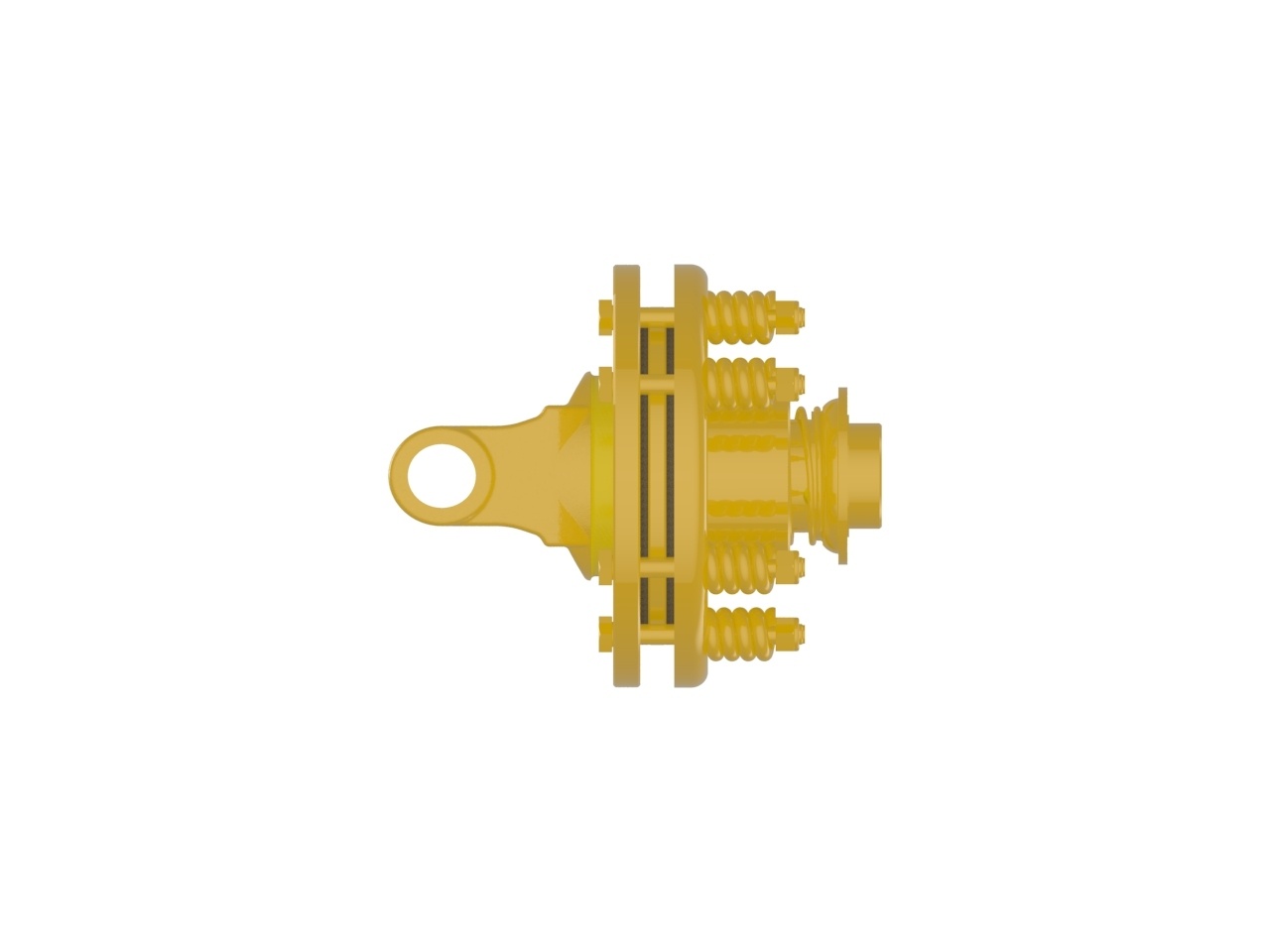

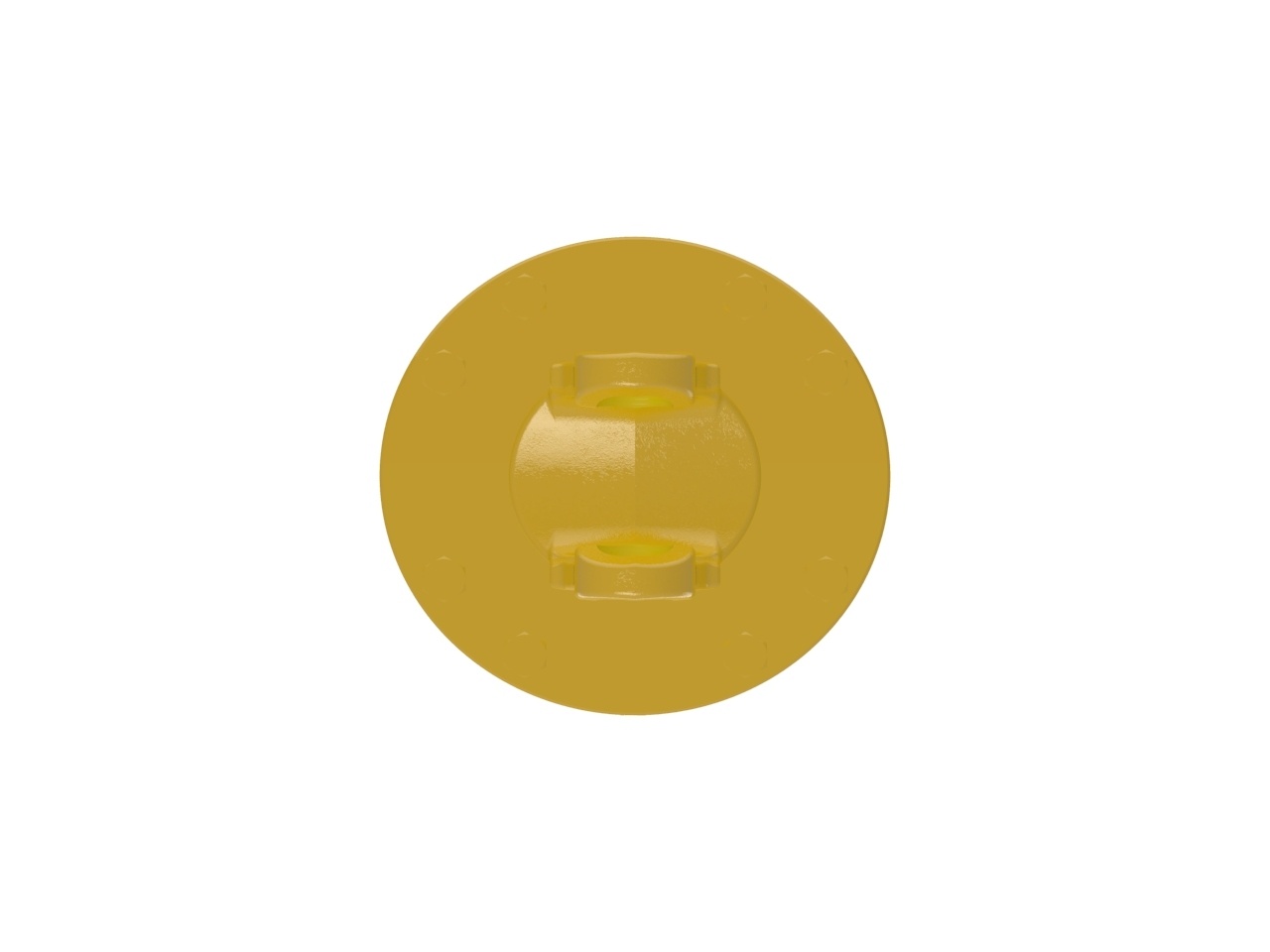

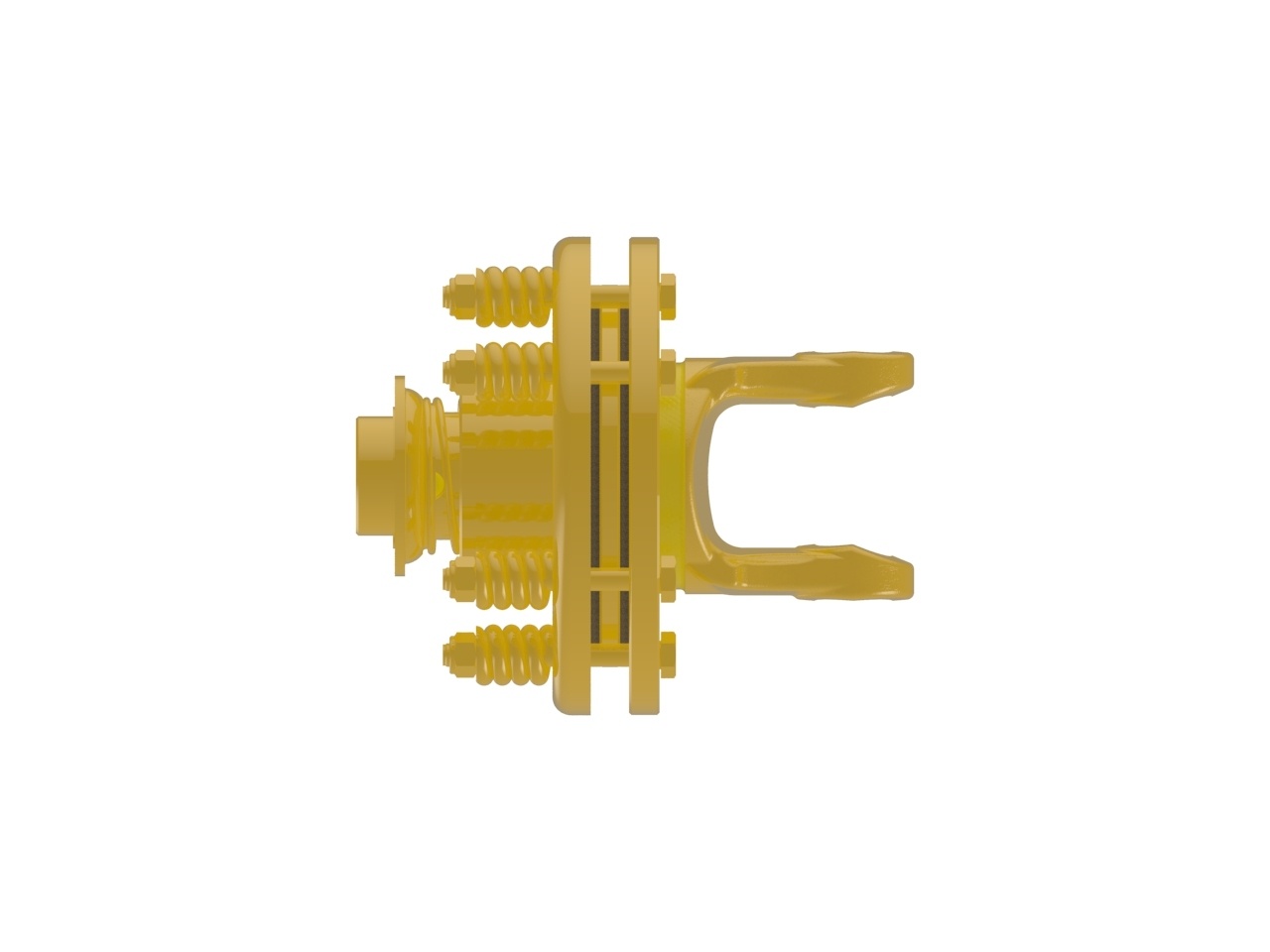

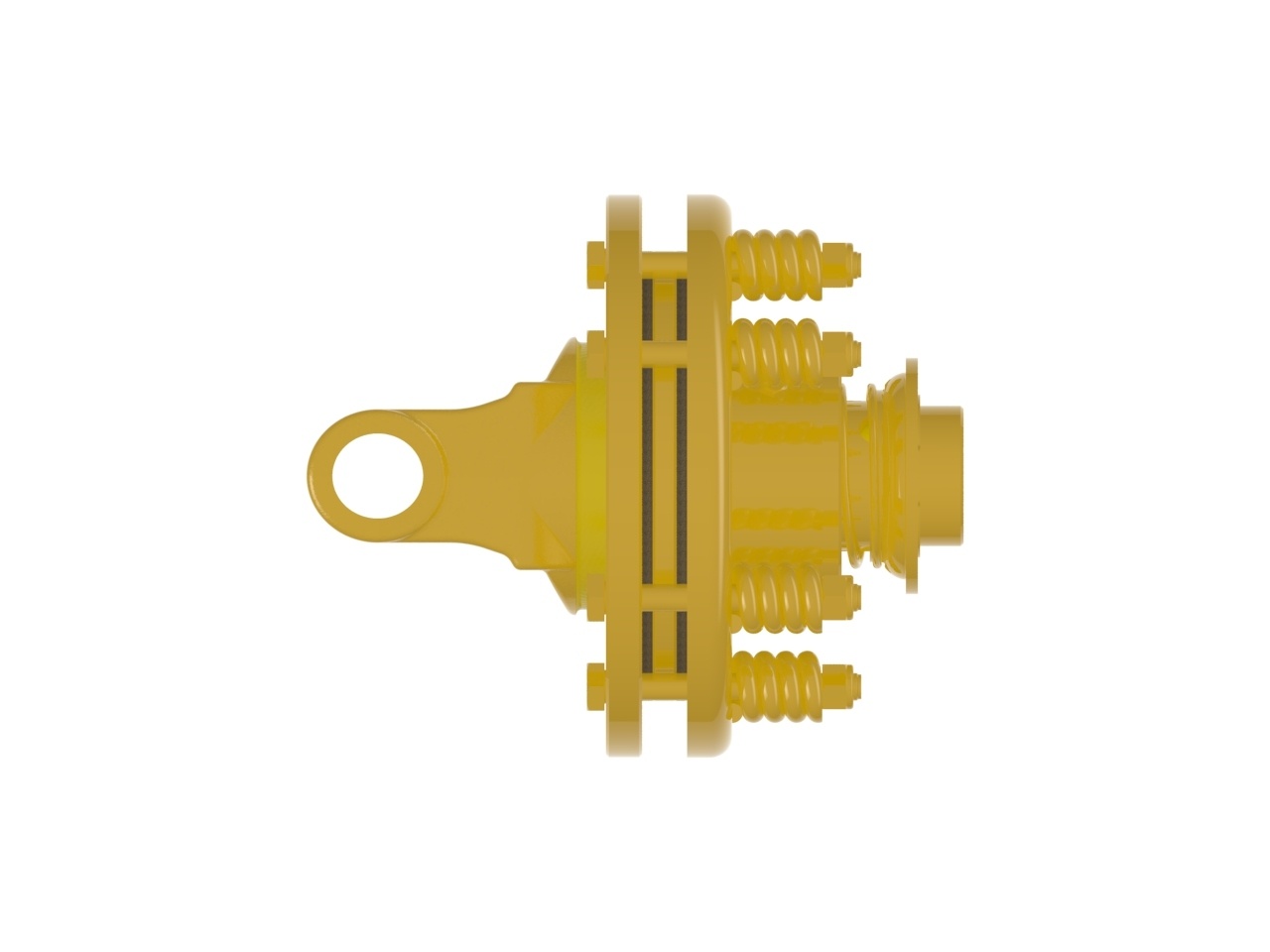

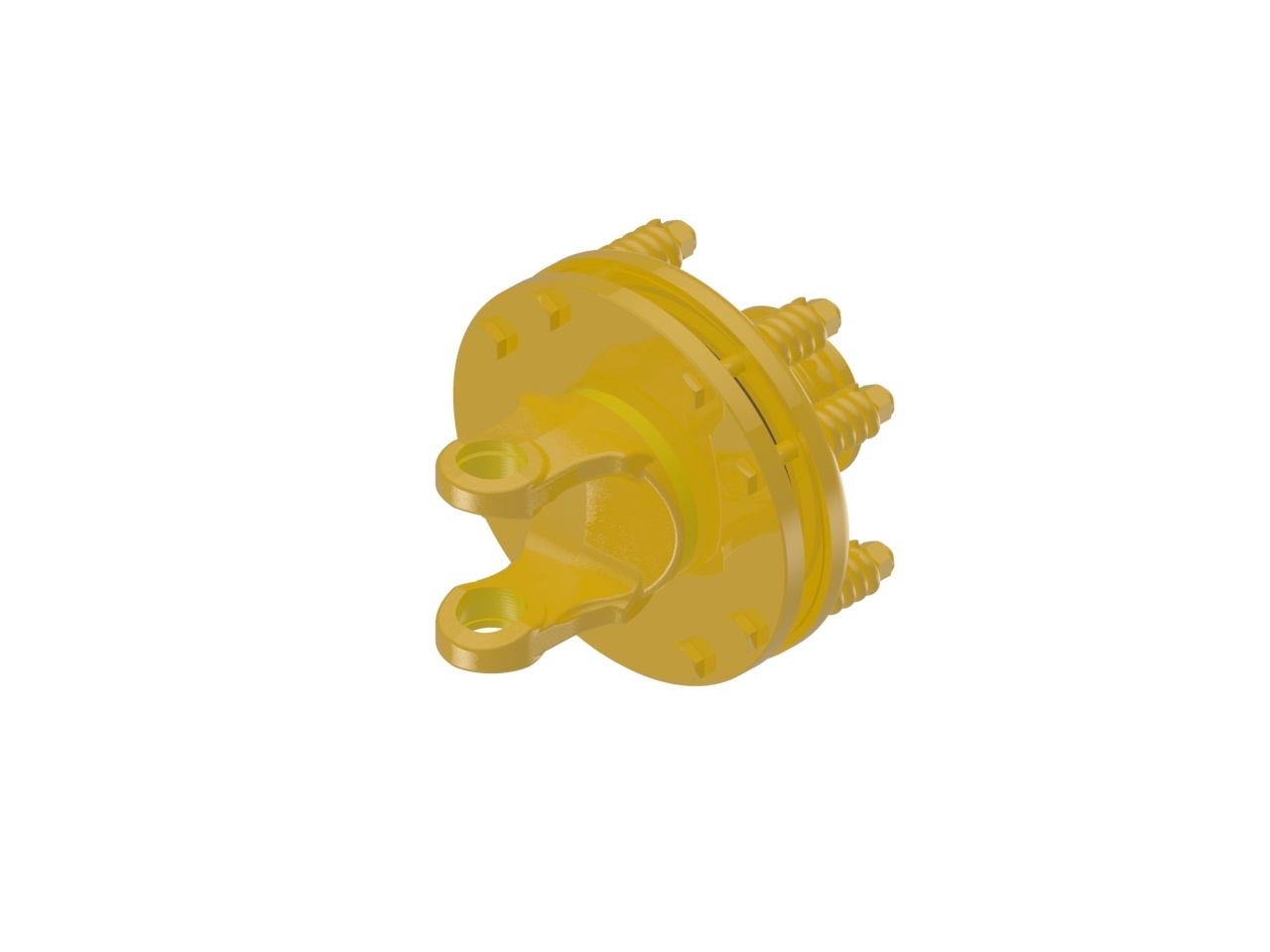

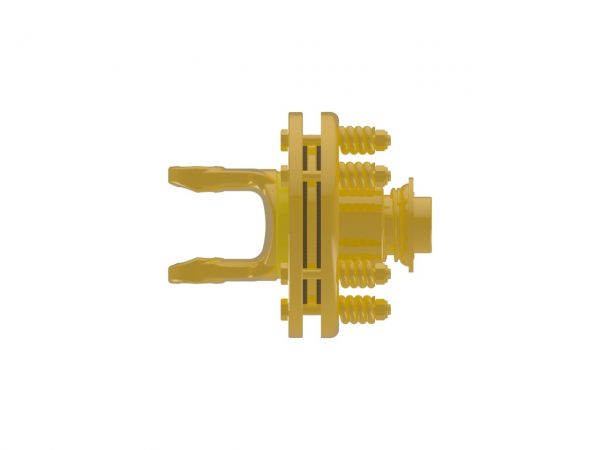

FRICTION OVERRUNNING CLUTCH YOKEAB6,AW22 Series Friction Overrunning Clutch Quick Disconnect Yoke
AB6,AW22 series friction overrunning clutch yoke with 1 3/8-6 spline bore and quick disconnect connection
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter | 1.18 inches | 30 mm |
| Bearing Span | 3.61 inches | 92 mm |
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Connection 1 | QUICK DISCONNECT | |
| HP@1000RPM | 122 HP | 91 kilowatts |
| HP@540RPM | 79 HP | 59 kilowatts |
| Length | 7.67 inches | 195 mm |
| Outside Diameter | 7.88 inches | 200 mm |
| Shipping Dimensions | 8.604" L × 7.874" H × 7.874" W | 22cm L × 20cm H × 20cm W |
| Shipping Volume | 533.45 in3 | 8742 cm3 |
| Shipping Weight | 24.14 pounds | 11 kilograms |
| Torque | 11100 | 11100 |
| Weight | 24.14 pounds | 11 kilograms |
