305-7600

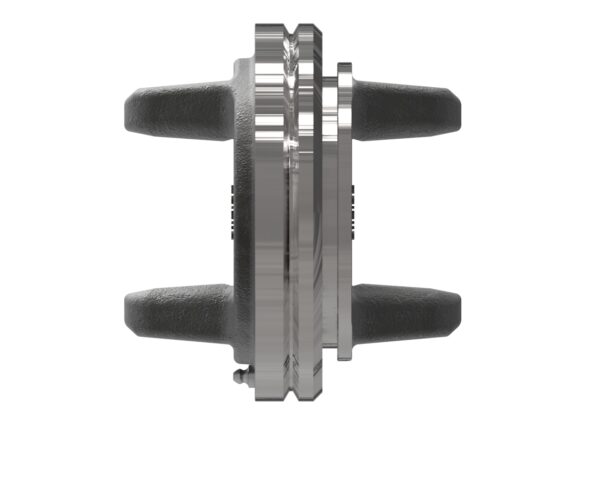

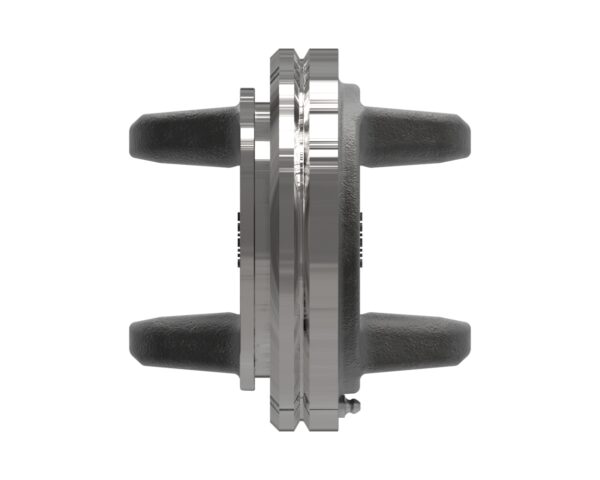

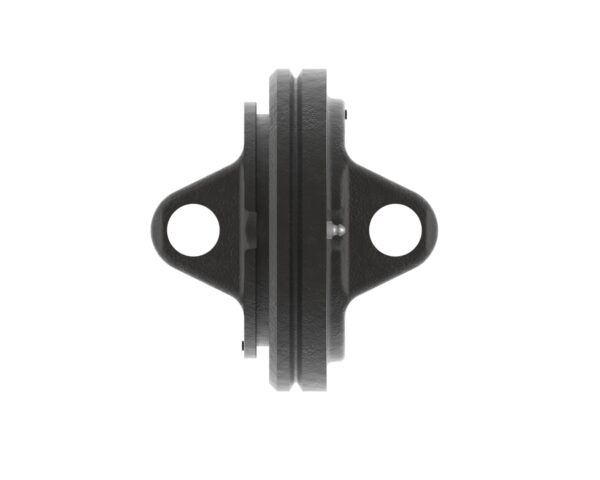

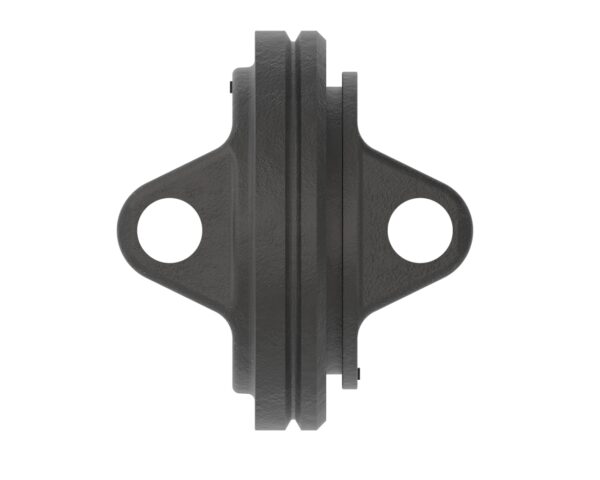

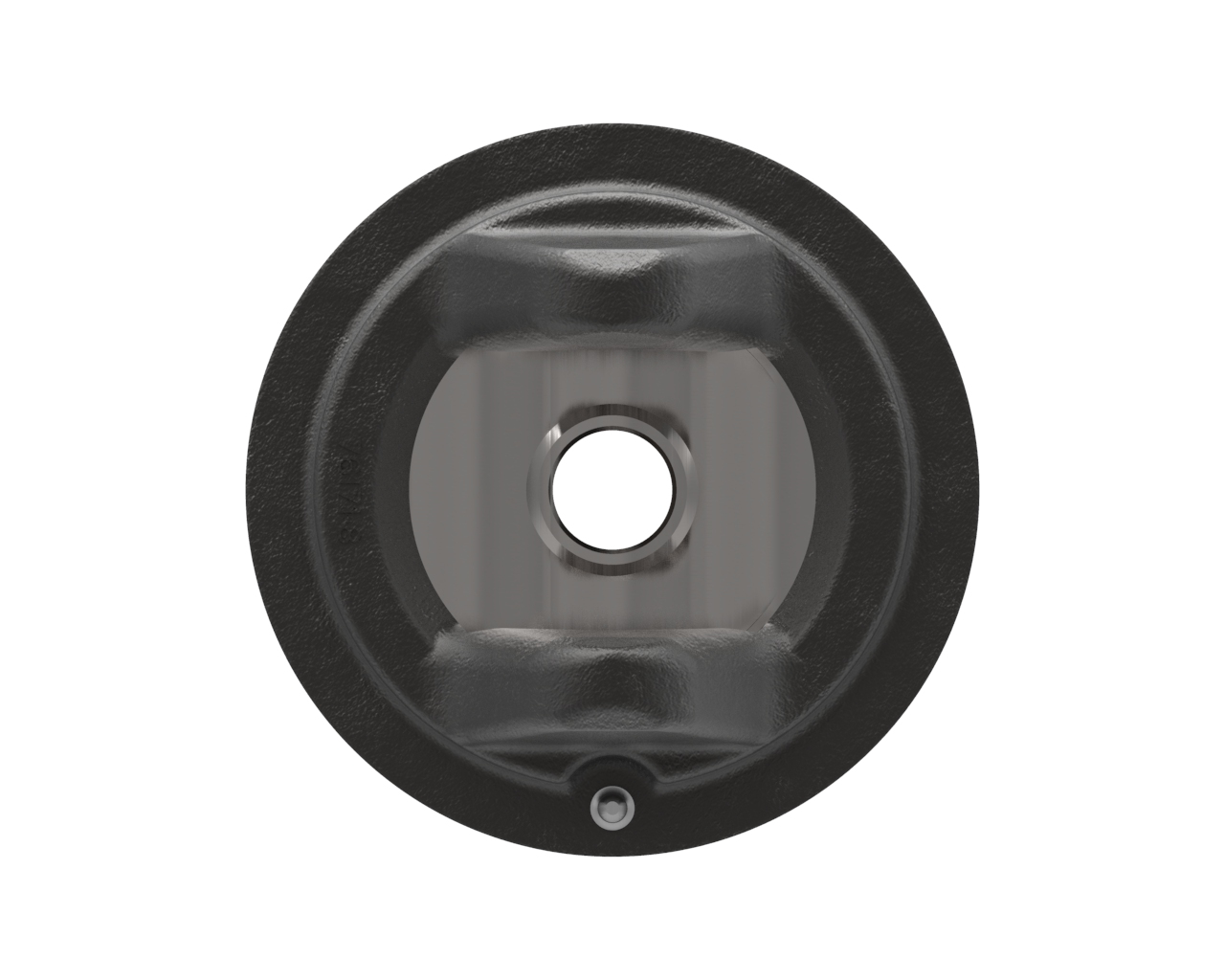

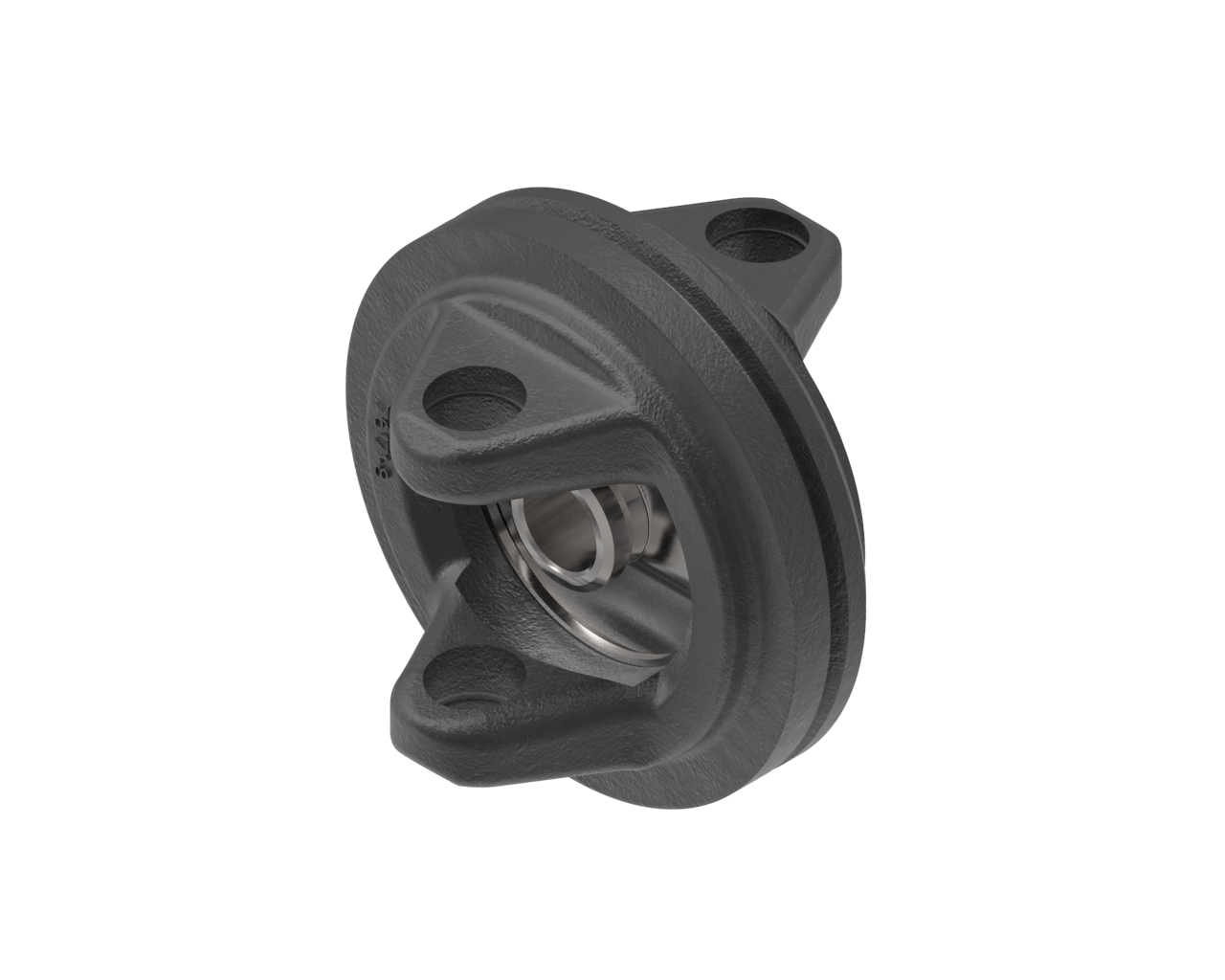

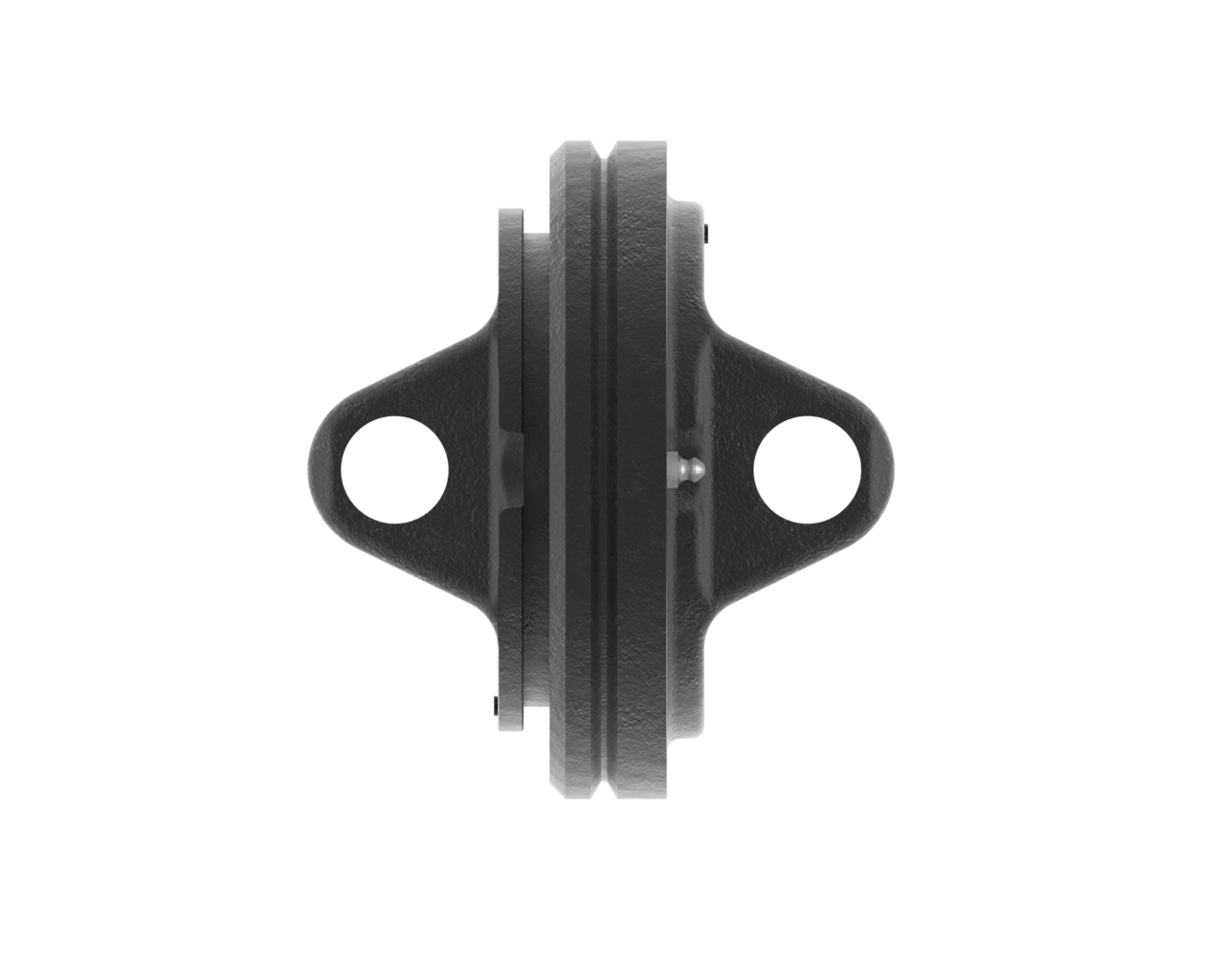

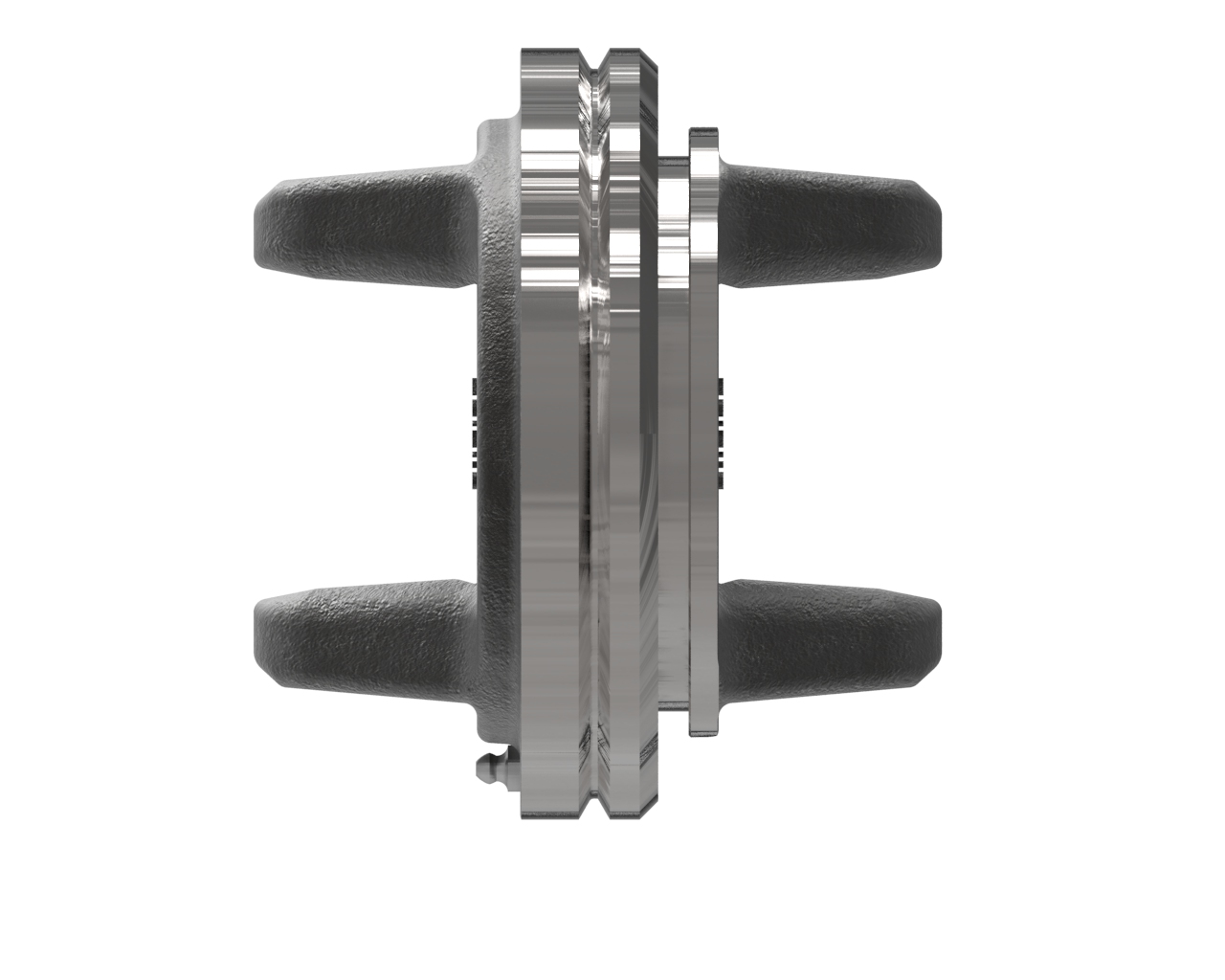

AB6-80,AW35-80 Series CV Wide Angle Center Yoke

AB6-80,AW35-80 series CV wide angle center yoke with centering plate bore and yoke arms connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The center yoke connects the two outboard yokes to transmit power while maintaining constant angle to minimize vibration.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.06 inches27 mm
Bore 1 CENTERING PLATE
Connection 1 YOKE ARMS
HP@1000RPM119 HP89 kilowatts
HP@540RPM77 HP57 kilowatts
Length4.10 inches104 mm
Outside Diameter6.53 inches166 mm
Shipping Dimensions5.83" L  ×  6.535" H  ×  6.535" W15cm L  ×  17cm H  ×  17cm W
Shipping Volume248.98 in34080 cm3
Shipping Weight11.46 pounds5 kilograms
Weight11.46 pounds5 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English

Support Videos

Performance Benefits Video
