104-6520

AB5 Series Ball Shear Clutch Safety Slide Lock Yoke

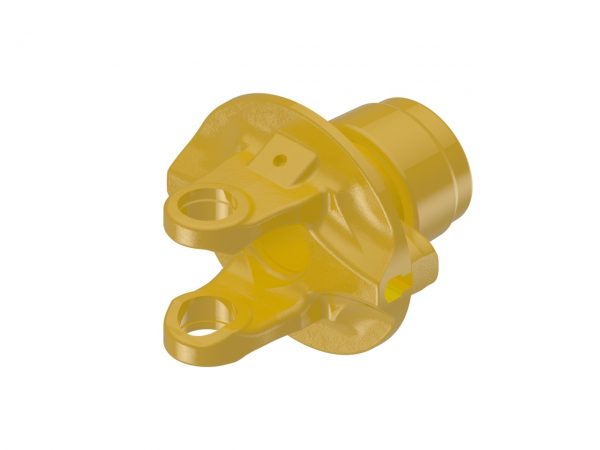

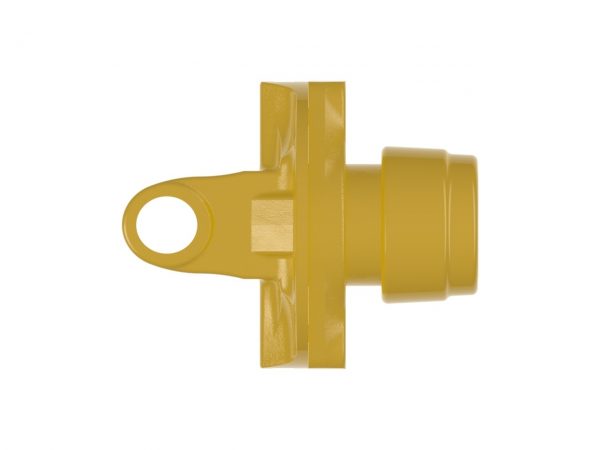

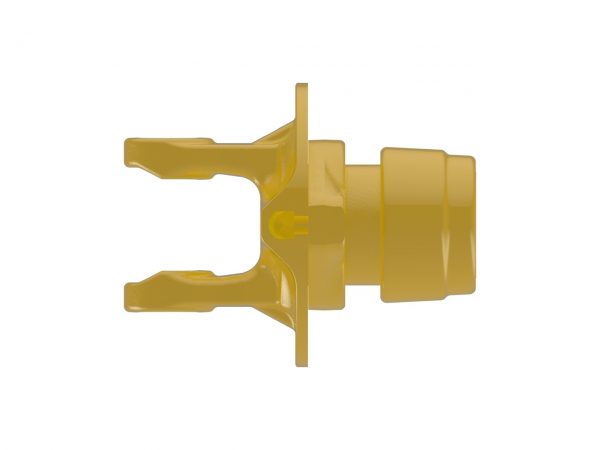

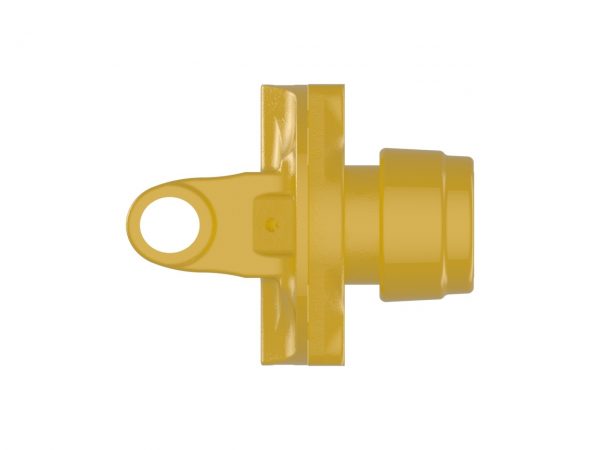

AB5 series ball shear clutch yoke with 1 3/4-20 spline bore and safety slide lock connection. Note: Image color may not represent actual part.

View My List

The ball shear yoke clutch offers implement overload protection. In addition to the traditional implement mounted configuration, the free motion and hidden bolt tractor shaft mounted options make hook-up and service more user friendly. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.

PERFORMANCE BENEFITS
• Implement overload protection.
• Minimal maintenance.
• No damaging heat generation for higher productivity.
• Repeatable overload disengagement setting.
• Tamper resistant.
• Smooth disengaged operation, no damaging torque spikes.
• Offered with or without free motion, overrunning and tractor mount options.
• Induction hardened bolt holes provide good edge for consistent, repeatable shear.
• Internal ball bearing with induction hardened races.
• Reduces possibility of damage.

DESIGN FEATURES
• Tractor yoke: Hidden shear bolt, Complies with asabe and ISO standards, Slide collar style for 1-3/8 x 6, 1-3/8 x 21 and 1-3/4 x 20 PTO shafts.
• Implement yoke contains shear bolt accessible for easy change out.
• Free motion yoke: Shear bolt accessible for easy change out, 60° free movement for easy hookup of tractor yoke.
• Auto-lok attachment available (patented).
• Speeds to 2000 rpm.
• Broad range of shear torque settings.

Specifications

Spec. Imperial Metric
Bearing Diameter1.18 inches30 mm
Bearing Span3.12 inches79 mm
Bore 11.75 inches44 mm
Bore 1 1 3/4-20 SPLINE
Connection 1 SAFETY SLIDE LOCK
HP@1000RPM100 HP75 kilowatts
HP@540RPM65 HP48 kilowatts
Length6.06 inches154 mm
Outside Diameter6.00 inches152 mm
Shear Bolt (2) 3/8 Grade 5
Shipping Dimensions7.025" L  ×  6" H  ×  6" W18cm L  ×  15cm H  ×  15cm W
Shipping Volume252.90 in34144 cm3
Shipping Weight10.00 pounds5 kilograms
Torque2780027800
Weight10.00 pounds5 kilograms
