102-8318
TRACTOR YOKEAB3,AW11 Series Quick Disconnect Yoke
AB3,AW11 series yoke with 1 1/8-6 spline bore and quick disconnect connection
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.12 inches | 28 mm |
Bore 1 | 1 1/8-6 SPLINE | |

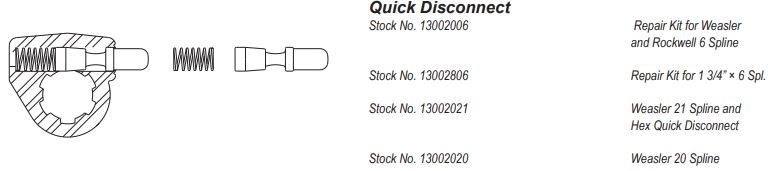

Connection 1 | QUICK DISCONNECT | |
Height | 3.48 inches | 88 mm |
HP@1000RPM | 58 HP | 43 kilowatts |
HP@540RPM | 38 HP | 28 kilowatts |
Length | 4.01 inches | 102 mm |
Shipping Dimensions | 4.822" L × 3.48" H × 2.1653543307087" W | 12cm L × 9cm H × 6cm W |
Shipping Volume | 36.34 in3 | 596 cm3 |
Shipping Weight | 3.02 pounds | 1 kilograms |
Weight | 3.02 pounds | 1 kilograms |
Width | 2.16 inches | 55 mm |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
WE0101004_0817_USL_AutoLokYoke.pdf | Performance Benefits Document | English |
