508-0850

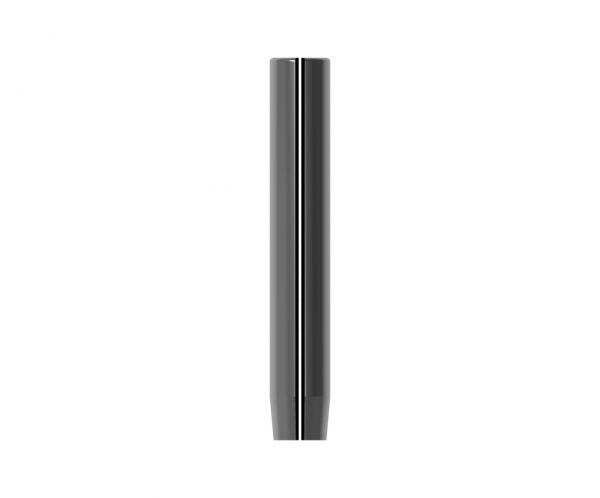

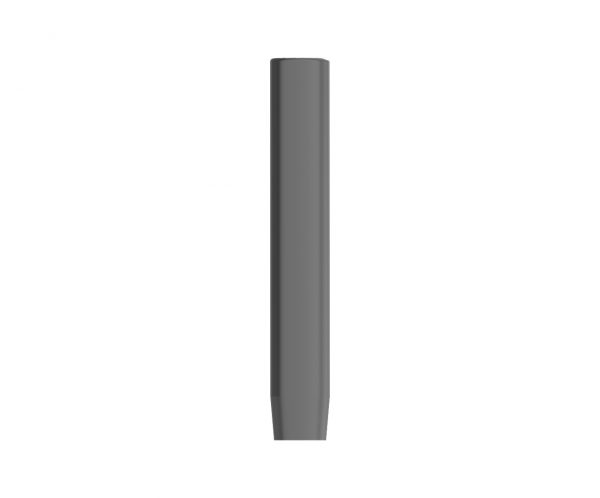

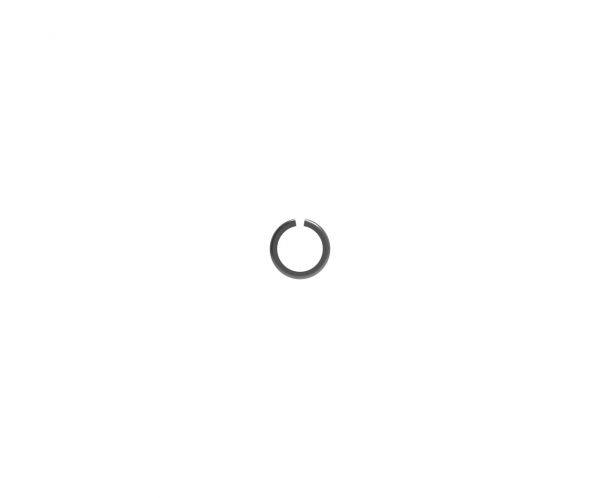

AB1,AW10 Series Roll Pin

AB1,AW10 series roll pin with press connection

View My List

A roll pin is utilized to connect a shaft yoke (inner profile yoke) to the inner profile tube, and a second roll pin is utilized to connect the outer profile tube to a tube yoke (outer profile yoke).

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Length1.96 inches50 mm
Outside Diameter0.31 inches8 mm
Pin Hole0.31 inches8 mm
Shipping Dimensions1.969" L  ×  0.315" H  ×  0.315" W5cm L  ×  1cm H  ×  1cm W
Shipping Volume0.20 in33 cm3
Shipping Weight0.02 pounds0 kilograms
Weight0.02 pounds0 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
