807-0615

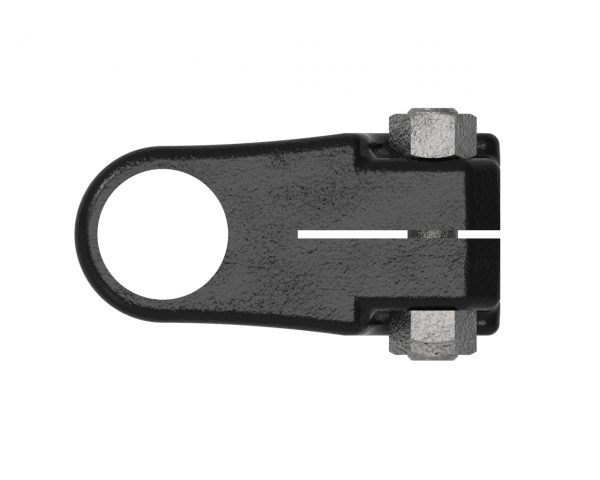

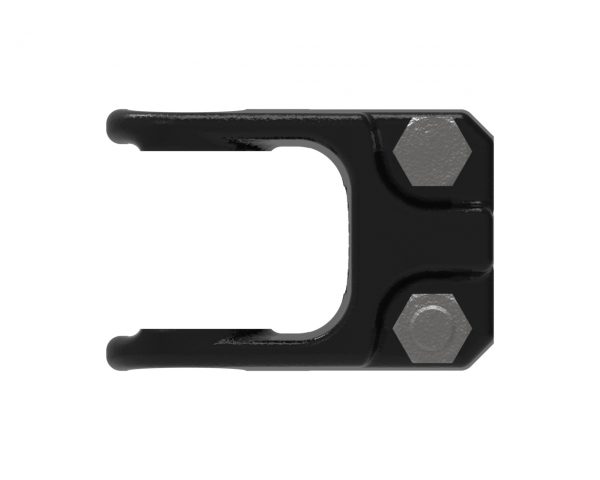

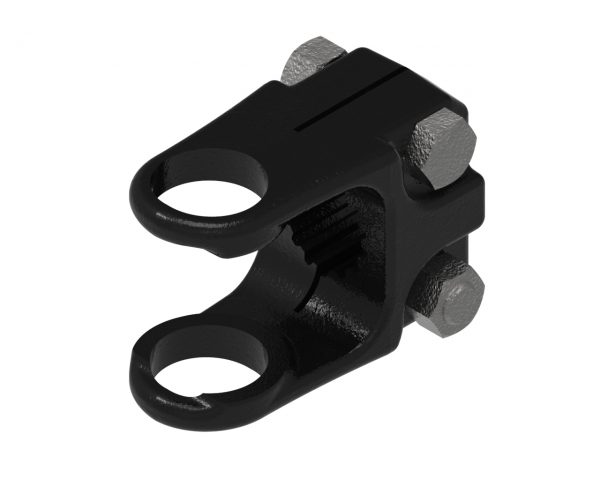

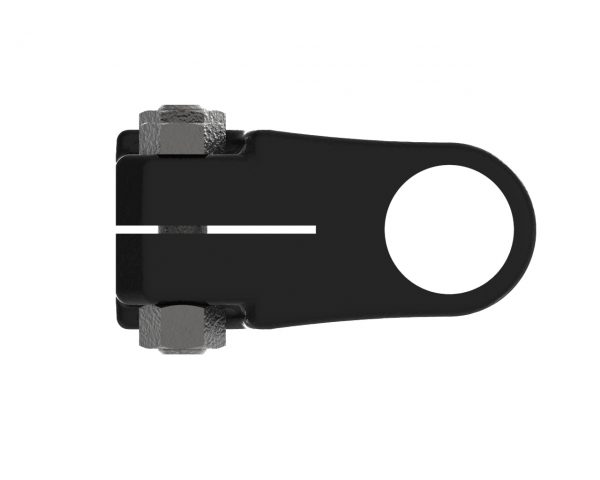

CLAMP YOKE6 Series Clamp Yoke

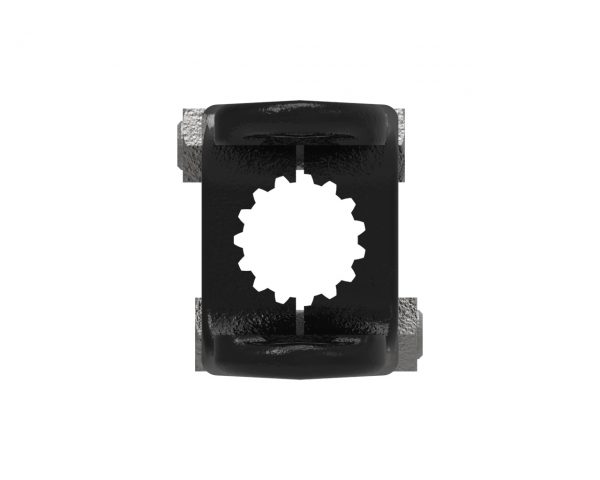

6 series yoke with 1-15 spline bore and clamp connection
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.00 inches | 25 mm |
Bore 1 | 1-15 SPLINE | |
Connection 1 | CLAMP | |
Height | 2.50 inches | 64 mm |
HP@1000RPM | 29 HP | 22 kilowatts |
HP@540RPM | 19 HP | 14 kilowatts |
Length | 2.50 inches | 64 mm |
Shipping Dimensions | 3.17" L × 2.5" H × 1.56" W | 8cm L × 6cm H × 4cm W |
Shipping Volume | 12.36 in3 | 203 cm3 |
Shipping Weight | 1.00 pounds | 0 kilograms |
Weight | 1.00 pounds | 0 kilograms |
Width | 1.56 inches | 40 mm |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
