93-14506851

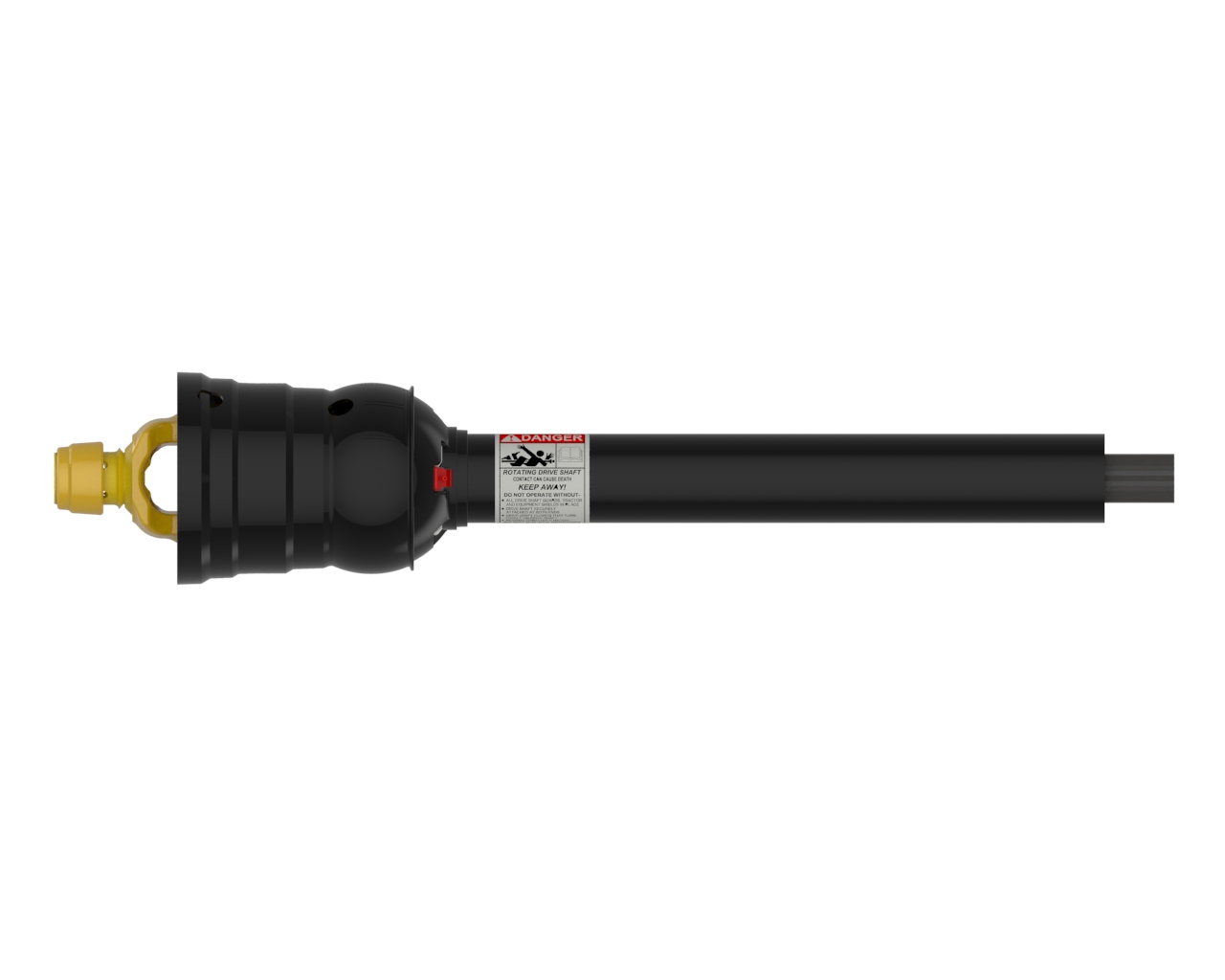

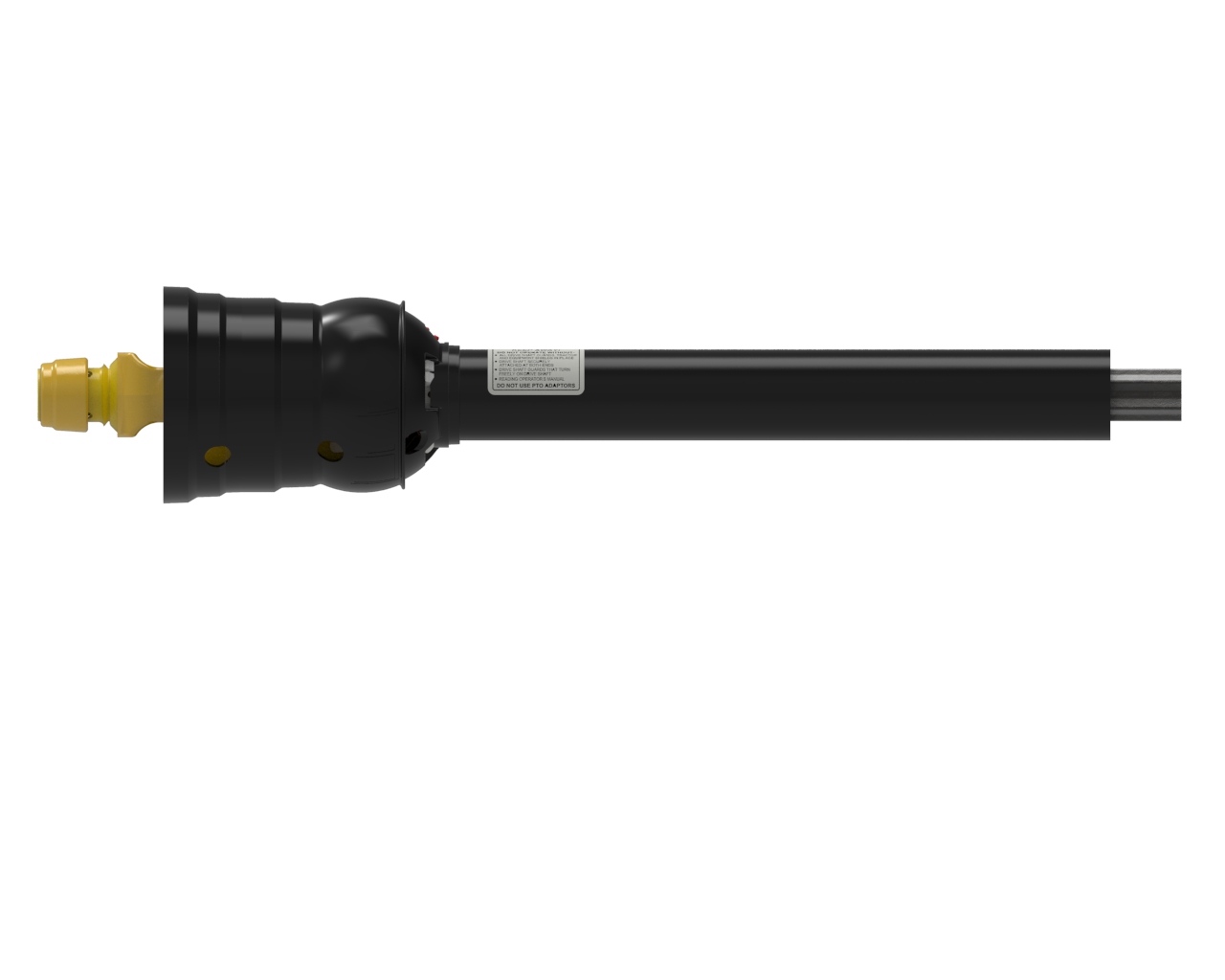

AW36-80 Series CV Wide Angle Universal Joint And Shaft With Guard

AW36-80 series CV wide angle universal joint and shaft with guard with 1 3/8-6 spline, auto-lok connection and 51 mm star, telescoping connection

View My List

Constant velocity (CV) wide angle universal joint assemblies allow for smooth machine operation through a broad range of motion. The universal joints included allow the machine to be designed with the input shaft in the best operating position and yet allow the operator to maneuver as needed. The CV delivers constant power by self-canceling torque and speed fluctuations typically found in single cardan-type universal joints.

PERFORMANCE BENEFITS

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.46 inches37 mm
Bore 2 51 MM STAR
Compressed (Closed) Length38.76 inches985 mm
Compressed Overall Length49.05 inches1246 mm
Connection 1 AUTO-LOK
Connection 2 TELESCOPING
Extended Length52.17 inches1325 mm
Extended Overall Length62.46 inches1586 mm
HP@1000RPM119 HP89 kilowatts
HP@540RPM77 HP57 kilowatts
Length49.05 inches1246 mm
Outside Diameter7.75 inches197 mm
Shipping Dimensions40.7" L  ×  7.8" H  ×  7.8" W103cm L  ×  20cm H  ×  20cm W
Shipping Volume2476.19 in340578 cm3
Shipping Weight55.00 pounds25 kilograms
Weight55.00 pounds25 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English

Support Videos

Performance Benefits Video
