515-6800

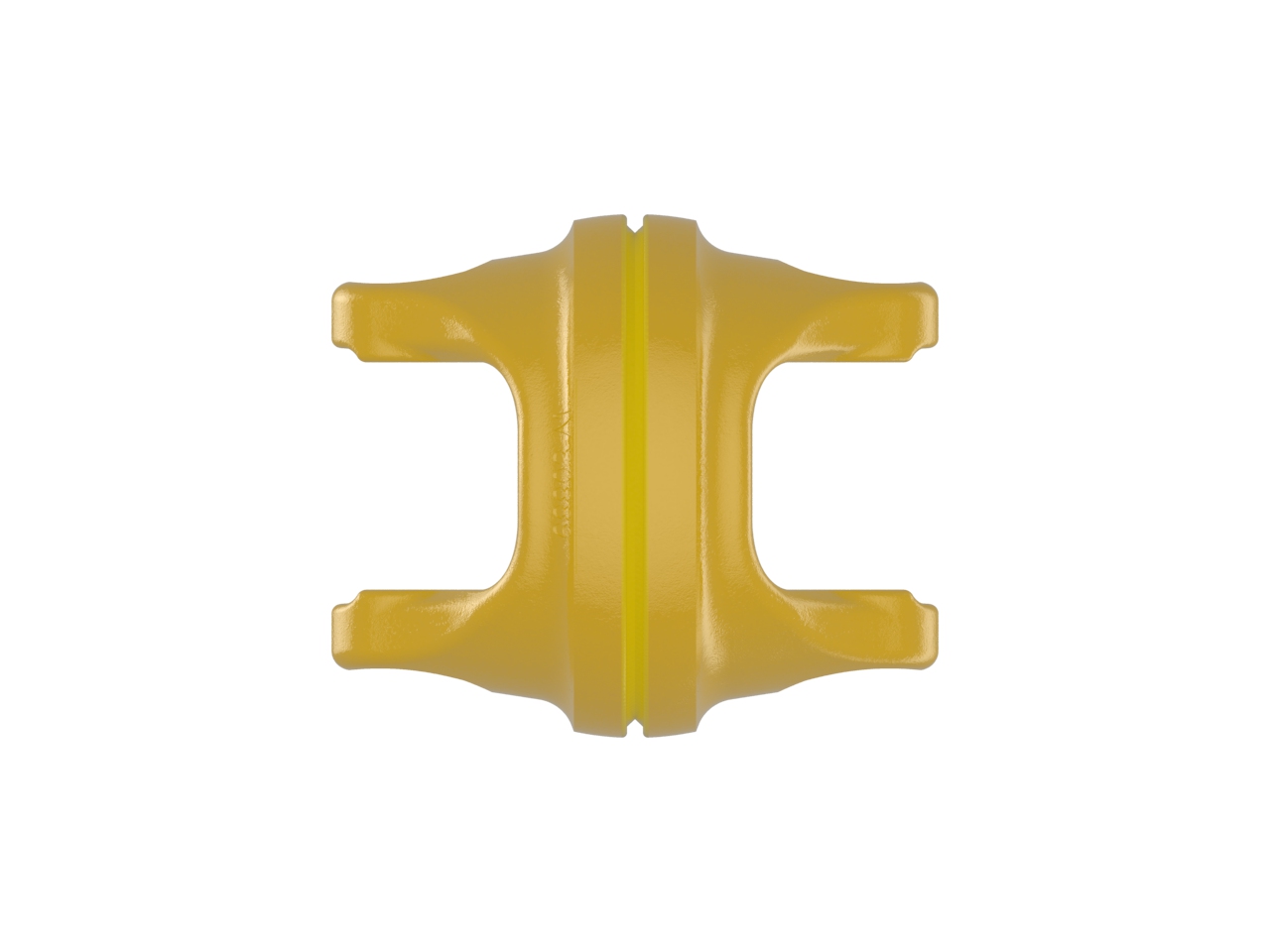

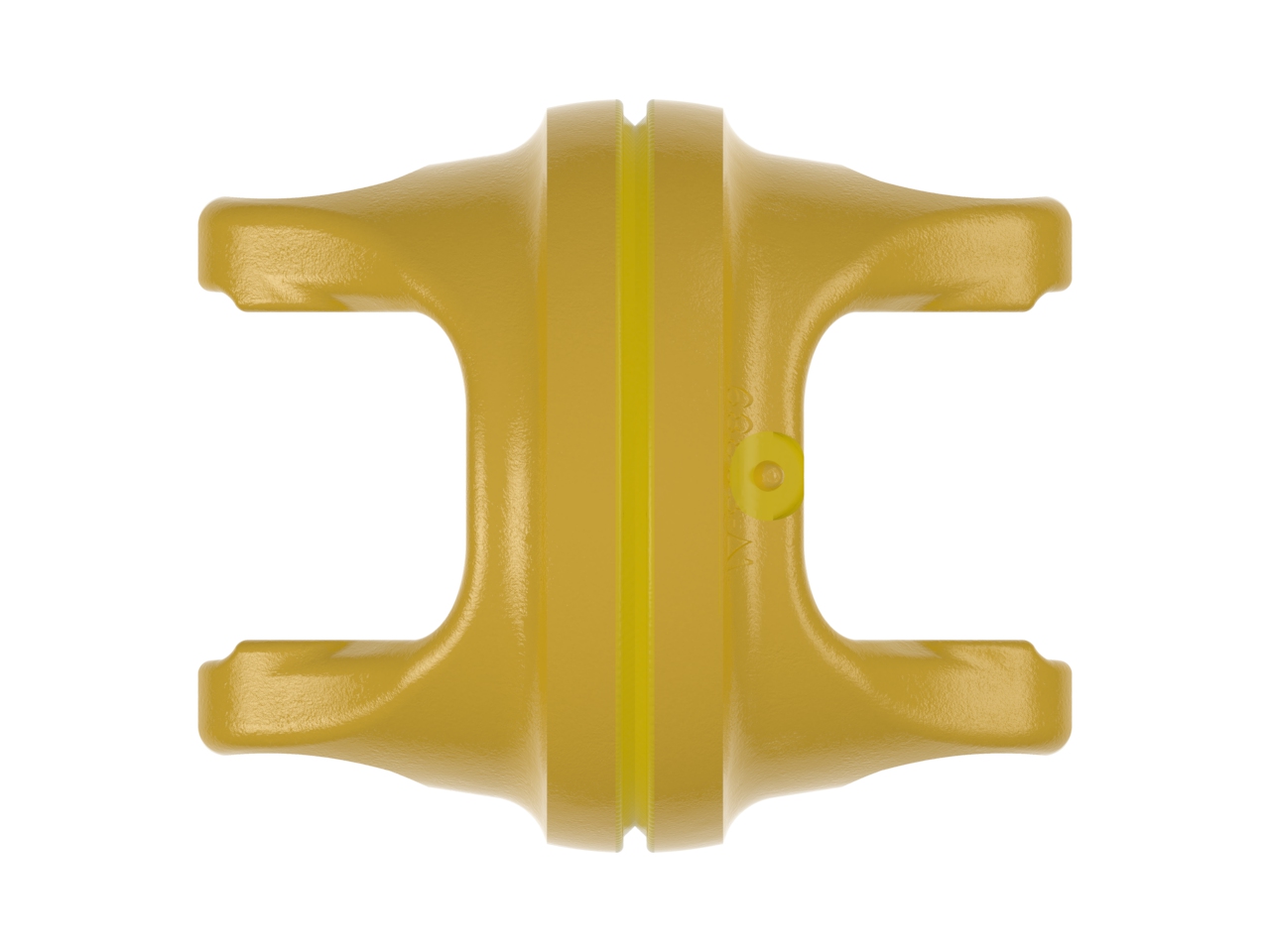

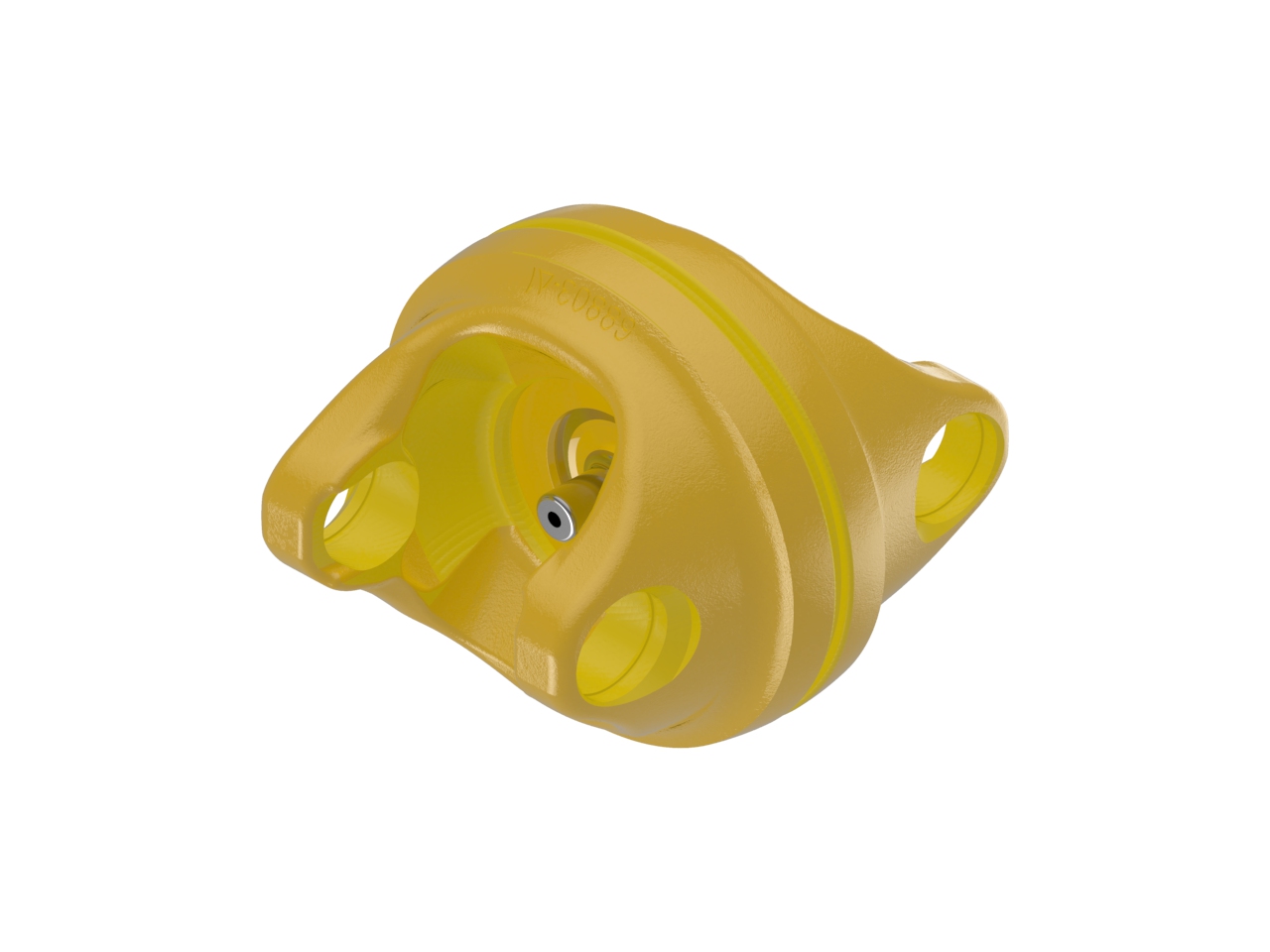

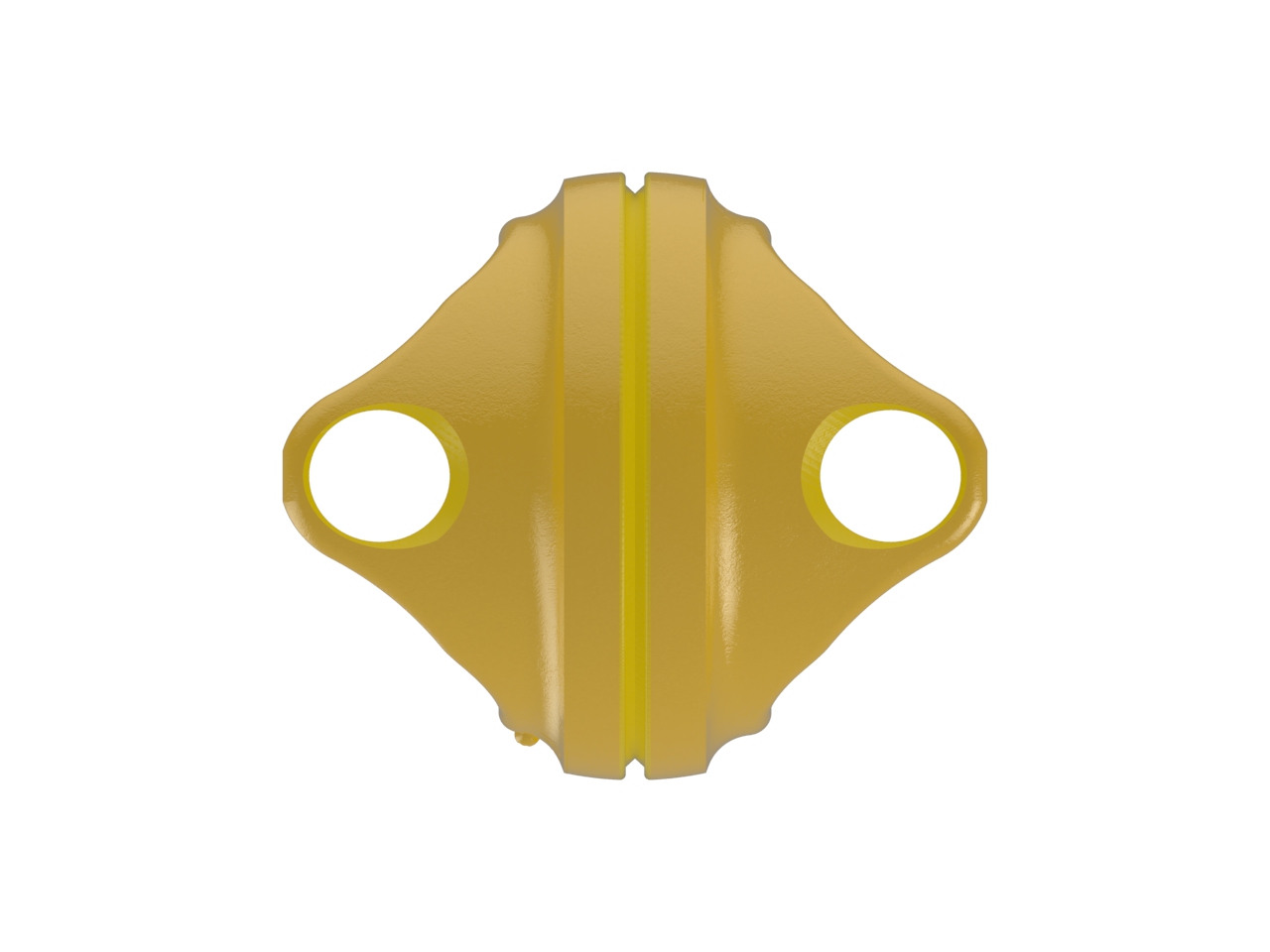

6-80 Series CV Wide Angle Center Yoke

6-80 series CV wide angle center yoke with centering plate bore and yoke arms connection

View My List

Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The center yoke connects the two outboard yokes to transmit power while maintaining constant angle to minimize vibration.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 10.62 inches16 mm
Bore 1 CENTERING PLATE
Connection 1 YOKE ARMS
HP@1000RPM232 HP173 kilowatts
HP@540RPM151 HP113 kilowatts
Length5.00 inches127 mm
Outside Diameter6.50 inches165 mm
Shipping Dimensions6.89" L  ×  6.5" H  ×  6.5" W18cm L  ×  17cm H  ×  17cm W
Shipping Volume291.10 in34770 cm3
Shipping Weight0.00 pounds0 kilograms
Weight0.00 pounds0 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English

Support Videos

Performance Benefits Video
