203-3545
R STANDARD, CUP GREASE FITTING5-80 Series Cross And Bearing Kit

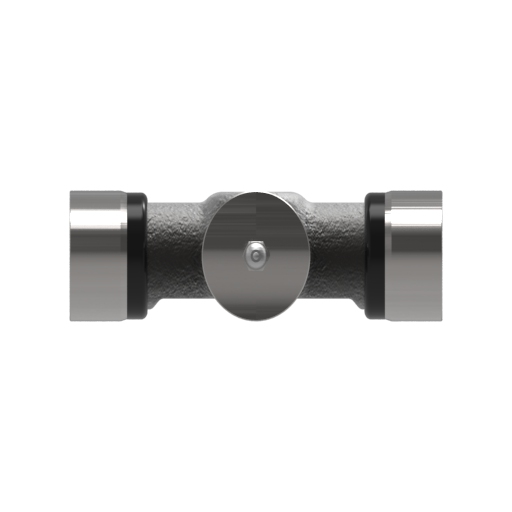

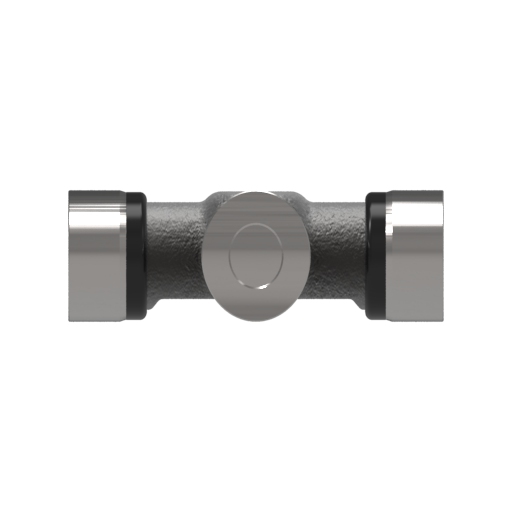

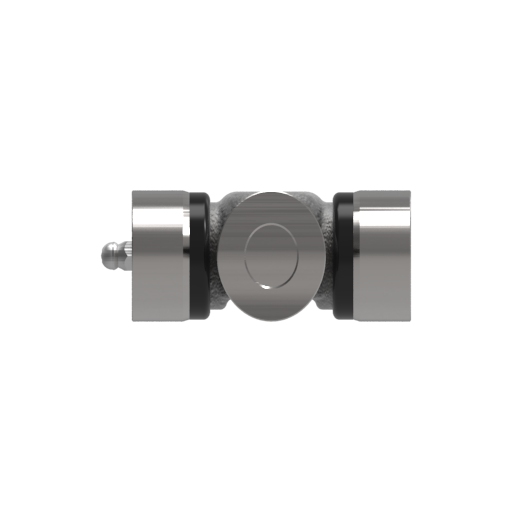

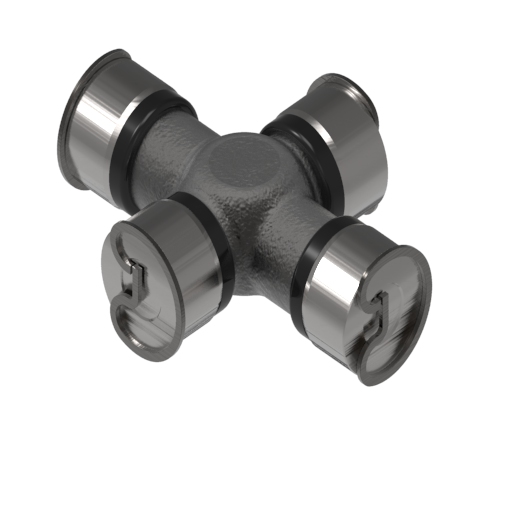

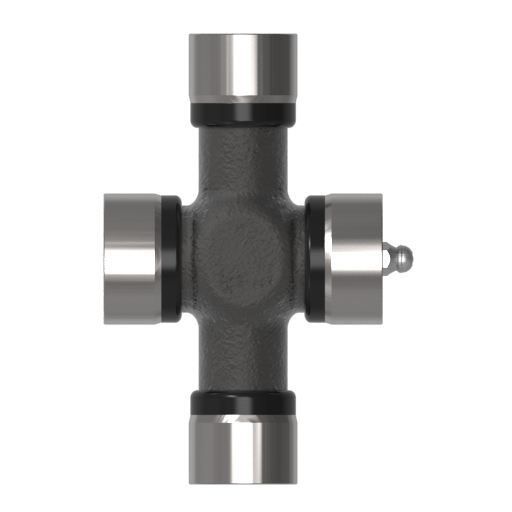

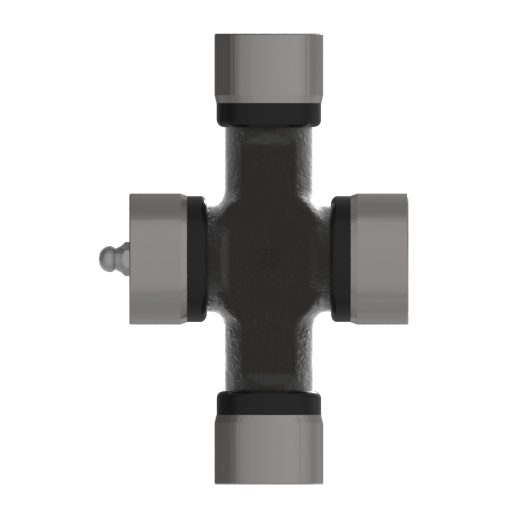

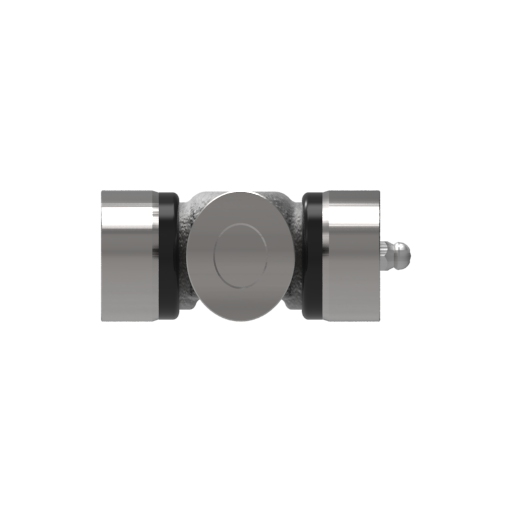

5-80 series cross and bearing kit, r standard, cup grease fitting
R-Kits are standard and offer a high quality lube cycle of 8 hours which is acceptable for many applications. R-kits, E-kits, and M-kits are interchangeable for all available Weasler series as well as with standard cross and bearing sets in the market. This means that a Weasler PTO drive shaft with R-kits can still be upgraded to E-kits or M-kits.
PERFORMANCE BENEFITS
Lubrication cycle of up to 8 hours.
Interchangeable with standard North American cross and bearing kits available in the market.
Easier grease access through the guard, no need to remove guard.
DESIGN FEATURES
A black seal with grease fitting makes it fast and easy to find a P-Kit.
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bearing Diameter | 1.18 inches | 30 mm |
Bearing Span | 4.18 inches | 106 mm |
Bearing Diameter | 1.25 inches | 32 mm |
Bearing Span | 4.29 inches | 109 mm |
Height | 1.25 inches | 32 mm |
HP@1000RPM | 118 HP | 88 kilowatts |
HP@540RPM | 77 HP | 57 kilowatts |
Kit Type | R | |
Length | 3.18 inches | 81 mm |
Lubrication Interval | 8.00 | |
Shipping Dimensions | 3.189" L × 1.252" H × 4.3" W | 8cm L × 3cm H × 11cm W |
Shipping Volume | 17.17 in3 | 281 cm3 |
Shipping Weight | 1.75 pounds | 1 kilograms |
Snap Ring Location | External | |
Weight | 1.75 pounds | 1 kilograms |
Width | 4.30 inches | 109 mm |
Downloads
Document Name | Type | Language |
---|---|---|
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
WE0101007_0118_USL_EKit.pdf | Performance Benefits Document | English |
