801-0313

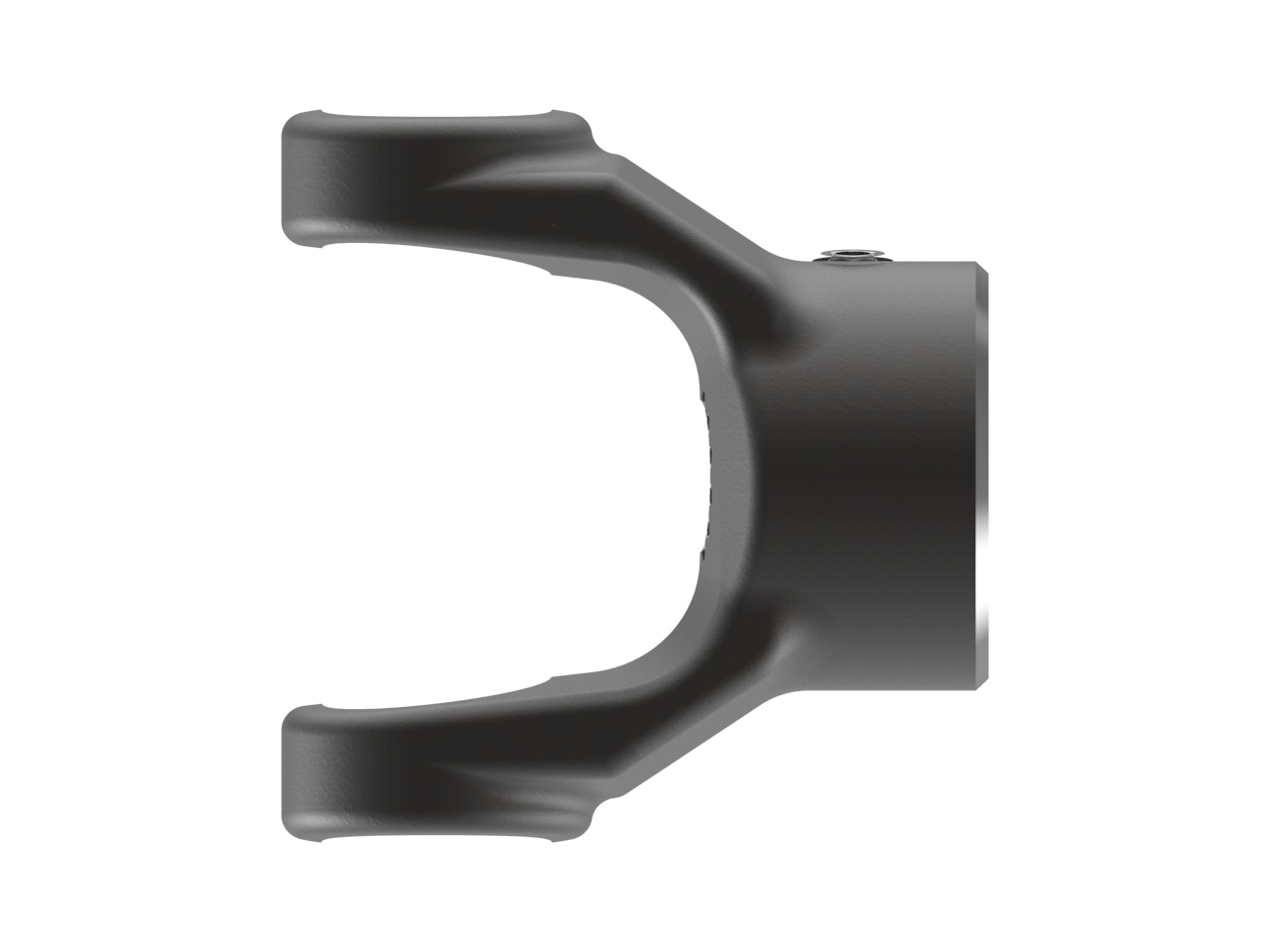

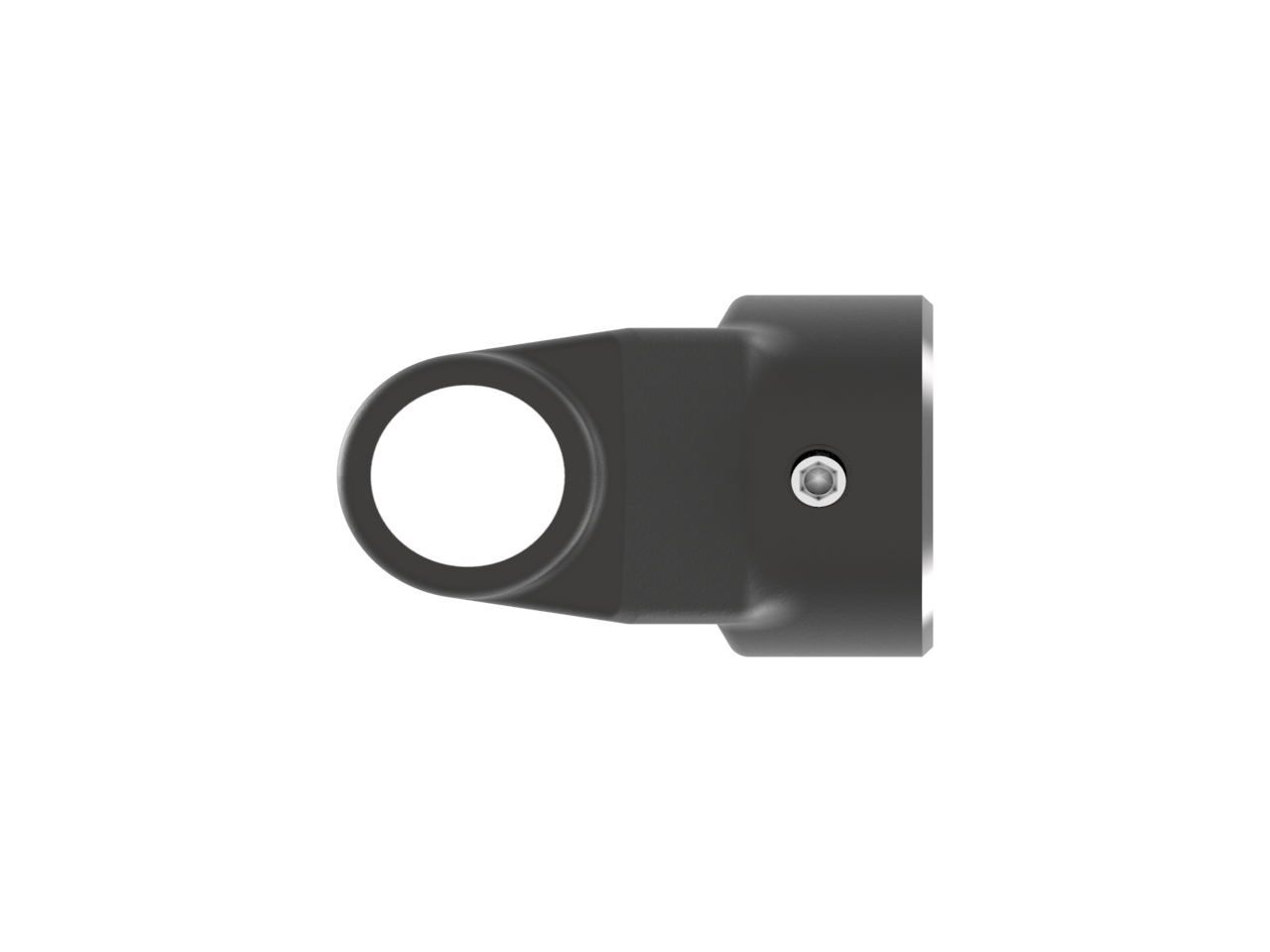

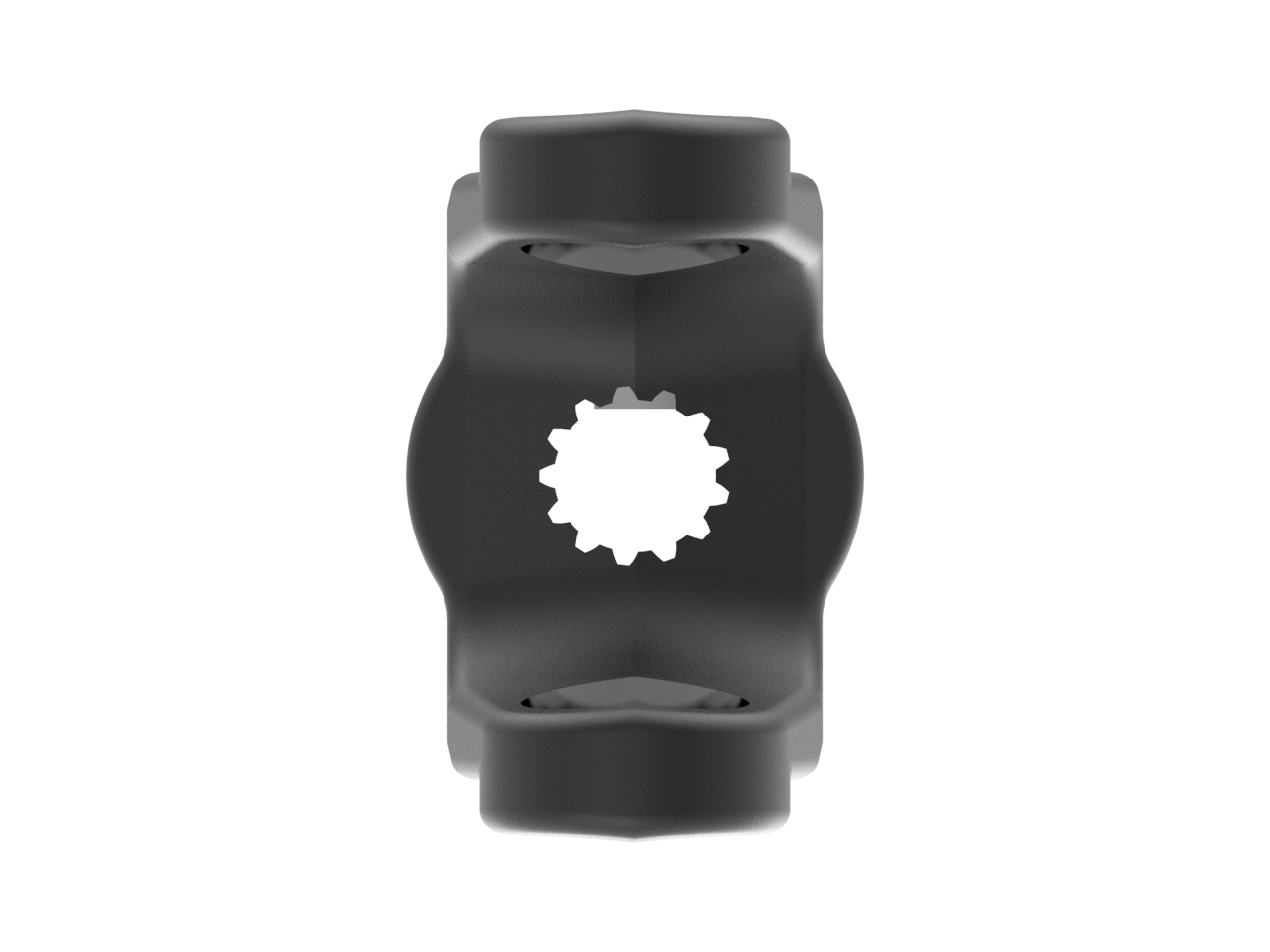

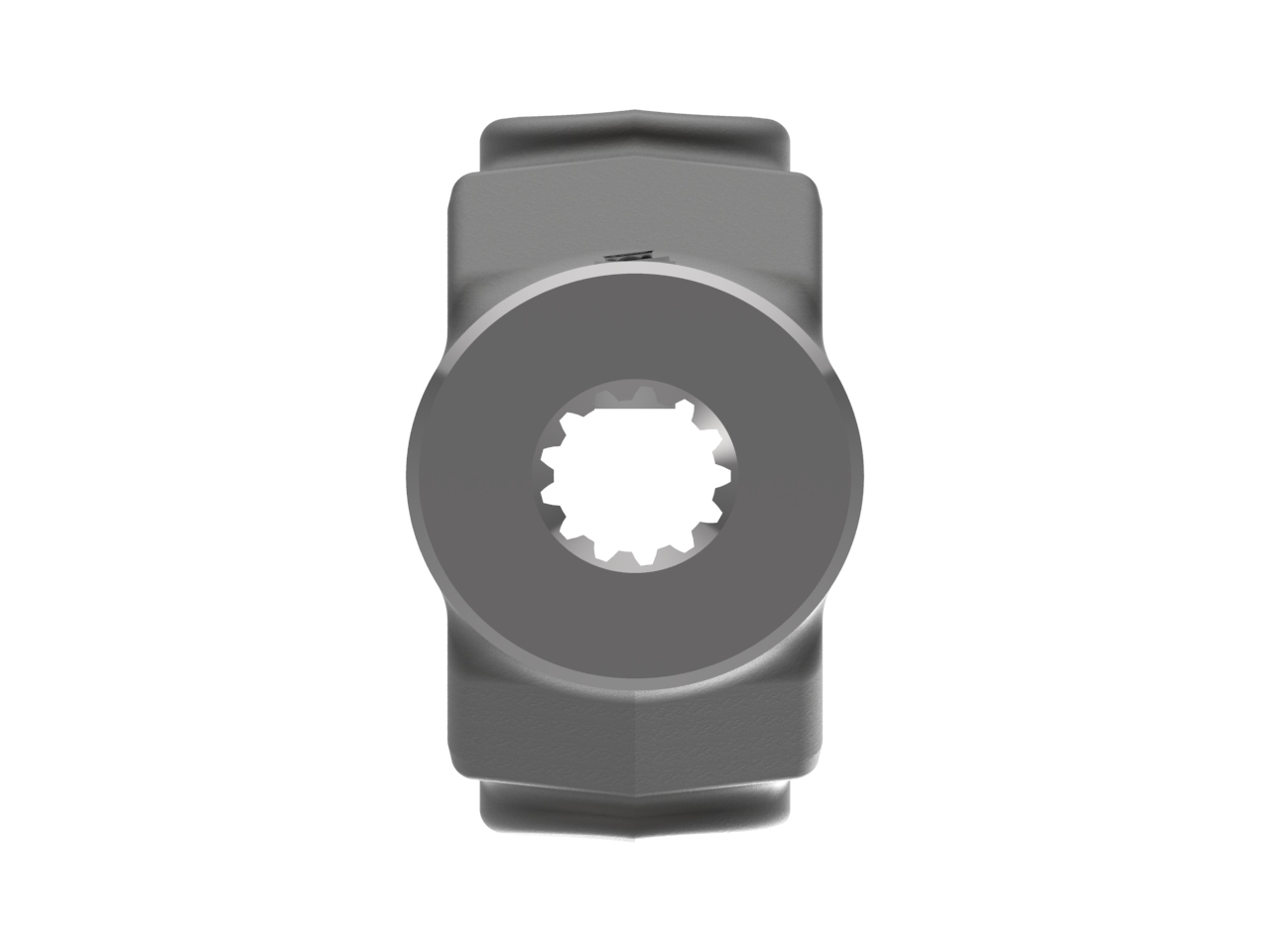

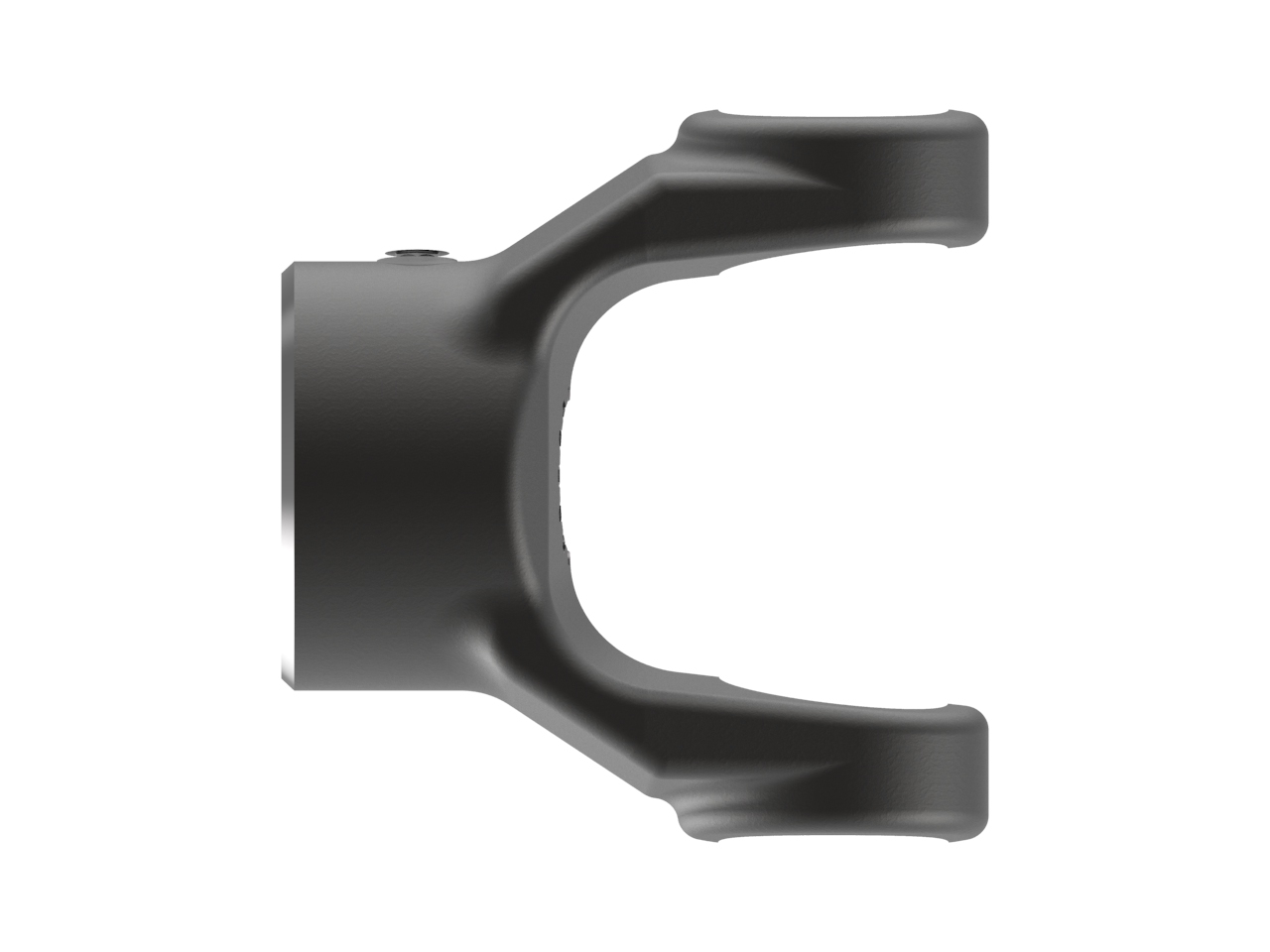

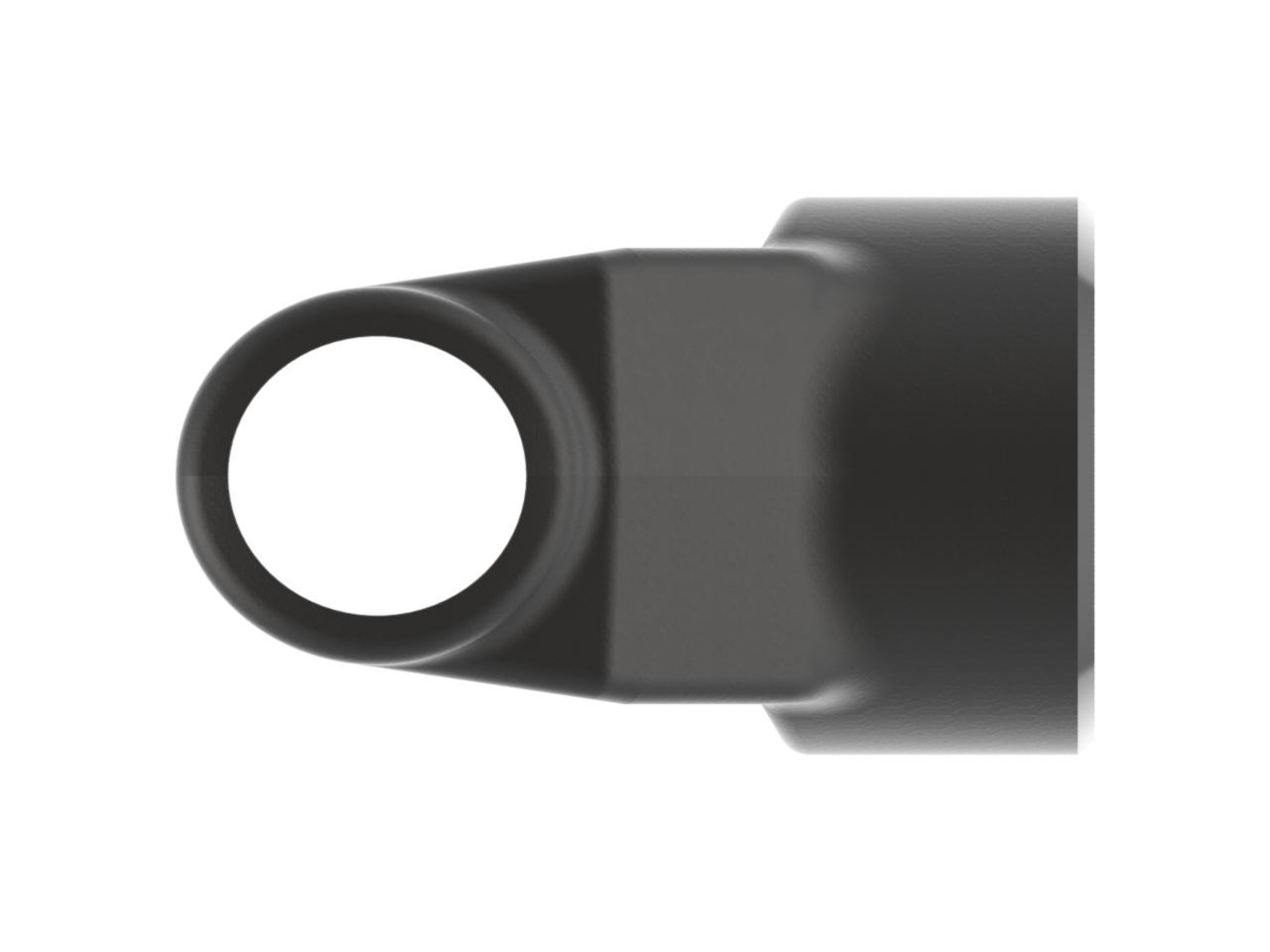

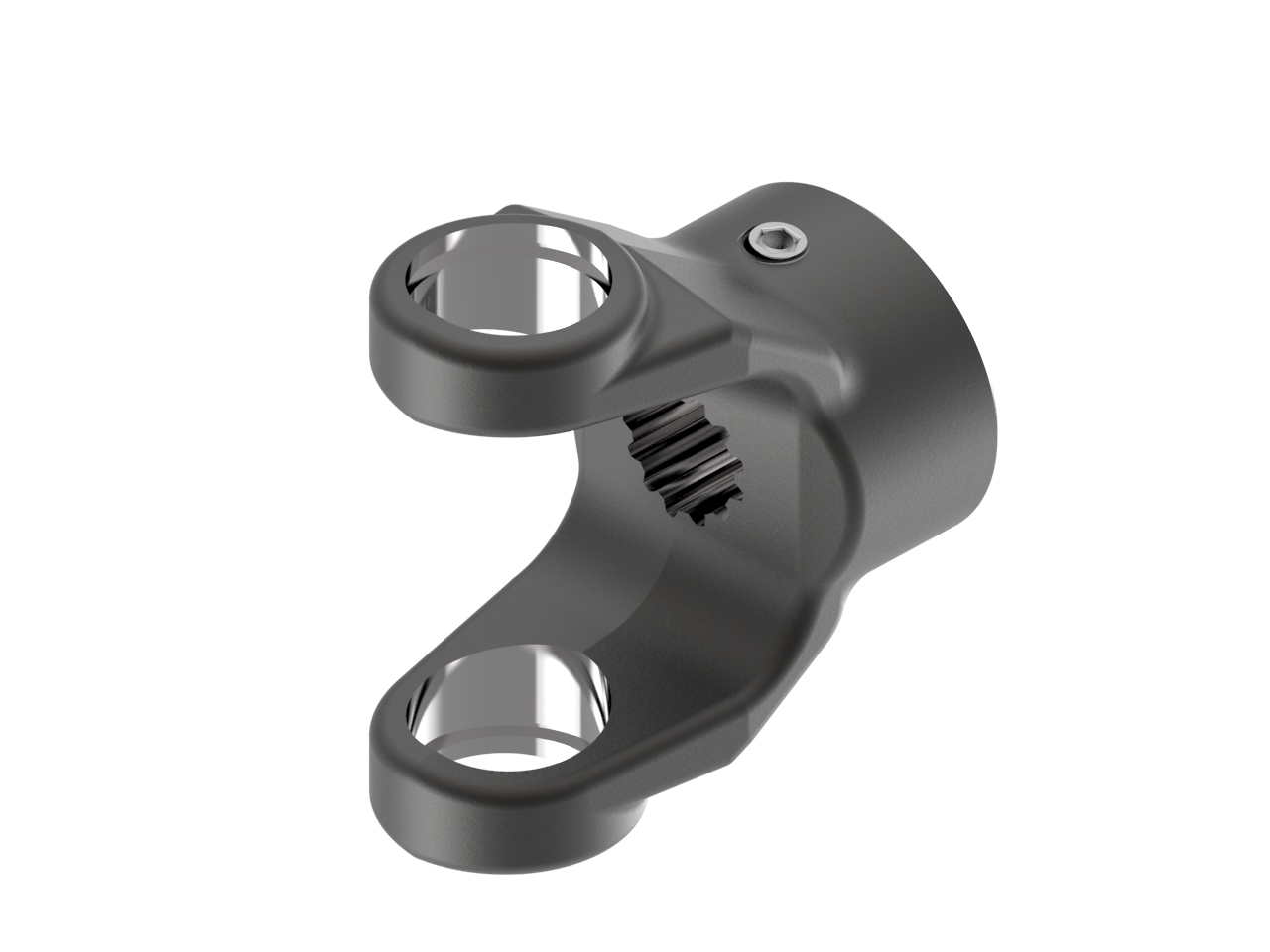

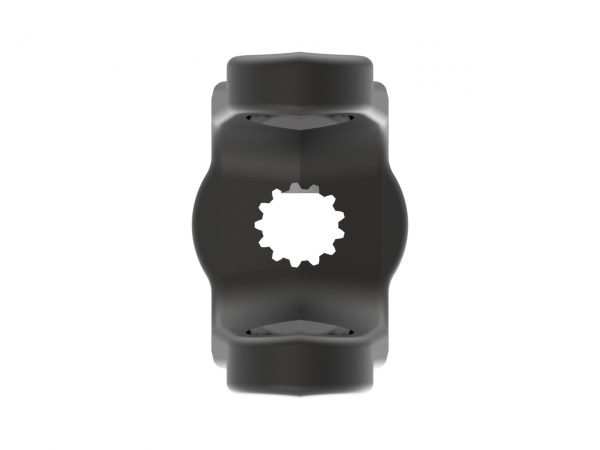

310 Series Setscrew Yoke

310 series yoke with 7/8-13 spline bore and setscrew connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 10.87 inches22 mm
Bore 1 7/8-13 SPLINE
Connection 1 SETSCREW
Height3.79 inches96 mm
HP@1000RPM53 HP40 kilowatts
HP@540RPM34 HP25 kilowatts
Length2.56 inches65 mm
Setscrew 3/8-16
Shipping Dimensions3.28" L  ×  3.79" H  ×  2.1" W8cm L  ×  10cm H  ×  5cm W
Shipping Volume26.11 in3428 cm3
Shipping Weight1.08 pounds0 kilograms
Weight1.08 pounds0 kilograms
Width2.10 inches53 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
