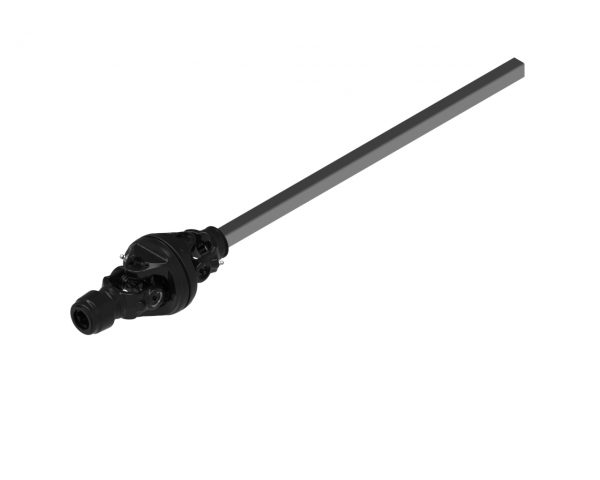

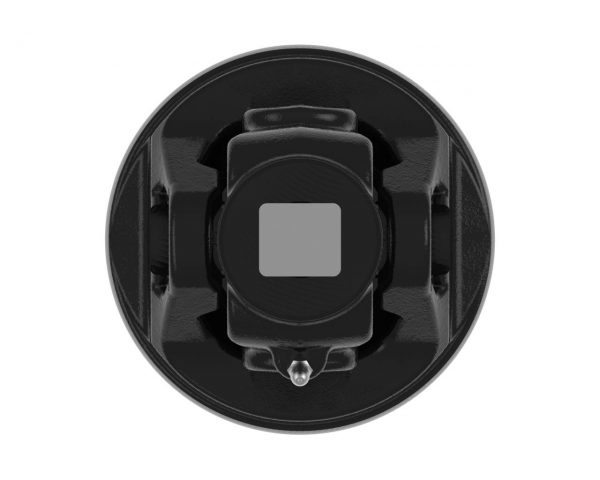

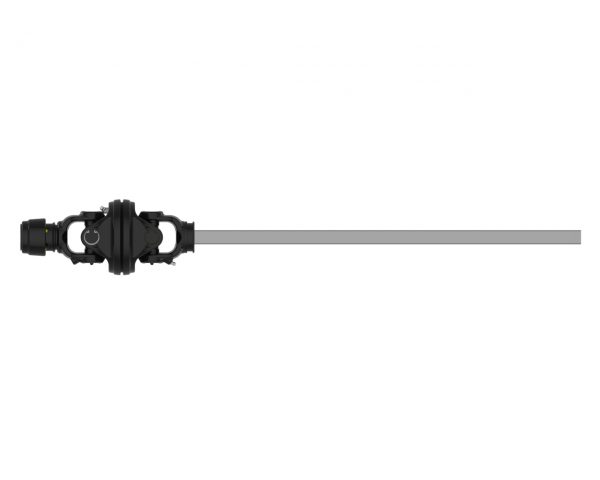

15553800CV WIDE ANGLE UNIVERSAL JOINT AND SHAFT
3-80 Series CV Wide Angle Universal Joint And Shaft
3-80 series CV wide angle universal joint and shaft with 1 3/8-6 spline, auto-lok connection and 1 x 1 1/8 rectangle, telescoping connection
Constant velocity (CV) wide angle universal joint assemblies allow for smooth machine operation through a broad range of motion. The universal joints included allow the machine to be designed with the input shaft in the best operating position and yet allow the operator to maneuver as needed. The CV delivers constant power by self-canceling torque and speed fluctuations typically found in single cardan-type universal joints.
Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.12 inches||28 mm|
|Bore 2||1 X 1 1/8 RECTANGLE|
|HP@1000RPM||54 HP||40 kilowatts|
|HP@540RPM||31 HP||23 kilowatts|
|Outside Diameter||5.50 inches||140 mm|
|Shipping Dimensions||39.59" L × 5.5" H × 5.5" W||101cm L × 14cm H × 14cm W|
|Shipping Volume||1197.60 in3||19625 cm3|
|Shipping Weight||25.40 pounds||12 kilograms|
|Weight||25.40 pounds||12 kilograms|
|Service Instructions - Lubricating 80 Deg CV.pdf||Maintenance Document||English|
|Service Instructions - CV Joint.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|80 deg CV Joint - Over Angle Operating.pdf||Troubleshooting Document||English|
|80 deg CV Joint - Over Angle NonOperating.pdf||Troubleshooting Document||English|
|WE0101003_1019_USL_80DegConstantVelocityJoint.pdf||Performance Benefits Document||English|
|WE0101011_0817_USL_EasyLockGuard.pdf||Performance Benefits Document||English|
