810-1216

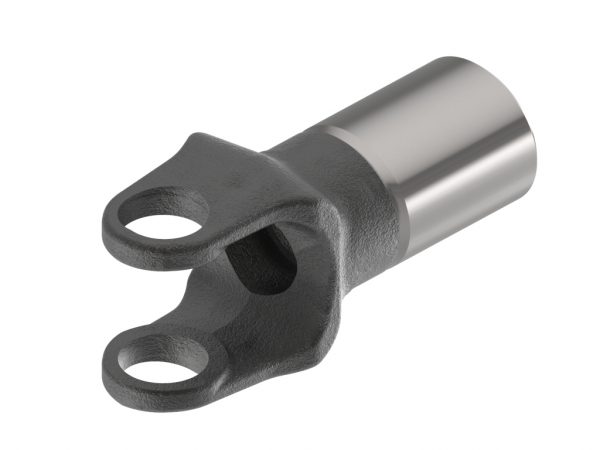

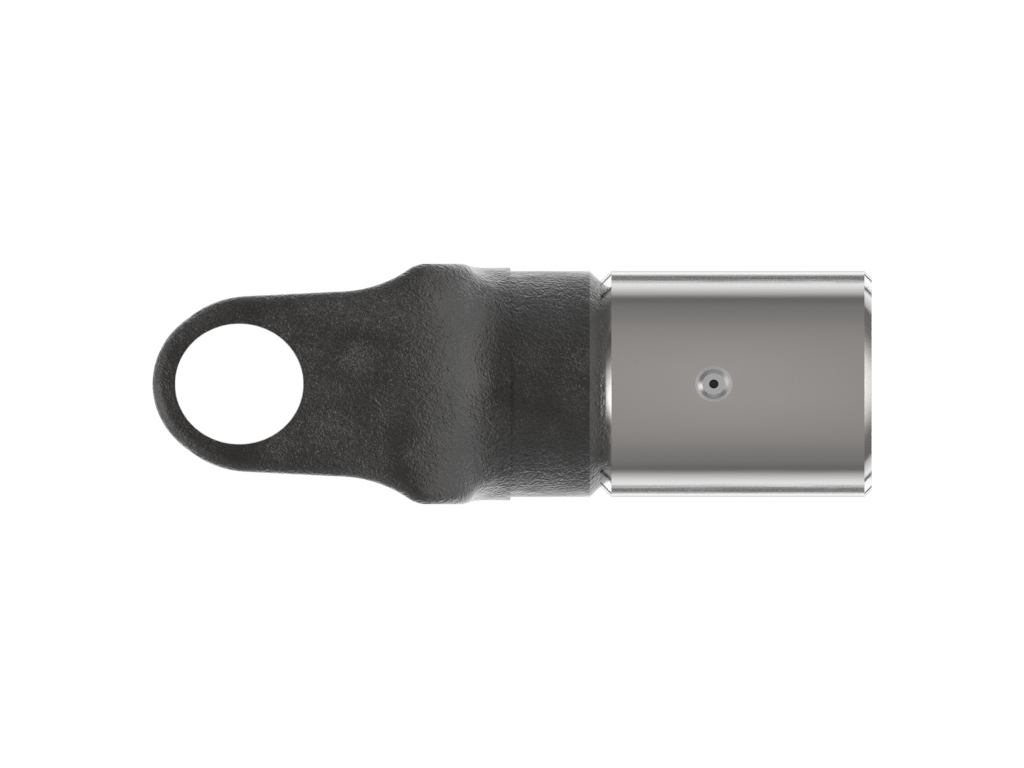

TELESCOPING YOKE12 Series Telescoping Yoke
12 series yoke with round with keyway bore and telescoping connection
Telescoping yokes combine tube yoke and slip sleeve where length restrictions are present.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.00 inches | 25 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | TELESCOPING | |
| Height | 3.00 inches | 76 mm |
| HP@1000RPM | 40 HP | 30 kilowatts |
| HP@540RPM | 26 HP | 19 kilowatts |
| Length | 5.25 inches | 133 mm |
| Shipping Dimensions | 6.05" L × 3" H × 2.16" W | 15cm L × 8cm H × 5cm W |
| Shipping Volume | 39.20 in3 | 642 cm3 |
| Shipping Weight | 3.20 pounds | 1 kilograms |
| Weight | 3.20 pounds | 1 kilograms |
| Width | 2.16 inches | 55 mm |
