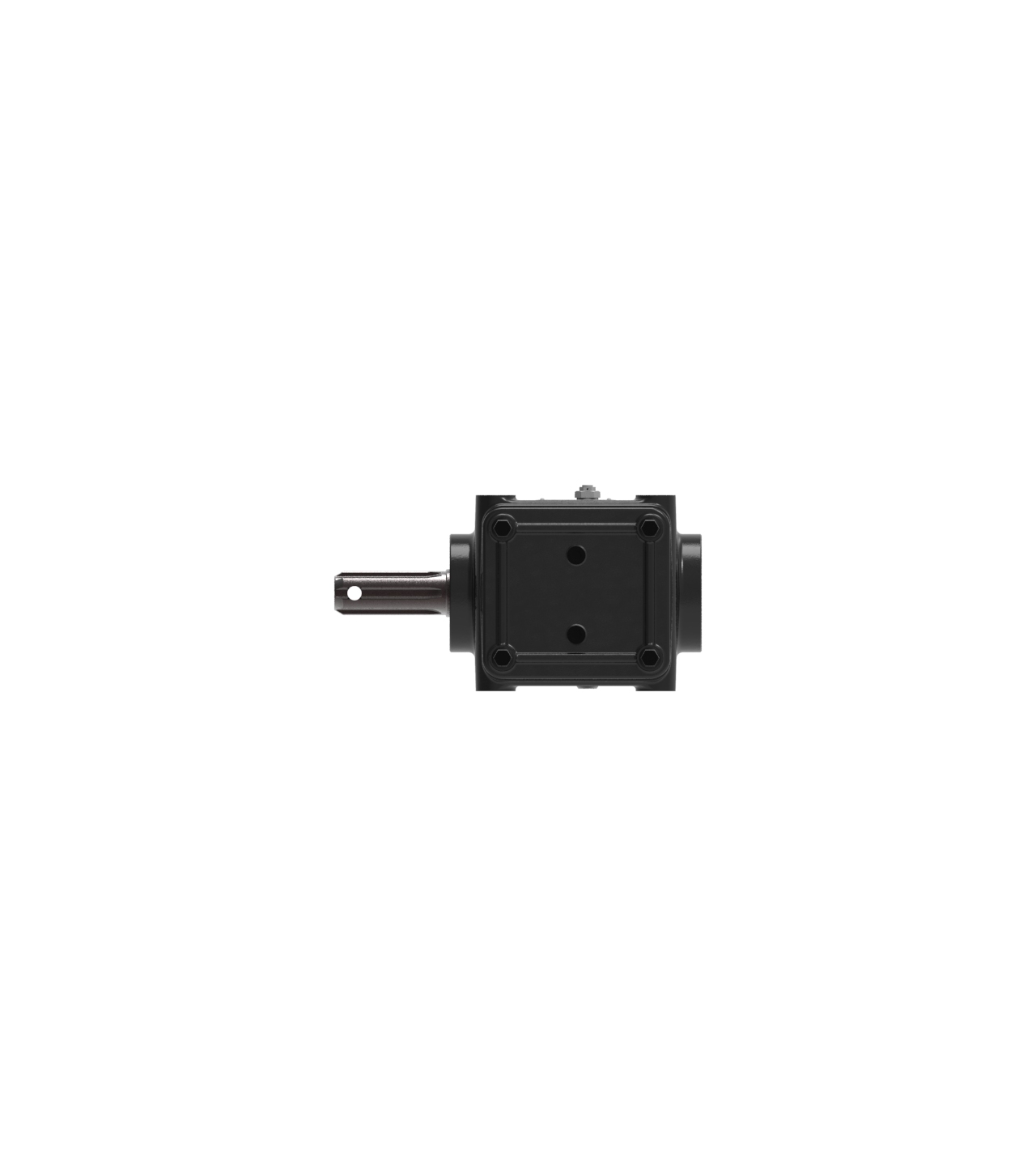

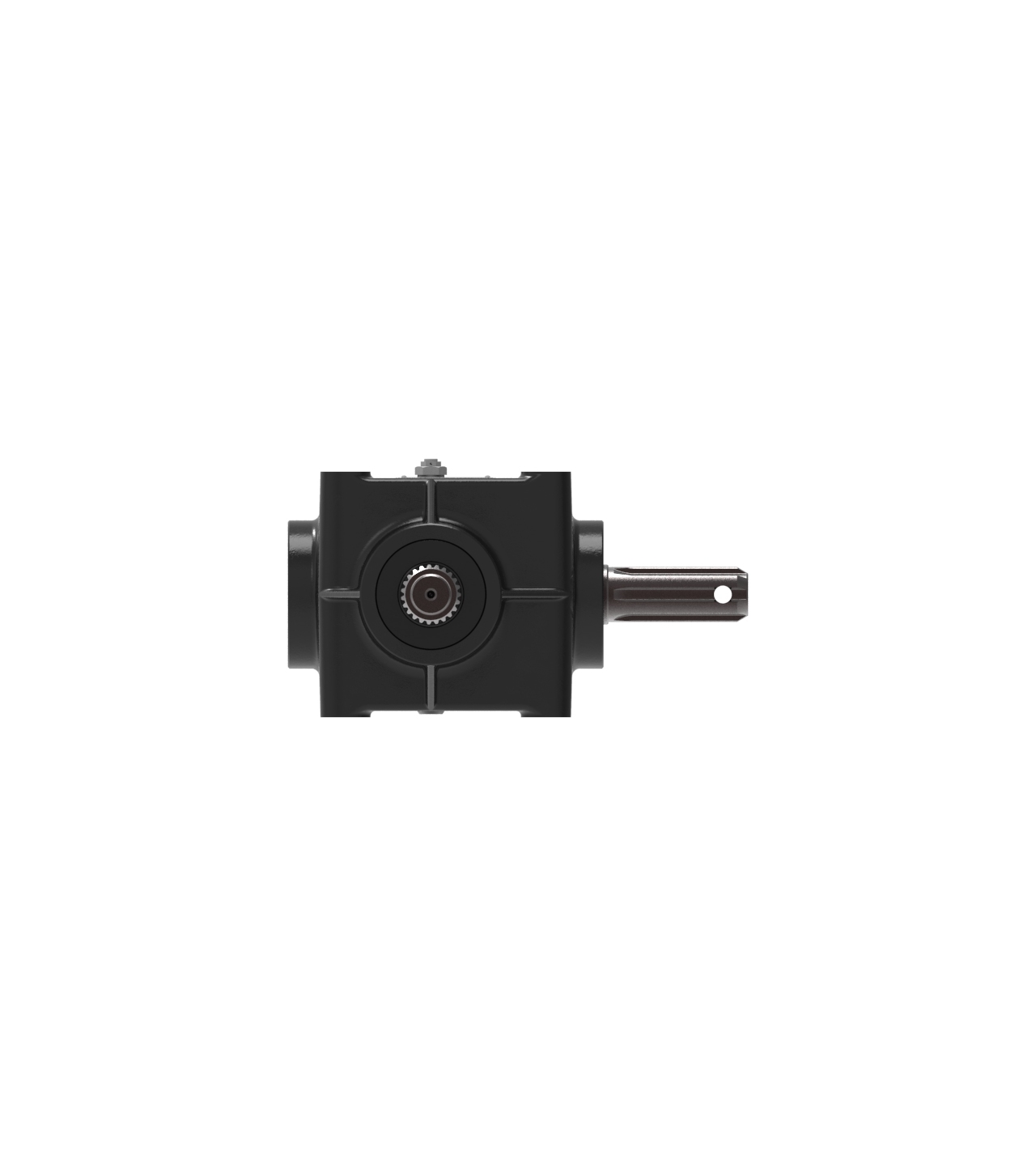

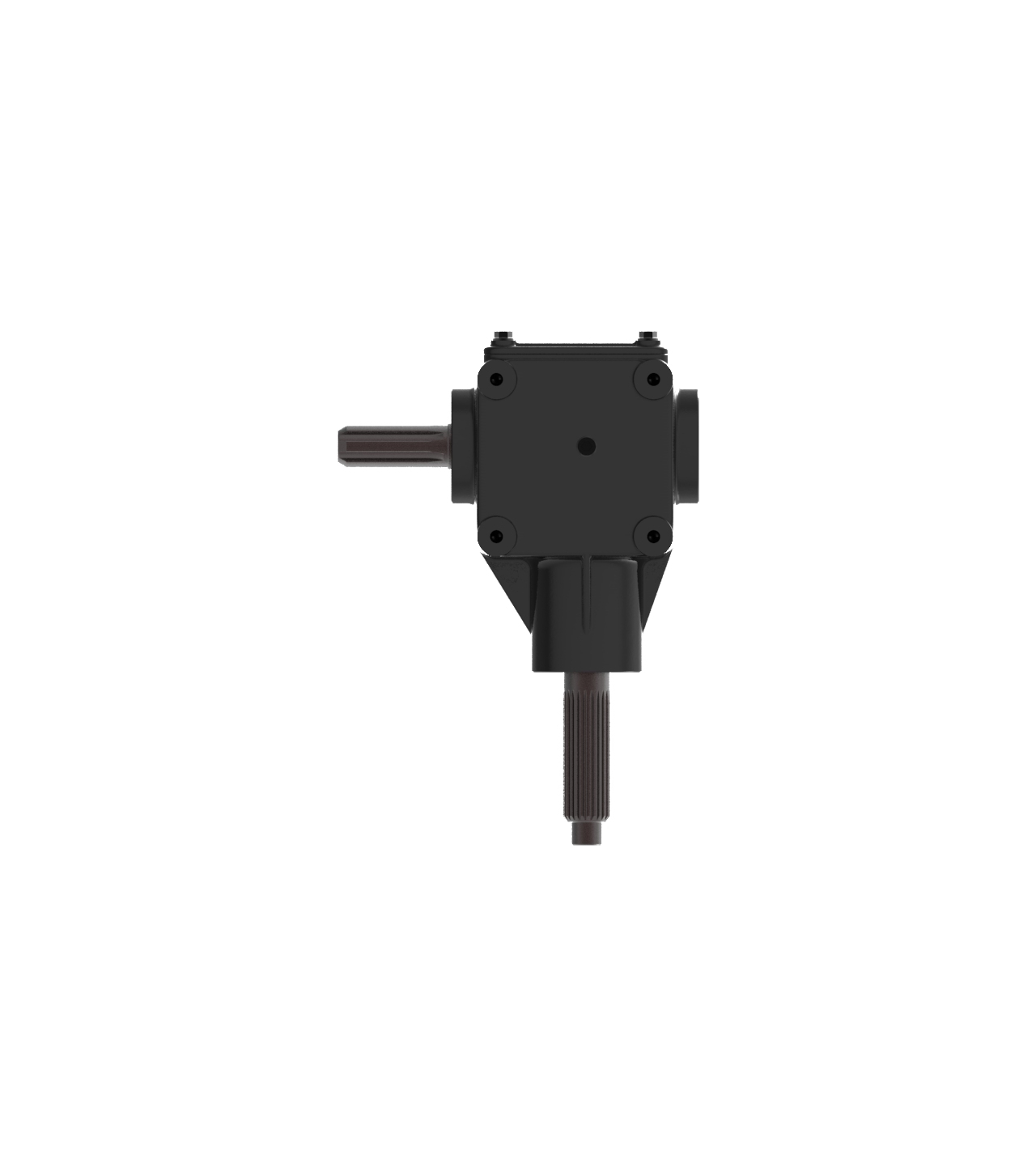

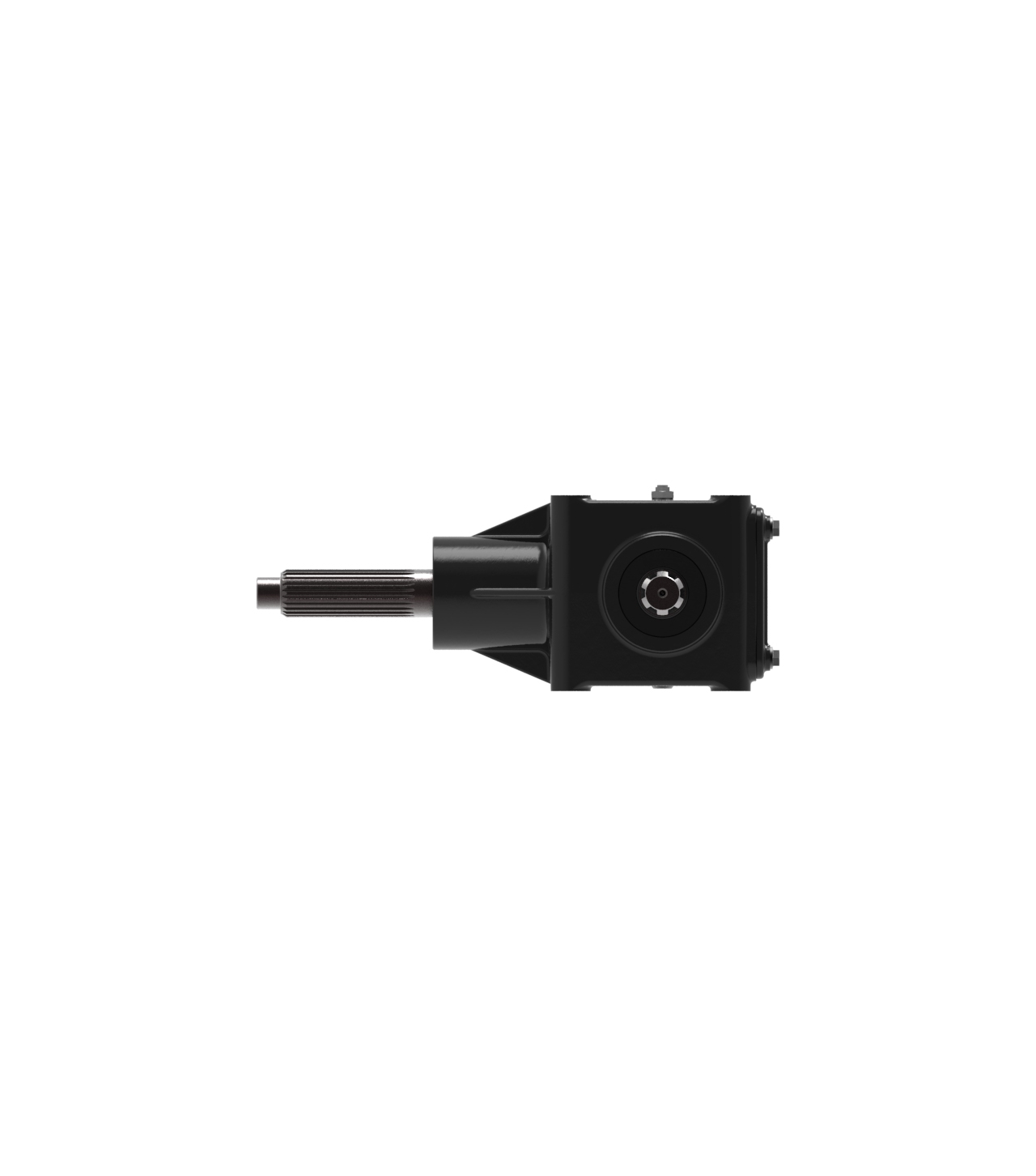

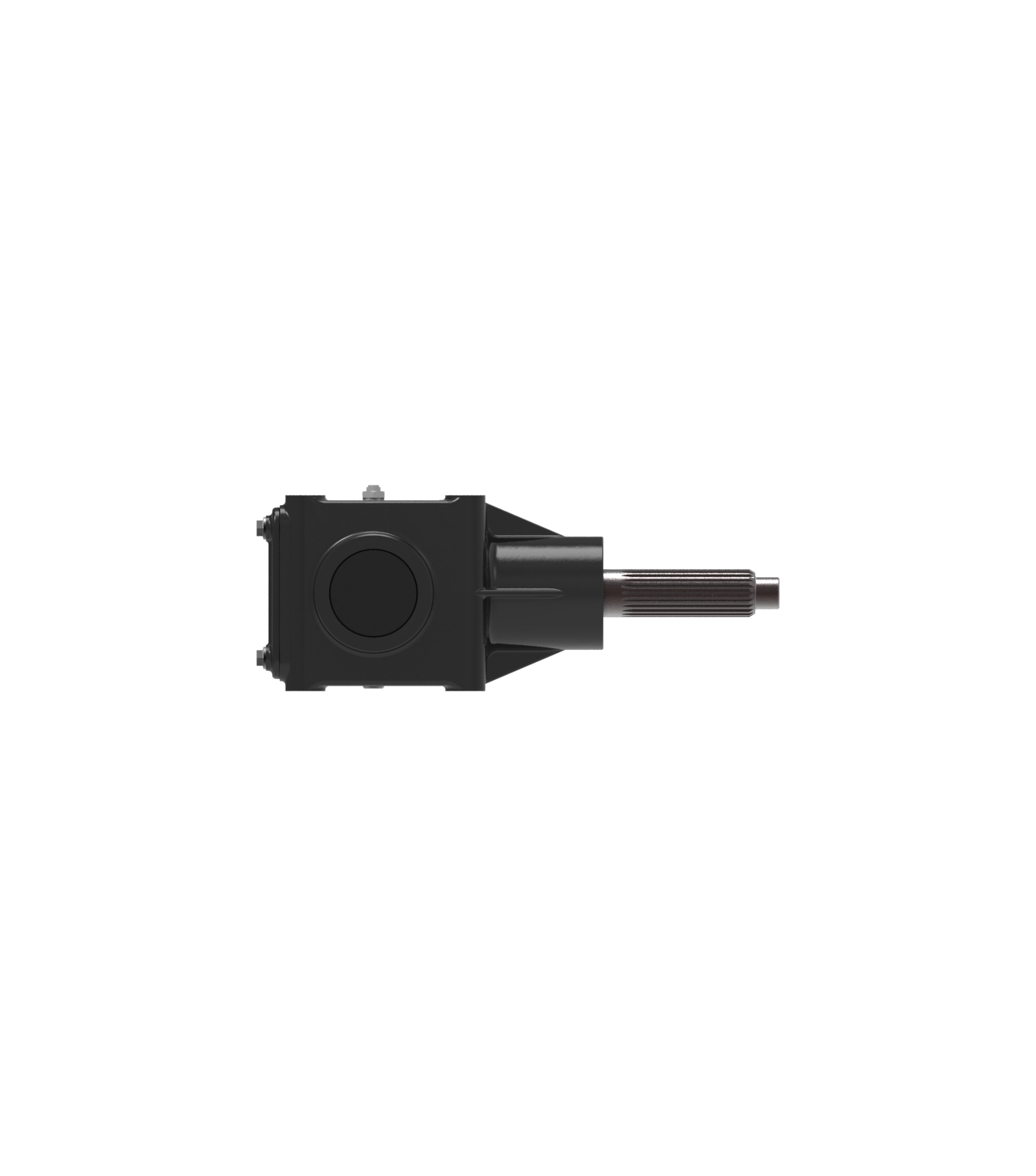

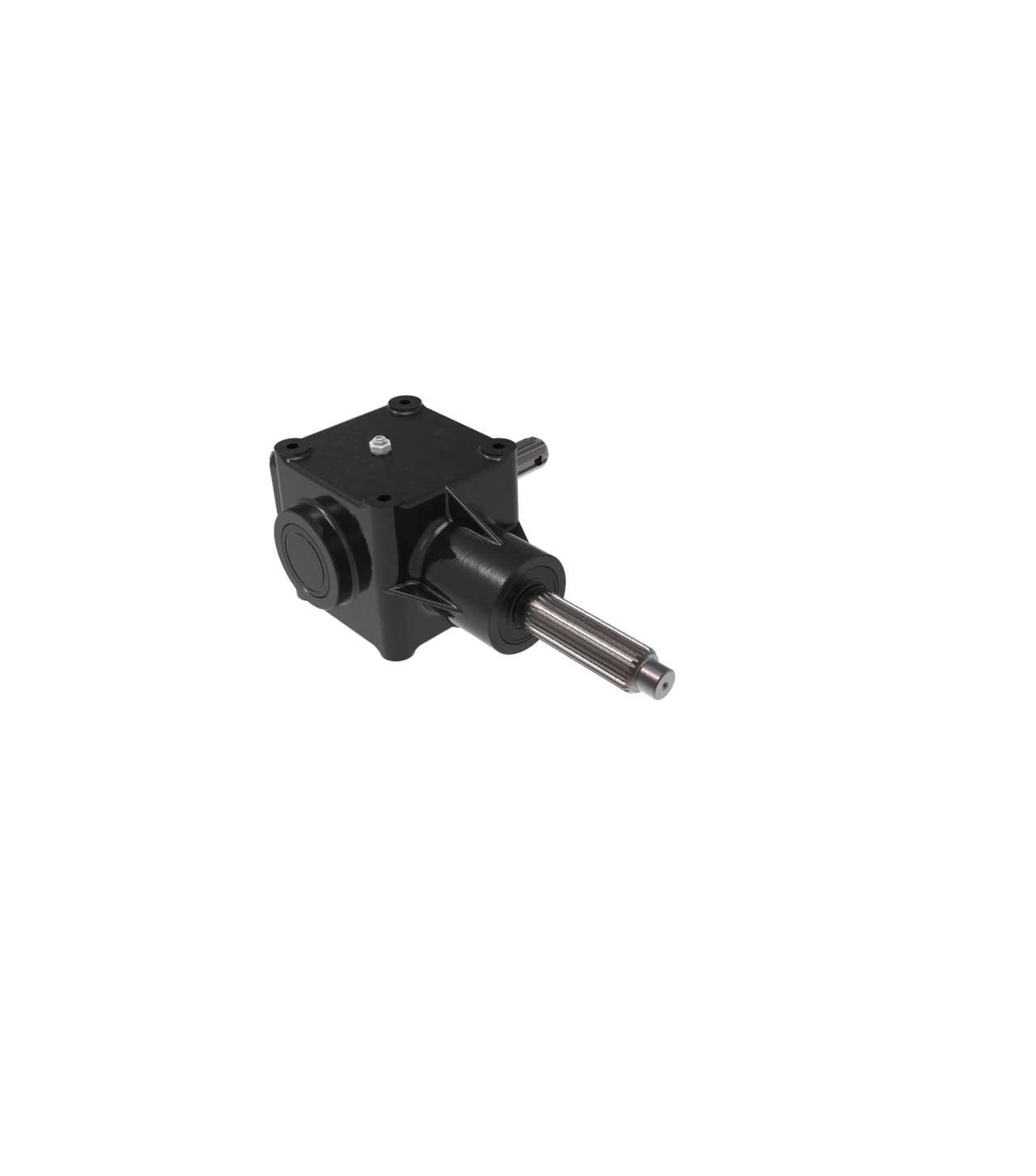

STANDARD BEVEL GEARBOX – 5490 SERIES

5490 series low ratio cast iron bevel gearbox with 1.50” max shaft diameter. Available in ratios up to 1.5:1

This is a Weasler custom-engineered component, which is not available through our aftermarket distribution network. For more information on this product or to discuss a custom solution for your unique OEM application, contact the Weasler engineering team now.

Weasler Engineering’s bevel gearboxes come in a wide range of HP capacities. Choose from existing ratios and shaft configurations or customize them to meet your application needs. Our Application Engineers will work with you to understand your application requirements and size the appropriate gearbox for your application. If your application requires a custom drive solution, our engineers will work you to design a bevel gearbox that meets your exact application to minimize stress and wear on your equipment and extend service life.

DESIGN FEATURES:
• Customizable shaft configurations up to 1.50” [38 mm] diameters
• Available ratios (other ratios available upon request)
• Straight bevel – 1:1, 1.13:1, 1.16:1, 1.33:1
• Max HP rating
• 540 rpm = 75 HP
• 1000 rpm = 133 HP
• Rugged cast iron design
• Integral nose cone for improved strength
• Tapered roller bearings
• Double lip spring loaded seals

Available Options:
• Left/Right/T shaft configurations
• Double gearbox arrangements
• Internal shifting – (forward – neutral)
• Viton seals
• Pressure relief

Application examples:
• Tillers
• Manure Spreader
• Bale Processor
