512-7507

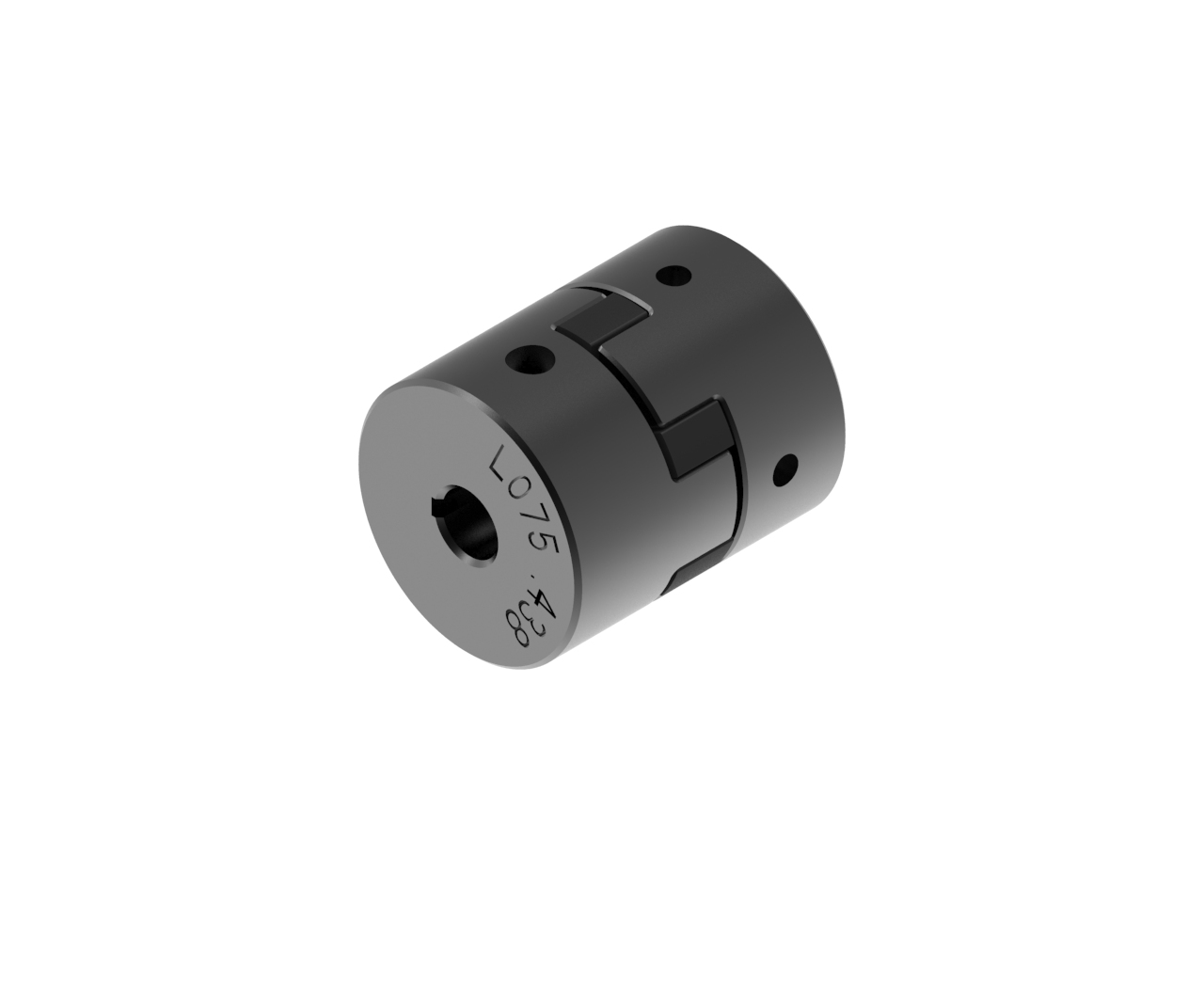

JAW COUPLINGJaw Coupling Assembly
JAW COUPLING coupling assembly, setscrew one end, setscrew opposite end
Weasler jaw couplings dampen system vibrations and adjust misalignment while transmitting torque in motion control applications, protecting other PTO driveshaft components from damage. Complete jaw couplers are available in addition to jaw coupling halves and jaw coupling spider inserts.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 0.43 inches | 11 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | SETSCREW | |
| Keyway 1 | 0.13 inches | 3 mm |
| Keyway 2 | 0.19 inches | 5 mm |
| Length | 2.13 inches | 54 mm |
| Outside Diameter | 2.13 inches | 54 mm |
| Setscrew | 1/4-20 | |
| Shipping Dimensions | 2.13" L × 2.13" H × 2.13" W | 5cm L × 5cm H × 5cm W |
| Shipping Volume | 9.66 in3 | 158 cm3 |
| Shipping Weight | 0.00 pounds | 0 kilograms |
| Weight | 0.00 pounds | 0 kilograms |
