AW36 Series Universal Joint And Tube With Guard

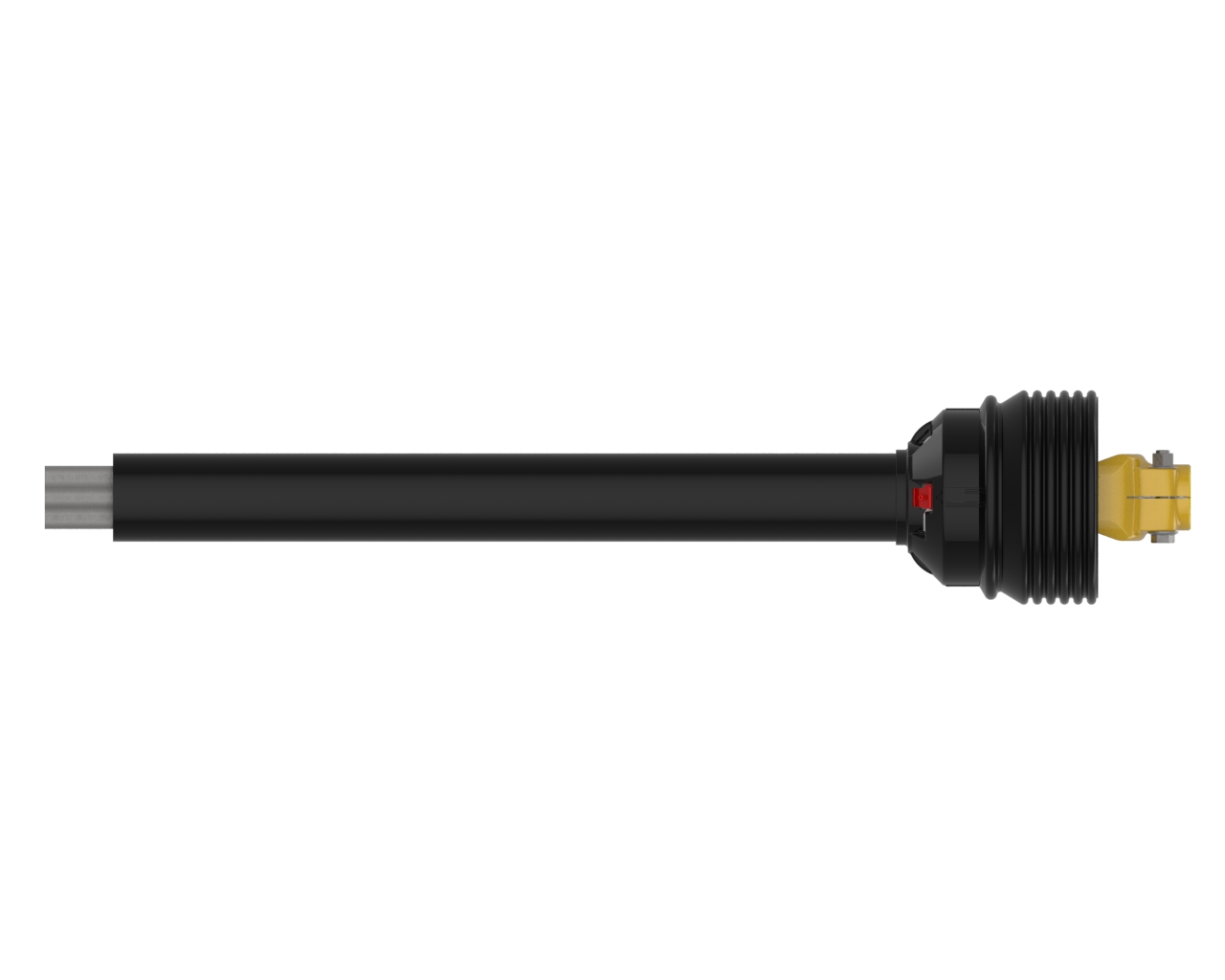

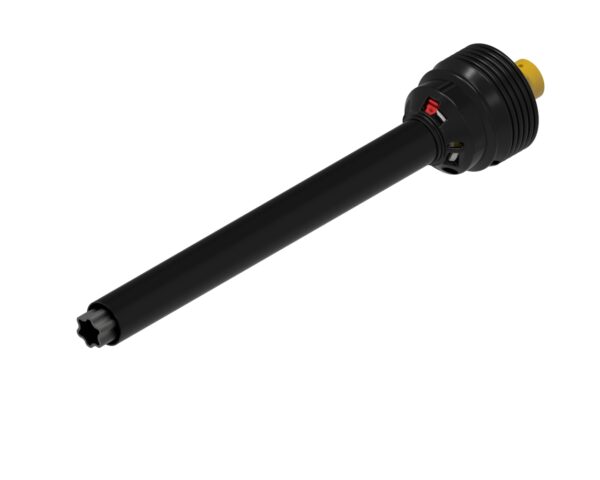

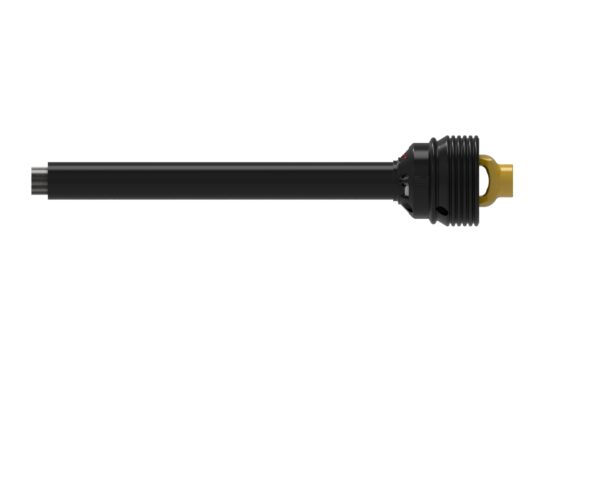

AW36 series universal joint and tube with guard with 1 3/8-21 spline, clamp connection and 61 mm star, telescoping connection. Note: Image color may not represent actual part.

View My List

The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints are welded to the tube, the metal cylindrical encasement for a shaft within a given PTO drive shaft.Tubing is available in both domestic (North American) and metric profile shapes. Domestic tubing is provided as square, rectangle, or round. The Weasler Profile product line includes metric and tubing available in both German and Italian styling: German style provided as lemon or star in shape and Italian as trilobed in shape. Entire assembly is fitted with black guarding that is durable against harsh conditions, ultraviolet light, and ozone. All of the Weasler guard systems include the patented Easy Lock system which allows for easy guard removal and replacement in servicing is required.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-21 SPLINE
Bore 22.49 inches63 mm
Bore 2 61 MM STAR
Compressed (Closed) Length43.70 inches1110 mm
Compressed Overall Length53.99 inches1371 mm
Connection 1 CLAMP
Connection 2 TELESCOPING
Extended Length58.07 inches1475 mm
Extended Overall Length68.36 inches1736 mm
HP@1000RPM124 HP92 kilowatts
HP@540RPM80 HP60 kilowatts
Length53.99 inches1371 mm
Outside Diameter7.75 inches197 mm
Shipping Dimensions34.13" L  ×  7.75" H  ×  7.75" W87cm L  ×  20cm H  ×  20cm W
Shipping Volume2049.93 in333592 cm3
Shipping Weight24.80 pounds11 kilograms
Weight24.80 pounds11 kilograms
