3002-6906-00

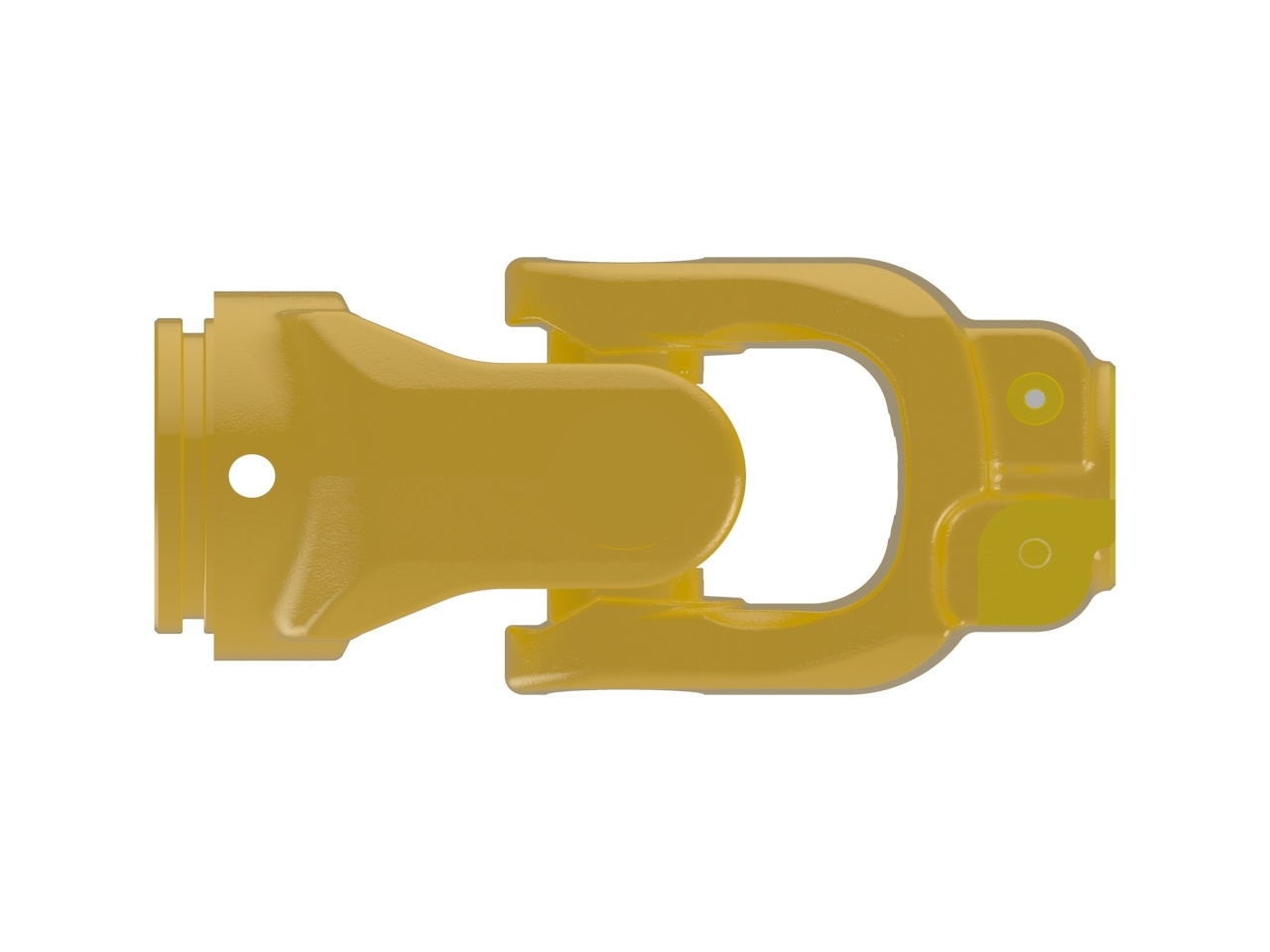

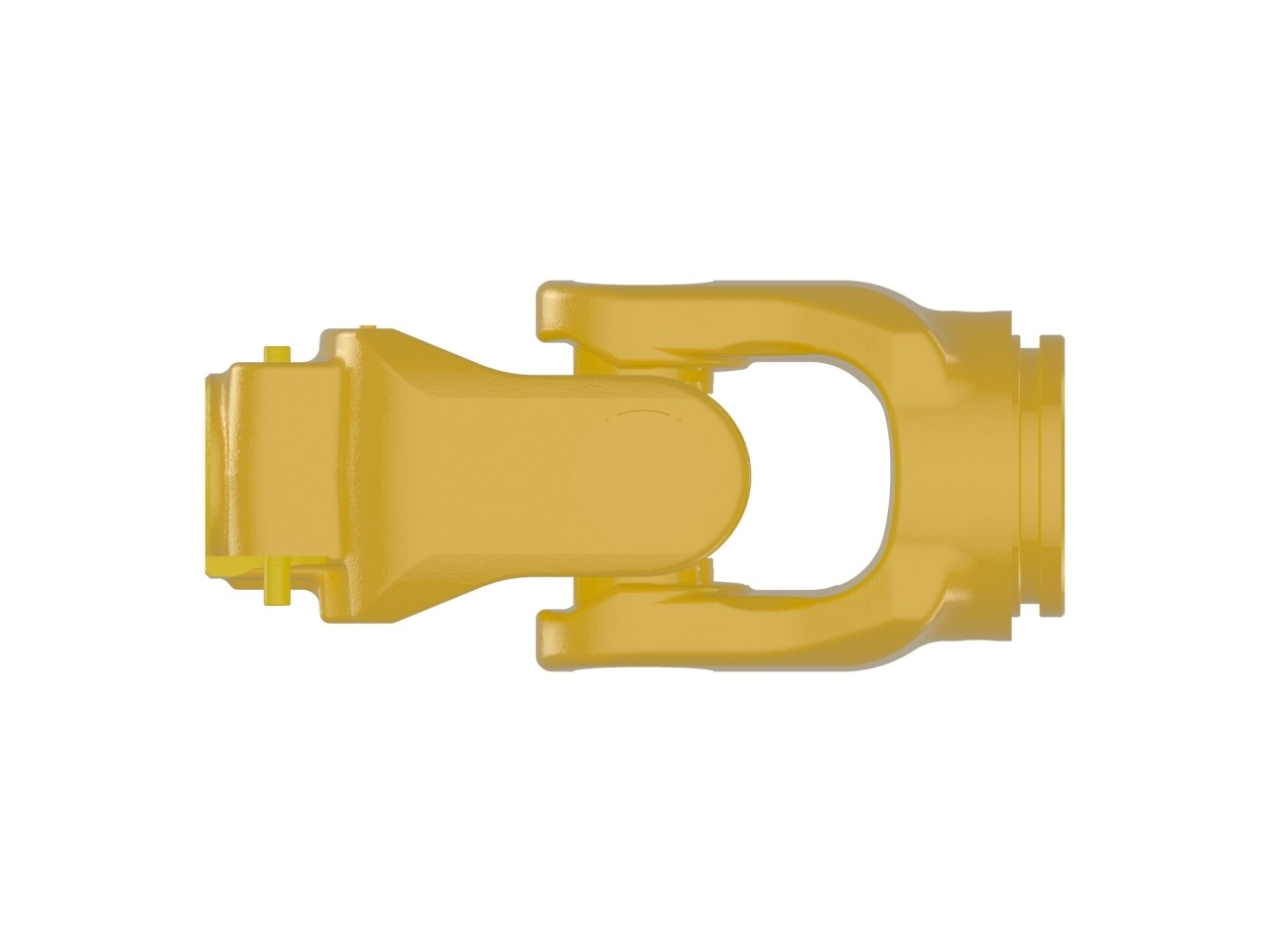

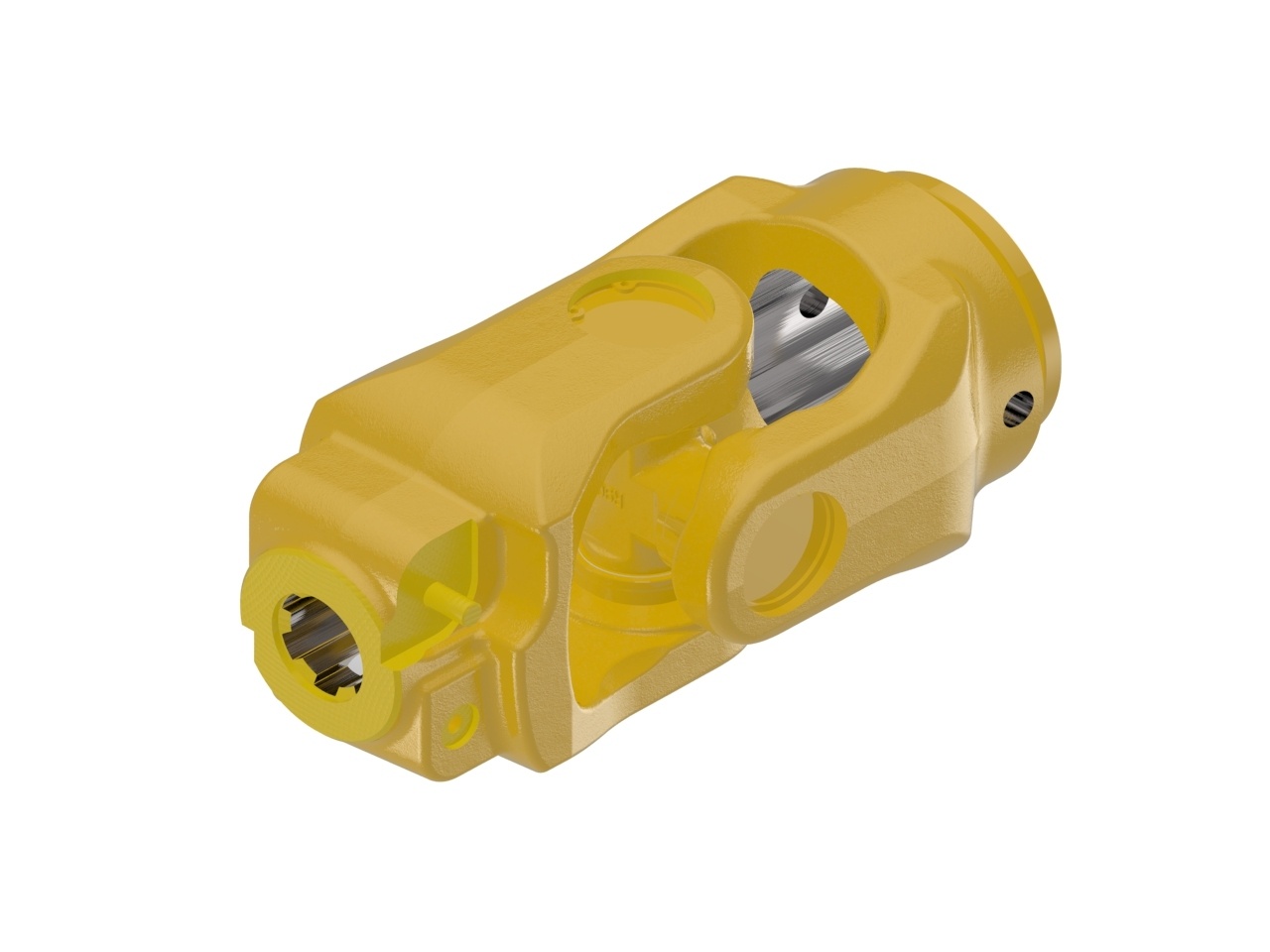

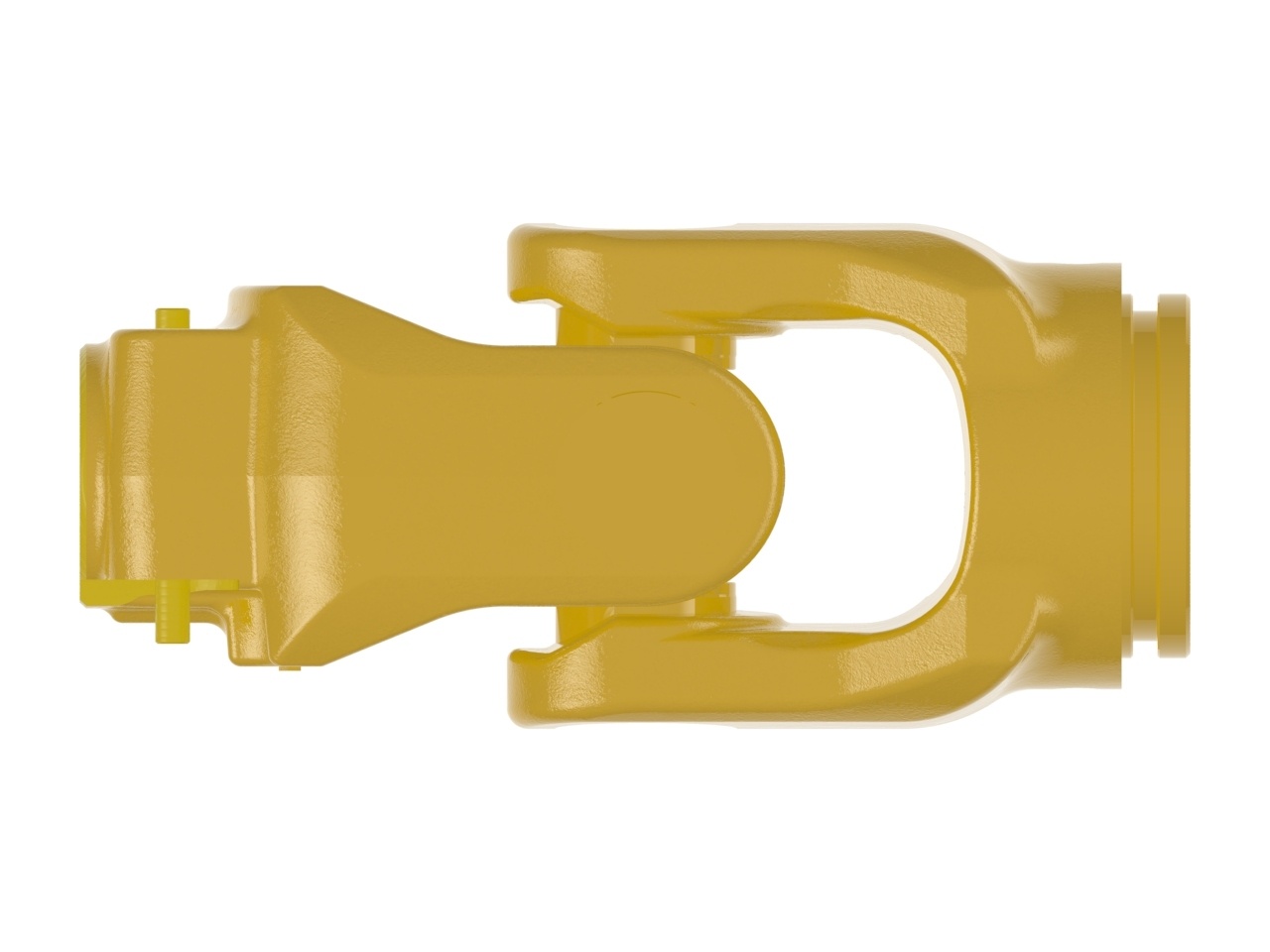

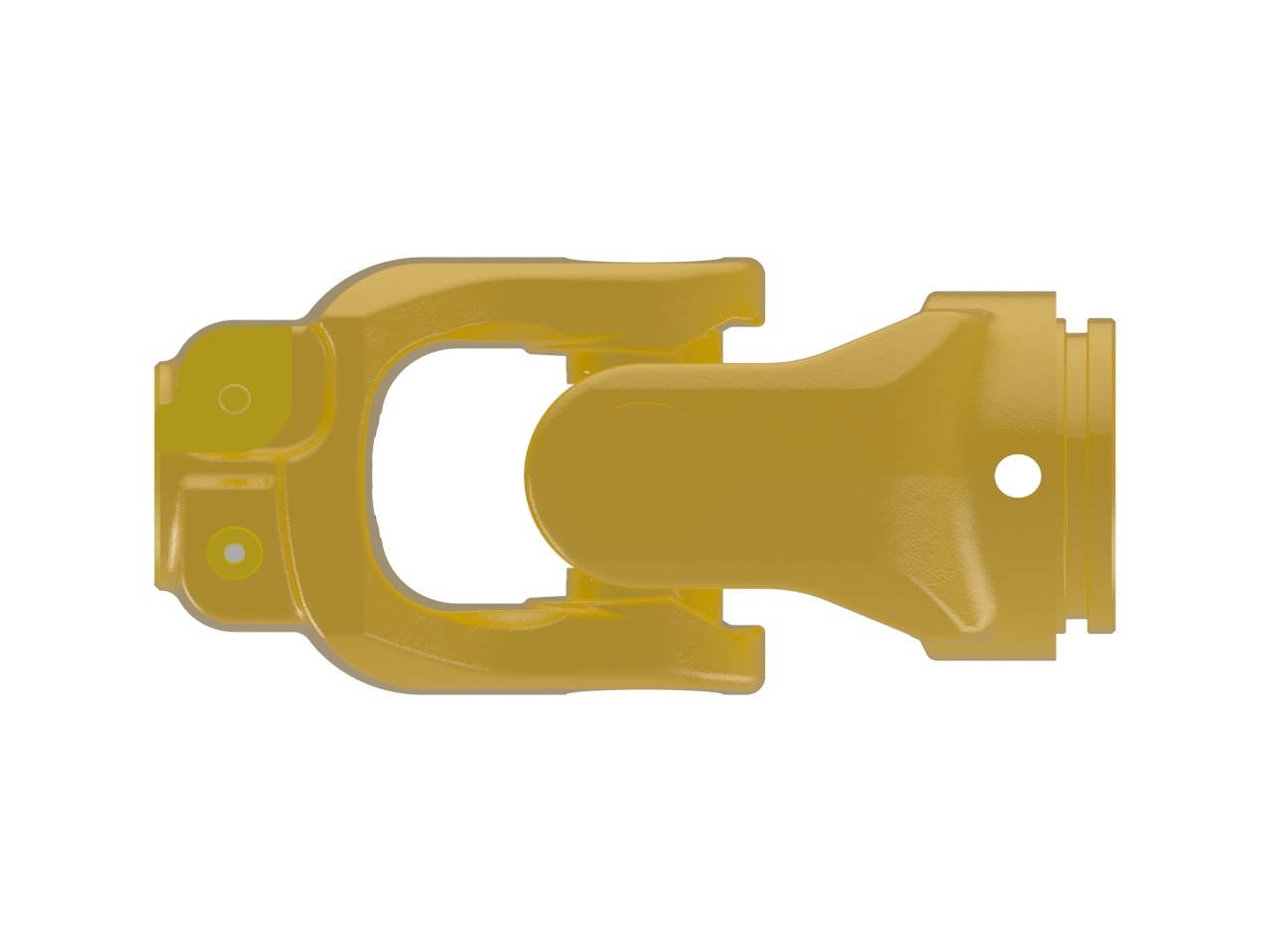

UNIVERSAL JOINTAB9 Series Universal Joint
AB9 series universal joint with 1 3/8-6 spline, quick disconnect connection and 63 mm trilobe, telescoping connection
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-6 SPLINE | |
Bore 2 | 2.57 inches | 65 mm |

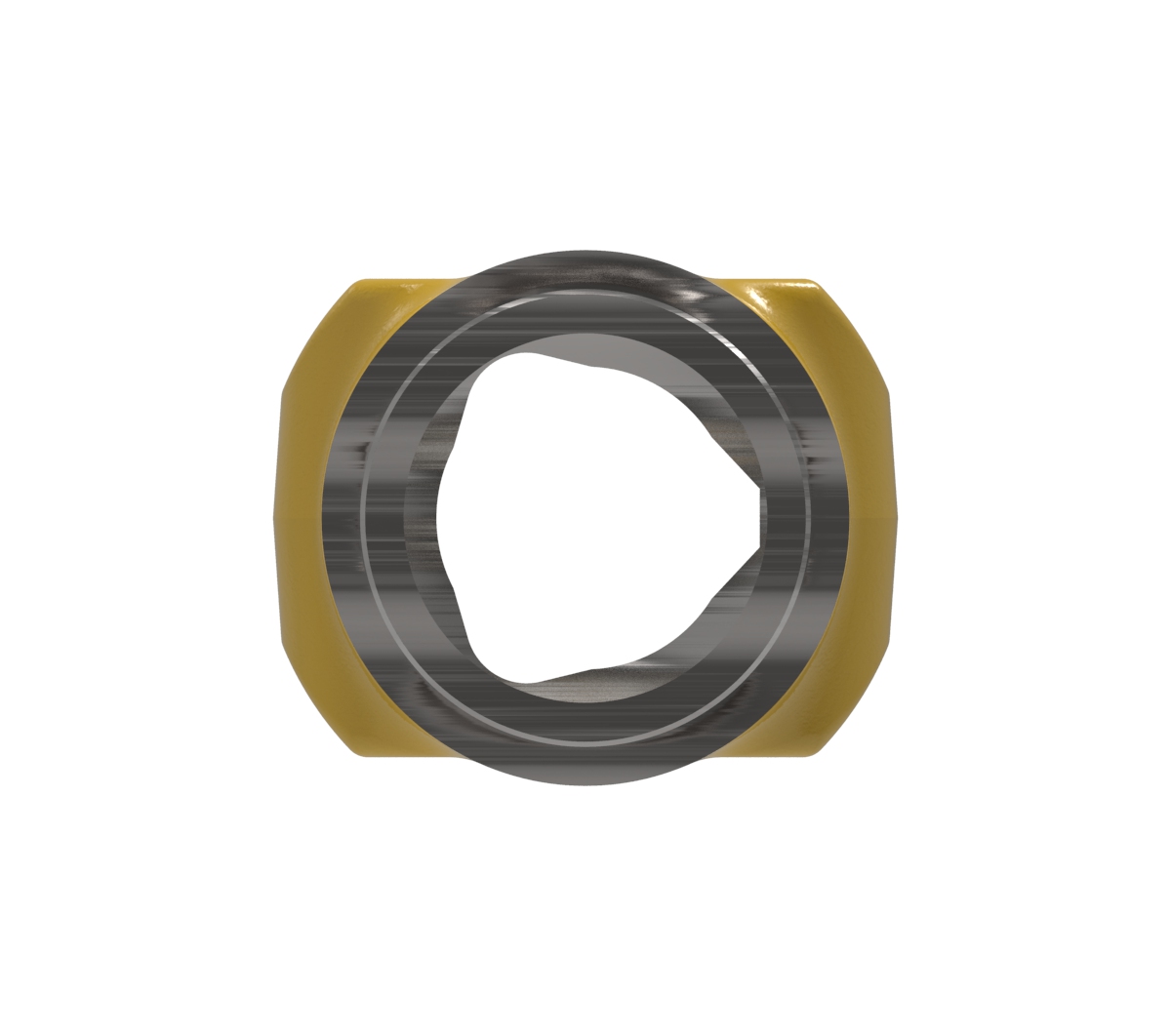

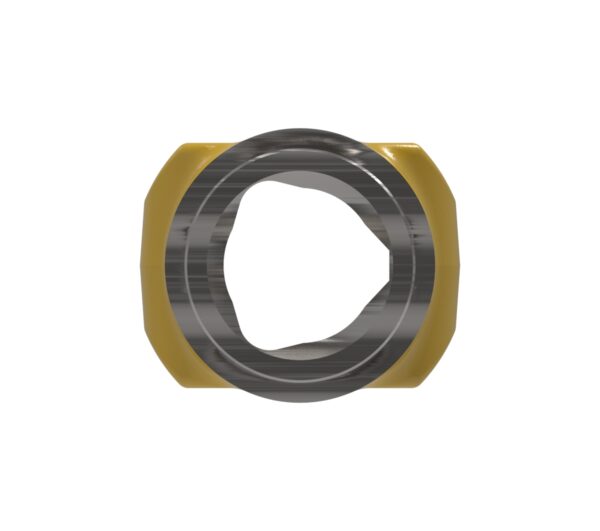

Bore 2 | 63 MM TRILOBE | |
Connection 1 | QUICK DISCONNECT | |
Connection 2 | TELESCOPING | |
HP@1000RPM | 185 HP | 138 kilowatts |
HP@540RPM | 120 HP | 89 kilowatts |
Length | 10.24 inches | 260 mm |
Shipping Dimensions | 10.245" L × 5.04" H × 5.04" W | 26cm L × 13cm H × 13cm W |
Shipping Volume | 260.24 in3 | 4265 cm3 |
Shipping Weight | 19.91 pounds | 9 kilograms |
Weight | 19.91 pounds | 9 kilograms |
Downloads
Document Name | Type | Language |
---|---|---|
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
WE0101011_0817_USL_EasyLockGuard.pdf | Performance Benefits Document | English |
