3001-6806-00

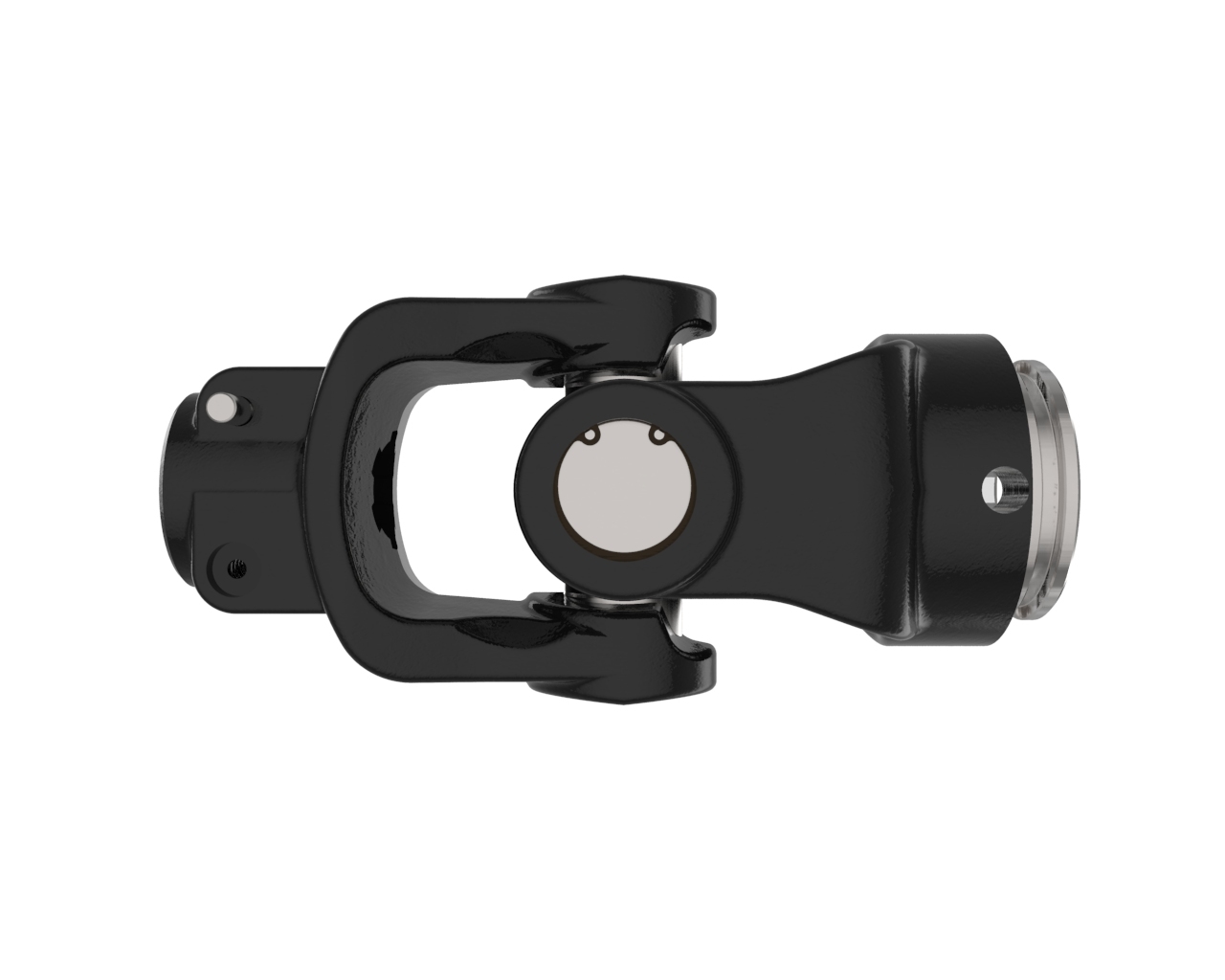

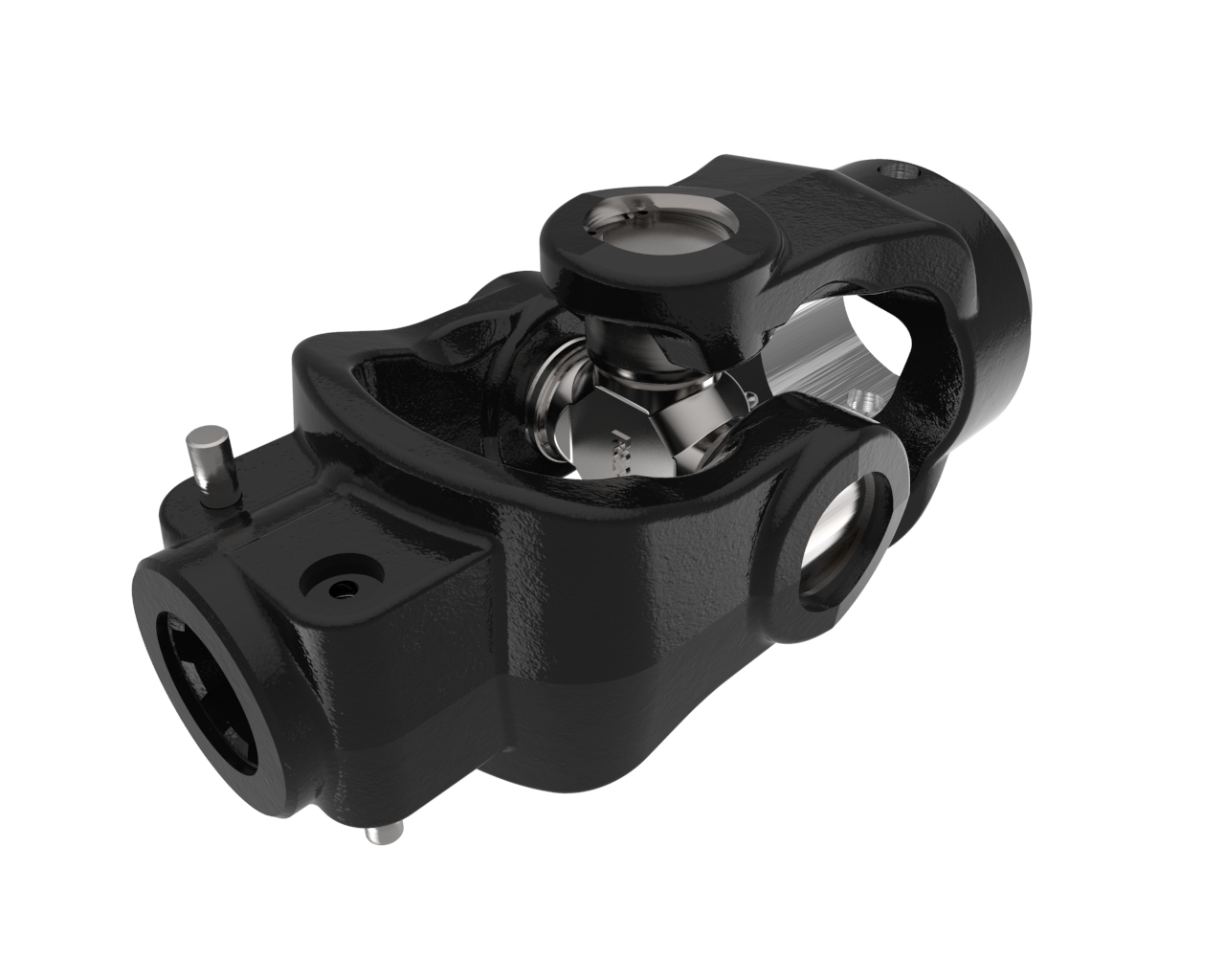

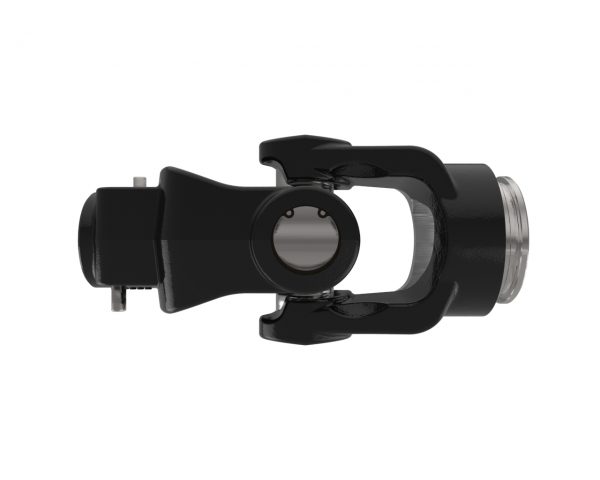

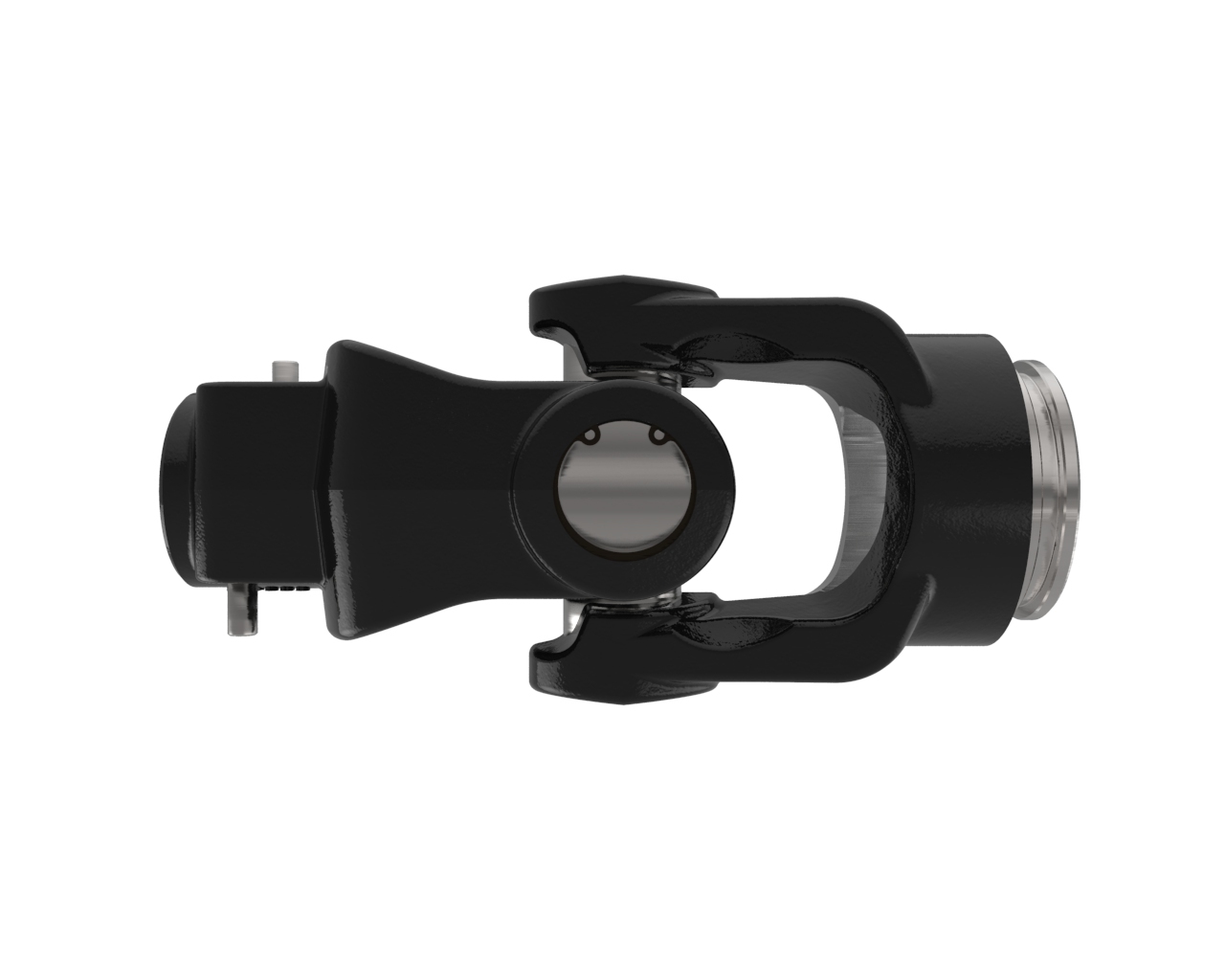

AB8 Series Universal Joint

AB8 series universal joint with 1 3/8-6 spline, quick disconnect connection and 54 mm trilobe, telescoping connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 22.20 inches56 mm
Bore 2 54 MM TRILOBE
Connection 1 QUICK DISCONNECT
Connection 2 TELESCOPING
HP@1000RPM154 HP115 kilowatts
HP@540RPM100 HP75 kilowatts
Length10.04 inches255 mm
Shipping Dimensions10.041" L  ×  5.12" H  ×  5.12" W26cm L  ×  13cm H  ×  13cm W
Shipping Volume263.22 in34313 cm3
Shipping Weight15.67 pounds7 kilograms
Weight15.67 pounds7 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
