1630-6817-101

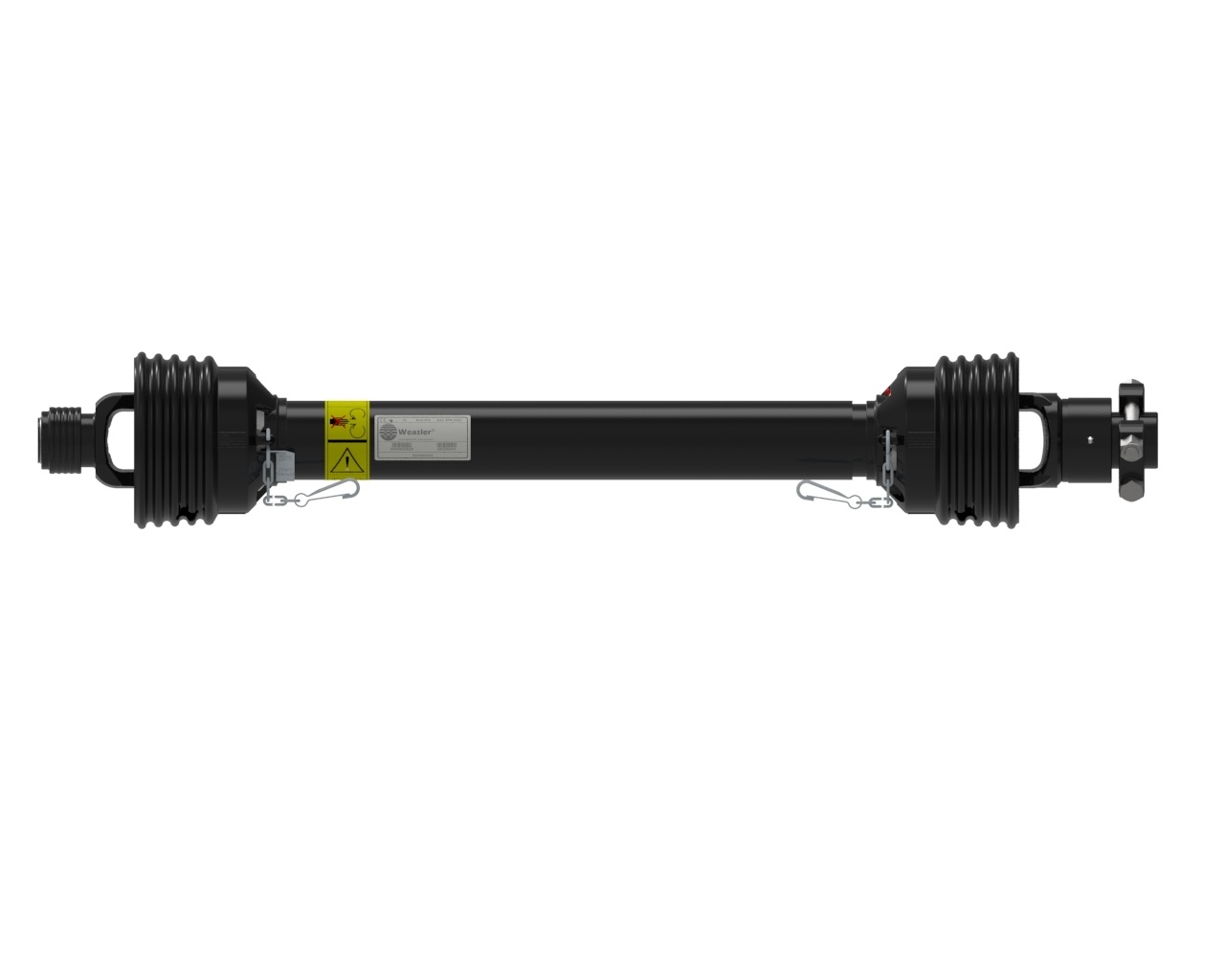

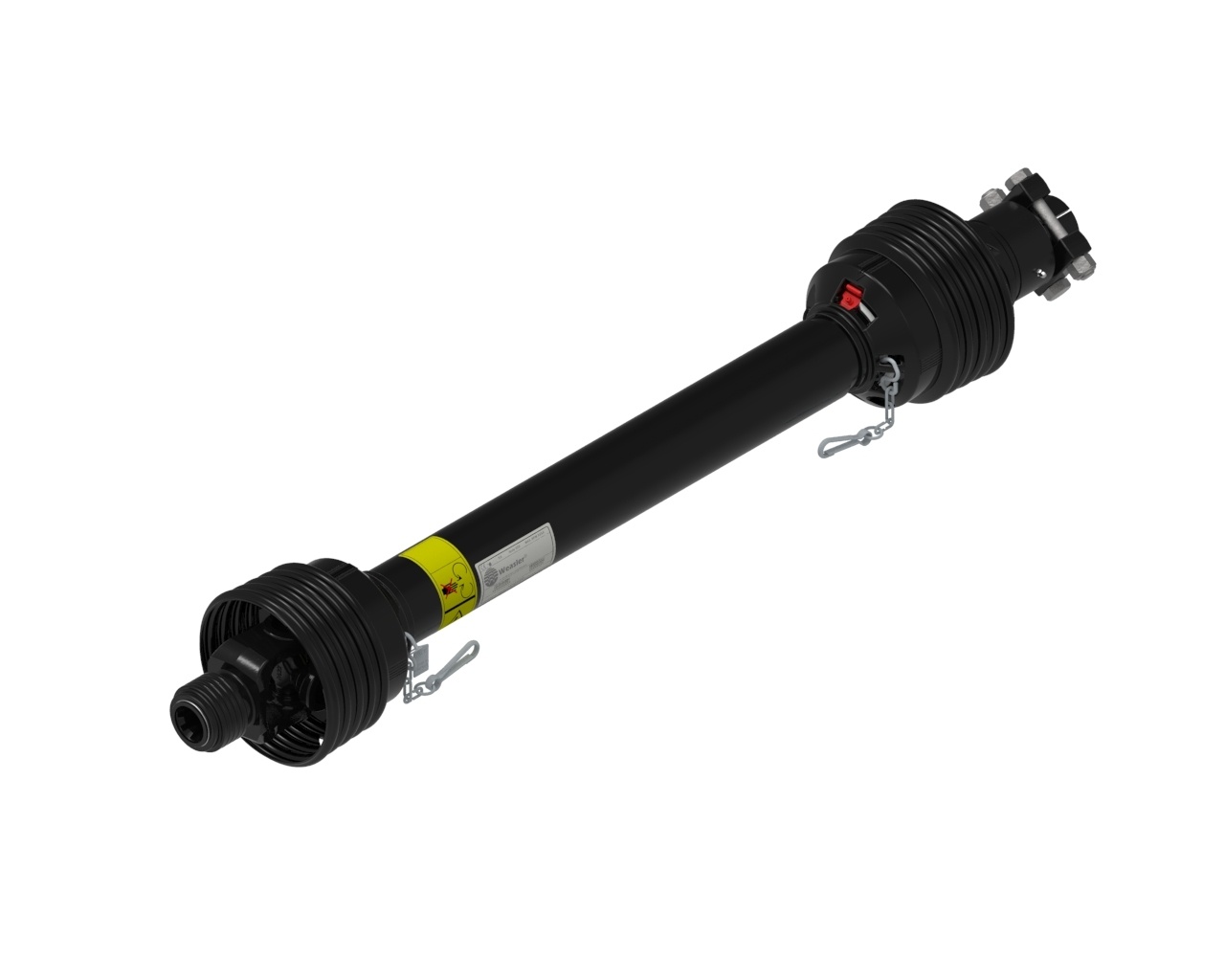

PROFILE PTO DRIVE SHAFTAB8 Series Profile PTO Drive Shaft With Overrunning Clutch Yoke
AB8 Series Profile PTO Drive Shaft With A 1 3/8-6 Spline Safety Slide Lock Tractor Connection And Overrunning Clutch Yoke With 1 3/4-6 Spline Clamp Implement Connection
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
PERFORMANCE BENEFITS
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
DESIGN FEATURES
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-6 SPLINE | |
Bore 2 | 1.75 inches | 44 mm |
Bore 2 | 1 3/4-6 SPLINE | |
Compressed (Closed) Length | 39.76 inches | 1010 mm |
Compressed Overall Length | 53.86 inches | 1368 mm |
Connection 1 | SAFETY SLIDE LOCK | |
Connection 2 | CLAMP | |
Extended Length | 62.16 inches | 1579 mm |
Extended Overall Length | 76.26 inches | 1937 mm |
HP@1000RPM | 154 HP | 115 kilowatts |
HP@540RPM | 100 HP | 75 kilowatts |
Length | 53.86 inches | 1368 mm |
Outside Diameter | 7.73 inches | 196 mm |
Shipping Dimensions | 39.76" L × 7.73" H × 7.73" W | 101cm L × 20cm H × 20cm W |
Shipping Volume | 2375.78 in3 | 38932 cm3 |
Shipping Weight | 62.39 pounds | 28 kilograms |
Weight | 62.39 pounds | 28 kilograms |
Downloads
Document Name | Type | Language |
---|---|---|
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Service Instructions - Easy Lock Guards.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
WE0101032_1217_USL_MetricProfile.pdf | Performance Benefits Document | English |
