1604-6802-086PROFILE PTO DRIVE SHAFT

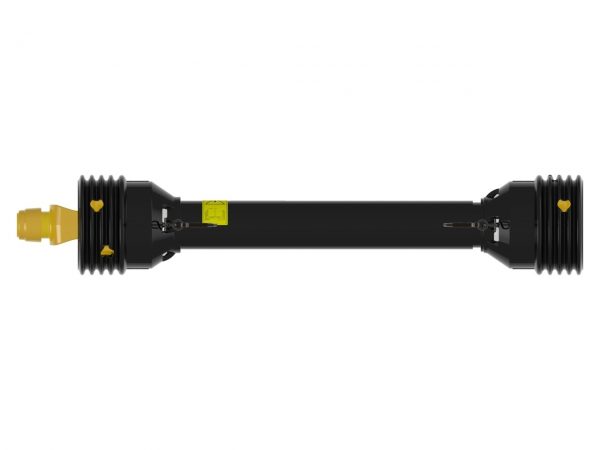

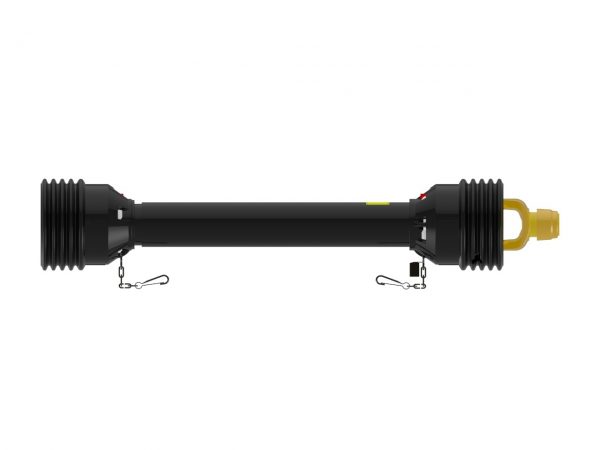

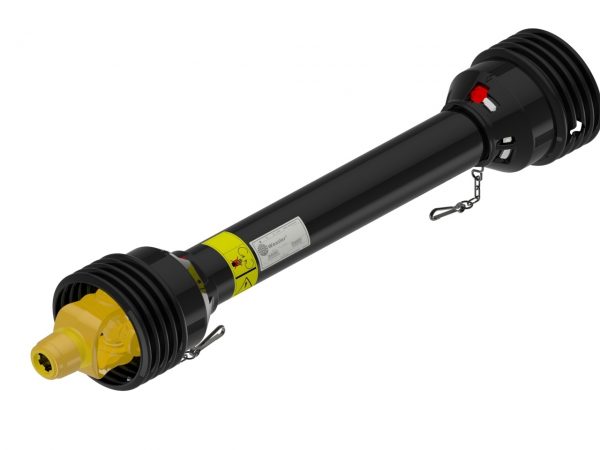

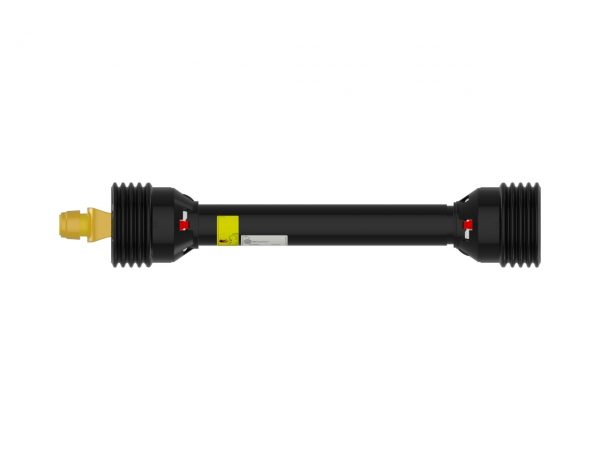

AB8 Series Profile PTO Drive Shaft
AB8 series profile PTO drive shaft with a 1 3/8-6 spline safety slide lock tractor connection and minus end yoke, cross and bearing kit needed for implement connection
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.37 inches||35 mm|
|Bore 2||Minus End Yoke|
|Compressed (Closed) Length||33.86 inches||860 mm|
|Compressed Overall Length||45.27 inches||1150 mm|
|Connection 1||SAFETY SLIDE LOCK|
|Connection 2||YOKE ARMS|
|Extended Length||51.96 inches||1320 mm|
|Extended Overall Length||63.37 inches||1610 mm|
|HP@1000RPM||154 HP||115 kilowatts|
|HP@540RPM||100 HP||75 kilowatts|
|Length||45.27 inches||1150 mm|
|Outside Diameter||7.73 inches||196 mm|
|Shipping Dimensions||45.278" L × 7.73" H × 7.73" W||115cm L × 20cm H × 20cm W|
|Shipping Volume||2705.49 in3||44335 cm3|
|Shipping Weight||43.50 pounds||20 kilograms|
|Weight||43.50 pounds||20 kilograms|
|Service Instructions - Universal Joint.pdf||Service Document||English|
|Service Instructions - Easy Lock Guards.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|WE0101032_1217_USL_MetricProfile.pdf||Performance Benefits Document||English|
