14056848

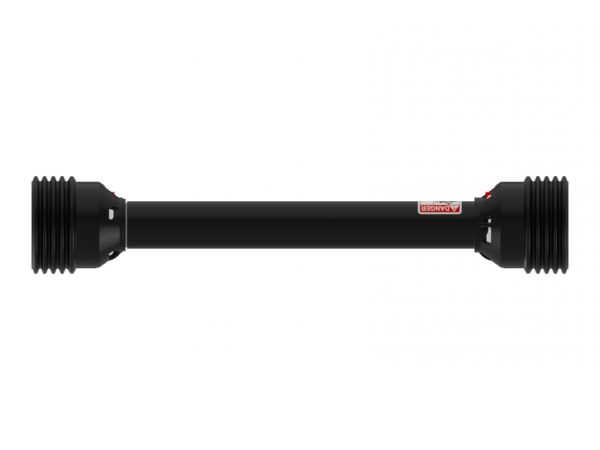

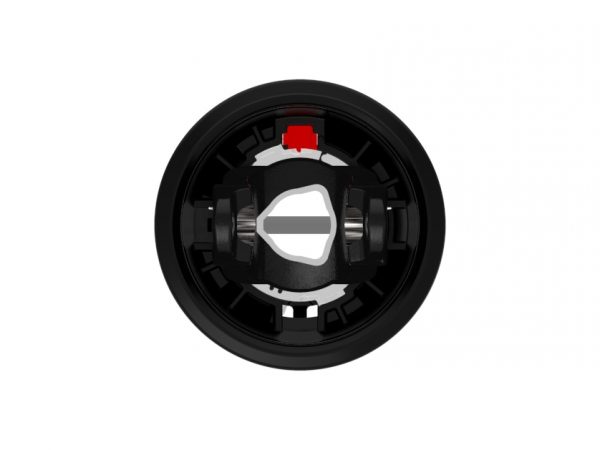

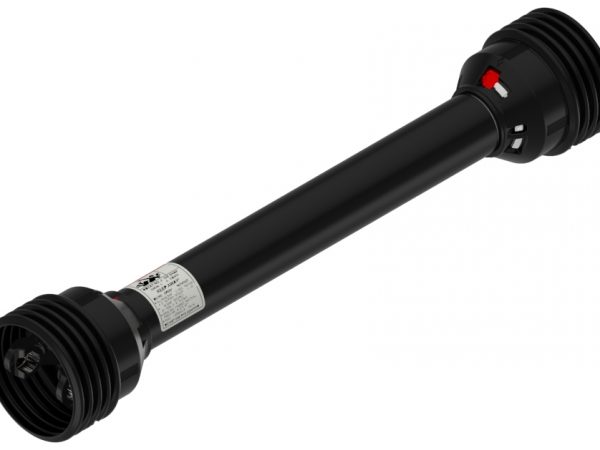

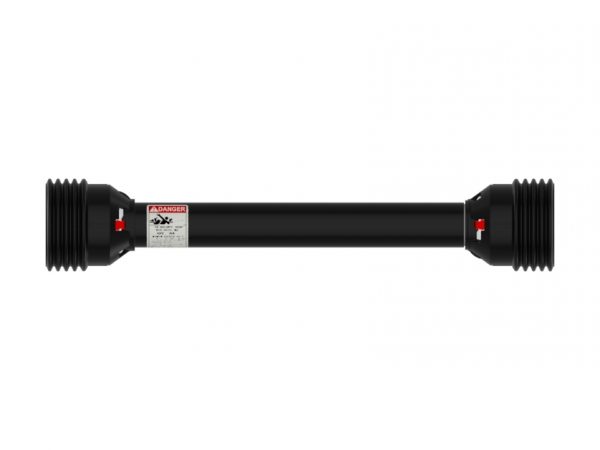

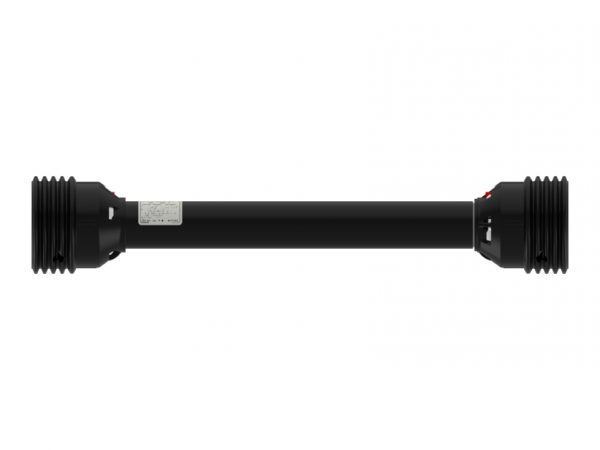

AB8 Series Profile PTO Drive Shaft

AB8 series profile PTO drive shaft minus end yoke, cross and bearing kit needed for tractor connection and minus end yoke, cross and bearing kit needed for implement connection. Note: Image color may not represent actual part.

View My List

The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Tri-lobe, lemon, and star shaft profiles available.
• Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
• Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
• Customer dedicated engineering and sales support.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 1 Minus End Yoke
Bore 2 Minus End Yoke
Compressed (Closed) Length39.76 inches1010 mm
Compressed Overall Length50.00 inches1270 mm
Connection 1 YOKE ARMS
Connection 2 YOKE ARMS
Extended Length59.96 inches1523 mm
Extended Overall Length70.00 inches1778 mm
HP@1000RPM154 HP115 kilowatts
HP@540RPM100 HP75 kilowatts
Length50.00 inches1270 mm
Outside Diameter7.73 inches196 mm
Shipping Dimensions42" L  ×  7.73" H  ×  7.73" W107cm L  ×  20cm H  ×  20cm W
Shipping Volume2509.62 in341125 cm3
Shipping Weight36.00 pounds16 kilograms
Weight36.00 pounds16 kilograms
