14006551

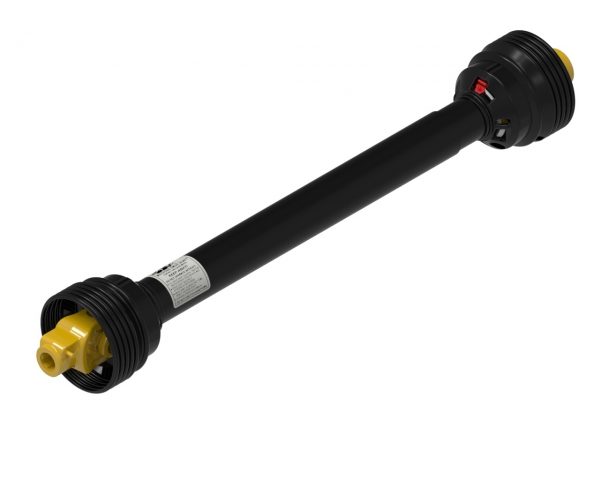

AB5 Series Profile PTO Drive Shaft

AB5 series profile PTO drive shaft with a 1 3/8-6 spline quick disconnect tractor connection and round pin implement connection

View My List

The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Tri-lobe, lemon, and star shaft profiles available.
• Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
• Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
• Customer dedicated engineering and sales support.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.

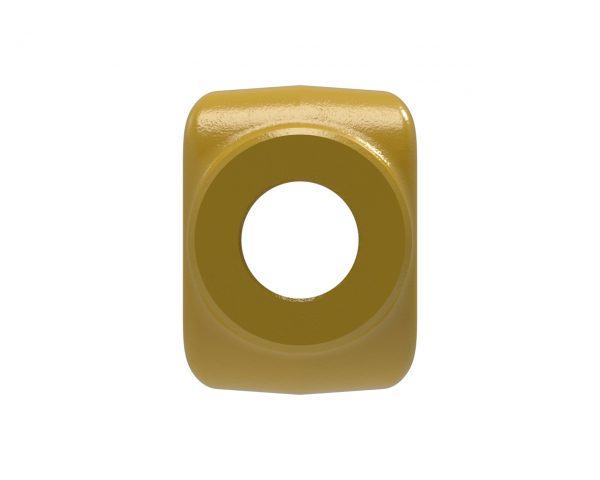

• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.37 inches35 mm
Bore 2 ROUND
Compressed (Closed) Length43.70 inches1110 mm
Compressed Overall Length52.28 inches1328 mm
Connection 1 QUICK DISCONNECT
Connection 2 PIN
Extended Length67.88 inches1724 mm
Extended Overall Length76.46 inches1942 mm
HP@1000RPM81 HP60 kilowatts
HP@540RPM52 HP39 kilowatts
Length52.28 inches1328 mm
Outside Diameter7.28 inches185 mm
Pin Hole0.51 inches13 mm
Pin Hole 0.79
Shipping Dimensions52.28" L  ×  7.28" H  ×  7.28" W133cm L  ×  18cm H  ×  18cm W
Shipping Volume2770.76 in345405 cm3
Shipping Weight39.76 pounds18 kilograms
Weight39.76 pounds18 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101032_1217_USL_MetricProfile.pdf Performance Benefits Document English
