151-5520

6-50 Series Auto-lok Yoke

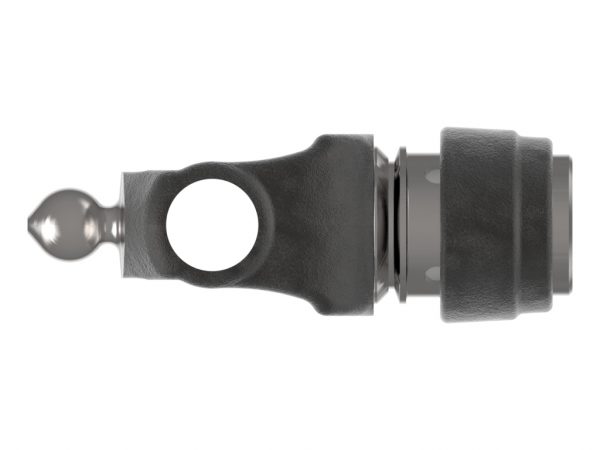

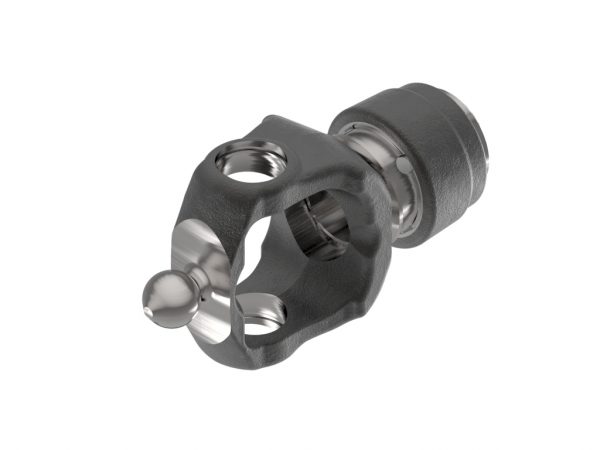

6-50 series yoke with 1 3/4-20 spline bore and auto-lok connection

View My List

PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.75 inches44 mm
Bore 1 1 3/4-20 SPLINE
Connection 1 AUTO-LOK
Height5.12 inches130 mm
HP@1000RPM232 HP173 kilowatts
HP@540RPM151 HP113 kilowatts
Length6.00 inches152 mm
Shipping Dimensions9.09" L  ×  5.125" H  ×  3.3" W23cm L  ×  13cm H  ×  8cm W
Shipping Volume153.73 in32519 cm3
Shipping Weight8.02 pounds4 kilograms
Weight8.02 pounds4 kilograms
Width3.30 inches84 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating 50 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
50 deg CV Joint - Over Angle.pdf Troubleshooting Document English
WE0101001_0118_USL_50DegConstantVelocityJoint.pdf Performance Benefits Document English

Support Videos

Performance Benefits Video
