14005537

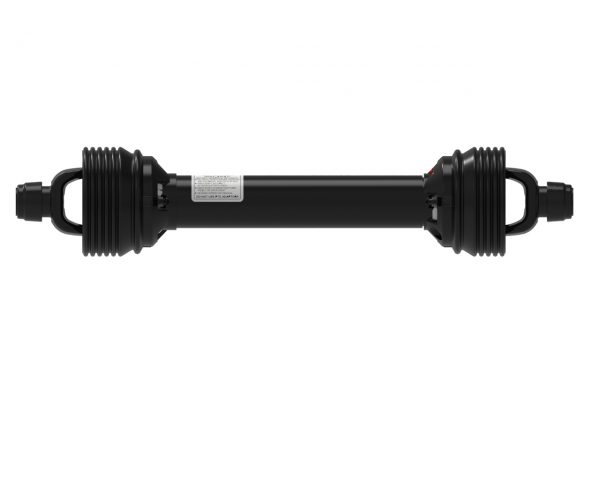

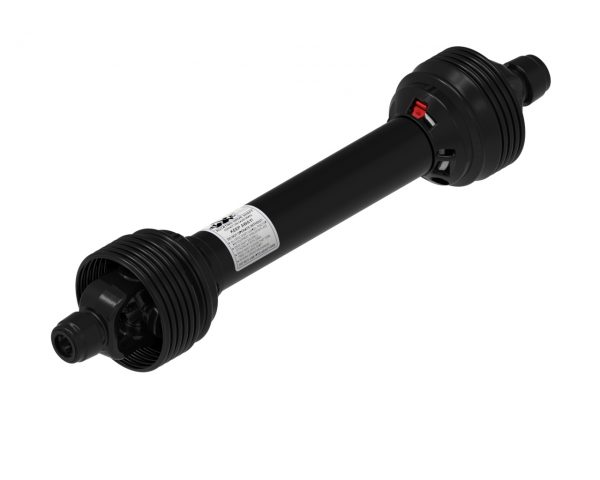

55 Series PTO Drive Shaft

55 series PTO drive shaft with a 1 3/8-6 spline safety slide lock tractor connection and 1 3/8-6 spline safety slide lock implement connection

View My List

The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies that from tractor to implement. They are designed for continuous heavy-duty use and meet the requirements of large farms and contractors. Weasler PTO driveshafts and CV wide angle PTO drive shafts are interchangeable with standard PTO driveshafts available in the market.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Spline and square shaft profiles available.
• Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
• Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
• Customer dedicated engineering and sales support.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.37 inches35 mm
Bore 2 1 3/8-6 SPLINE
Compressed (Closed) Length25.38 inches645 mm
Compressed Overall Length37.00 inches940 mm
Connection 1 SAFETY SLIDE LOCK
Connection 2 SAFETY SLIDE LOCK
Extended Length38.50 inches978 mm
Extended Overall Length50.12 inches1273 mm
HP@1000RPM164 HP122 kilowatts
HP@540RPM106 HP79 kilowatts
Length37.00 inches940 mm
Outside Diameter7.28 inches185 mm
Shipping Dimensions37" L  ×  7.28" H  ×  7.28" W94cm L  ×  18cm H  ×  18cm W
Shipping Volume1960.94 in332134 cm3
Shipping Weight45.90 pounds21 kilograms
Weight45.90 pounds21 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
