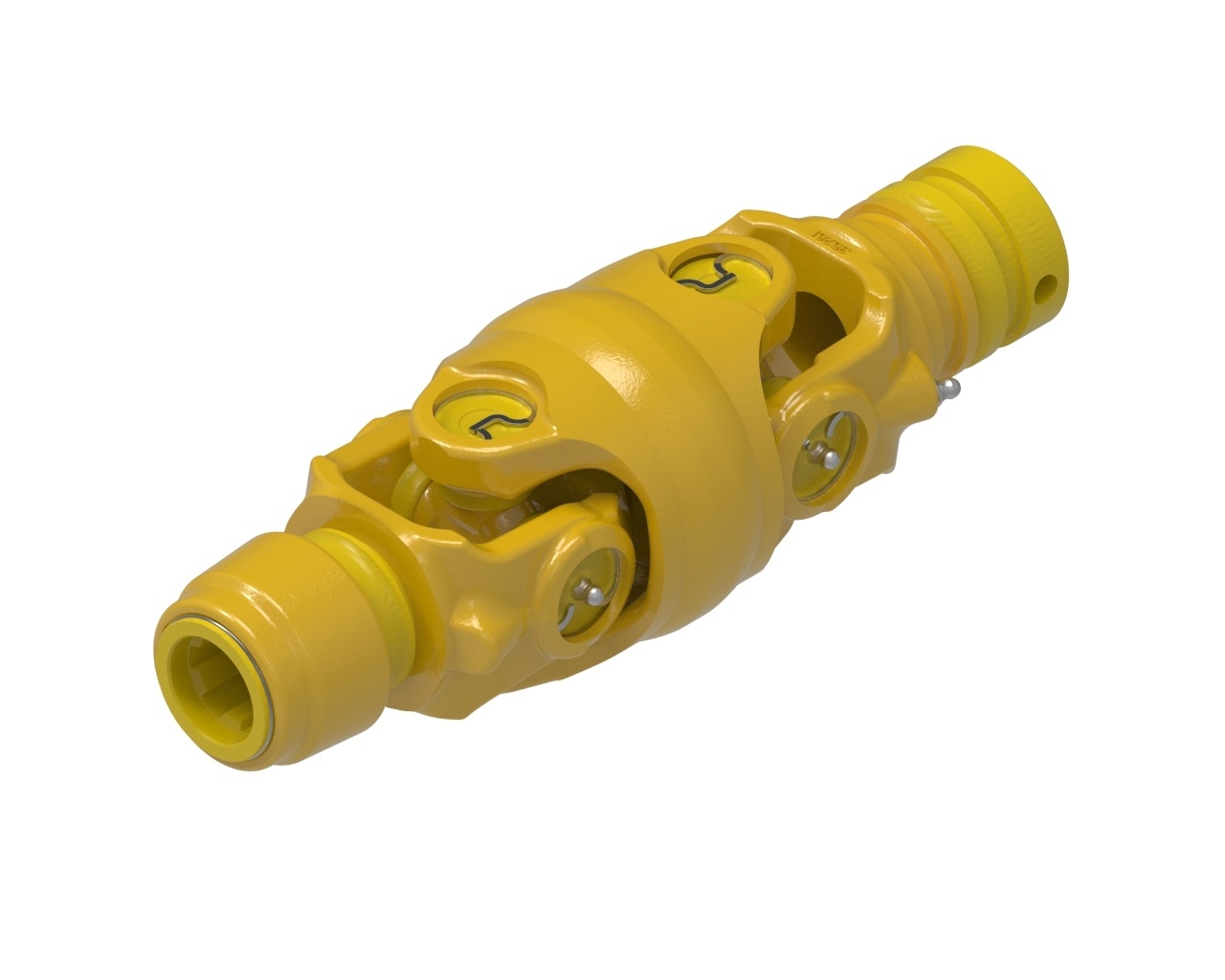

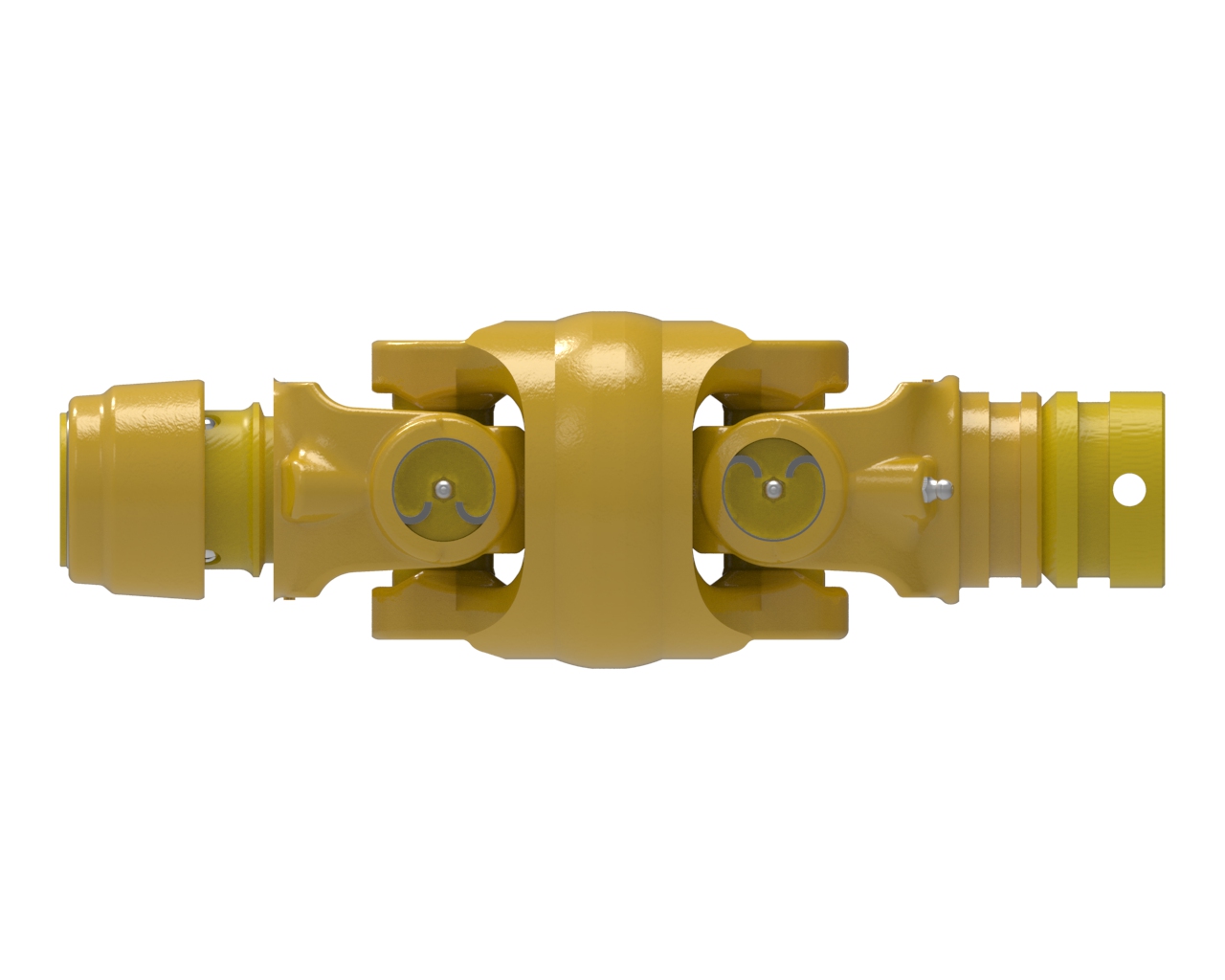

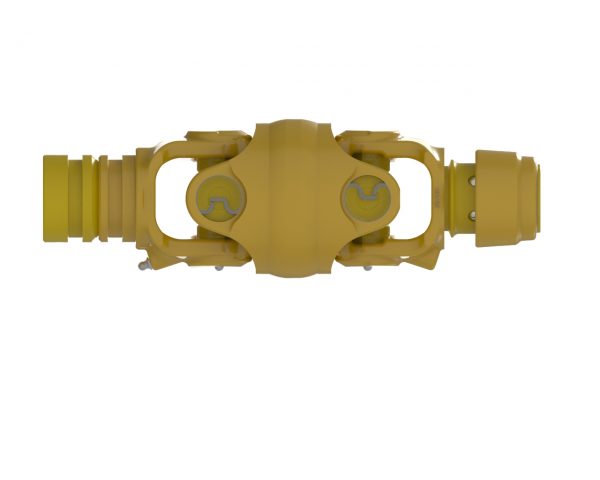

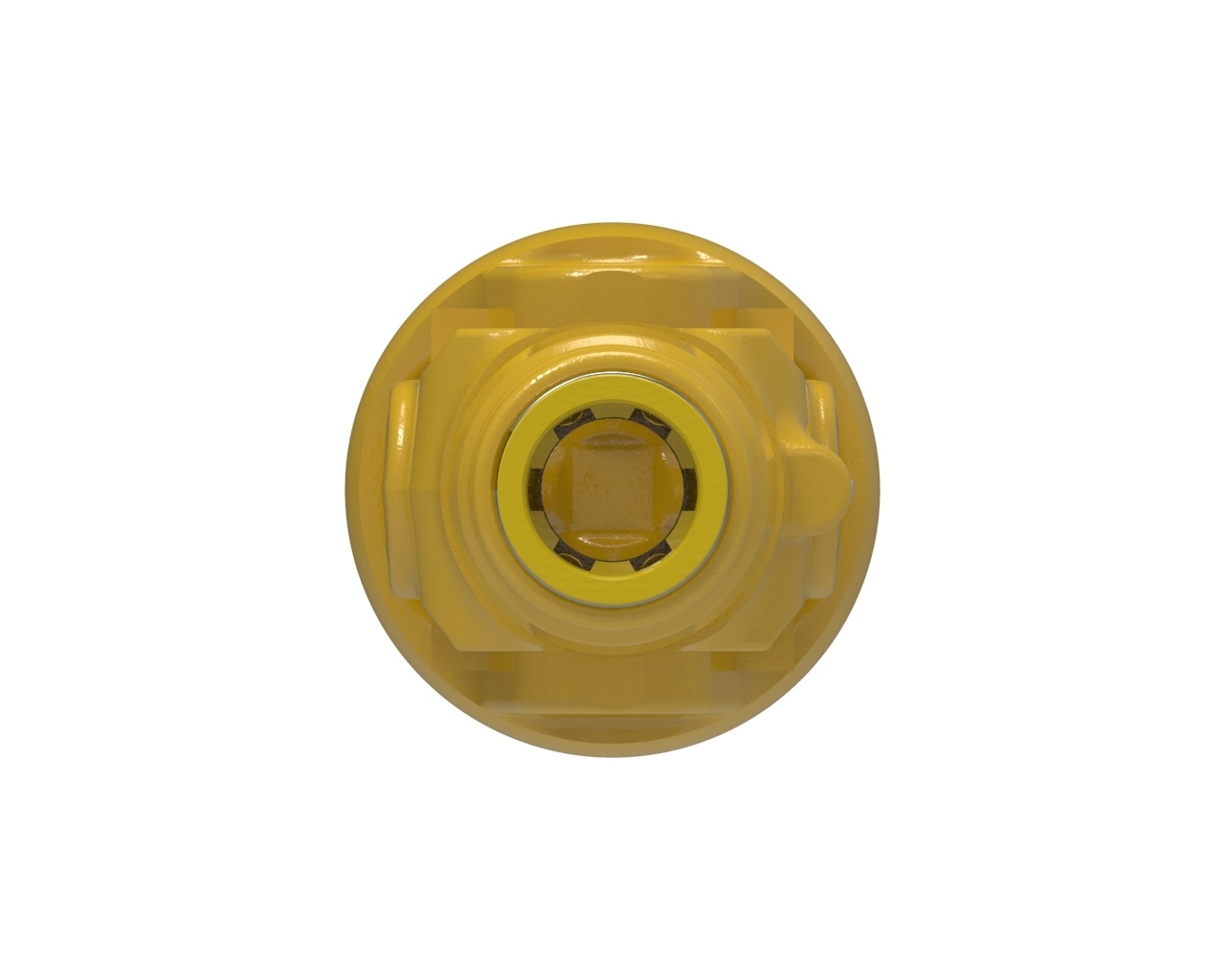

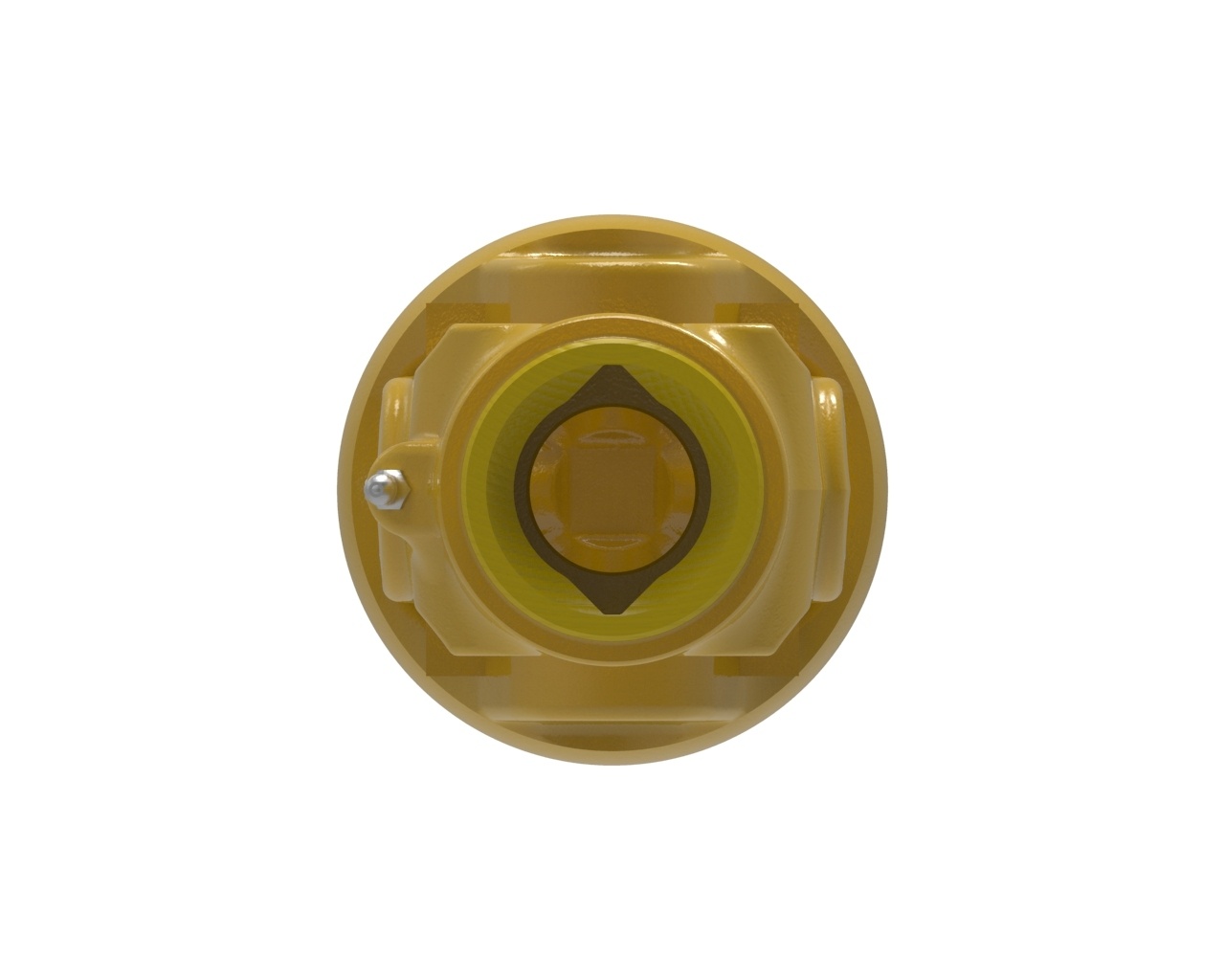

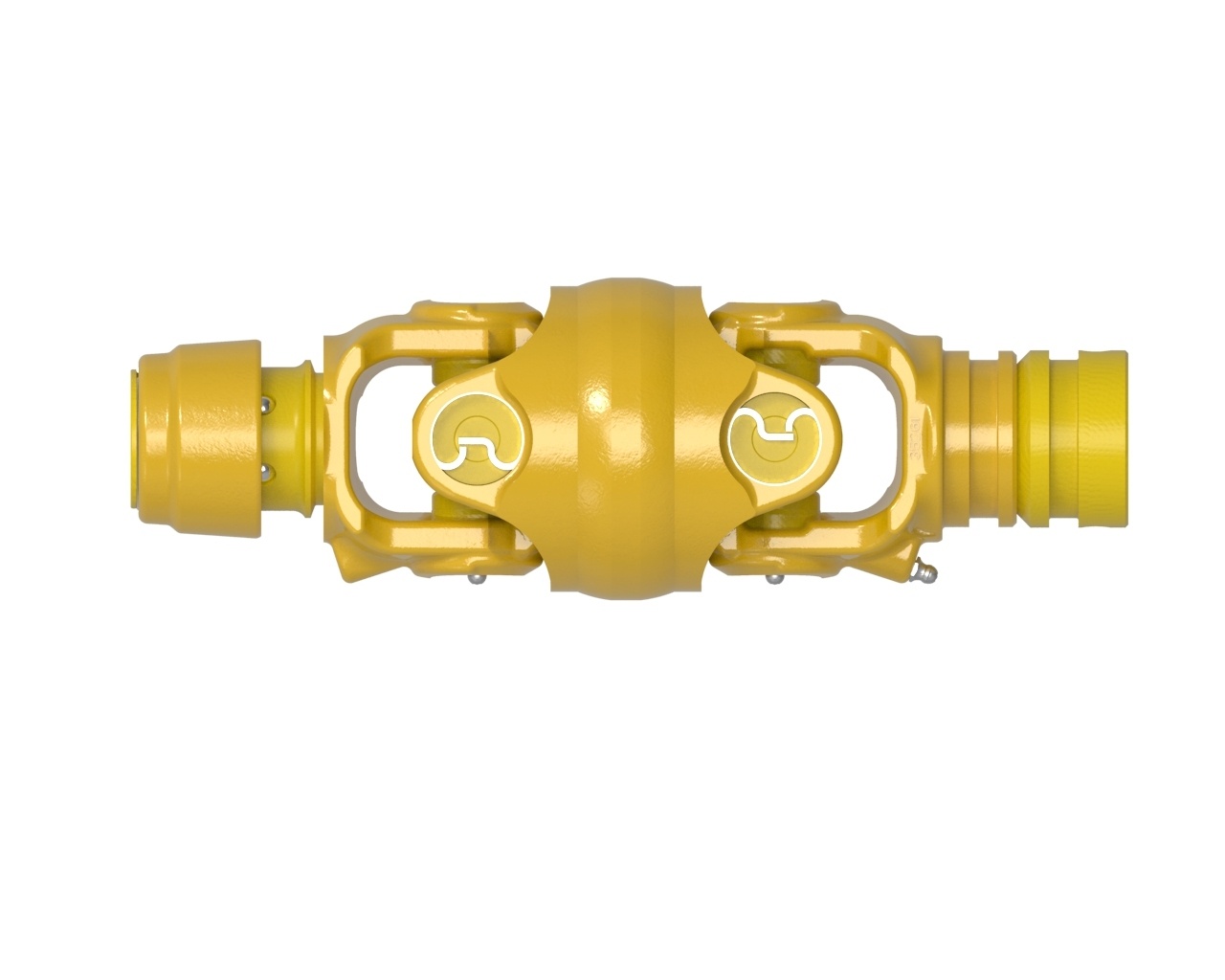

1501-7606-50CV WIDE ANGLE UNIVERSAL JOINT
4-50 Series CV Wide Angle Universal Joint
4-50 series CV wide angle universal joint with 1 3/8-6 spline, auto-lok connection and 39 mm lemon, roll pin connection
The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.59 inches||40 mm|
|Bore 2||39 MM LEMON|
|Compressed (Closed) Length||4.00 inches||102 mm|
|Compressed Overall Length||13.39 inches||340 mm|
|Connection 2||ROLL PIN|
|Extended Length||4.00 inches||102 mm|
|Extended Overall Length||13.39 inches||340 mm|
|HP@1000RPM||87 HP||65 kilowatts|
|HP@540RPM||57 HP||43 kilowatts|
|Length||13.39 inches||340 mm|
|Outside Diameter||4.47 inches||114 mm|
|Shipping Dimensions||13.399" L × 4.47" H × 4.47" W||34cm L × 11cm H × 11cm W|
|Shipping Volume||267.72 in3||4387 cm3|
|Shipping Weight||16.35 pounds||7 kilograms|
|Weight||16.35 pounds||7 kilograms|
