15061400

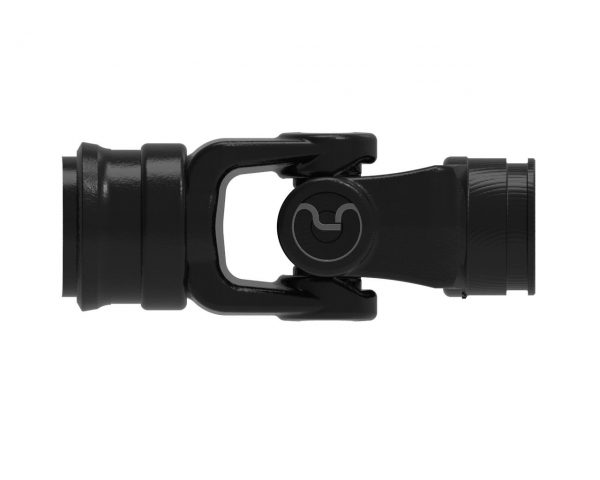

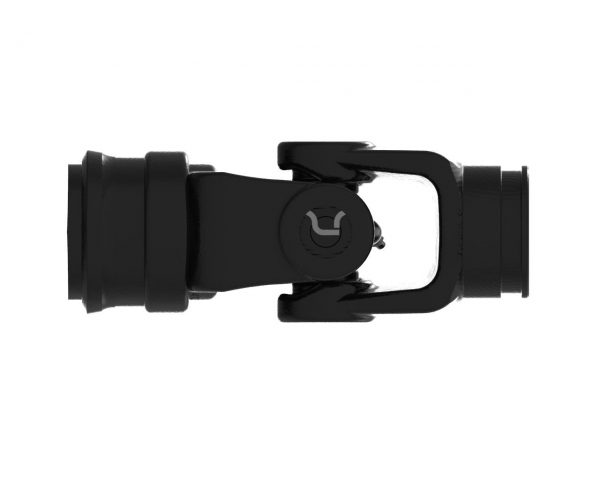

14 Series Universal Joint

14 series universal joint with 1 3/8-6 spline, spring-lok connection and 1 x 1 1/8 rectangle, rectangle connection

View My List

The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.12 inches28 mm
Bore 2 1 X 1 1/8 RECTANGLE
Connection 1 SPRING-LOK
Connection 2 RECTANGLE
HP@1000RPM48 HP36 kilowatts
HP@540RPM28 HP21 kilowatts
Shipping Dimensions7.69" L  ×  3.25" H  ×  3.25" W20cm L  ×  8cm H  ×  8cm W
Shipping Volume81.23 in31331 cm3
Shipping Weight5.52 pounds3 kilograms
Weight5.52 pounds3 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
