14001404

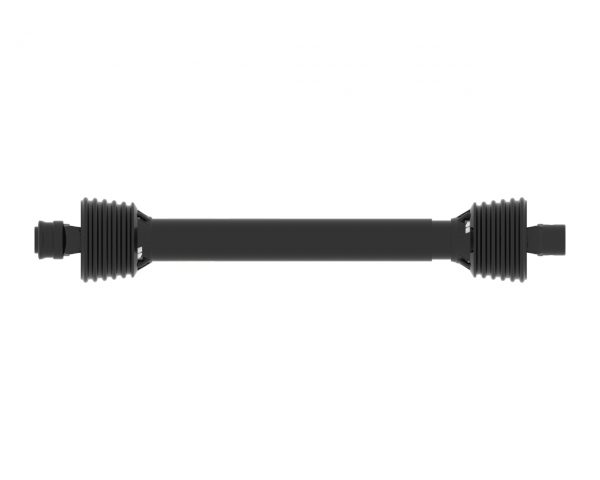

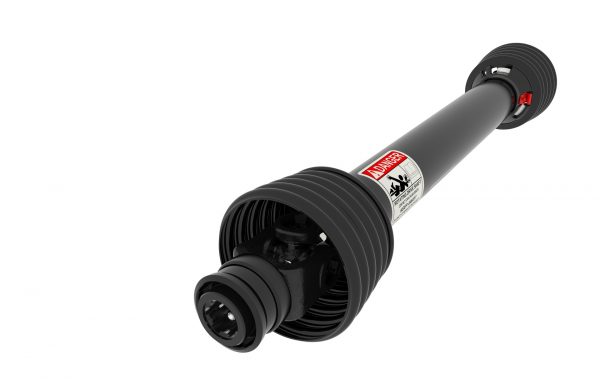

14 Series PTO Drive Shaft

14 series PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and 1 3/8 round 1/2 shear pin hole shear pin hole implement connection

View My List

The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies that from tractor to implement. They are designed for continuous heavy-duty use and meet the requirements of large farms and contractors. Weasler PTO driveshafts and CV wide angle PTO drive shafts are interchangeable with standard PTO driveshafts available in the market.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Spline and square shaft profiles available.
• Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
• Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
• Customer dedicated engineering and sales support.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.

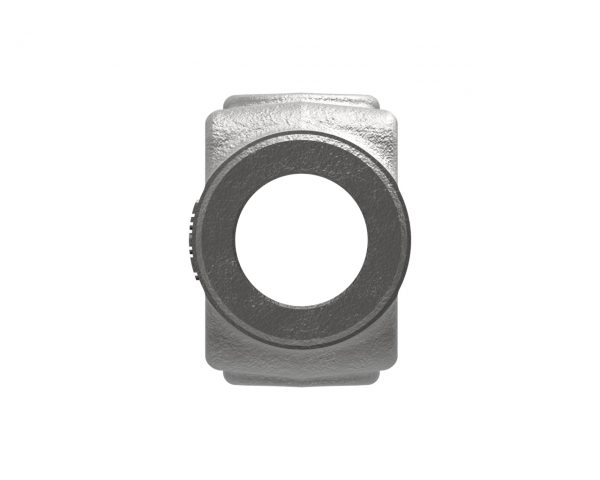

• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.37 inches35 mm
Bore 2 1 3/8 ROUND 1/2 SHEAR PIN HOLE
Compressed (Closed) Length22.00 inches559 mm
Compressed Overall Length30.19 inches767 mm
Connection 1 SPRING-LOK
Connection 2 SHEAR PIN HOLE
Extended Length31.38 inches797 mm
Extended Overall Length39.57 inches1005 mm
HP@1000RPM48 HP36 kilowatts
HP@540RPM28 HP21 kilowatts
Length30.19 inches767 mm
Outside Diameter7.31 inches186 mm
Shipping Dimensions30.19" L  ×  7.31" H  ×  7.31" W77cm L  ×  19cm H  ×  19cm W
Shipping Volume1613.24 in326436 cm3
Shipping Weight21.92 pounds10 kilograms
Weight21.92 pounds10 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
