Part Number: 1600-7445-101ST
PROFILE PTO DRIVE SHAFT

STANDARD AW21 Series Profile PTO Drive Shaft

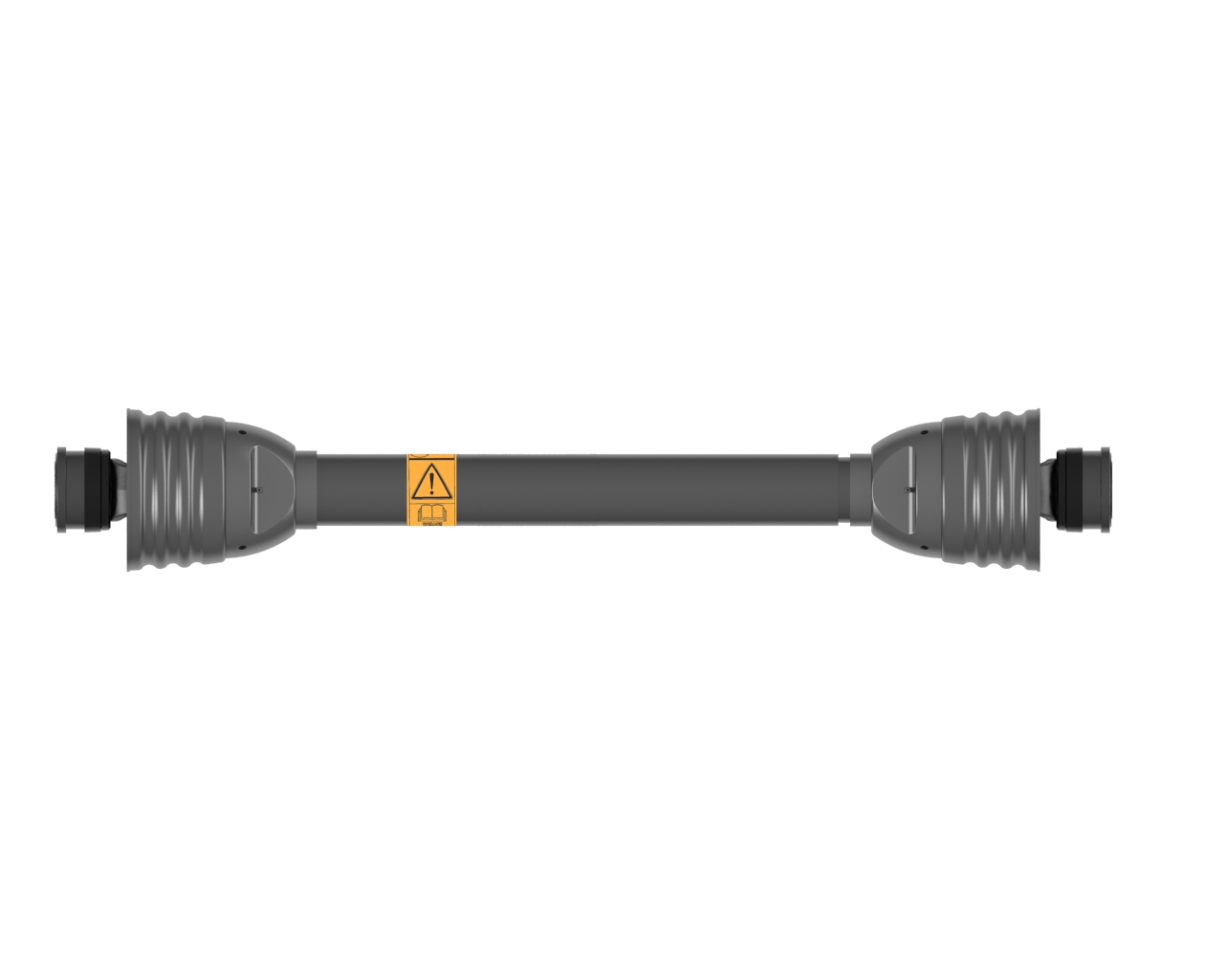

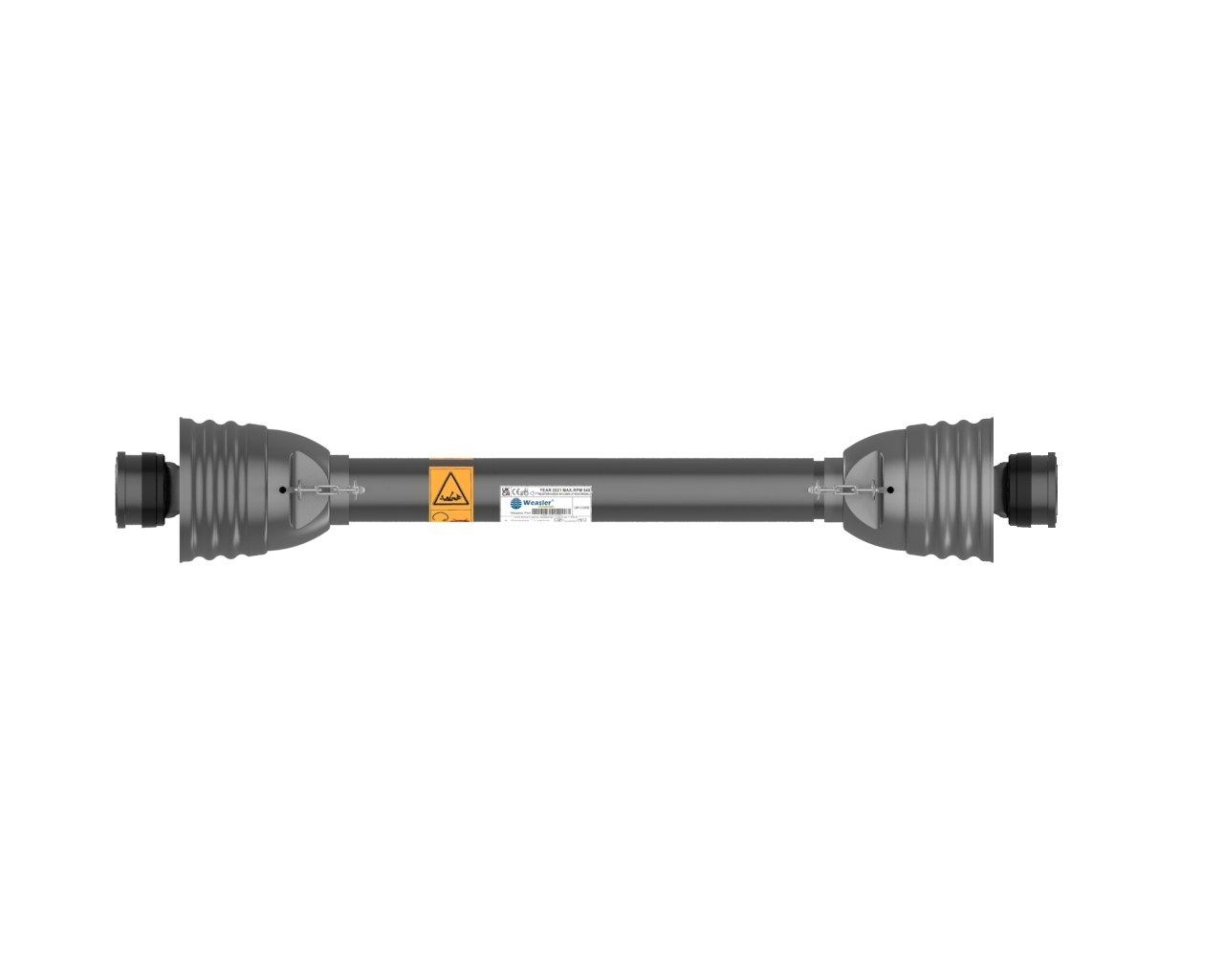

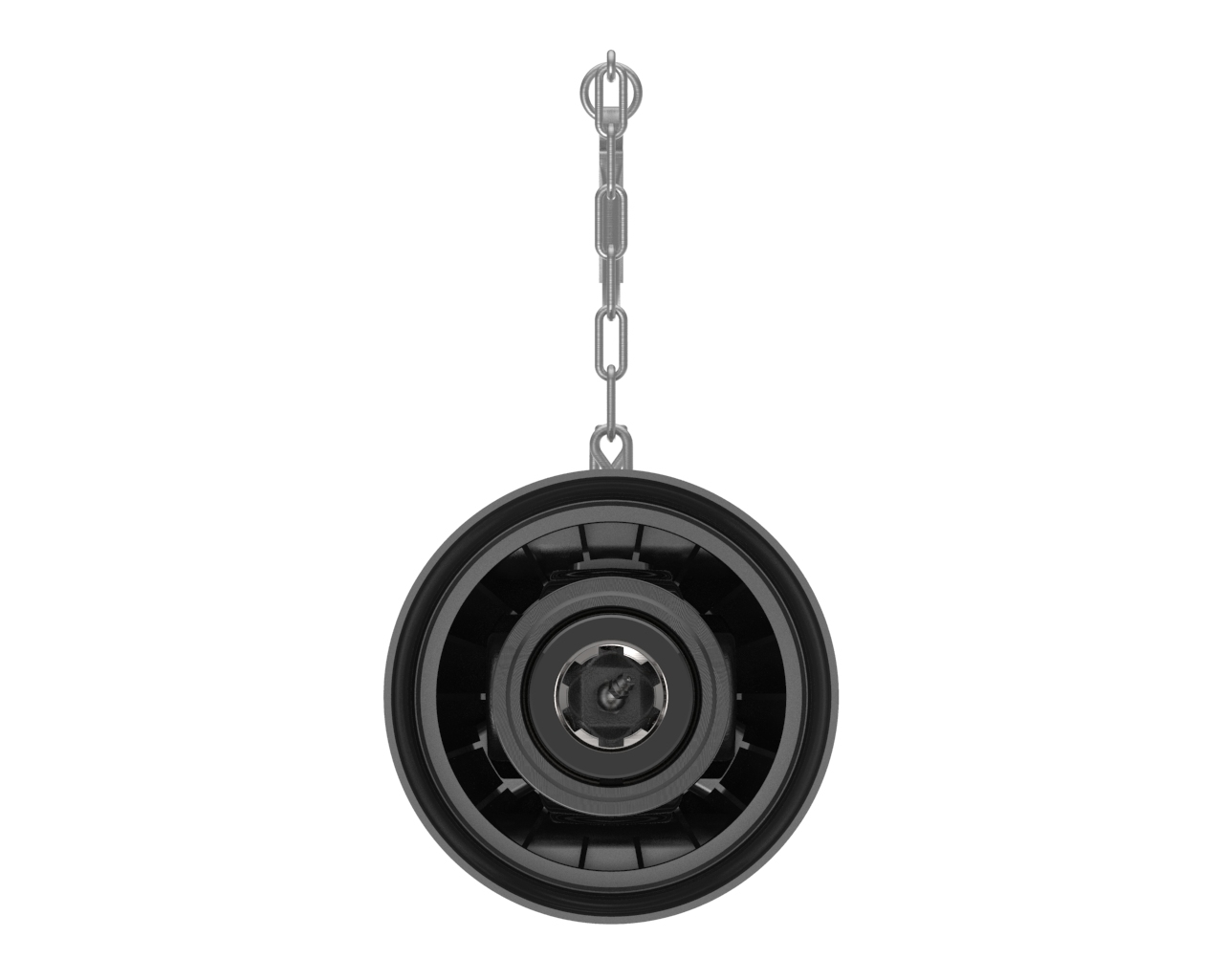

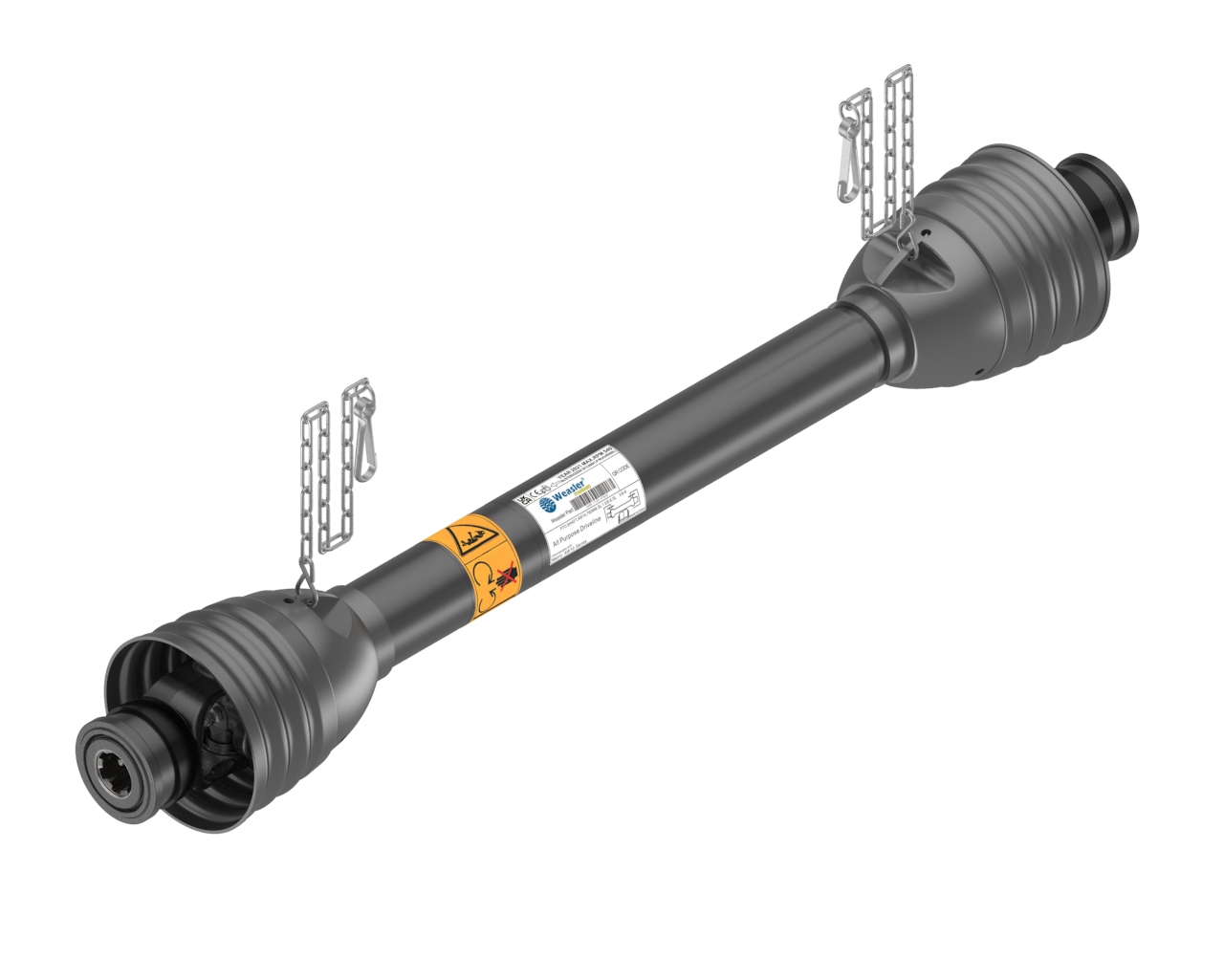

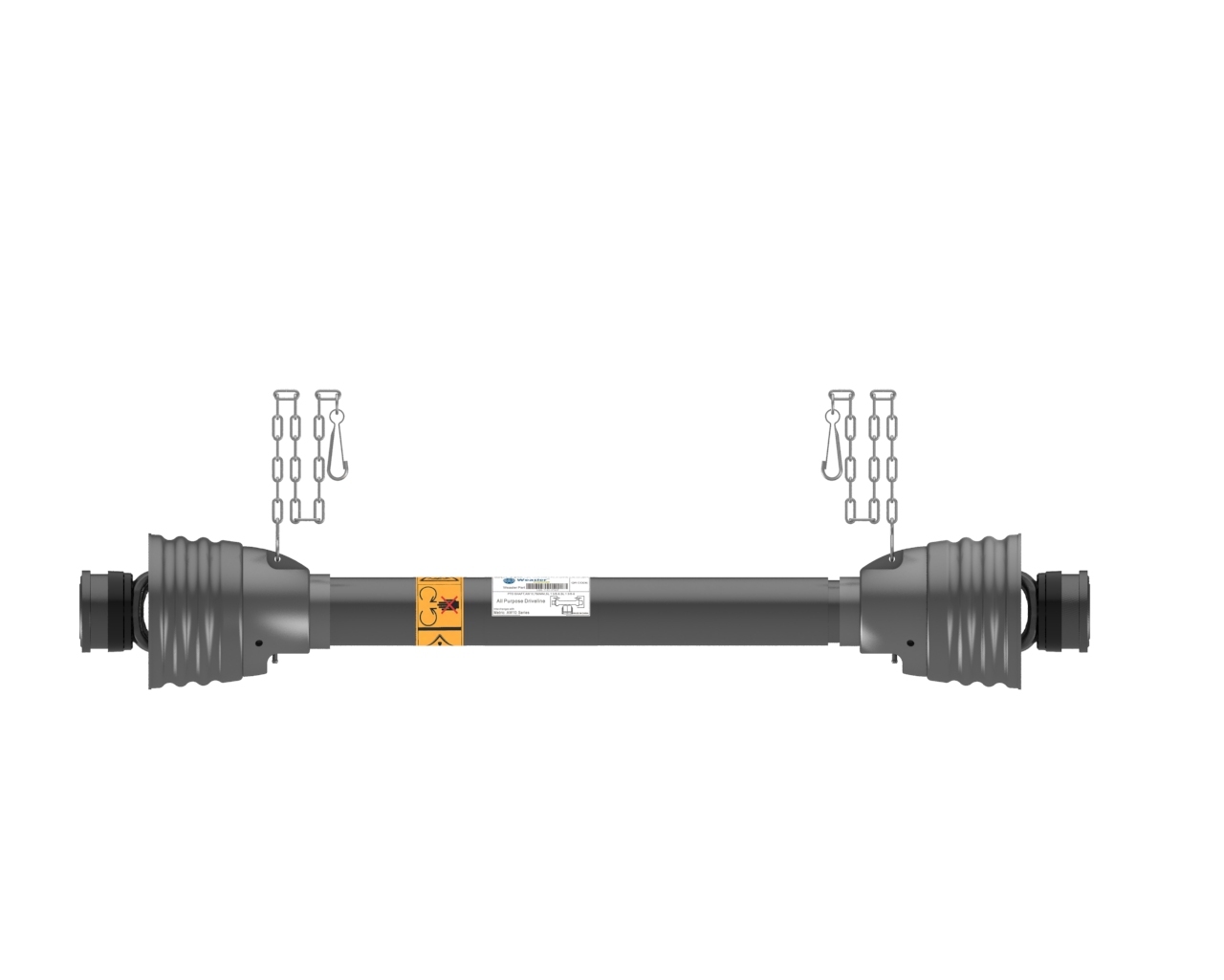

AW21 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and 1 3/8-6 spline spring-lok implement connection. Note: Image color may not represent actual part.

Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Tri-lobe shaft profiles available.
• Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
• Available with Standard bearing kits requiring regular lubrication.

DESIGN FEATURES
• Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
• Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
• Cross & Bearing Kits: Standard kits require regular maintenance.

Specifications

Part Number: 1600-7445-101ST
Product Series: AW21

Spec. Imperial Metric
Bearing Diameter (Ear Hole)1.06 (1 1/16) in27 mm
Bearing Cap to Cap Span2.93 (2 15/16) in74 mm
Tractor Yoke Description 1 3/8-6 SPLINE
Implement Yoke Description 1 3/8-6 SPLINE
Overall Compressed39.76 (39 49/64) in1010 mm
Connection 1 Type SPRING-LOK
Connection 2 Type SPRING-LOK
Max Overall Running Length68.46 (68 29/64) in1739 mm
HP@1000RPM56 HP42 kilowatts
HP@540RPM36 HP27 kilowatts
Kit Type P
Weight28.81 pounds13 kilograms
