AW22 Series Universal Joint

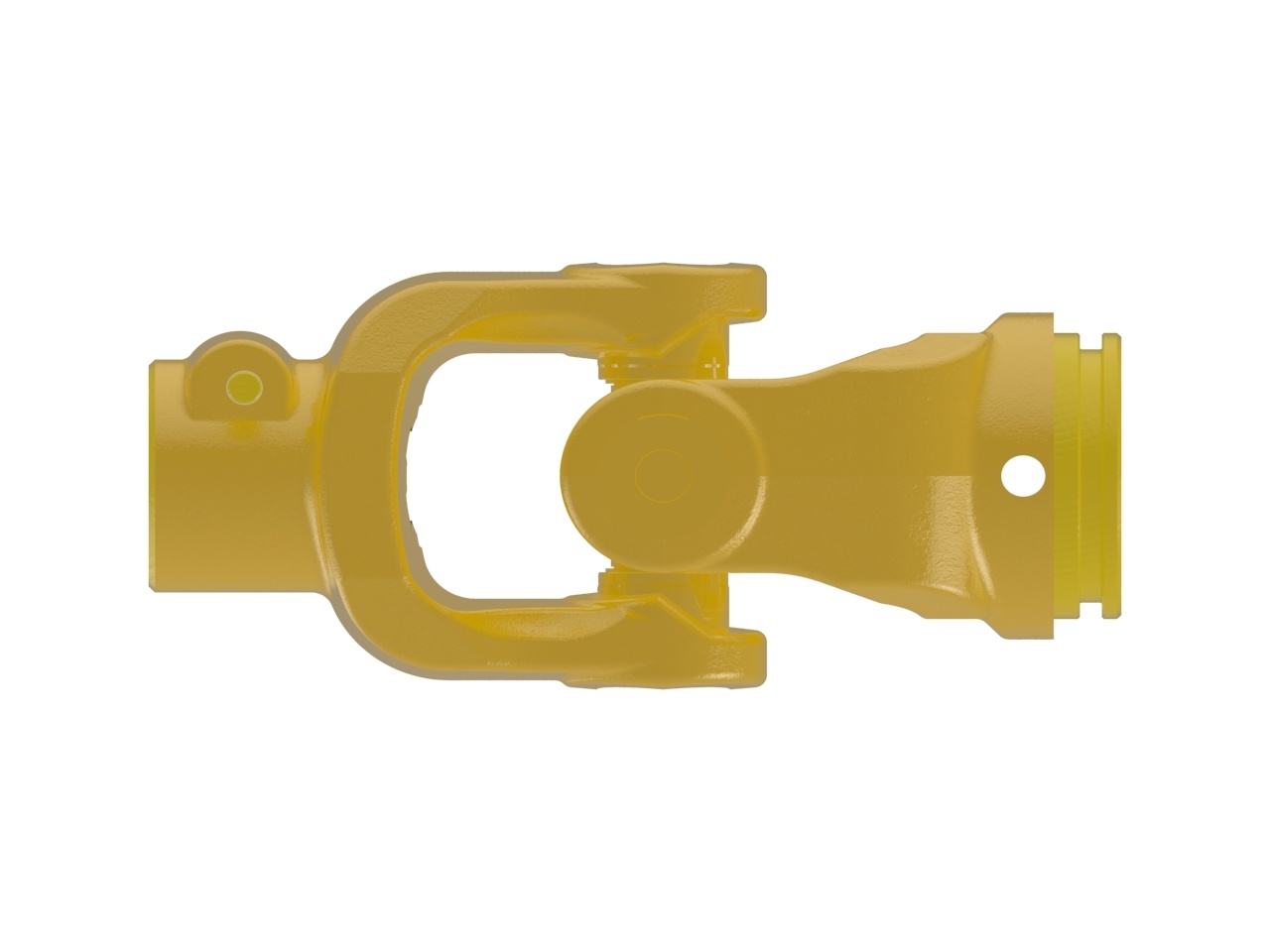

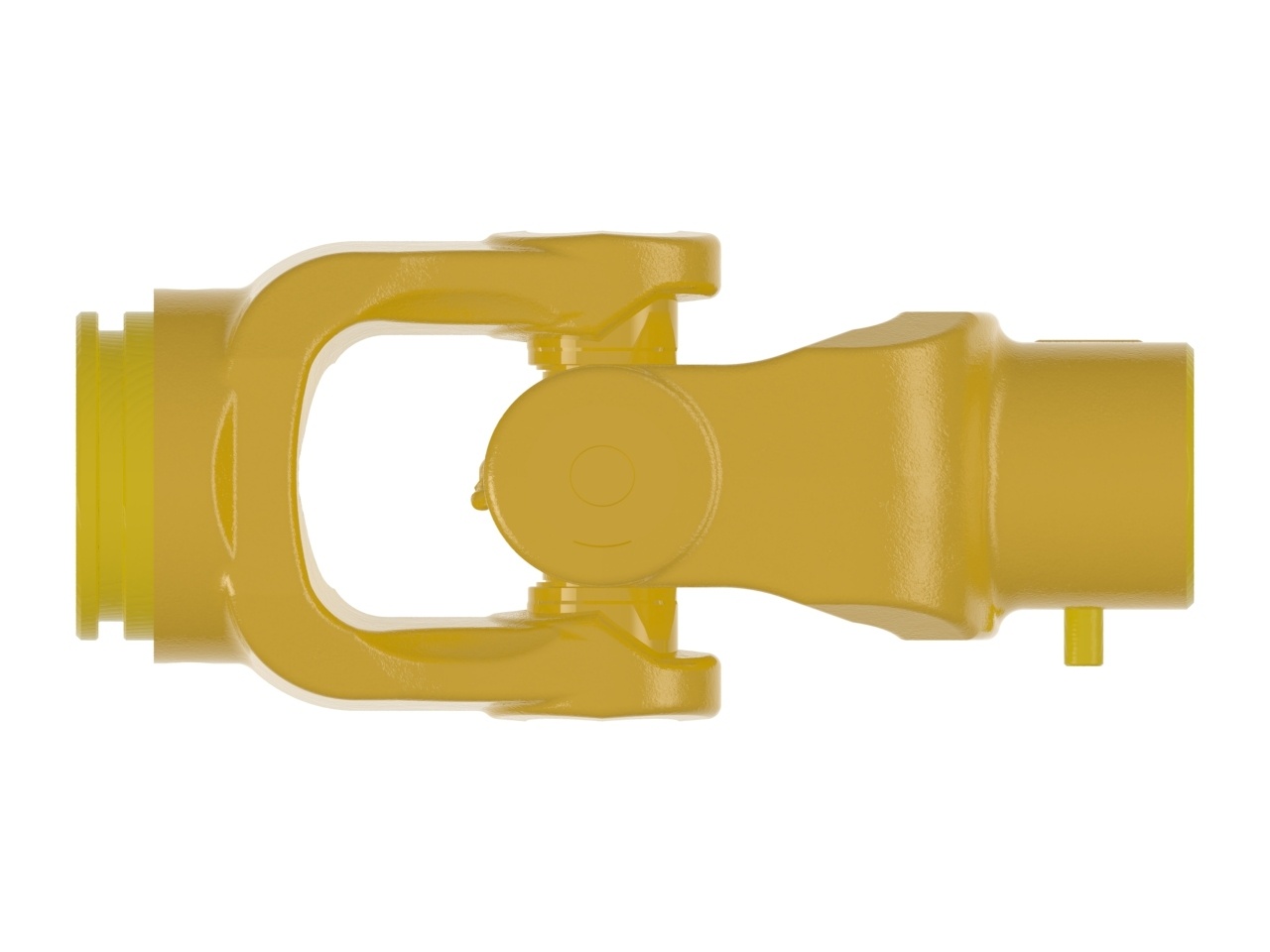

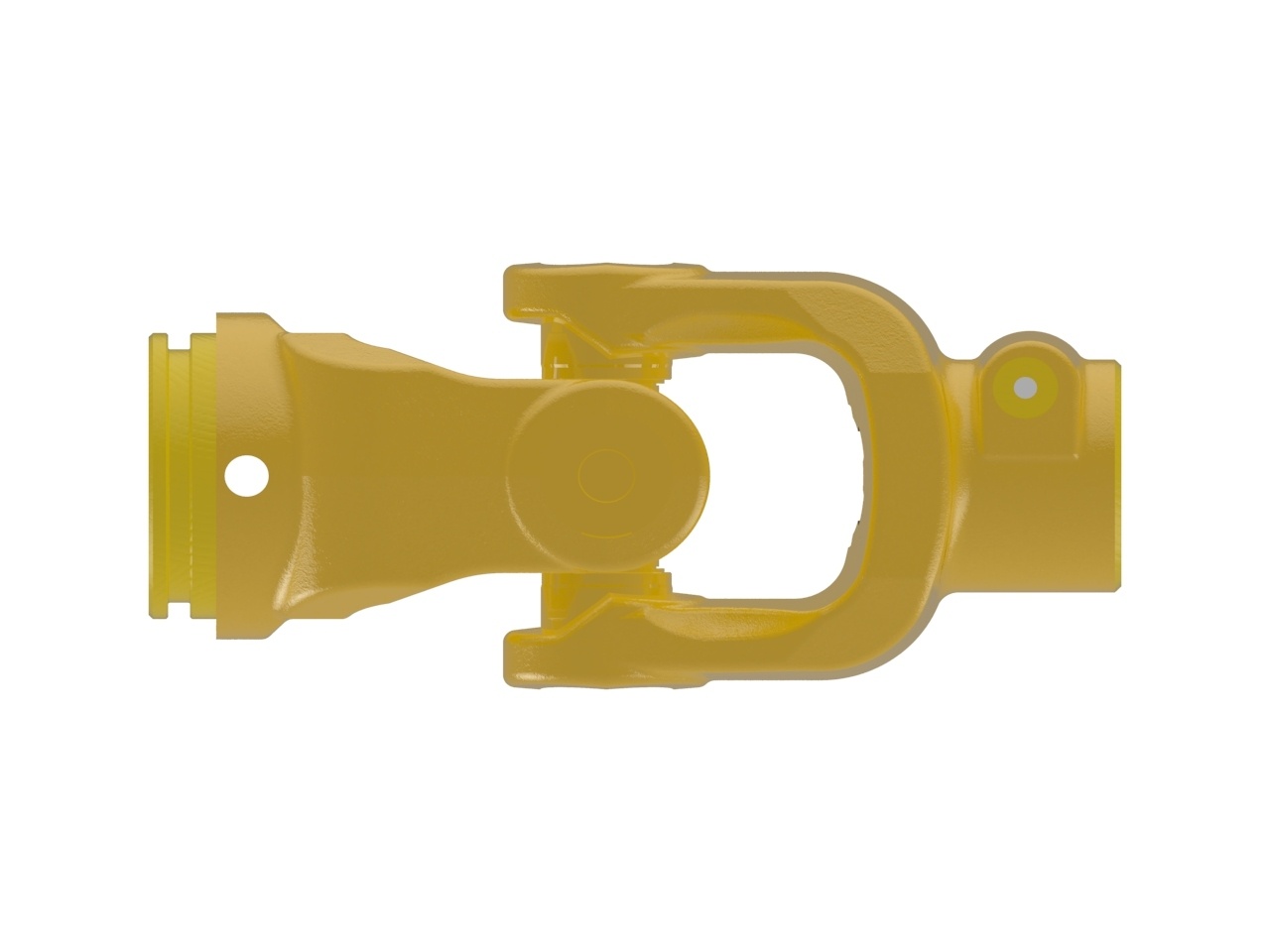

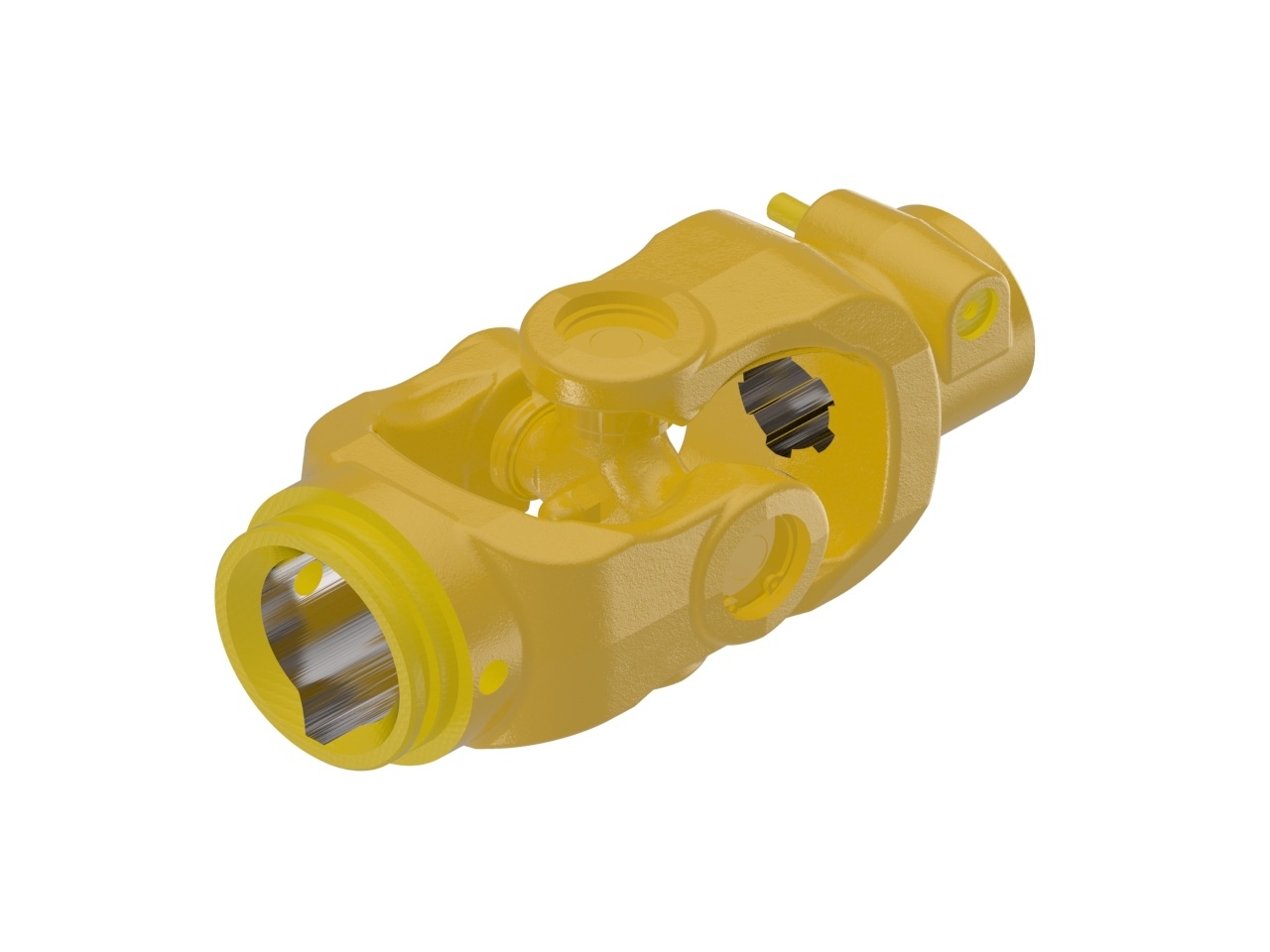

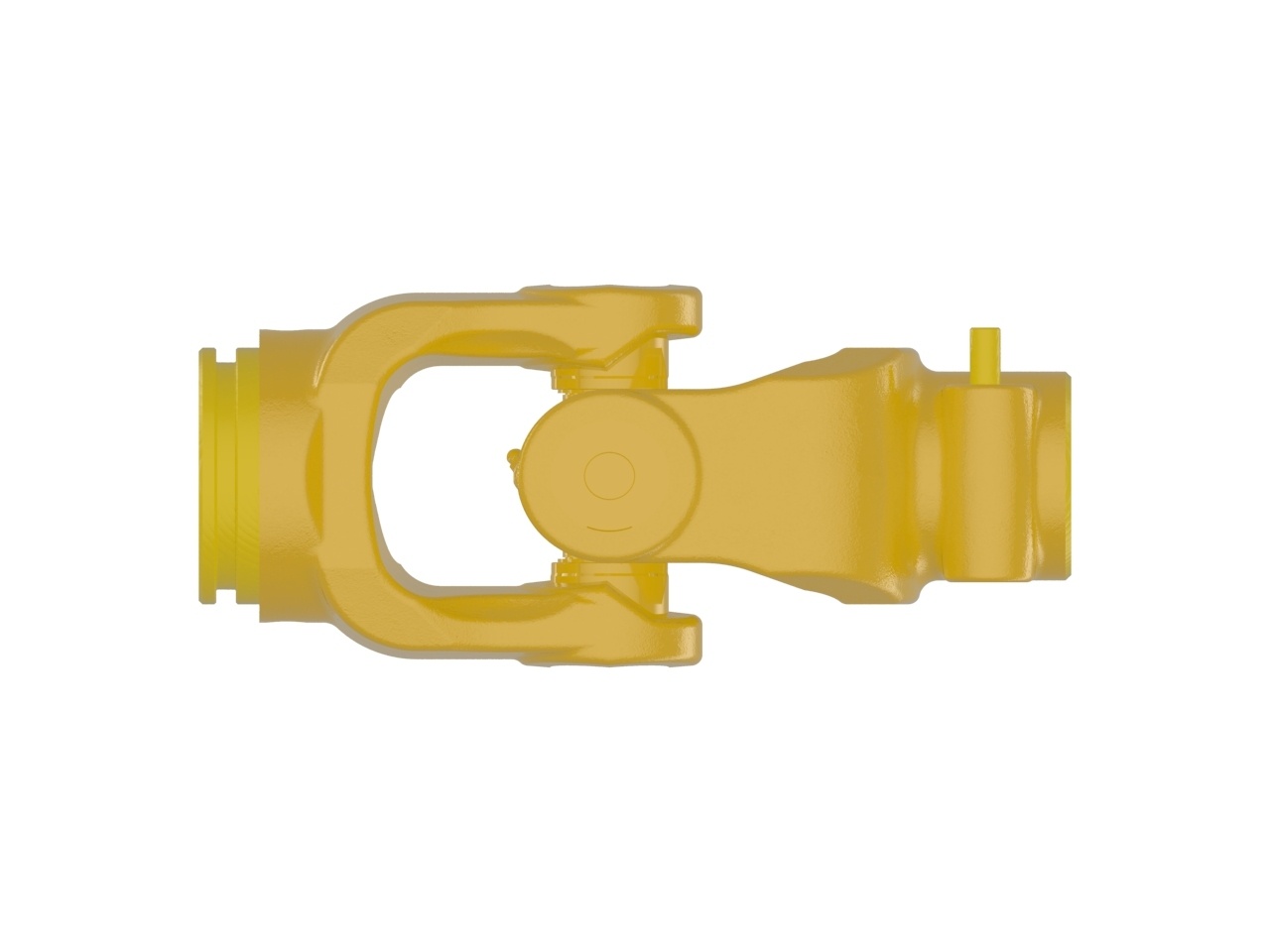

AW22 series universal joint with 1 3/8-6 spline, quick disconnect connection and 48 mm lemon, telescoping connection. Note: Image color may not represent actual part.
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.
PERFORMANCE BENEFITS
Specifications
Part Number: 3002-8506-00
Product Series: AW22
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing 1 Diameter | 1.18 (1 3/16) in | 30 mm |
| Bearing 1 Span | 3.61 (3 39/64) in | 92 mm |
| Bore 1 | 1.37 (1 3/8) in | 35 mm |
| Bore 1 Description | 1 3/8-6 SPLINE | |
| Bore 2 | 1.95 (1 61/64) in | 50 mm |
| Bore 2 Description | 48 MM LEMON | |
| Kit Type | P | |
| Lubrication Interval | 8.00 | |
| Weight | 10.83 pounds | 5 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| WE0101011_0817_USL_EasyLockGuard | Performance Benefits Document | English |
