Part Number: 800-8640
IMPLEMENT YOKE

AB6,AW22 Series Setscrew Yoke

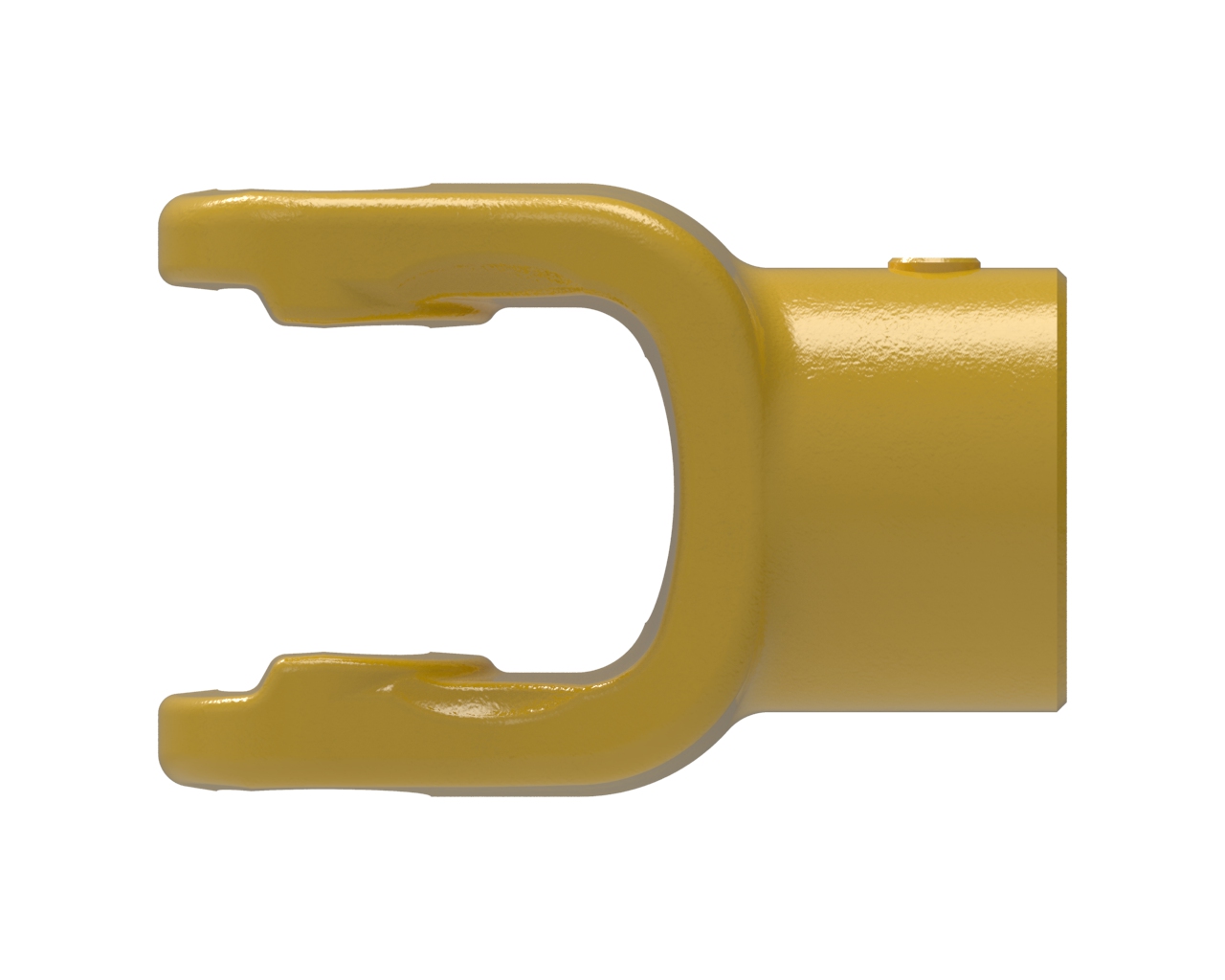

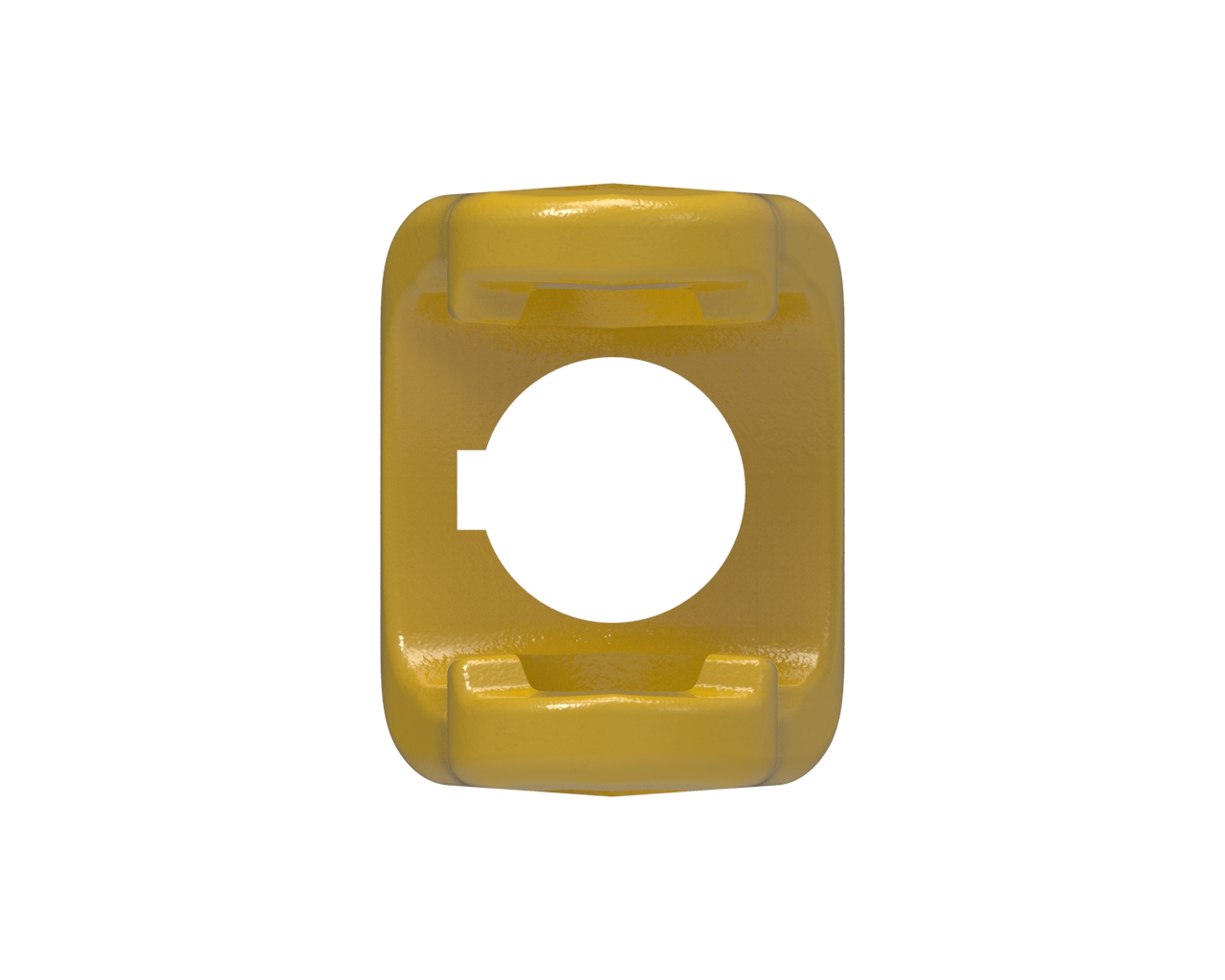

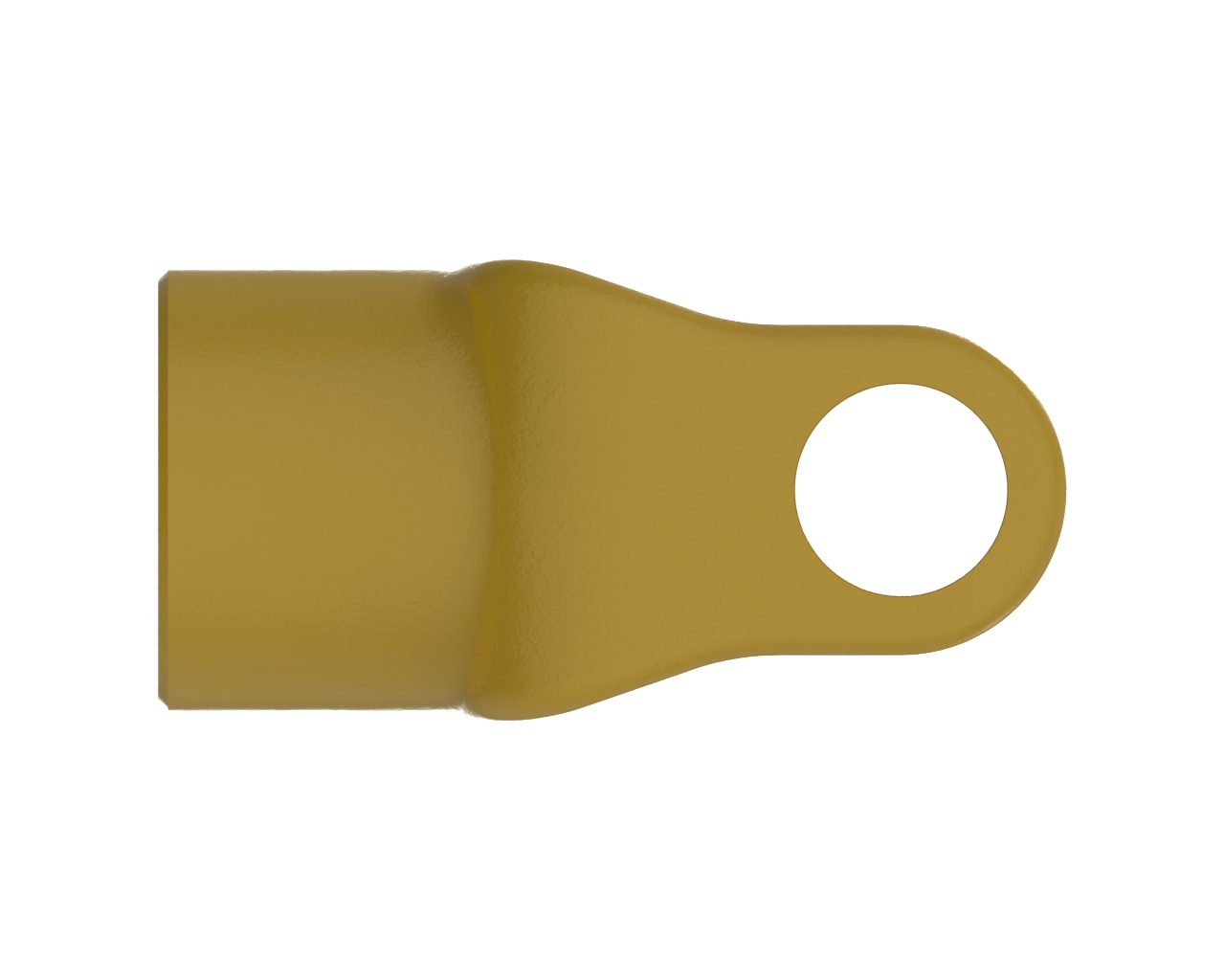

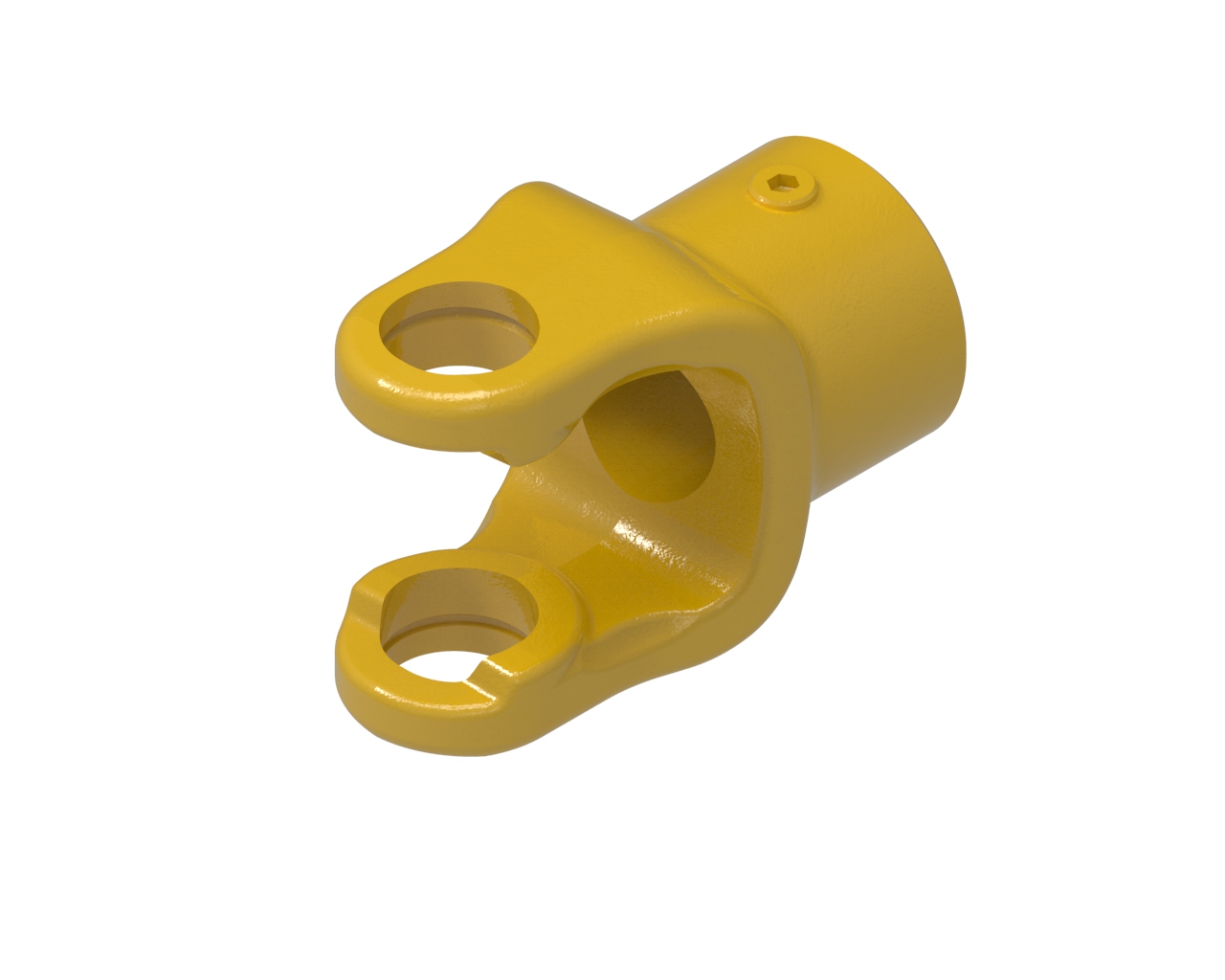

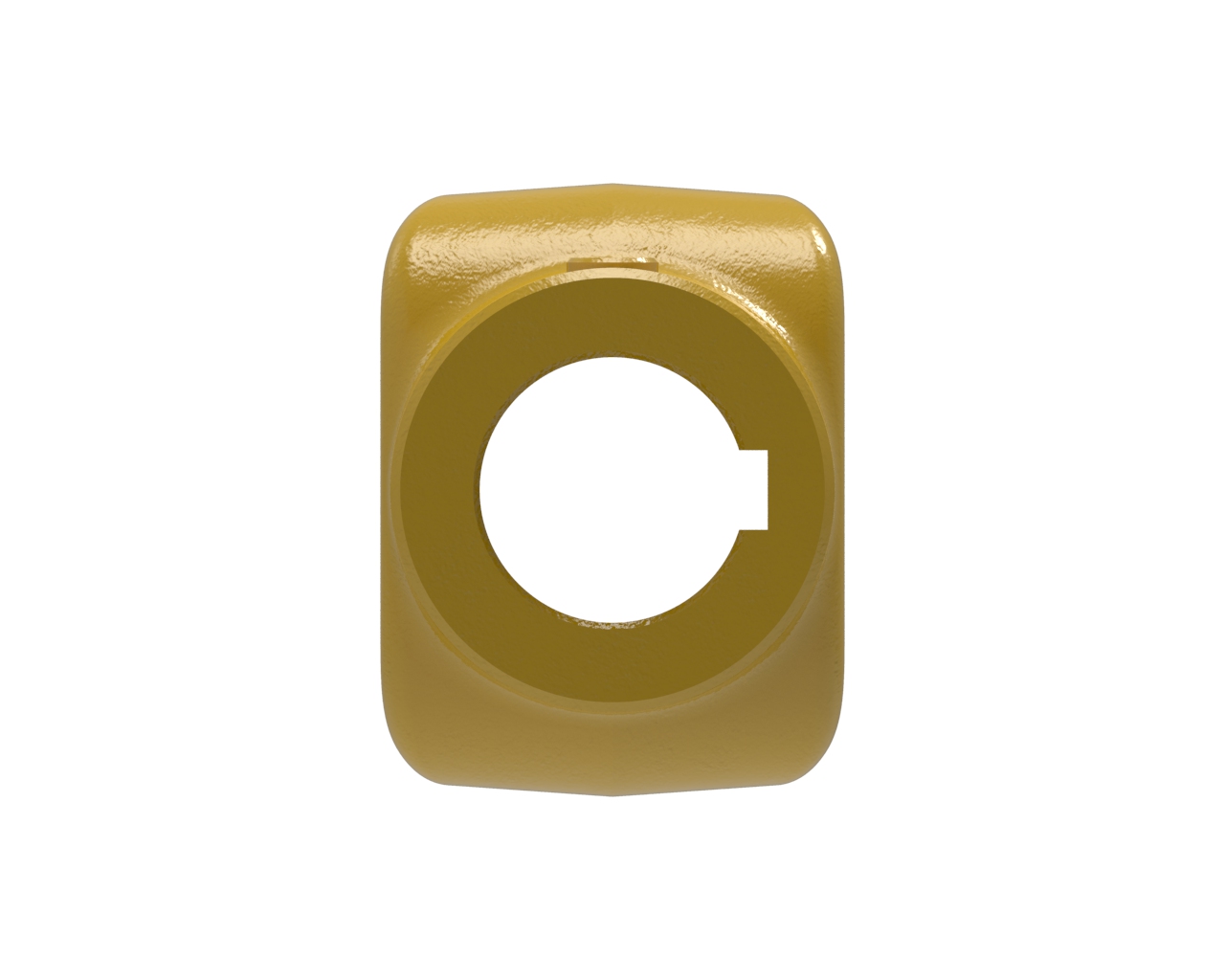

AB6,AW22 series yoke with round with keyway bore and setscrew connection. Note: Image color may not represent actual part.

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Product Series: AB6, AW22

Spec. Imperial Metric
Bearing Diameter (Ear Hole)1.18 (1 3/16) in30 mm
Bearing Cap to Cap Span3.61 (3 39/64) in92 mm
Bore Description ROUND WITH KEYWAY
Connection 1 Type SETSCREW
HP@1000RPM122 HP91 kilowatts
HP@540RPM79 HP59 kilowatts
Keyway 10.47 (15/32) in12 mm
Centerline to End Dim4.25 (4 1/4) in108 mm
Setscrew M14x14
Weight0.00 pounds0 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft Maintenance Document English
Service-Instructions-Universal-Joint Service Document English
Lack-of-Grease-Cross-Brg-Kit Troubleshooting Document English
