701-3500

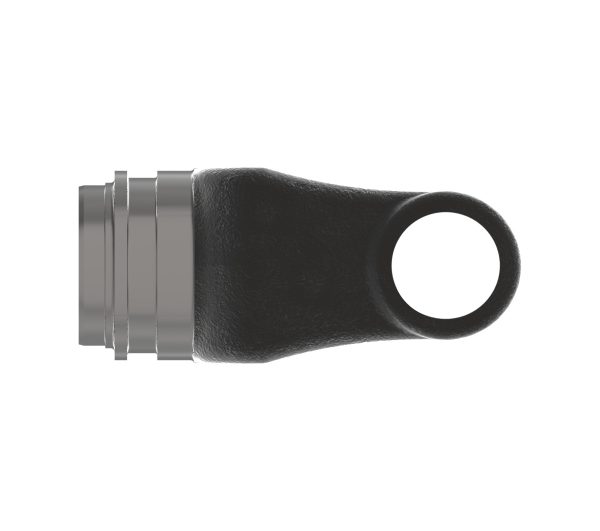

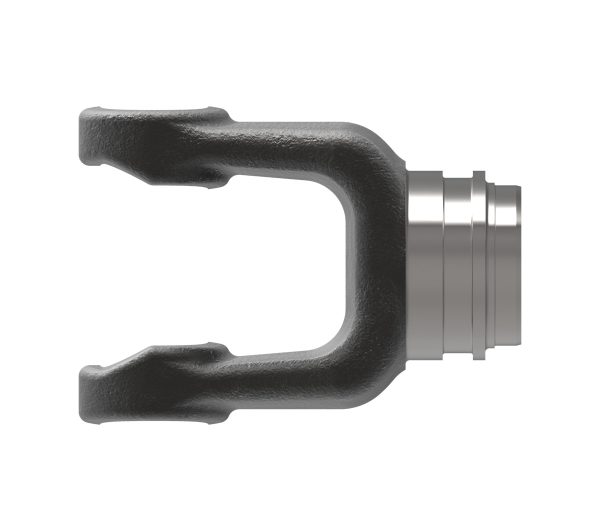

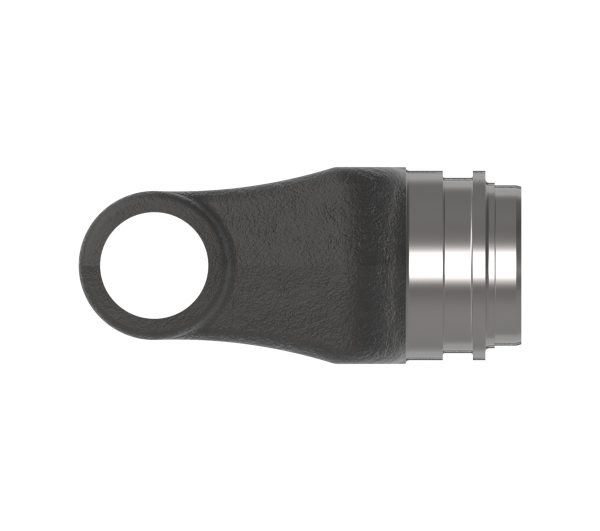

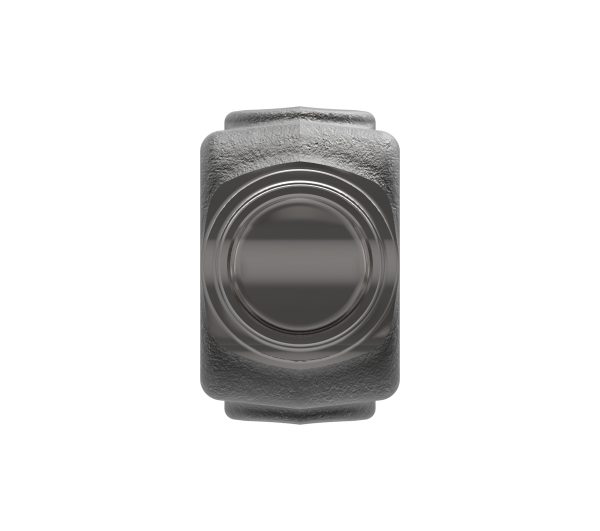

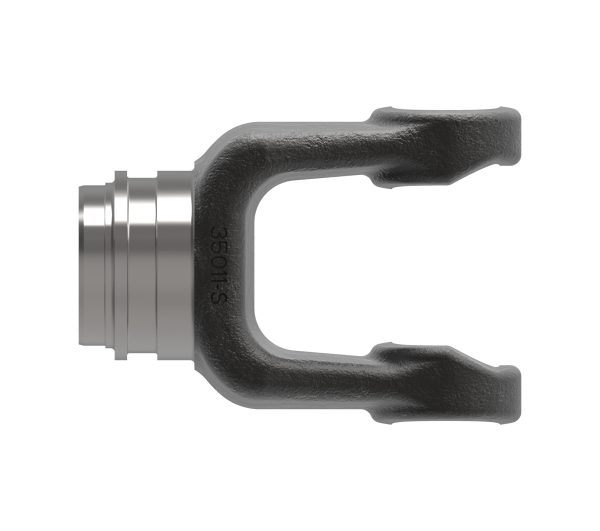

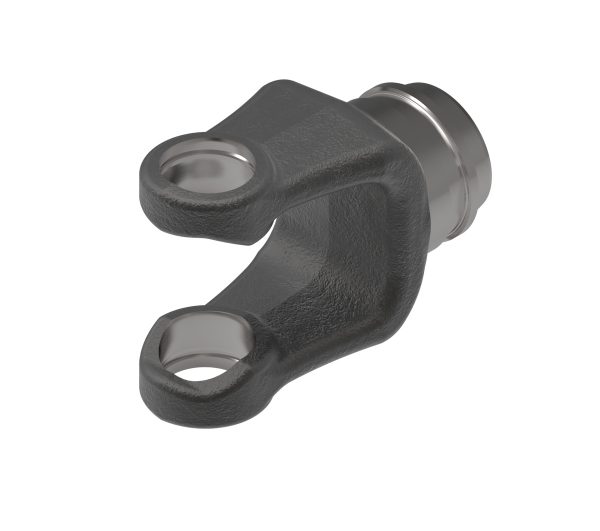

35 Series Weld Yoke

35 series yoke with solid bore and weld connection

View My List

Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube profiles.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 10.00 inches0 mm
Bore 1 SOLID
Connection 1 WELD
Height4.00 inches102 mm
HP@1000RPM108 HP81 kilowatts
HP@540RPM70 HP52 kilowatts
Length4.25 inches108 mm
Outside Diameter2.25 inches57 mm
Shipping Dimensions5.13" L  ×  4" H  ×  2.34" W13cm L  ×  10cm H  ×  6cm W
Shipping Volume48.02 in3787 cm3
Shipping Weight4.00 pounds2 kilograms
Weight4.00 pounds2 kilograms
Width2.34 inches59 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
Check out the new Aftermarket Make / Model Driveline FinderDOWNLOAD HERE
