1600-7145-076ST

STANDARD AW10 Series Profile PTO Drive Shaft

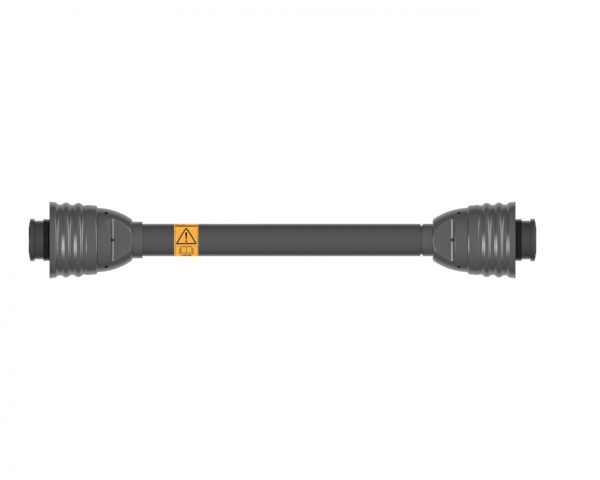

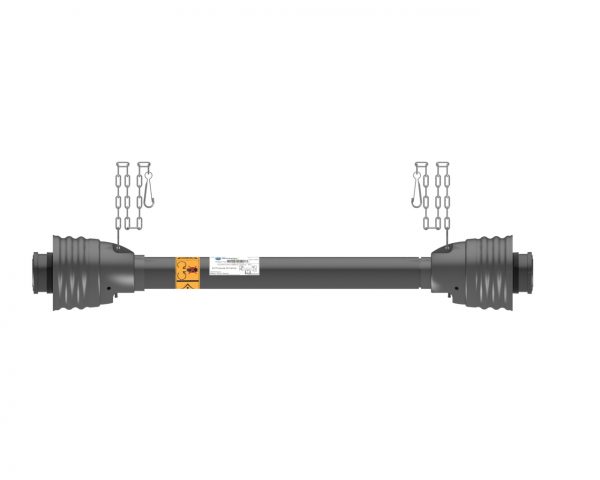

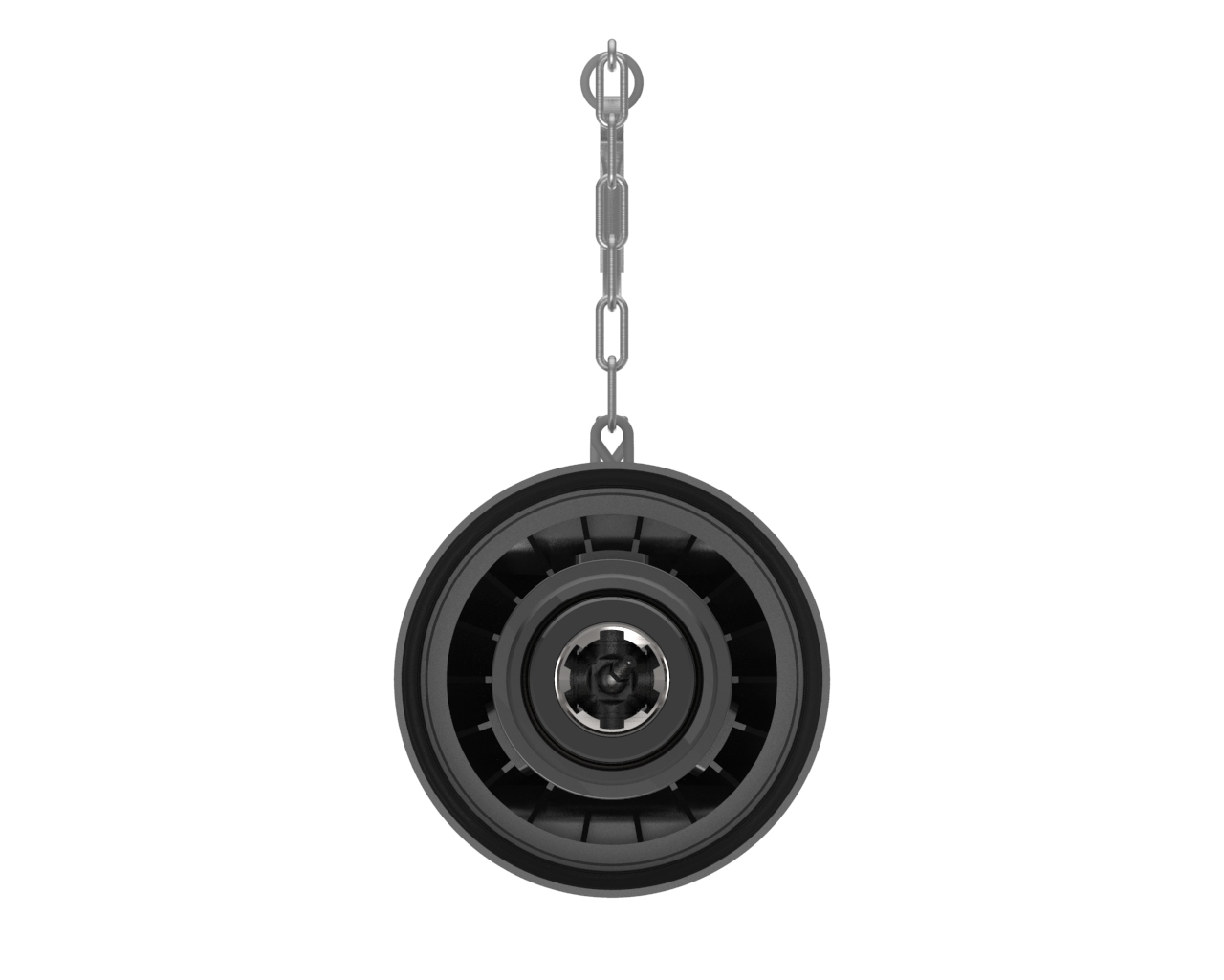

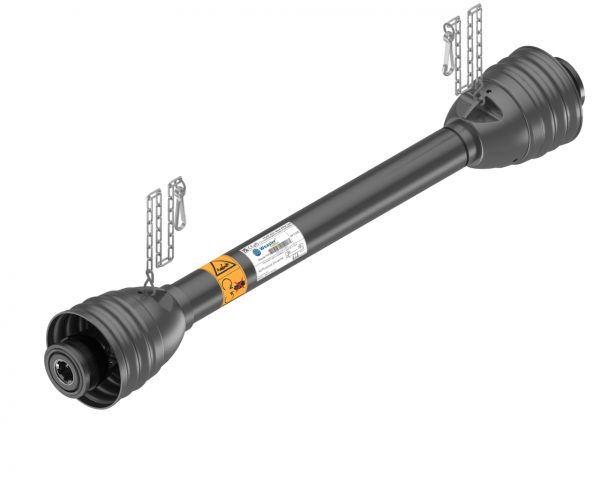

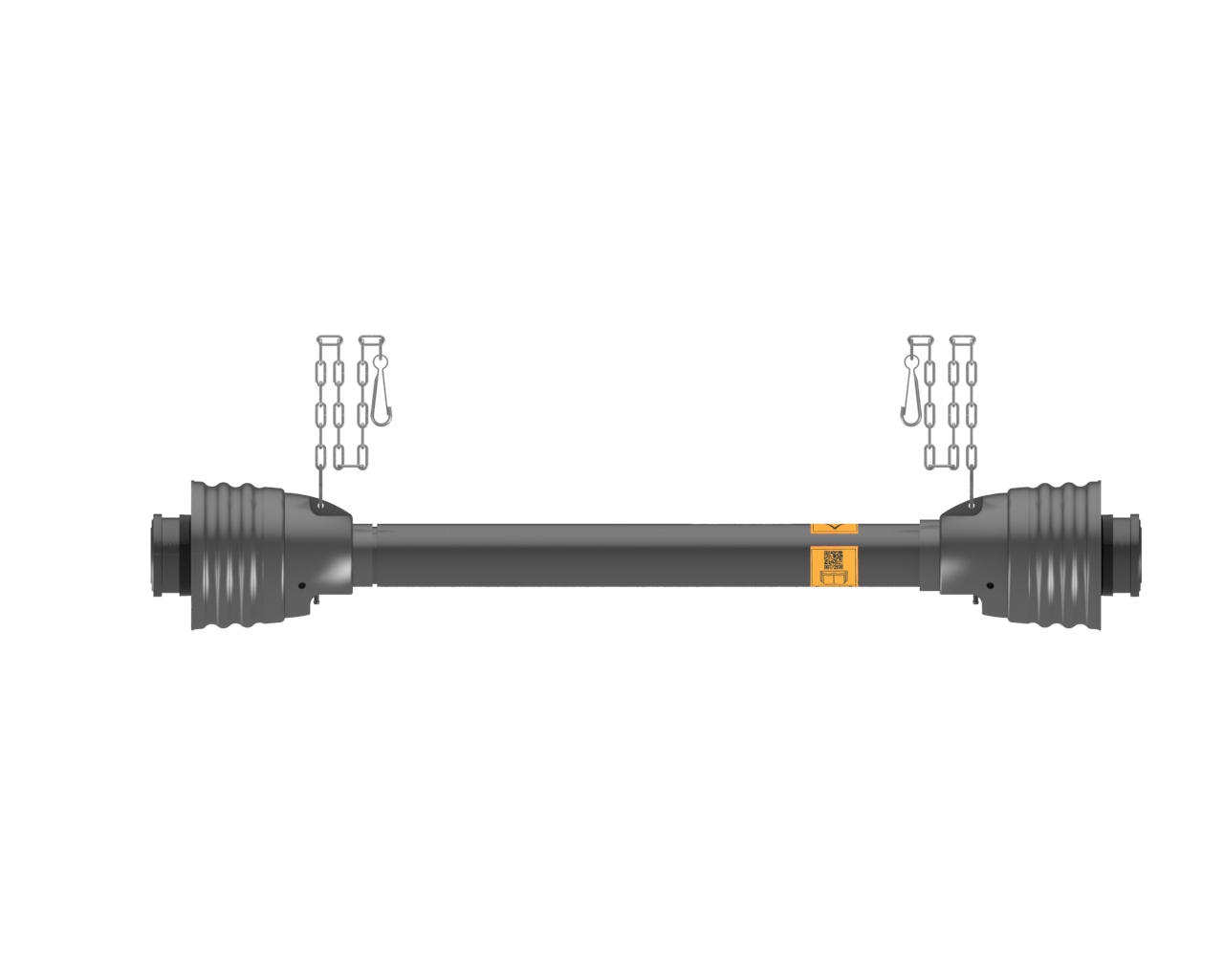

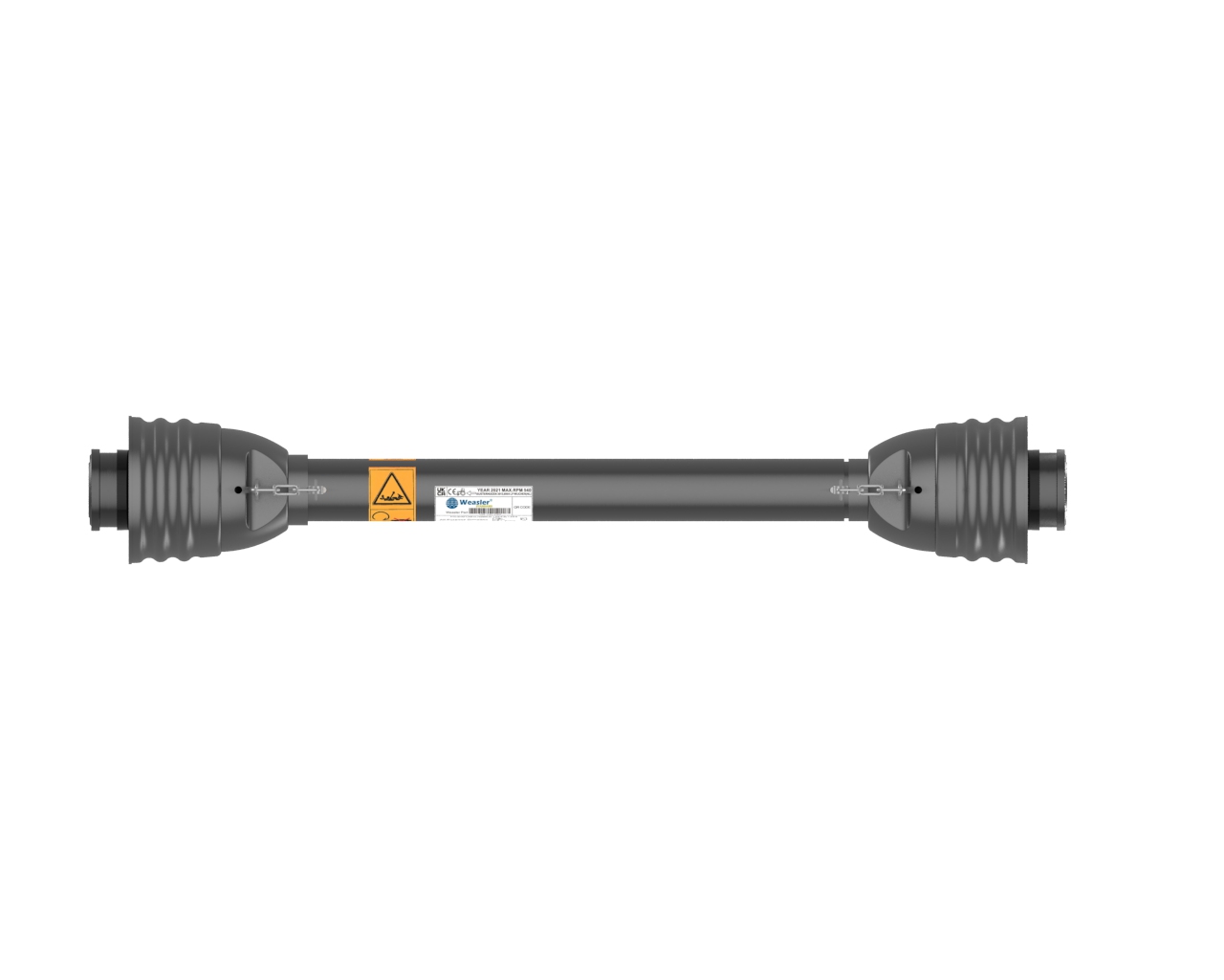

AW10 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and 1 3/8-6 spline spring-lok implement connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Tri-lobe shaft profiles available.
• Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
• Available with Standard bearing kits requiring regular lubrication.

DESIGN FEATURES
• Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
• Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
• Cross & Bearing Kits: Standard kits require regular maintenance.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.37 inches35 mm
Bore 2 1 3/8-6 SPLINE
Compressed (Closed) Length29.92 inches760 mm
Compressed Overall Length37.28 inches947 mm
Connection 1 SPRING-LOK
Connection 2 SPRING-LOK
Extended Length43.84 inches1114 mm
Extended Overall Length51.20 inches1300 mm
HP@1000RPM23 HP17 kilowatts
HP@540RPM15 HP11 kilowatts
Length37.28 inches947 mm
Outside Diameter5.77 inches147 mm
Shipping Dimensions37.282" L  ×  5.77" H  ×  5.77" W95cm L  ×  15cm H  ×  15cm W
Shipping Volume1241.23 in320340 cm3
Shipping Weight16.46 pounds7 kilograms
Weight16.46 pounds7 kilograms
