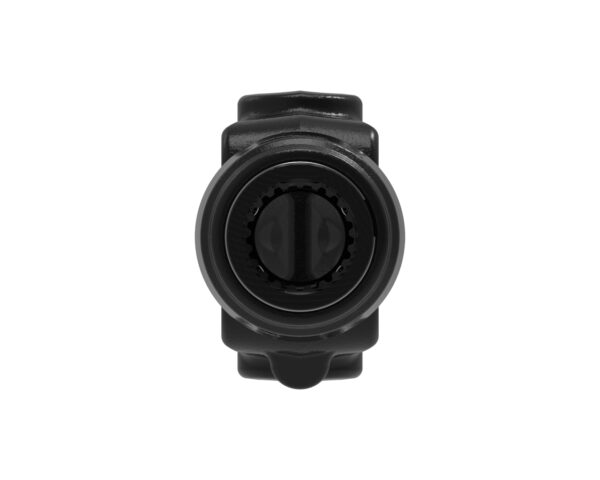

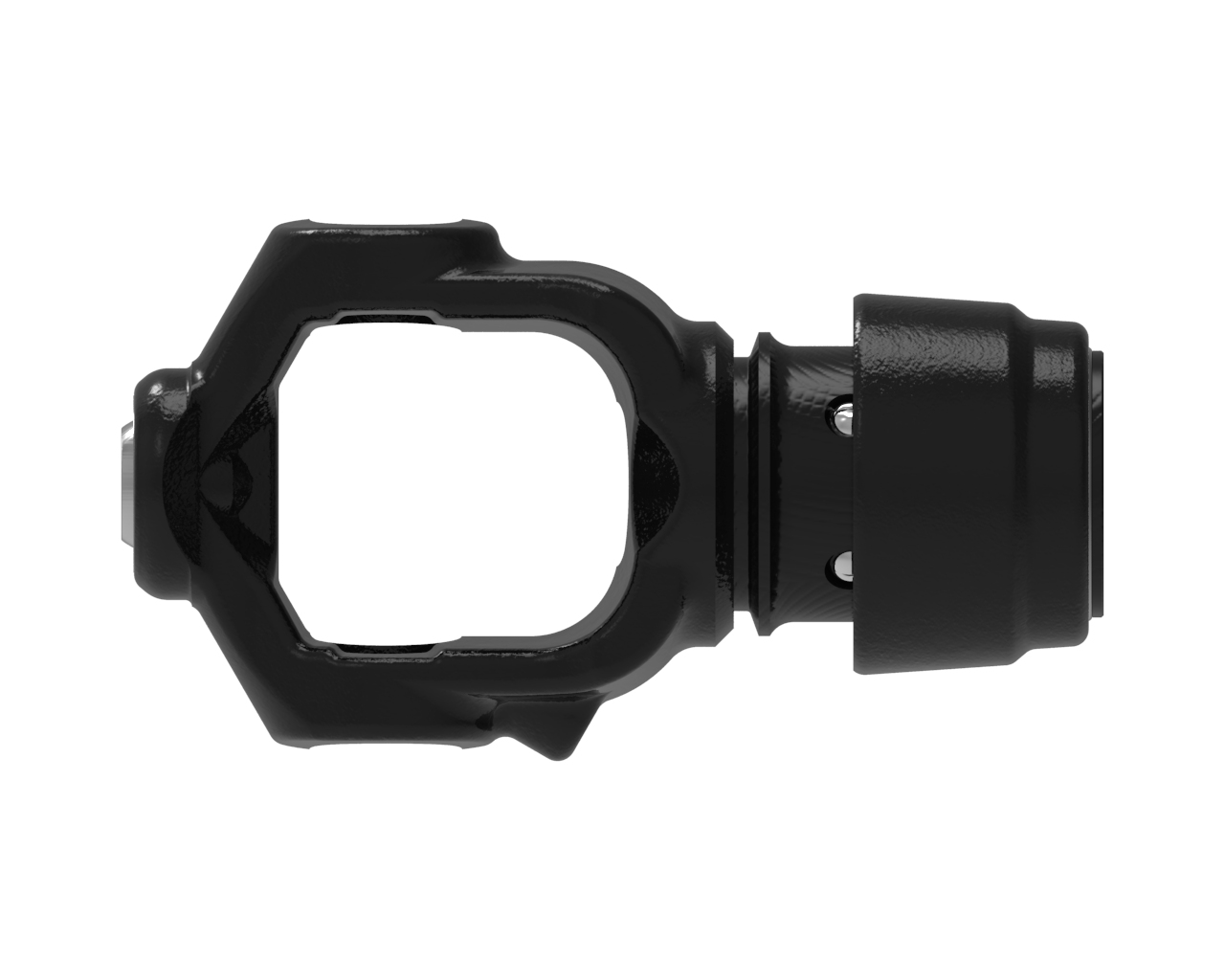

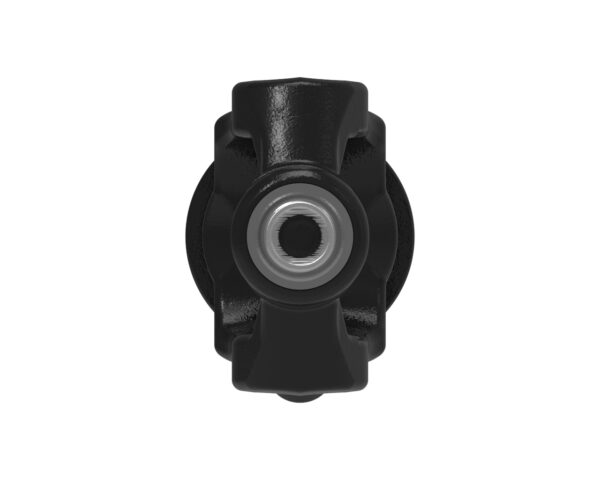

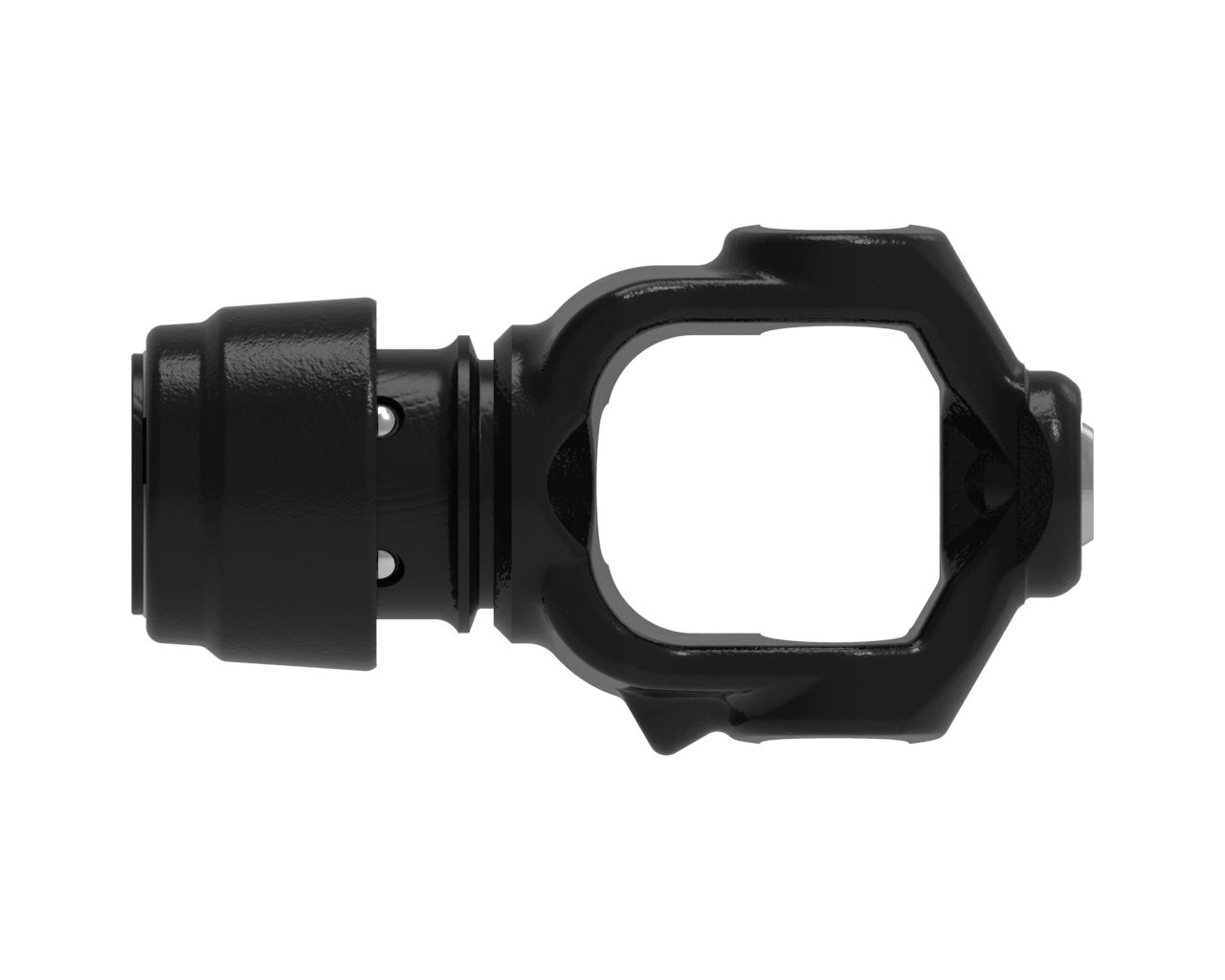

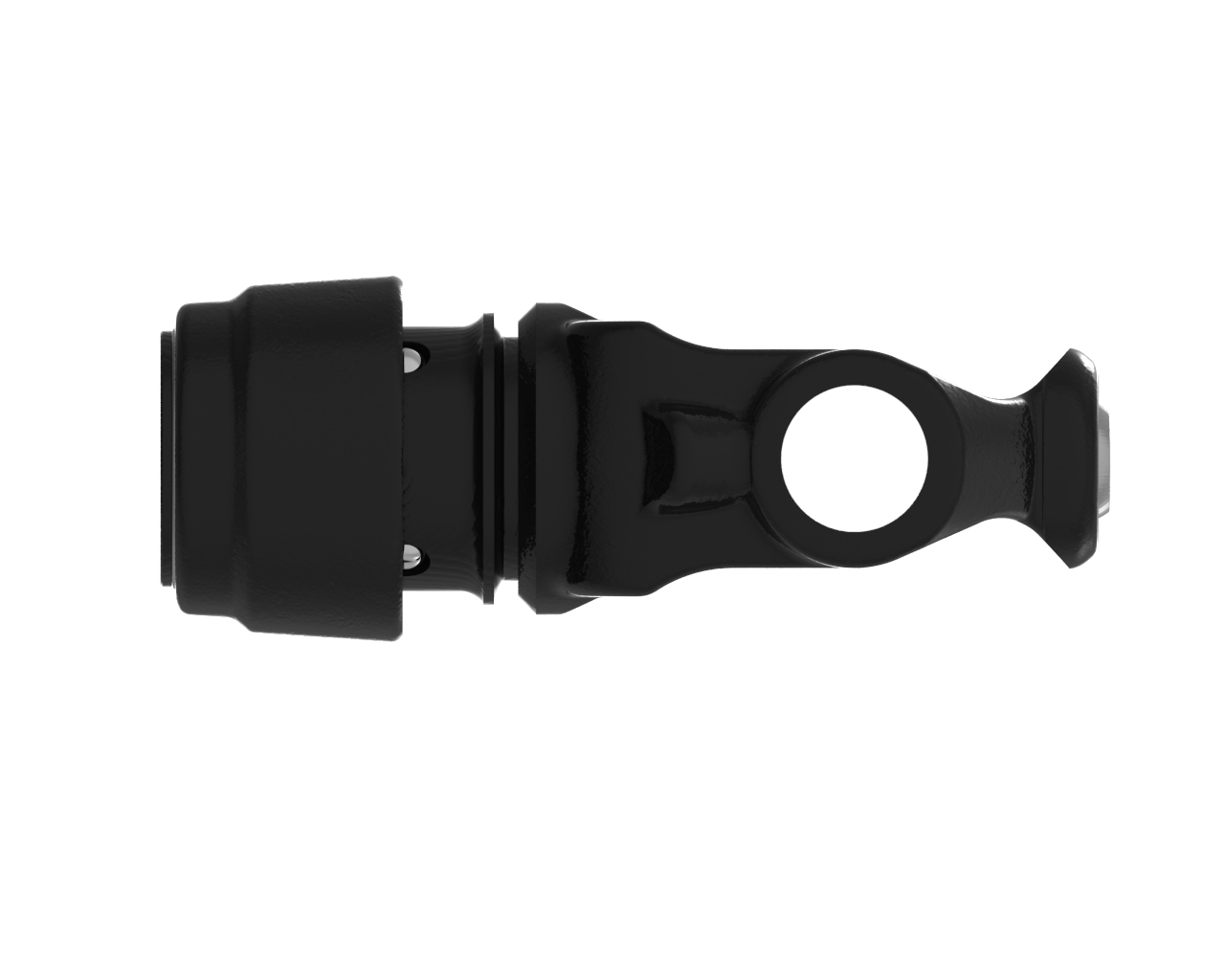

Multiple Series Auto-lok Yoke
Multiple series yoke with 1 3/8-21 spline bore and auto-lok connection
PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.
PERFORMANCE BENEFITS
Specifications
Product Series: 3-80, AB4-80, AW21-80
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.06 (1 1/16) in | 27 mm |
| Bearing Cap to Cap Span | 3.21 (3 13/64) in | 82 mm |
| Bore | 1.37 (1 3/8) in | 35 mm |
| Bore Description | 1 3/8-21 SPLINE | |
| Centerline to End Dim. | 5.02 (5 1/64) in | 128 mm |
| Weight | 3.90 pounds | 2 kilograms |
| Width | 2.75 (2 3/4) in | 70 mm |
Related Products
| Product | Part Number |
|---|---|
| Cross & Bearing Kit | 203-0310 |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-80-Deg-CV | Maintenance Document | English |
| Service-Instructions-CV-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| 80-deg-CV-Joint-Over-Angle-Operating | Troubleshooting Document | English |
| 80-deg-CV-Joint-Over-Angle-NonOperating | Troubleshooting Document | English |
| WE0101003_1019_USL_80DegConstantVelocityJoint | Performance Benefits Document | English |
