AW36 Series Universal Joint And Tube With Guard

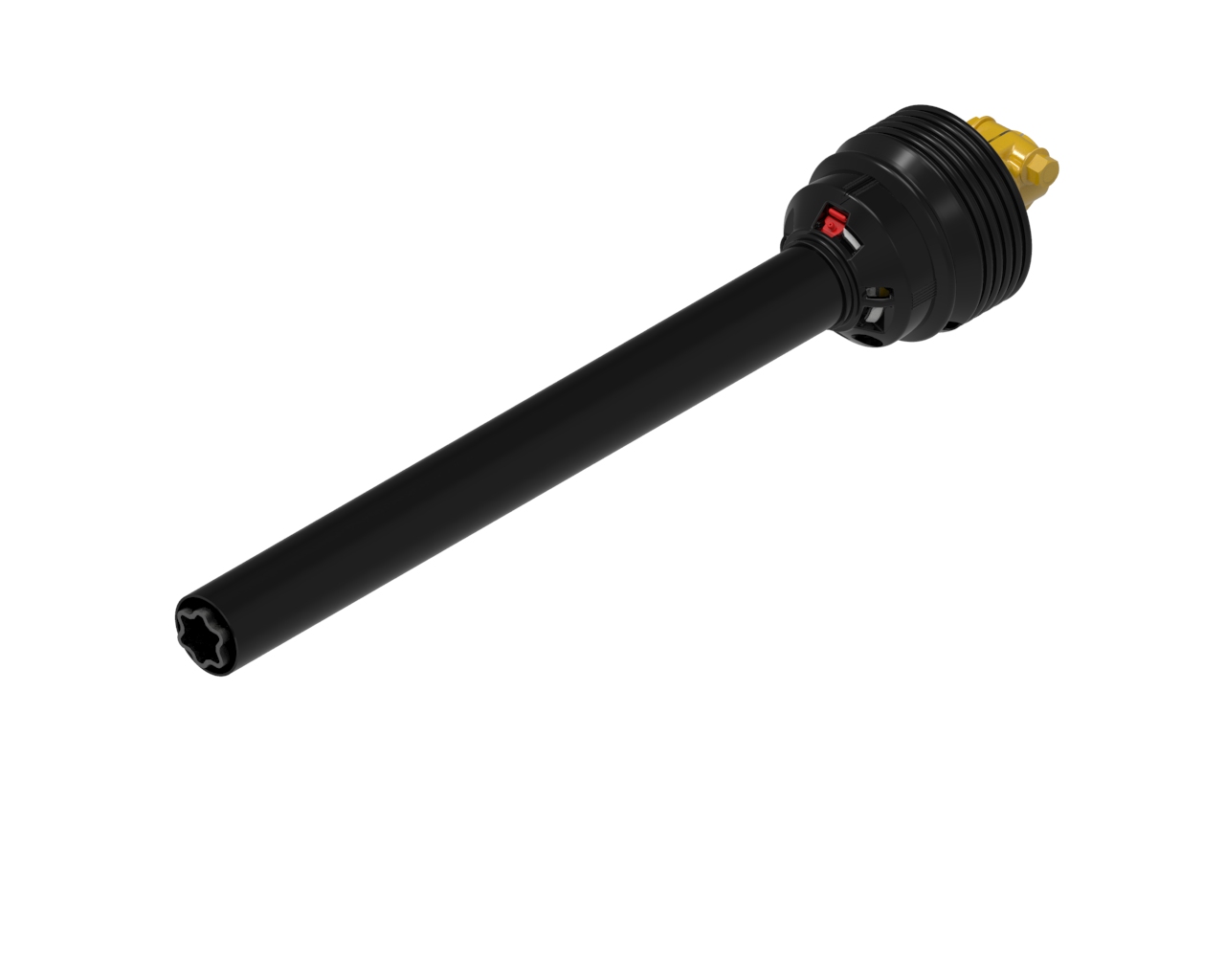

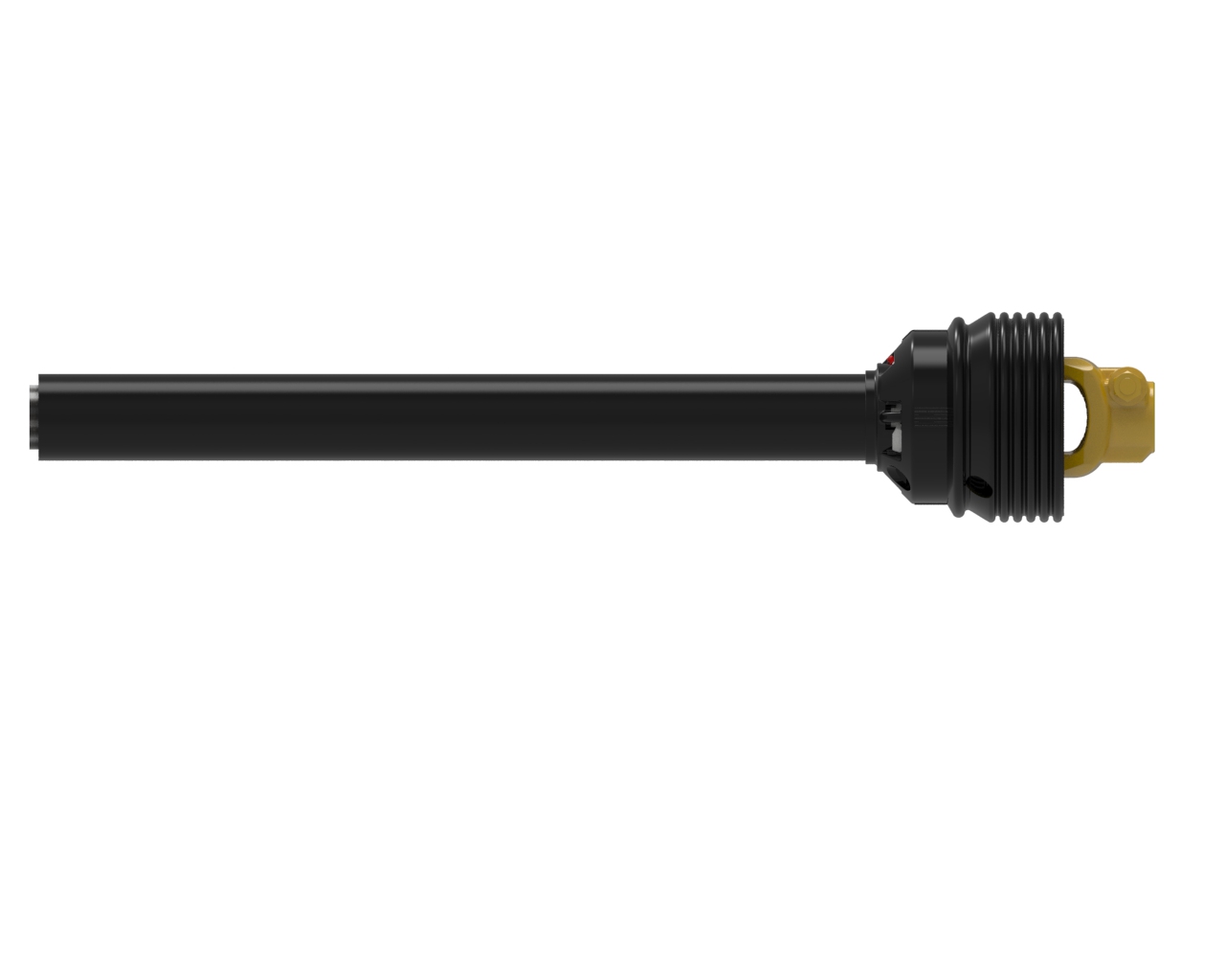

AW36 series universal joint and tube with guard with 1 3/4-20 spline, clamp connection and 51 mm star, telescoping connection. Note: Image color may not represent actual part.
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints are welded to the tube, the metal cylindrical encasement for a shaft within a given PTO drive shaft.Tubing is available in both domestic (North American) and metric profile shapes. Domestic tubing is provided as square, rectangle, or round. The Weasler Profile product line includes metric and tubing available in both German and Italian styling: German style provided as lemon or star in shape and Italian as trilobed in shape. Entire assembly is fitted with black guarding that is durable against harsh conditions, ultraviolet light, and ozone. All of the Weasler guard systems include the patented Easy Lock system which allows for easy guard removal and replacement in servicing is required.
PERFORMANCE BENEFITS
Specifications
Part Number: 92-14516855
Product Series: AW36
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing 1 Diameter | 1.41 (1 13/32) in | 36 mm |
| Bearing 1 Span | 3.49 (3 31/64) in | 89 mm |
| Bore 1 | 1.75 (1 3/4) in | 44 mm |
| Bore 1 Description | 1 3/4-20 SPLINE | |
| Bore 2 Description | 51 MM STAR | |
| Compressed (Closed) Length | 43.70 (43 45/64) in | 1110 mm |
| Connection 1 Type | CLAMP | |
| Connection 2 Type | TELESCOPING | |
| Kit Type | P | |
| Weight | 25.50 pounds | 12 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Service-Instructions-Easy-Lock-Guard | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| WE0101011_0817_USL_EasyLockGuard | Performance Benefits Document | English |
