807-7921

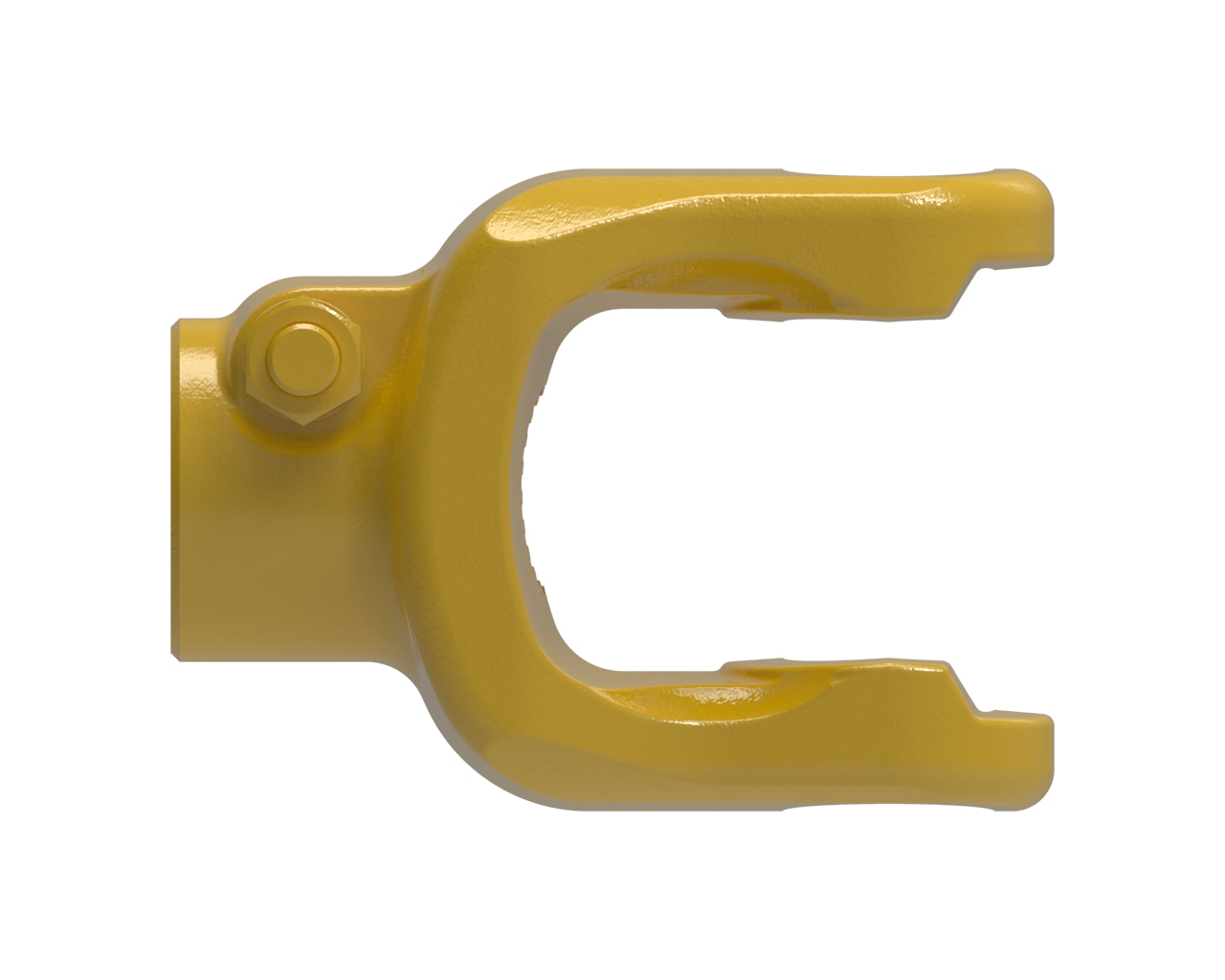

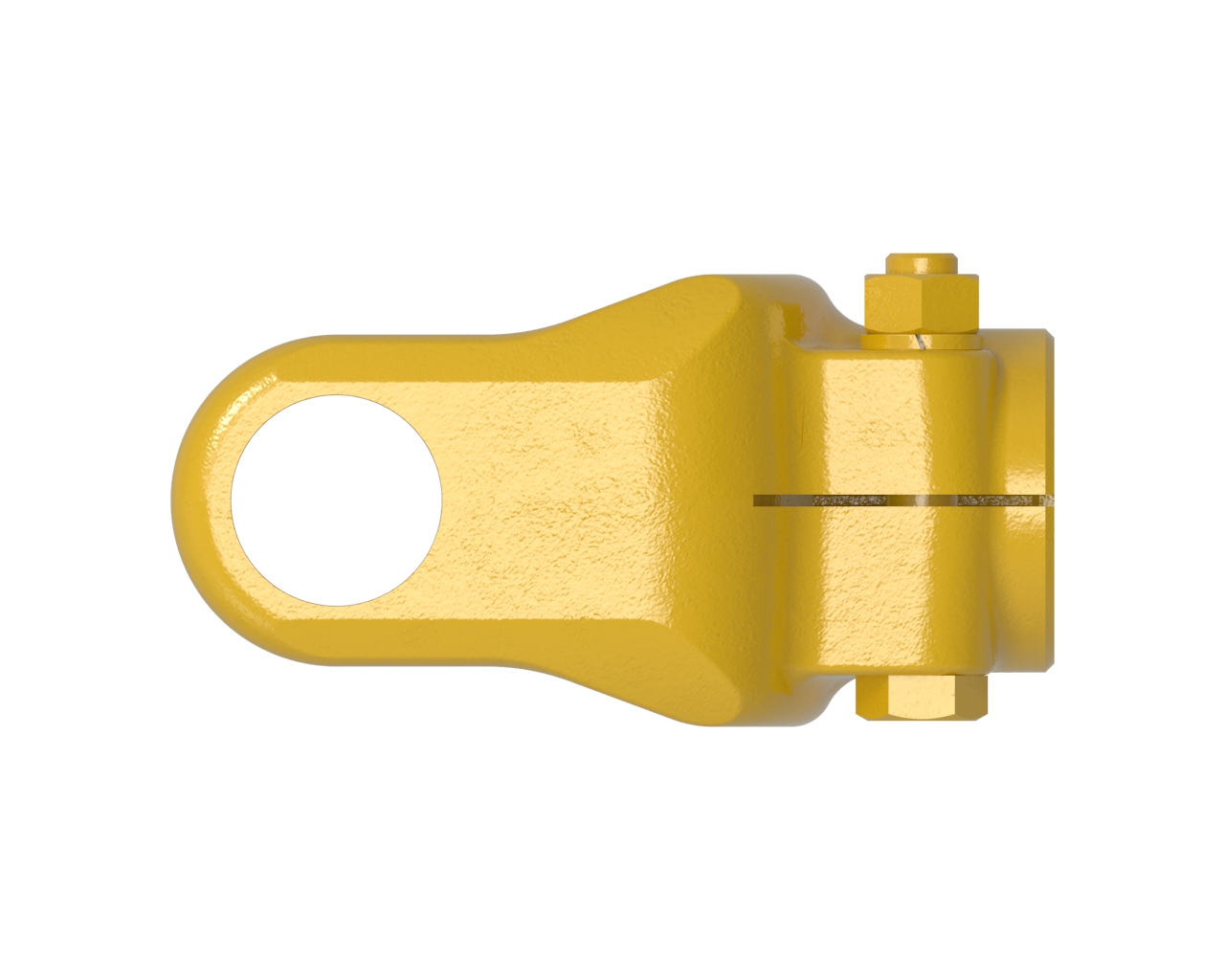

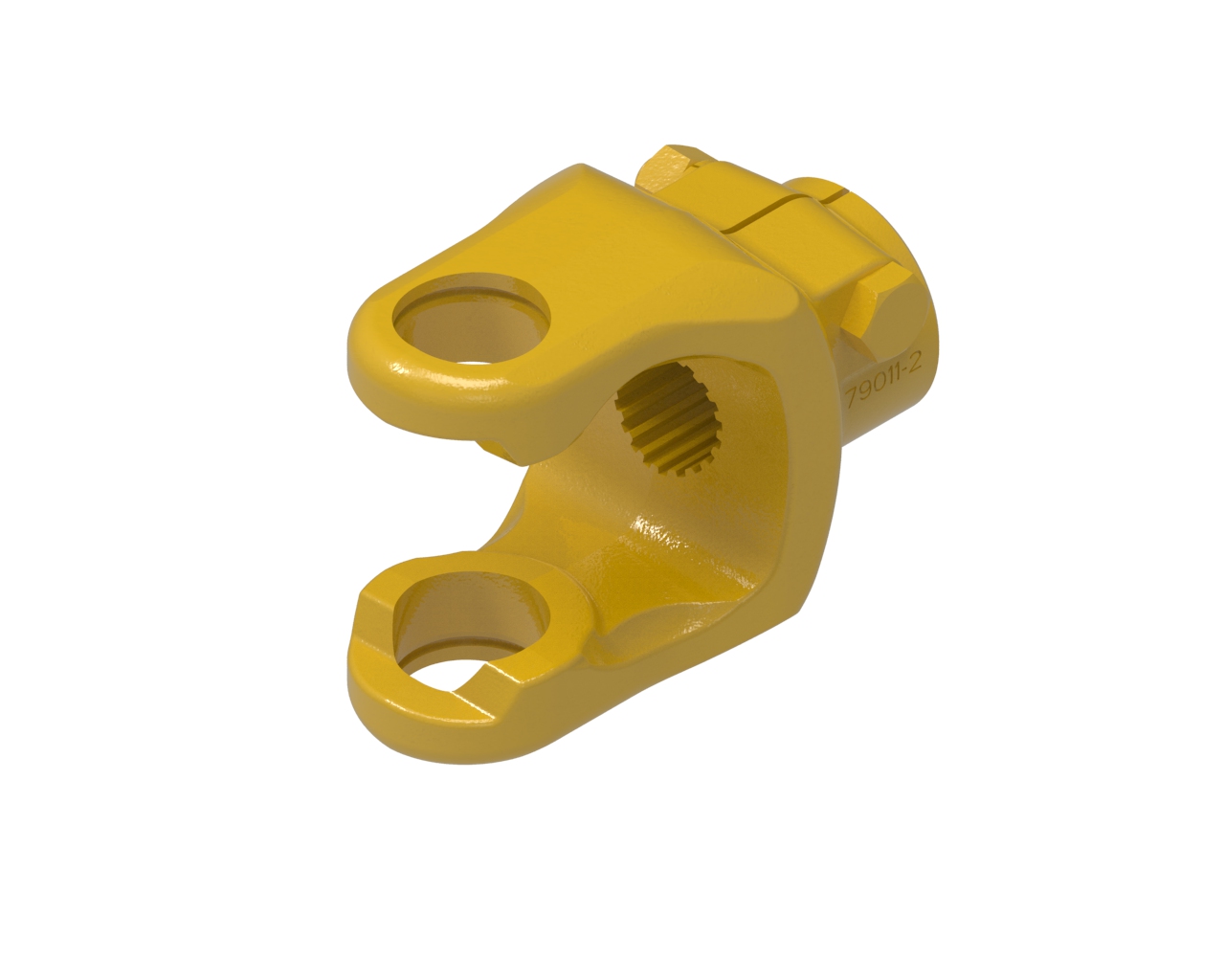

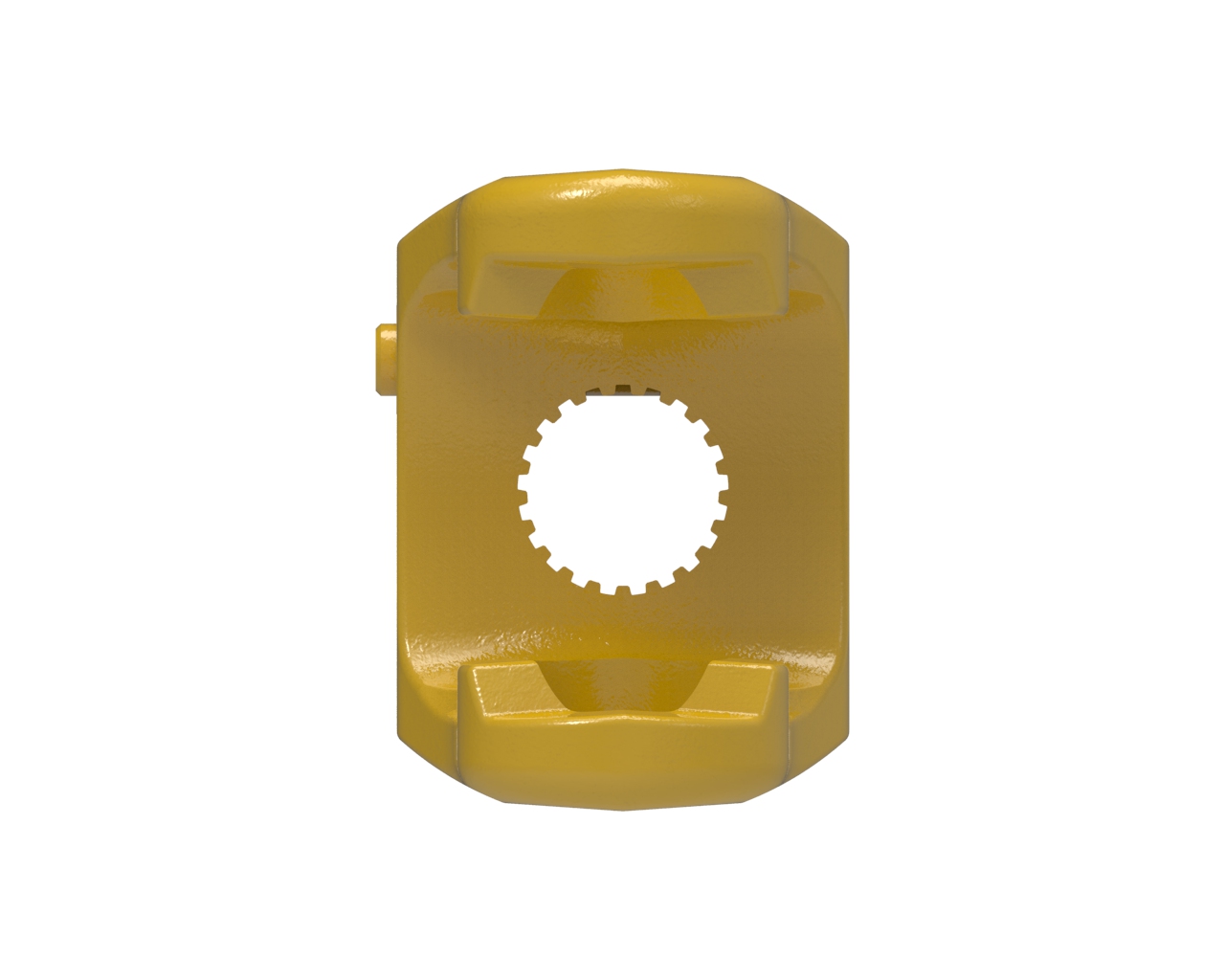

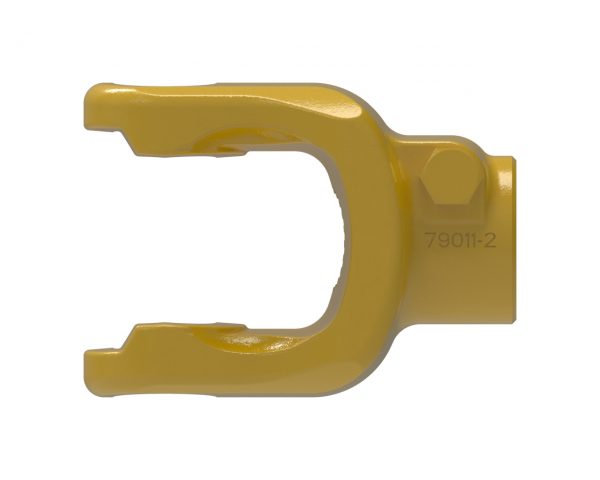

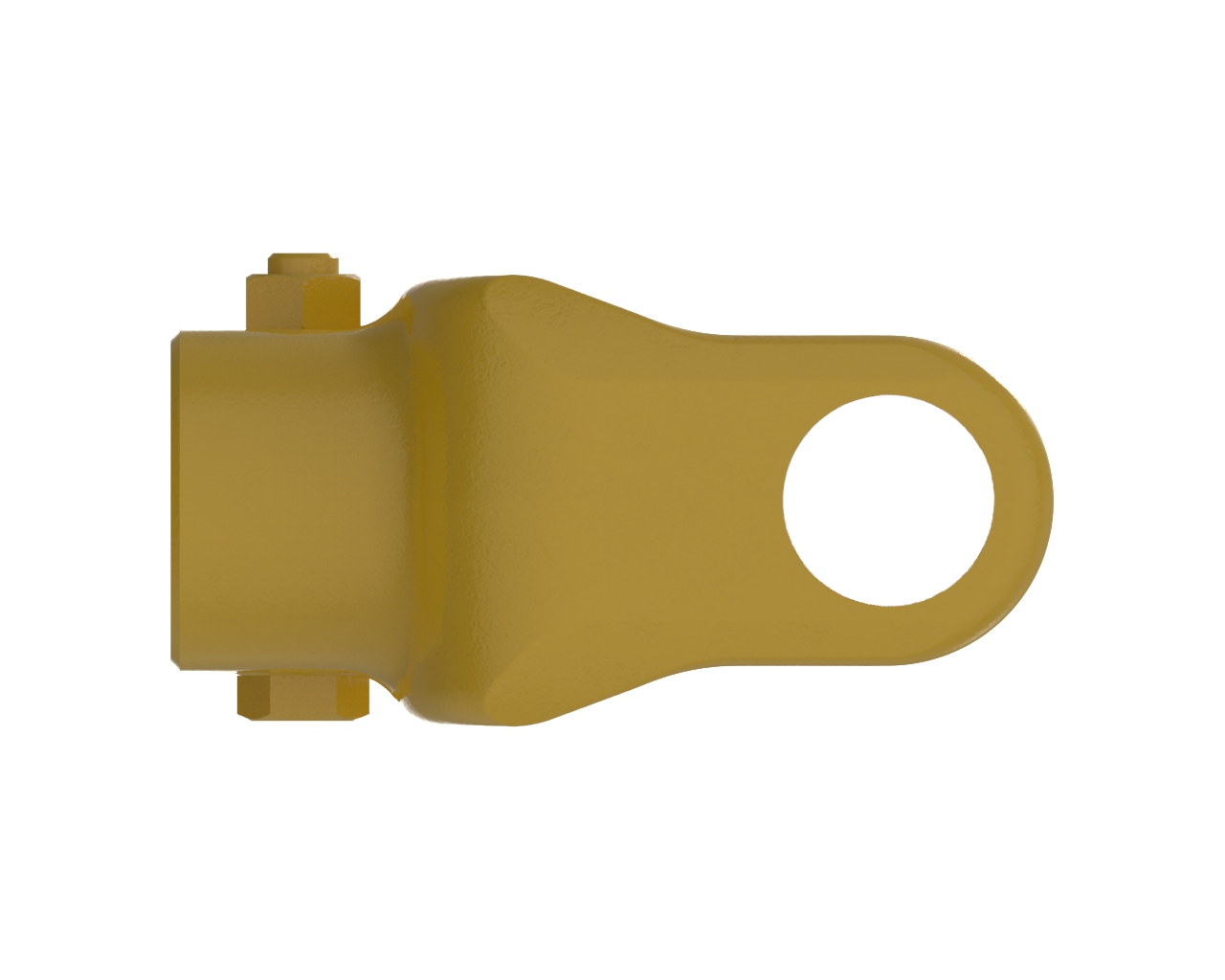

CLAMP YOKEAW36 Series Clamp Yoke
AW36 series yoke with 1 3/8-21 spline bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-21 SPLINE | |
Connection 1 | CLAMP | |
Height | 4.72 inches | 120 mm |
HP@1000RPM | 144 HP | 107 kilowatts |
HP@540RPM | 94 HP | 70 kilowatts |
Length | 4.76 inches | 121 mm |
Shipping Dimensions | 5.85" L × 4.72" H × 2.95" W | 15cm L × 12cm H × 7cm W |
Shipping Volume | 81.46 in3 | 1335 cm3 |
Shipping Weight | 6.50 pounds | 3 kilograms |
Weight | 6.50 pounds | 3 kilograms |
Width | 2.95 inches | 75 mm |
