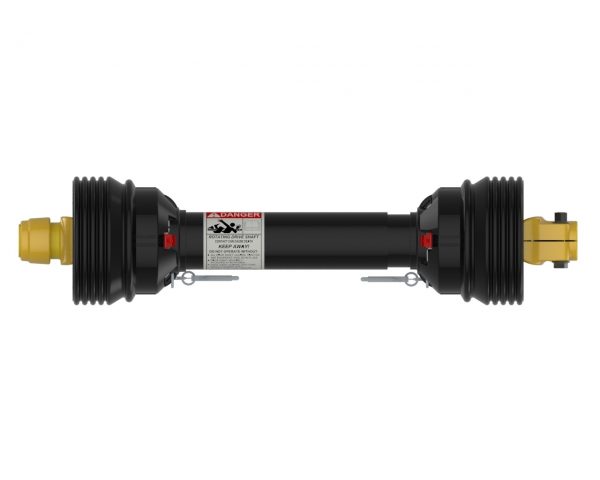

14007631PROFILE PTO DRIVE SHAFT
AW35 Series Profile PTO Drive Shaft
AW35 series profile PTO drive shaft with a 1 3/8-21 spline safety slide lock tractor connection and 1 1/8 hex clamp implement connection
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-21 SPLINE|
|Bore 2||1.12 inches||28 mm|
|Bore 2||1 1/8 HEX|
|Compressed (Closed) Length||22.05 inches||560 mm|
|Compressed Overall Length||31.58 inches||802 mm|
|Connection 1||SAFETY SLIDE LOCK|
|Extended Length||29.25 inches||743 mm|
|Extended Overall Length||38.78 inches||985 mm|
|HP@1000RPM||80 HP||60 kilowatts|
|HP@540RPM||52 HP||39 kilowatts|
|Length||31.58 inches||802 mm|
|Outside Diameter||7.28 inches||185 mm|
|Shipping Dimensions||31.58" L × 7.28" H × 7.28" W||80cm L × 18cm H × 18cm W|
|Shipping Volume||1673.69 in3||27427 cm3|
|Shipping Weight||31.50 pounds||14 kilograms|
|Weight||31.50 pounds||14 kilograms|
|Service Instructions - Universal Joint.pdf||Service Document||English|
|Service Instructions - Easy Lock Guards.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|WE0101032_1217_USL_MetricProfile.pdf||Performance Benefits Document||English|
