Part Number: 803-7670
FLANGE YOKE
AW35 Series Flange Yoke

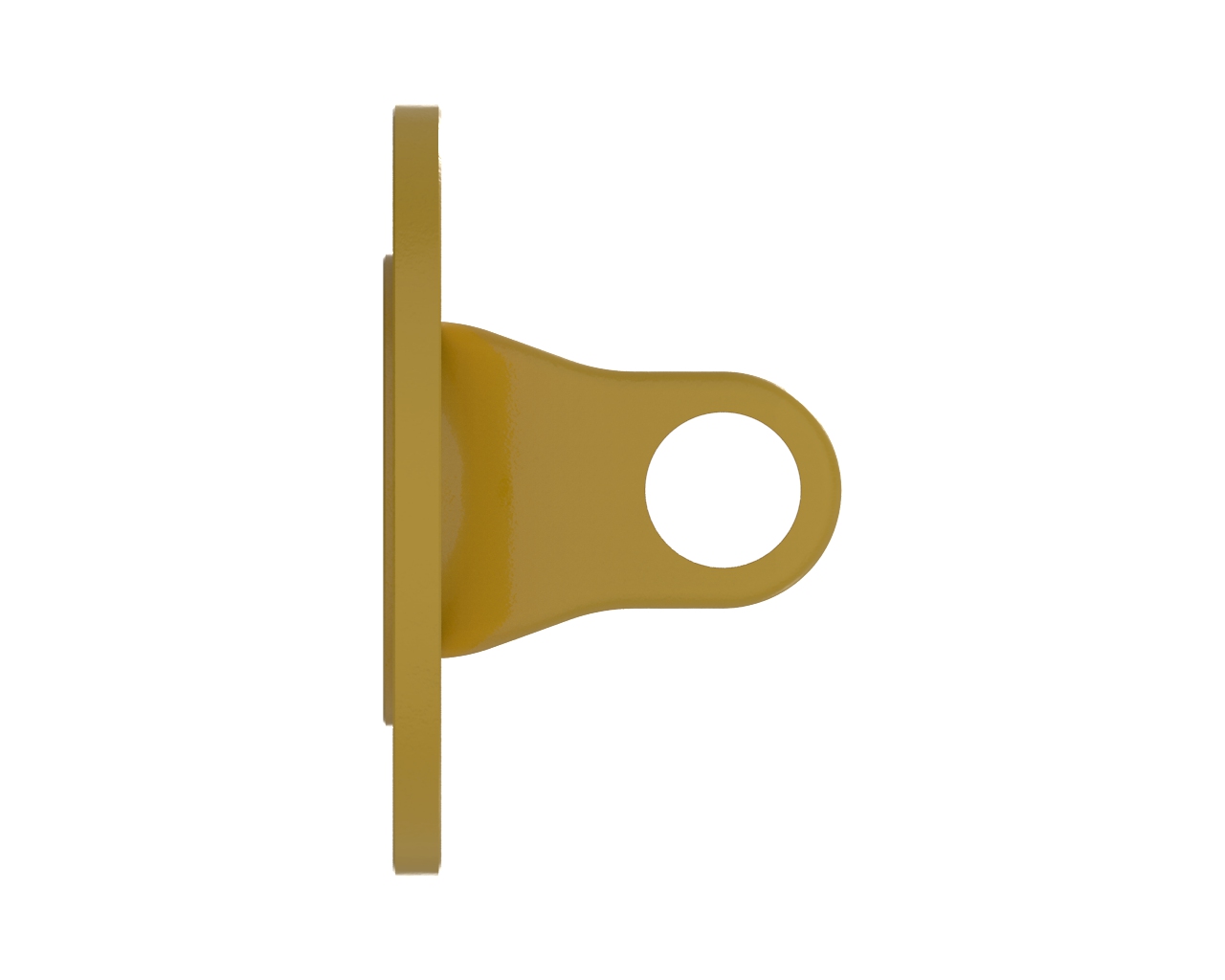

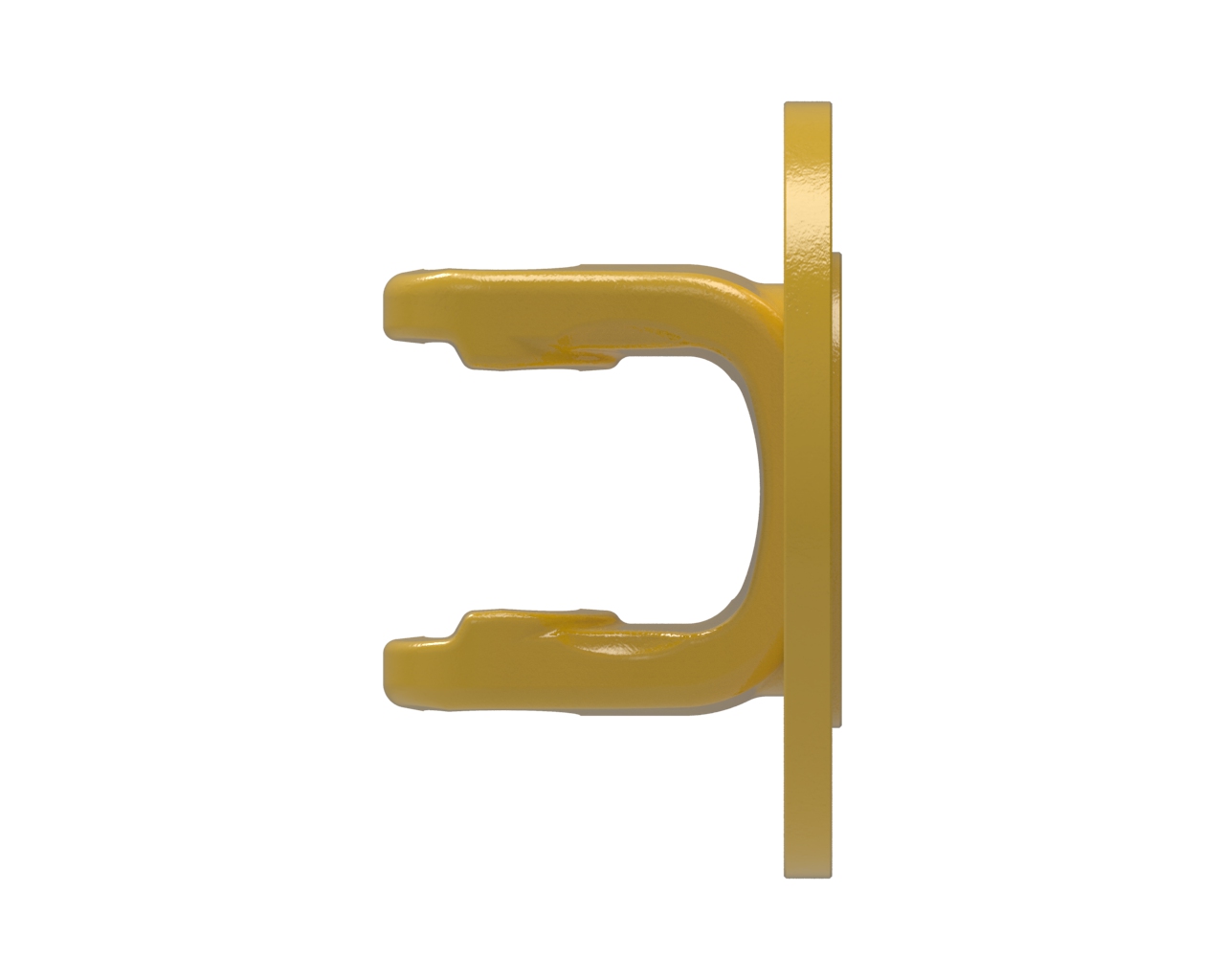

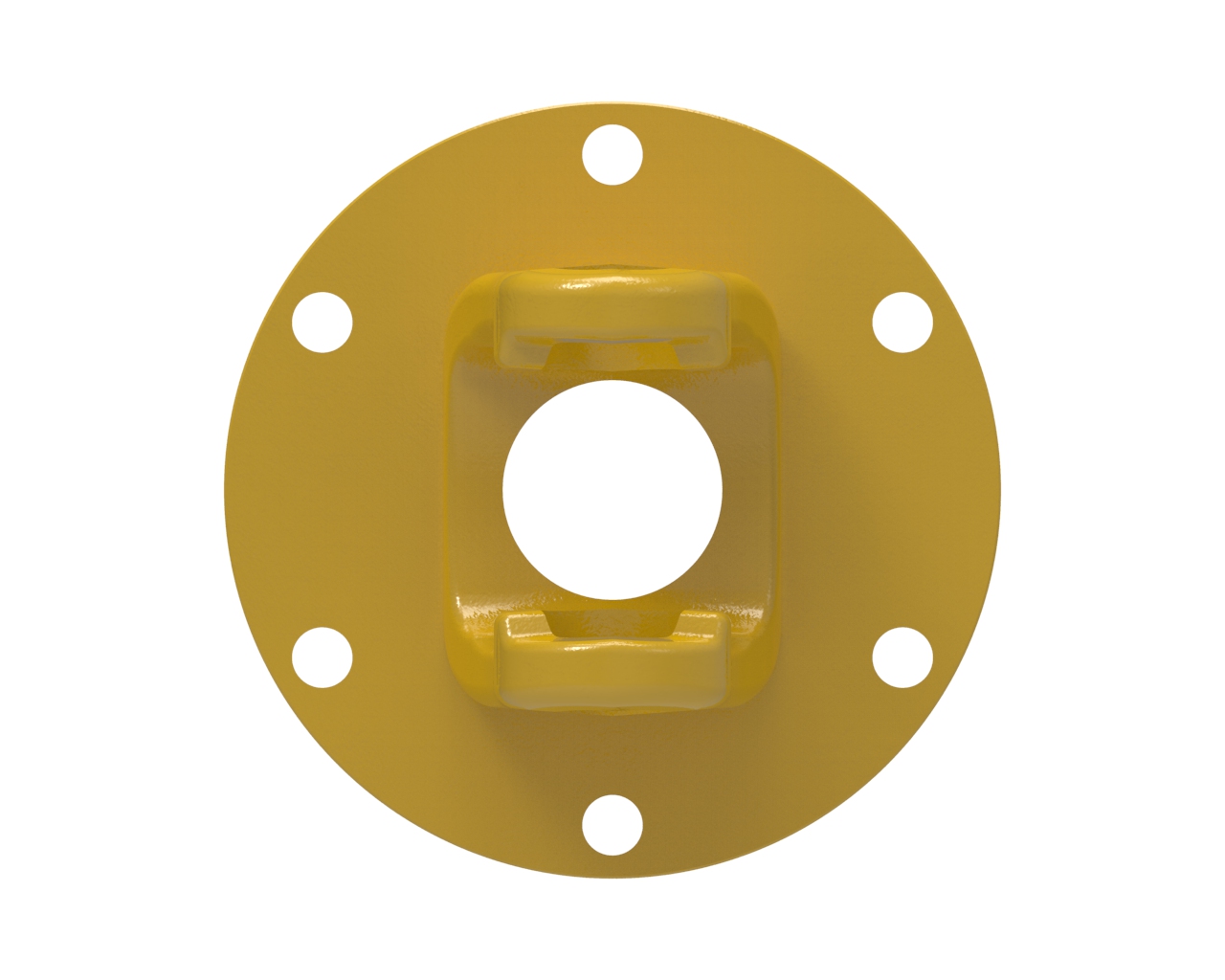

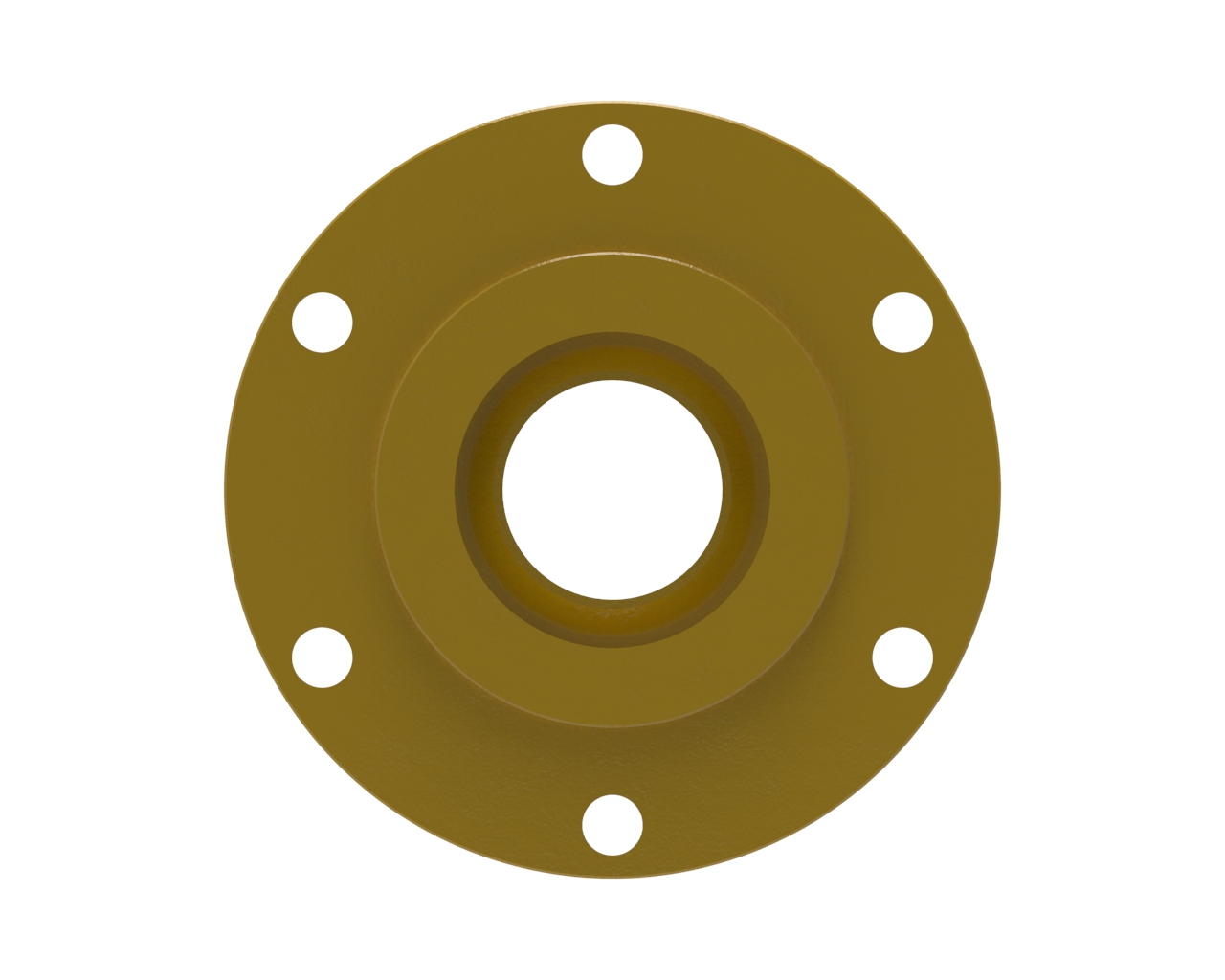

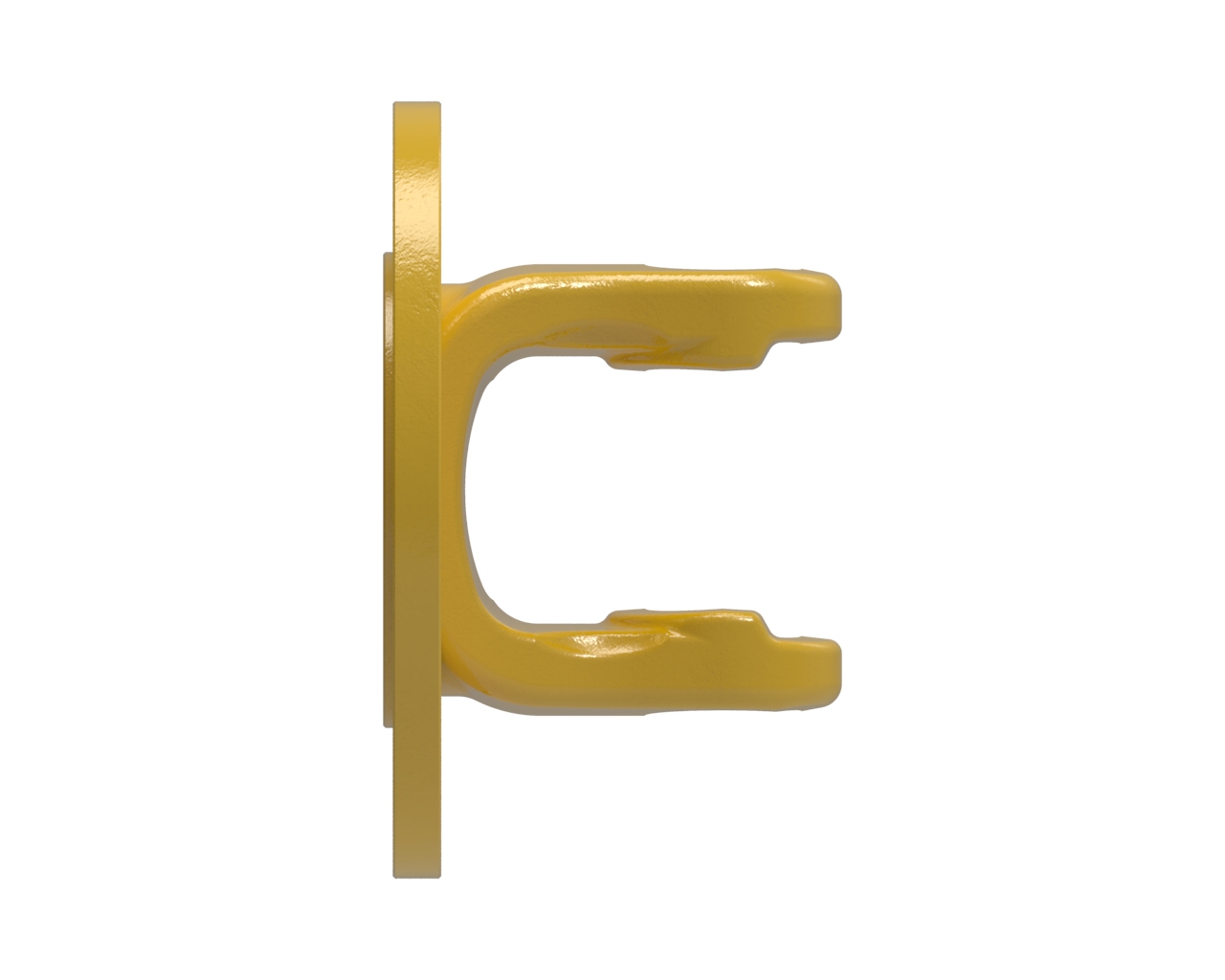

AW35 series yoke with 6 x 12 mm bolt circle bore and flange connection. Note: Image color may not represent actual part.
The flange yoke allows for a bolted connection to a mating flange to eliminate fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Product Series: AW35
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.26 (1 17/64) in | 32 mm |
| Bearing Cap to Cap Span | 2.98 (2 63/64) in | 76 mm |
| Bore | 5.43 (5 7/16) in | 138 mm |
| Bore Description | 6 X 12 MM BOLT CIRCLE | |
| Connection 1 Type | FLANGE | |
| Centerline to End Dim | 2.76 (2 49/64) in | 70 mm |
| Weight | 5.68 pounds | 3 kilograms |
