Part Number: 847-7630
CLAMP YOKE

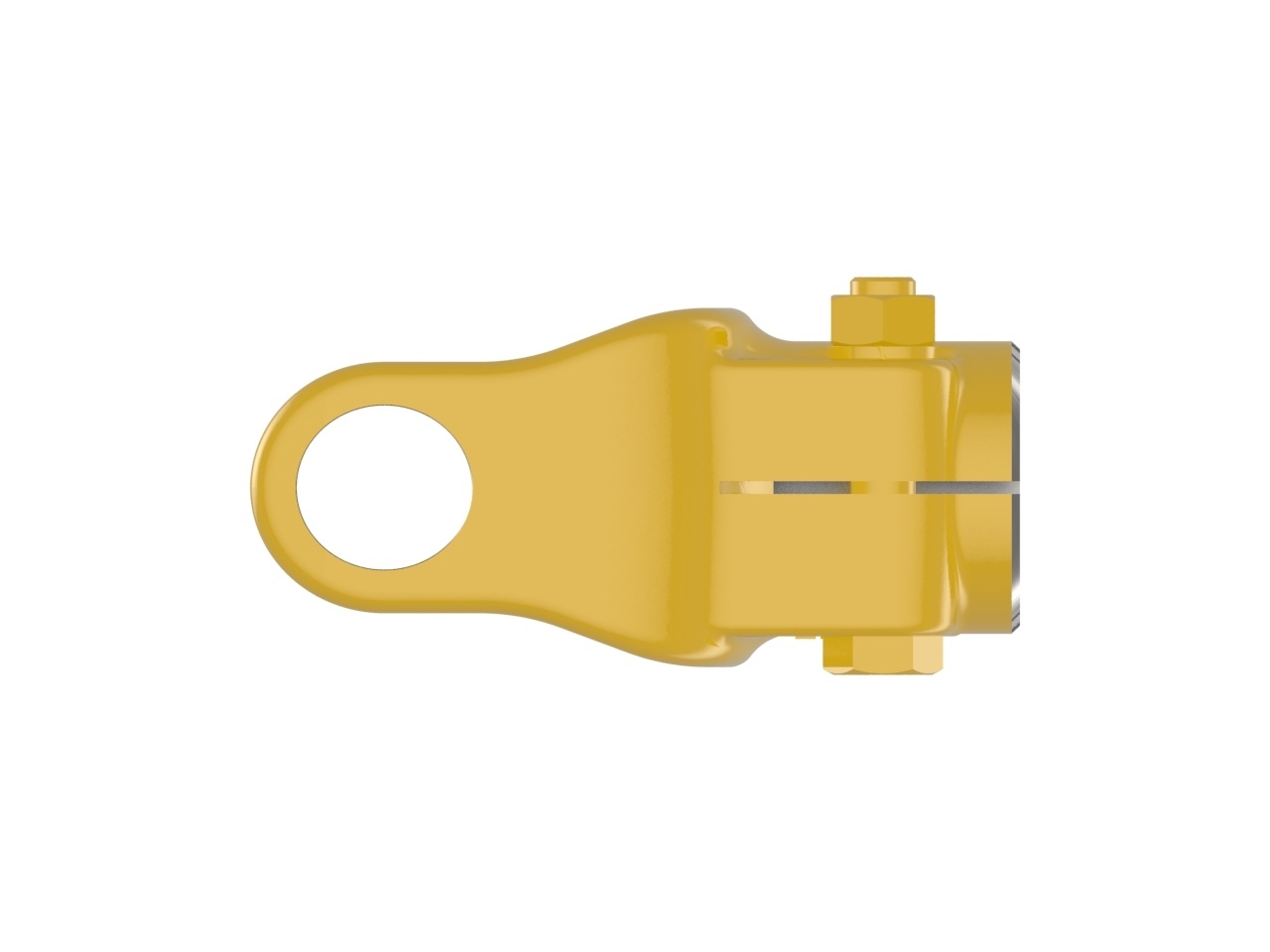

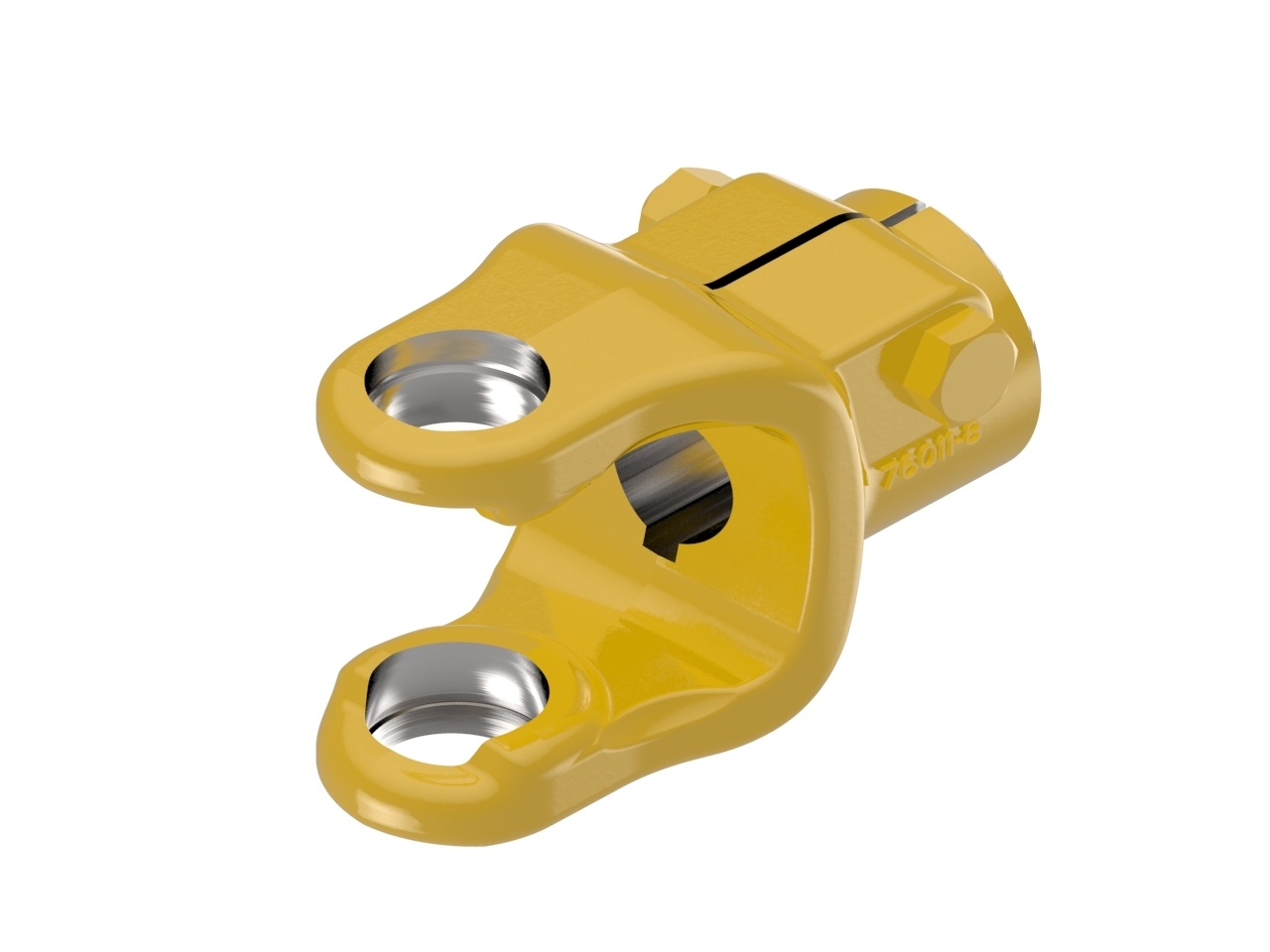

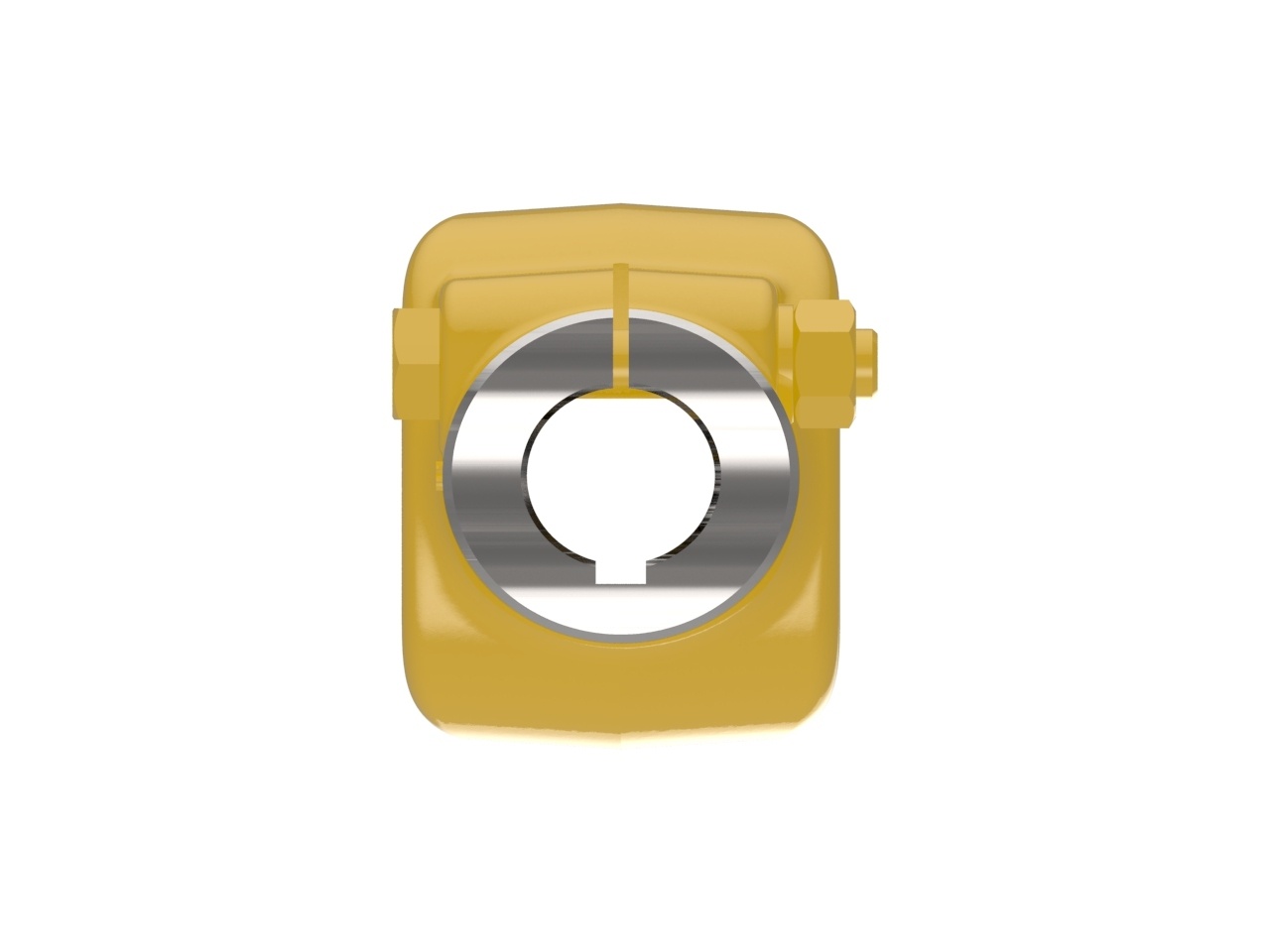

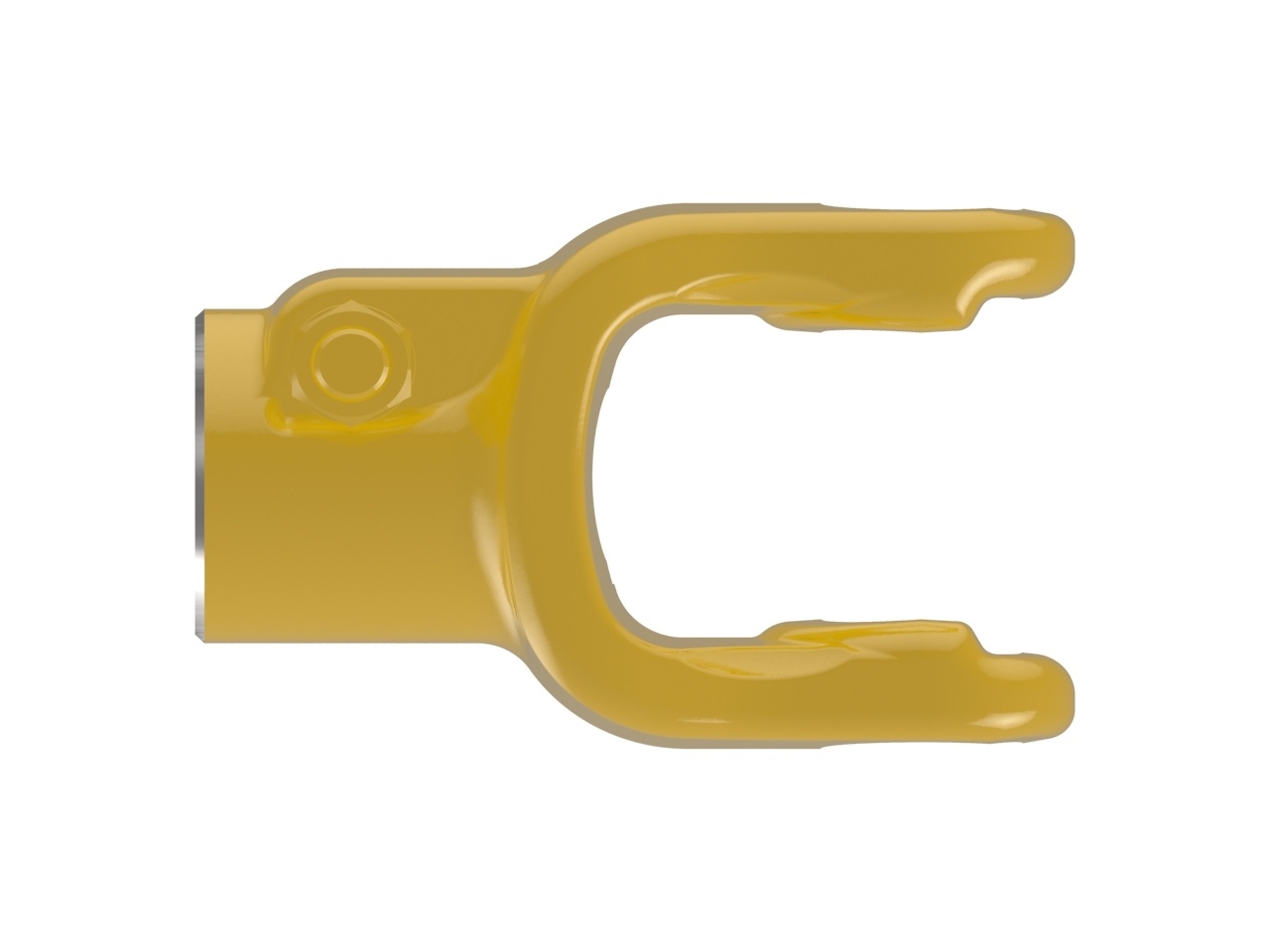

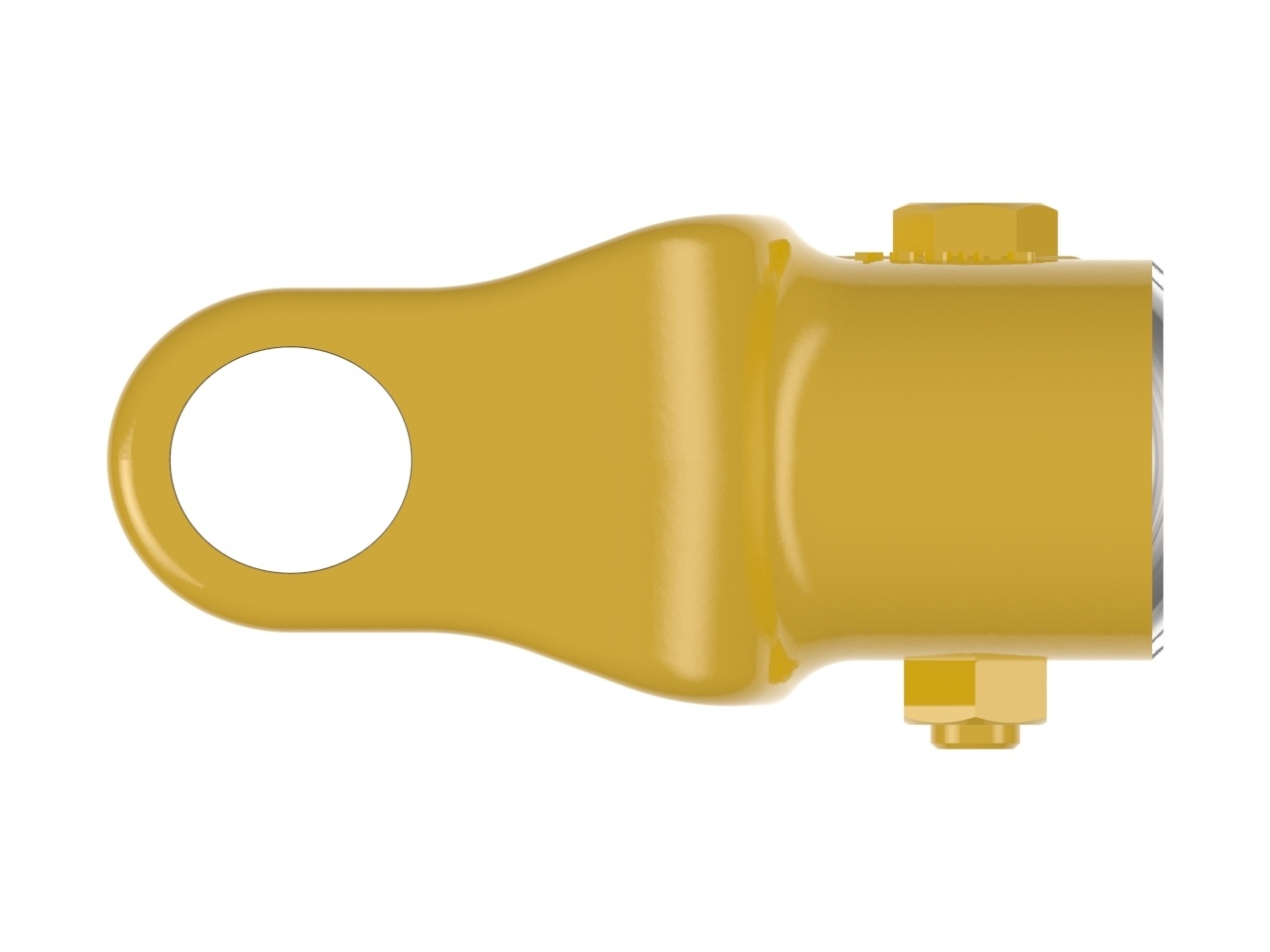

AW35 Series Clamp Yoke
AW35 series yoke with round with keyway bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Product Series: AW35
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.26 (1 17/64) in | 32 mm |
| Bearing Cap to Cap Span | 2.98 (2 63/64) in | 76 mm |
| Bore | 1.18 (1 3/16) in | 30 mm |
| Bore Description | ROUND WITH KEYWAY | |
| Connection 1 Type | CLAMP | |
| Keyway 1 | 0.31 (5/16) in | 8 mm |
| Centerline to End Dim | 4.57 (4 9/16) in | 116 mm |
| Weight | 4.92 pounds | 2 kilograms |
