AW35 Series Ball Shear Clutch Safety Slide Lock Yoke

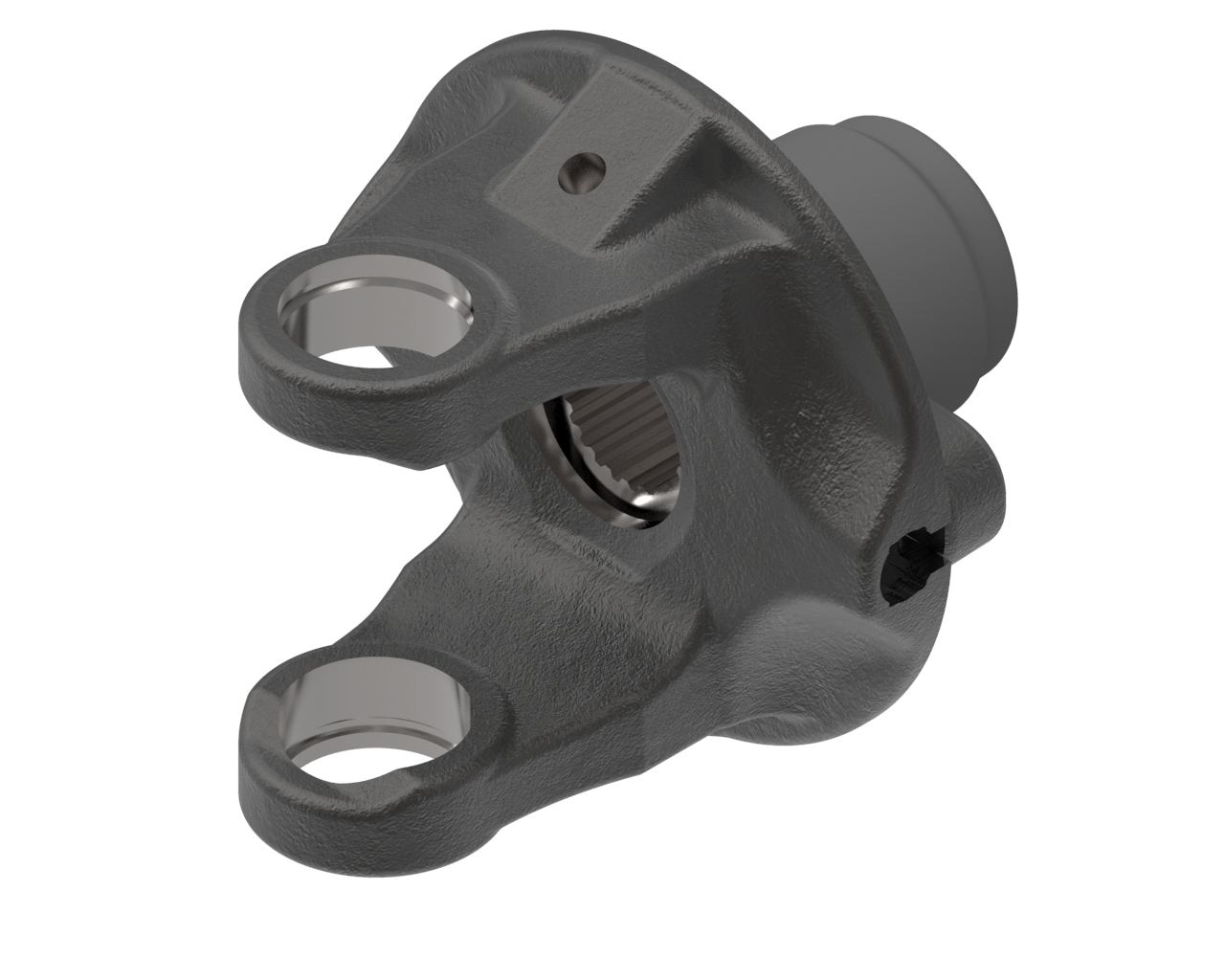

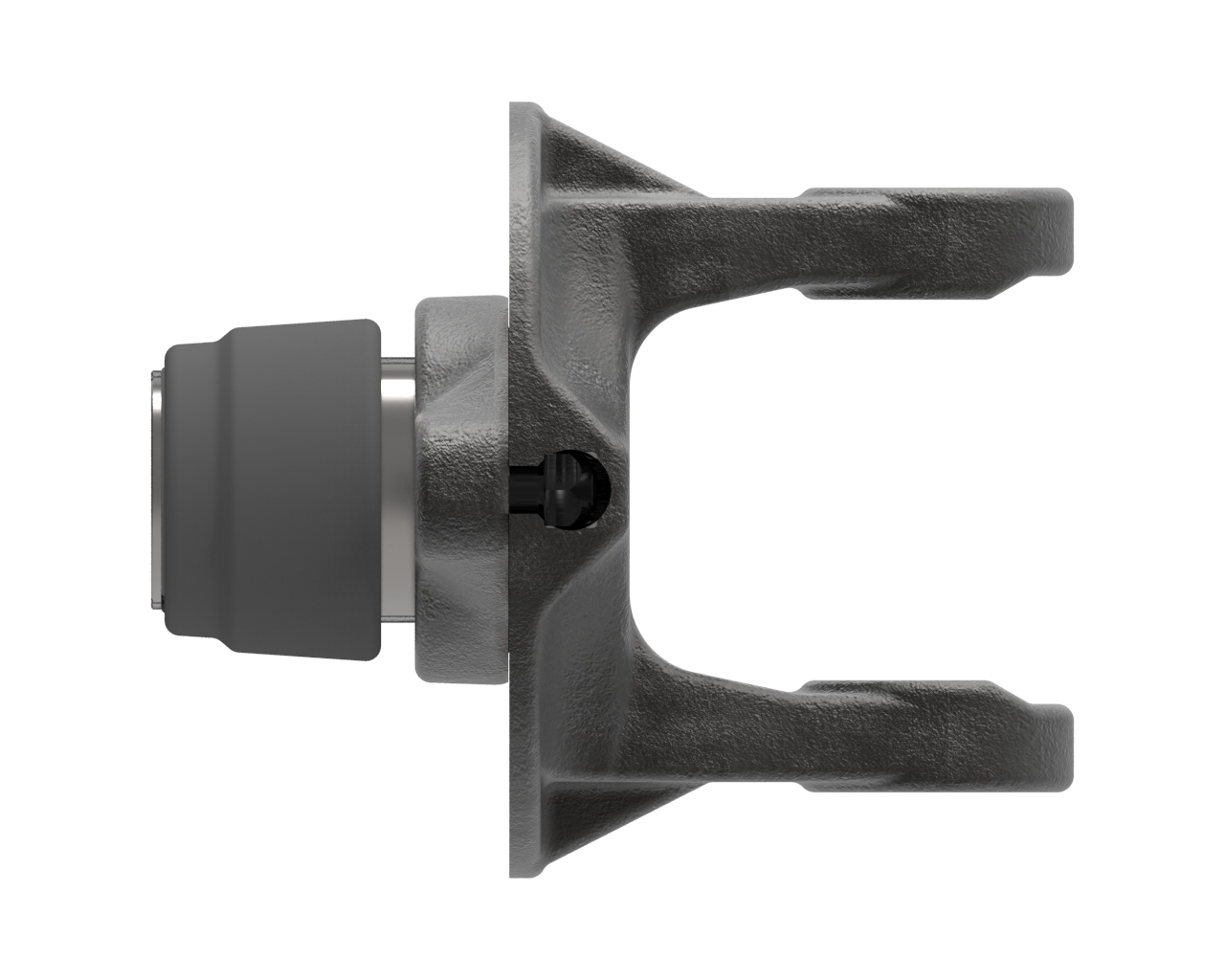

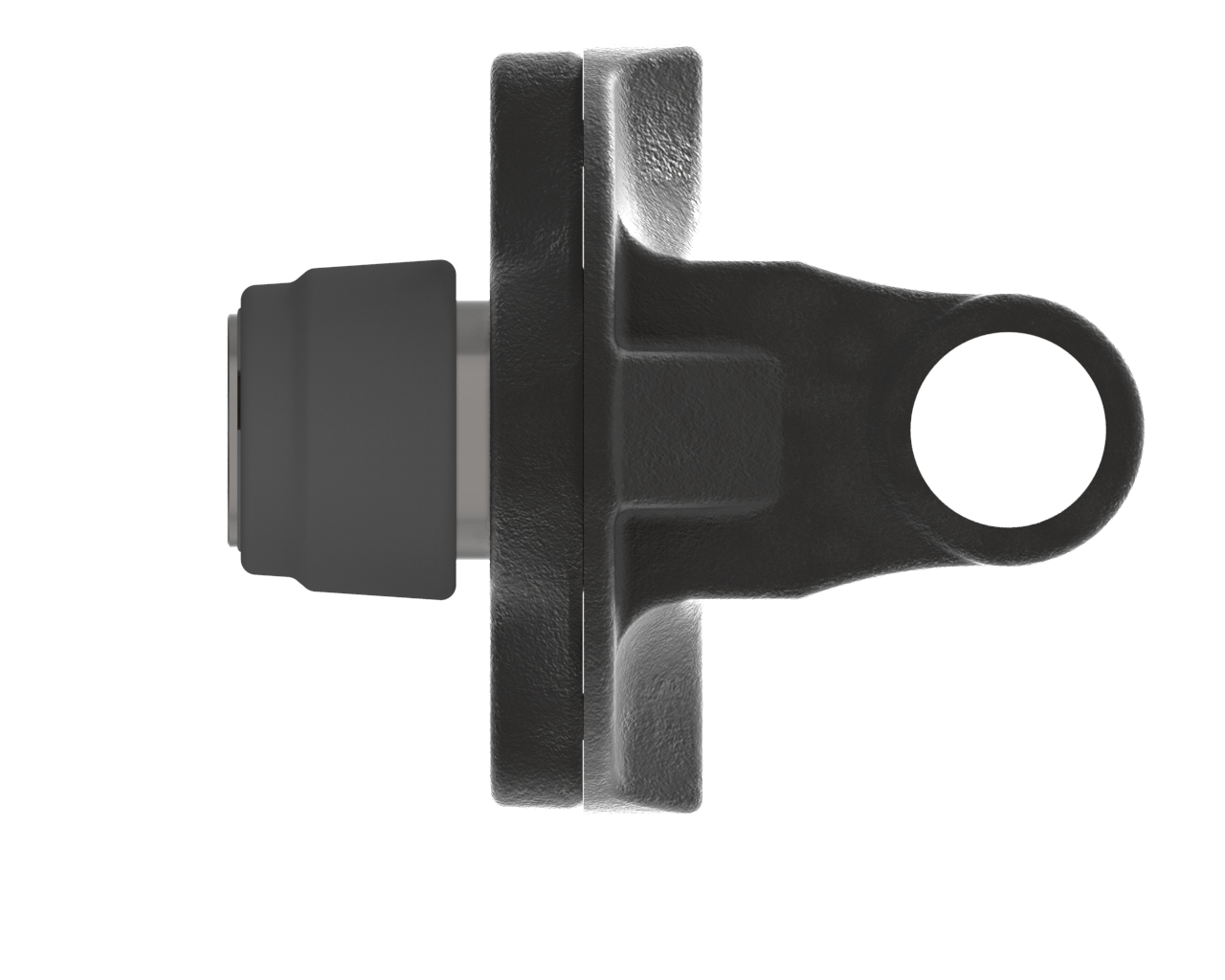

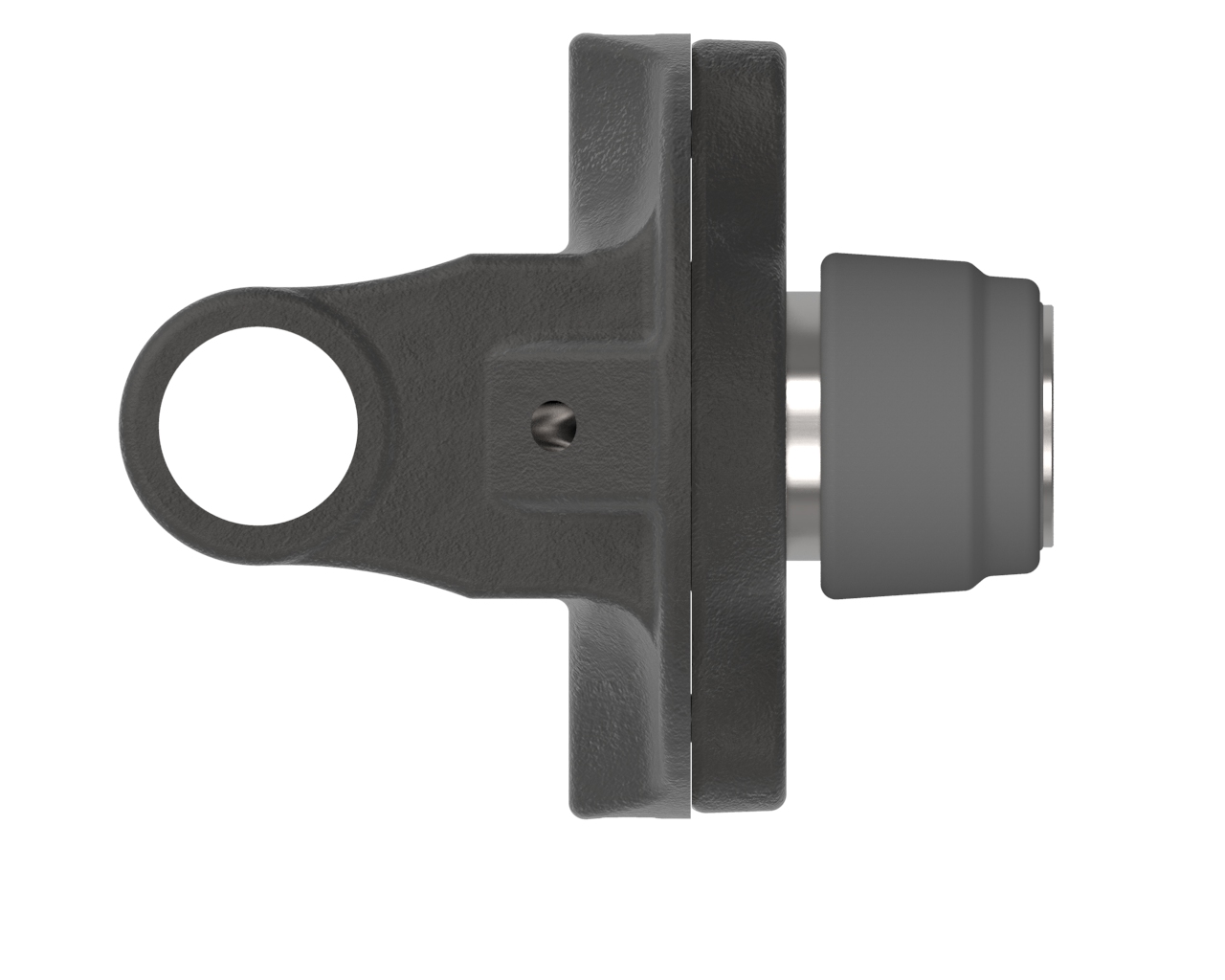

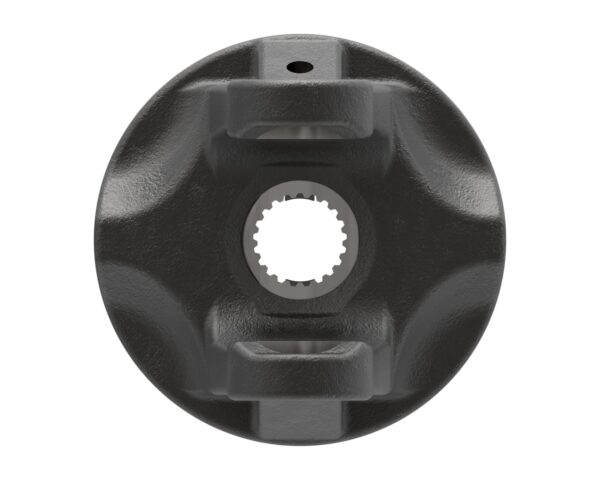

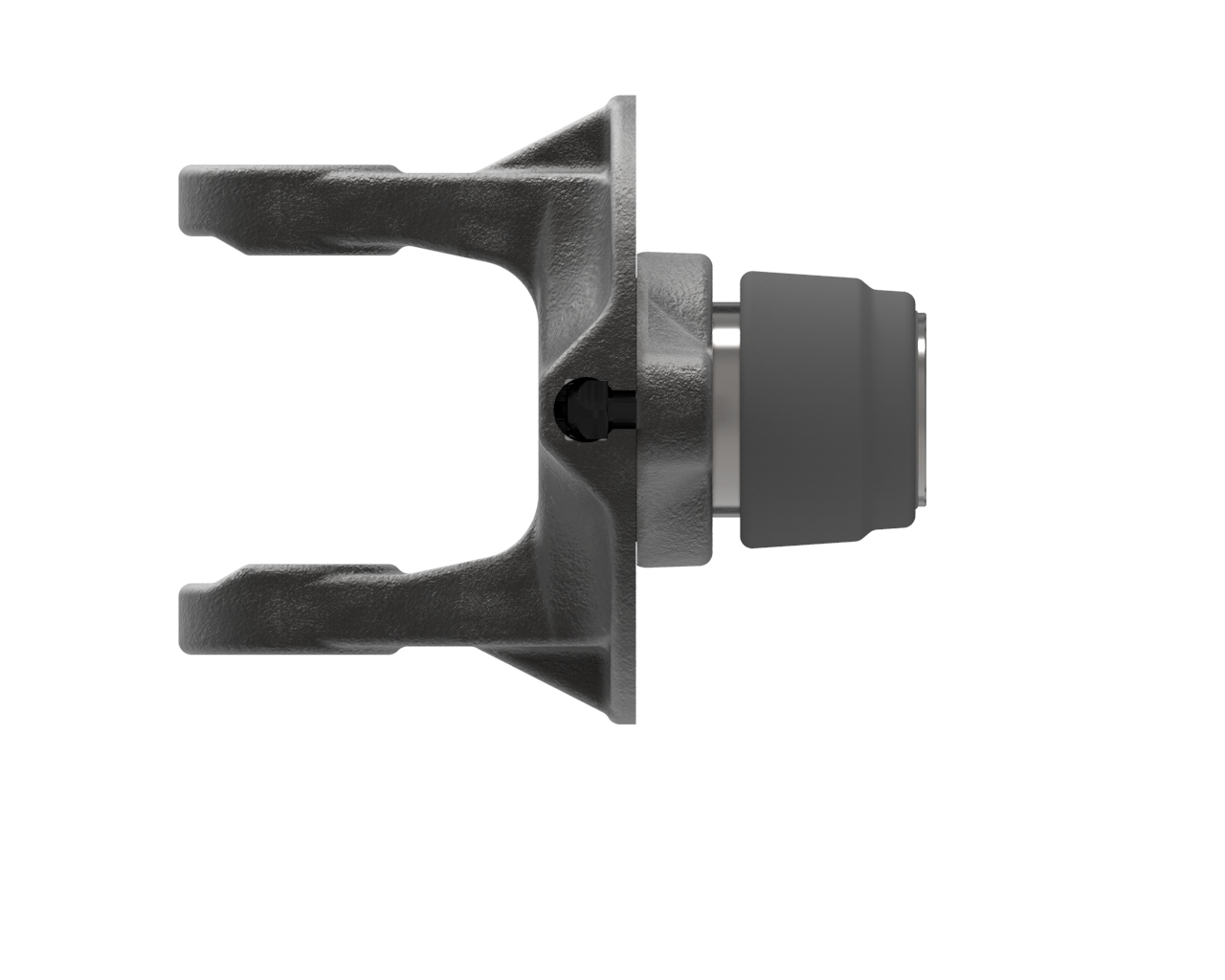

AW35 series ball shear clutch yoke with 1 3/8-21 spline bore and safety slide lock connection. Note: Image color may not represent actual part.

The ball shear yoke clutch offers implement overload protection. In addition to the traditional implement mounted configuration, the free motion and hidden bolt tractor shaft mounted options make hook-up and service more user friendly. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.

PERFORMANCE BENEFITS
• Implement overload protection.
• Minimal maintenance.
• No damaging heat generation for higher productivity.
• Repeatable overload disengagement setting.
• Tamper resistant.
• Smooth disengaged operation, no damaging torque spikes.
• Offered with or without free motion, overrunning and tractor mount options.
• Induction hardened bolt holes provide good edge for consistent, repeatable shear.
• Internal ball bearing with induction hardened races.
• Reduces possibility of damage.

DESIGN FEATURES
• Tractor yoke: Hidden shear bolt, Complies with asabe and ISO standards, Slide collar style for 1-3/8 x 6, 1-3/8 x 21 and 1-3/4 x 20 PTO shafts.
• Implement yoke contains shear bolt accessible for easy change out.
• Free motion yoke: Shear bolt accessible for easy change out, 60° free movement for easy hookup of tractor yoke.
• Auto-lok attachment available (patented).
• Speeds to 2000 rpm.
• Broad range of shear torque settings.
