AW26 Series Roll Pin Yoke

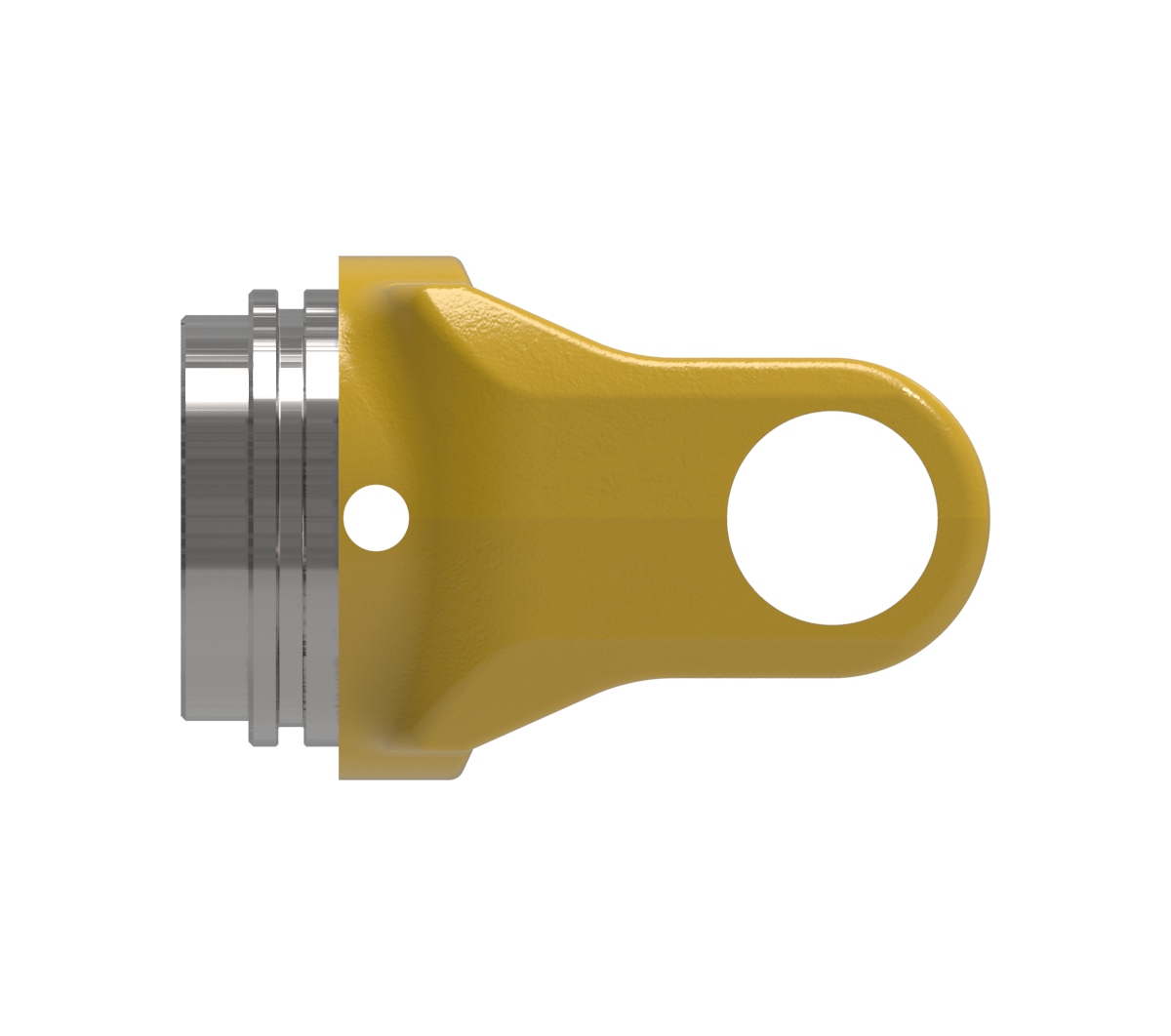

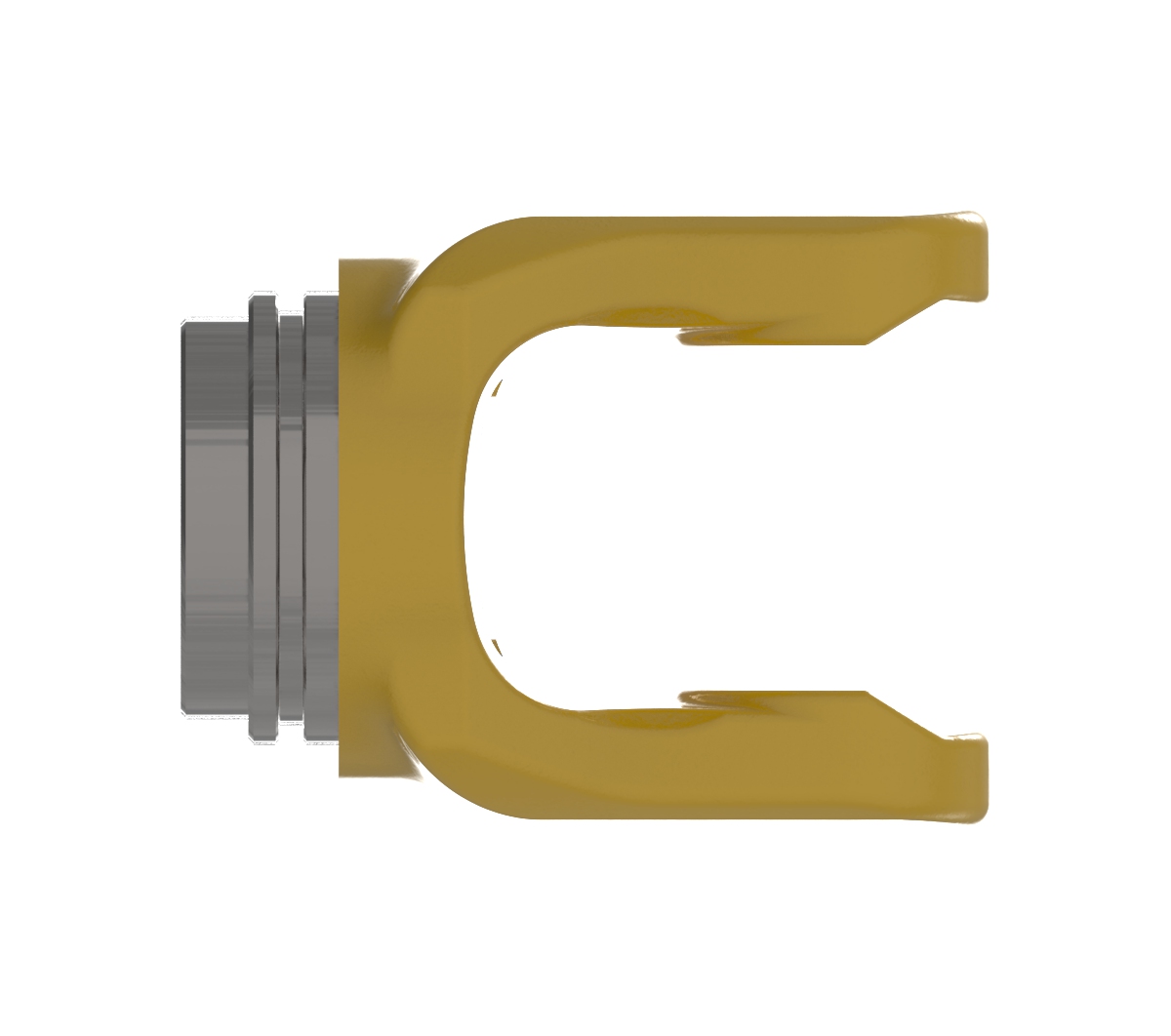

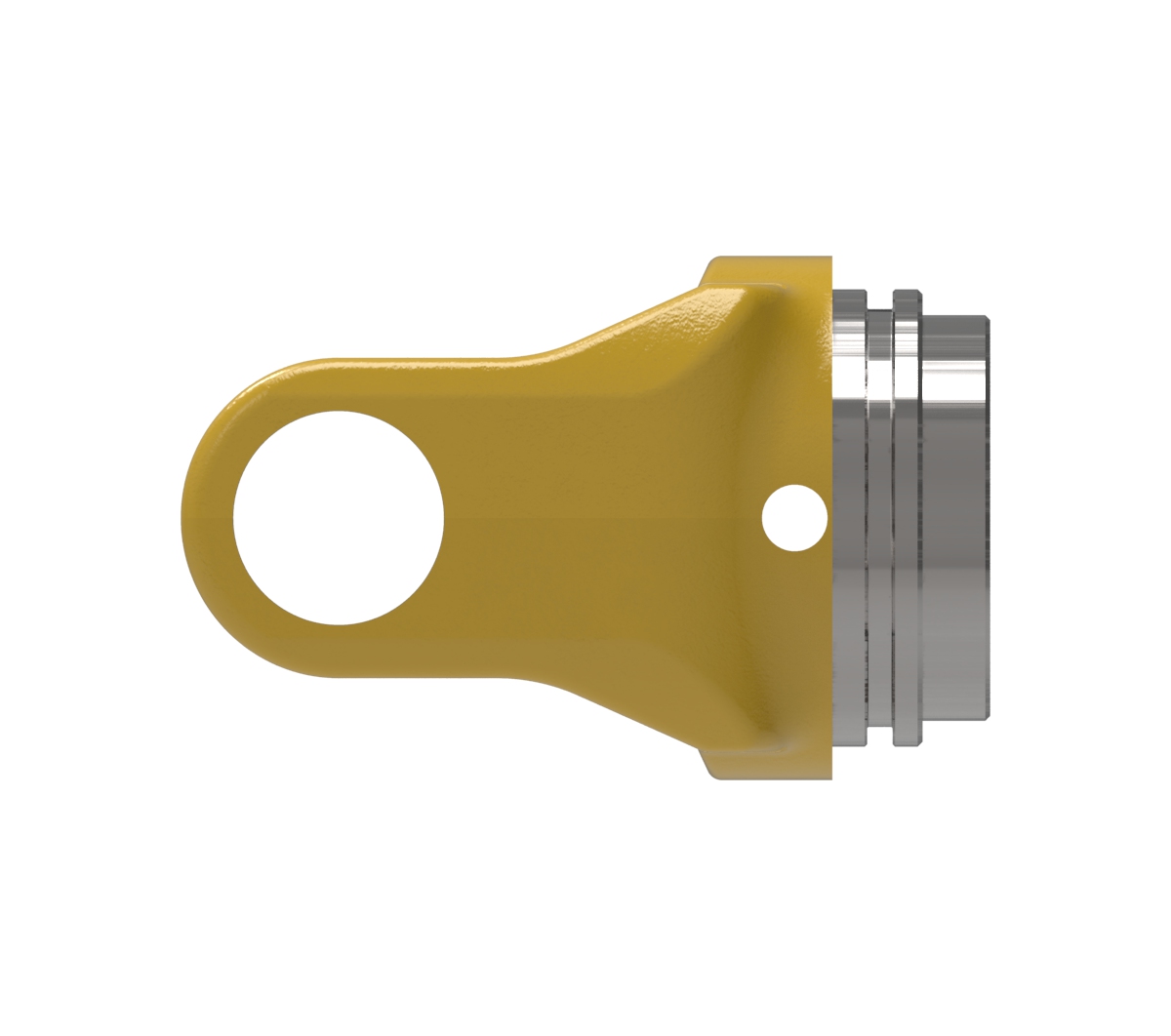

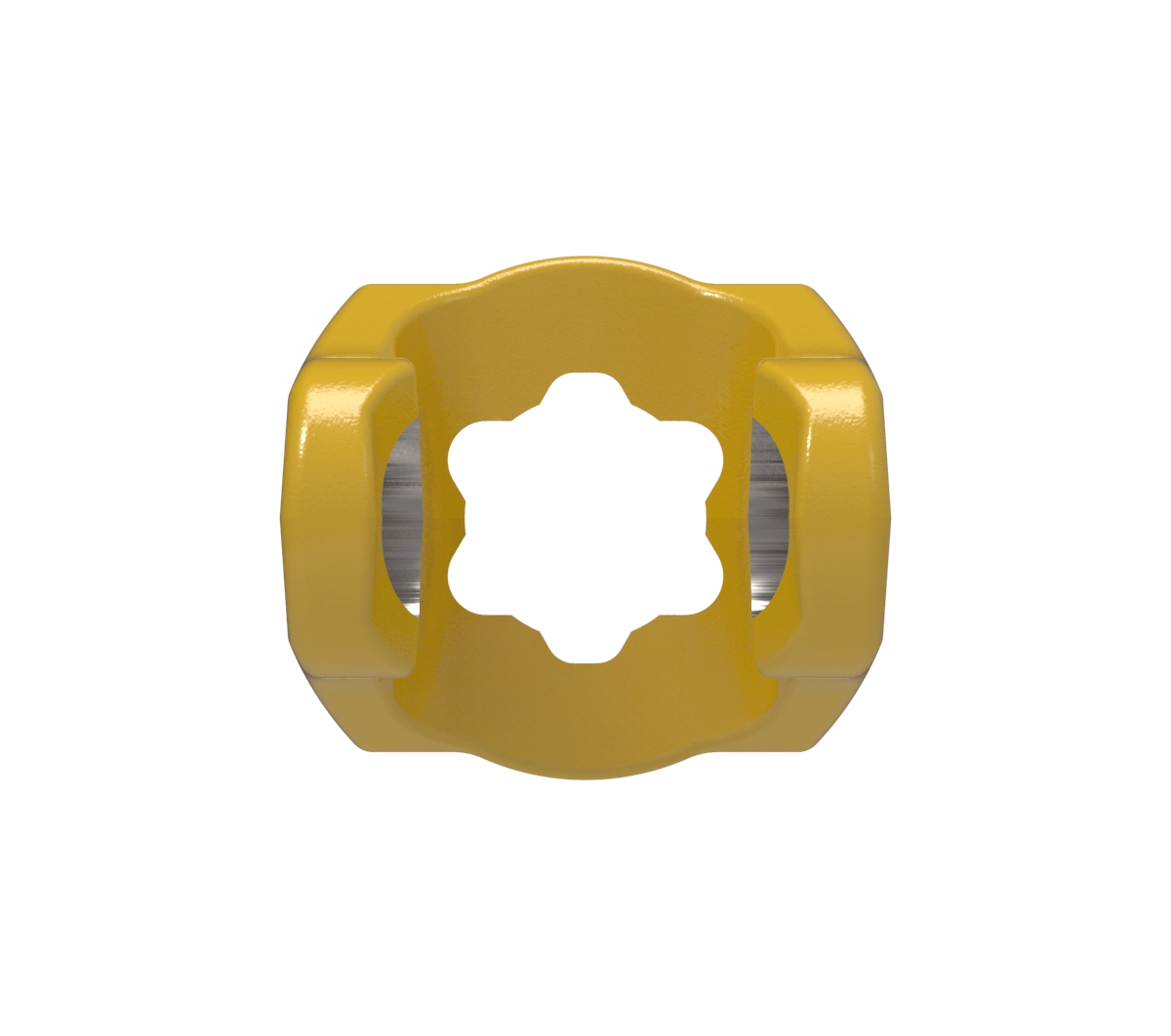

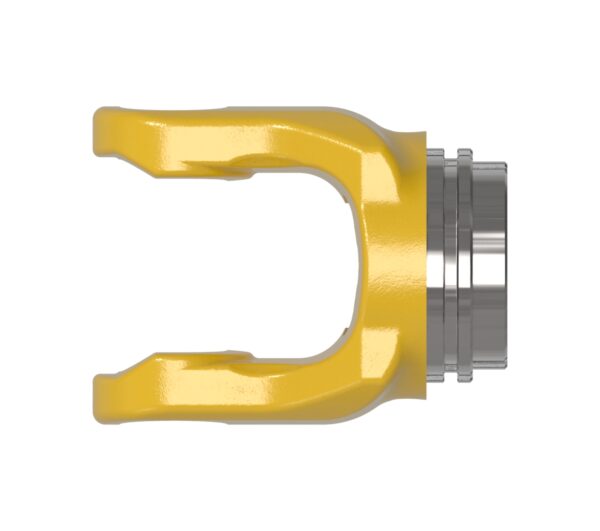

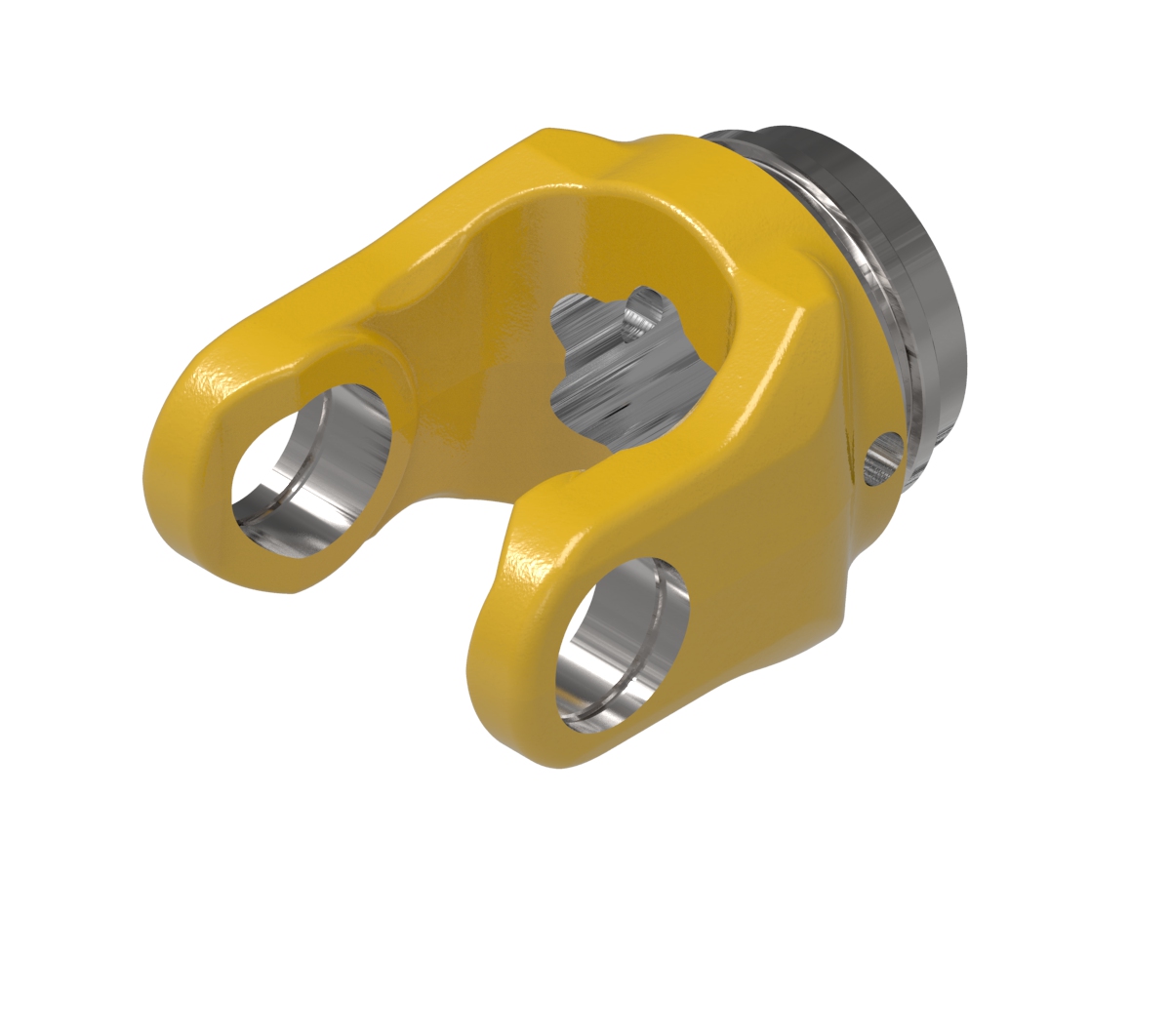

AW26 series yoke with 61 mm star bore and roll pin connection. Note: Image color may not represent actual part.
Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.
PERFORMANCE BENEFITS
Specifications
Product Series: AW26
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.65 (1 21/32) in | 42 mm |
| Bearing Cap to Cap Span | 4.09 (4 3/32) in | 104 mm |
| Bore | 2.40 (2 13/32) in | 61 mm |
| Bore Description | 61 MM STAR | |
| Connection 1 Type | ROLL PIN | |
| HP@1000RPM | 230 HP | 172 kilowatts |
| HP@540RPM | 149 HP | 111 kilowatts |
| Centerline to End Dim | 5.11 (5 7/64) in | 130 mm |
| Weight | 8.04 pounds | 4 kilograms |
| Bore | 2.40 (2 13/32) in | 61 mm |
| Bore Description | 61 MM STAR | |
